Description

Brief Product Description

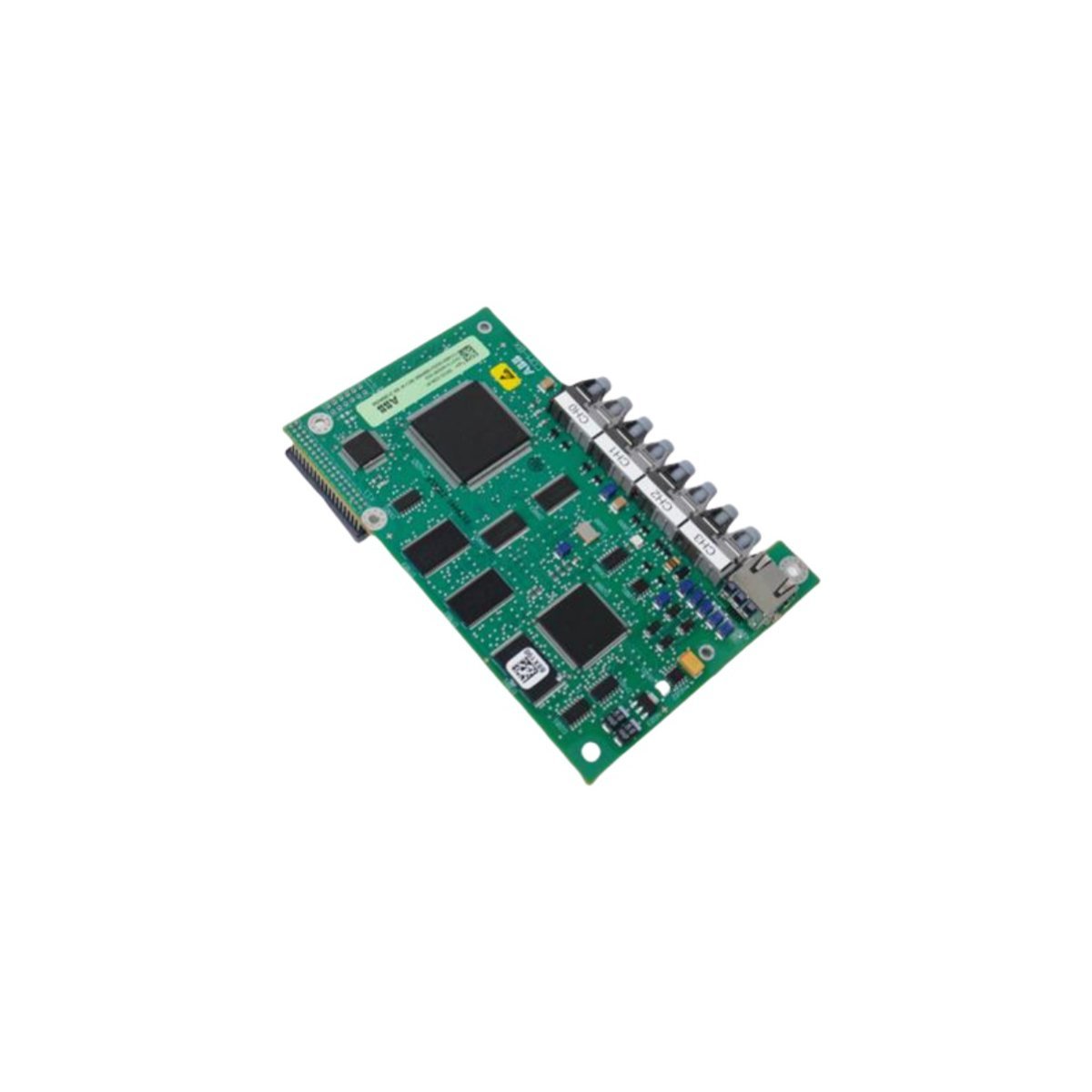

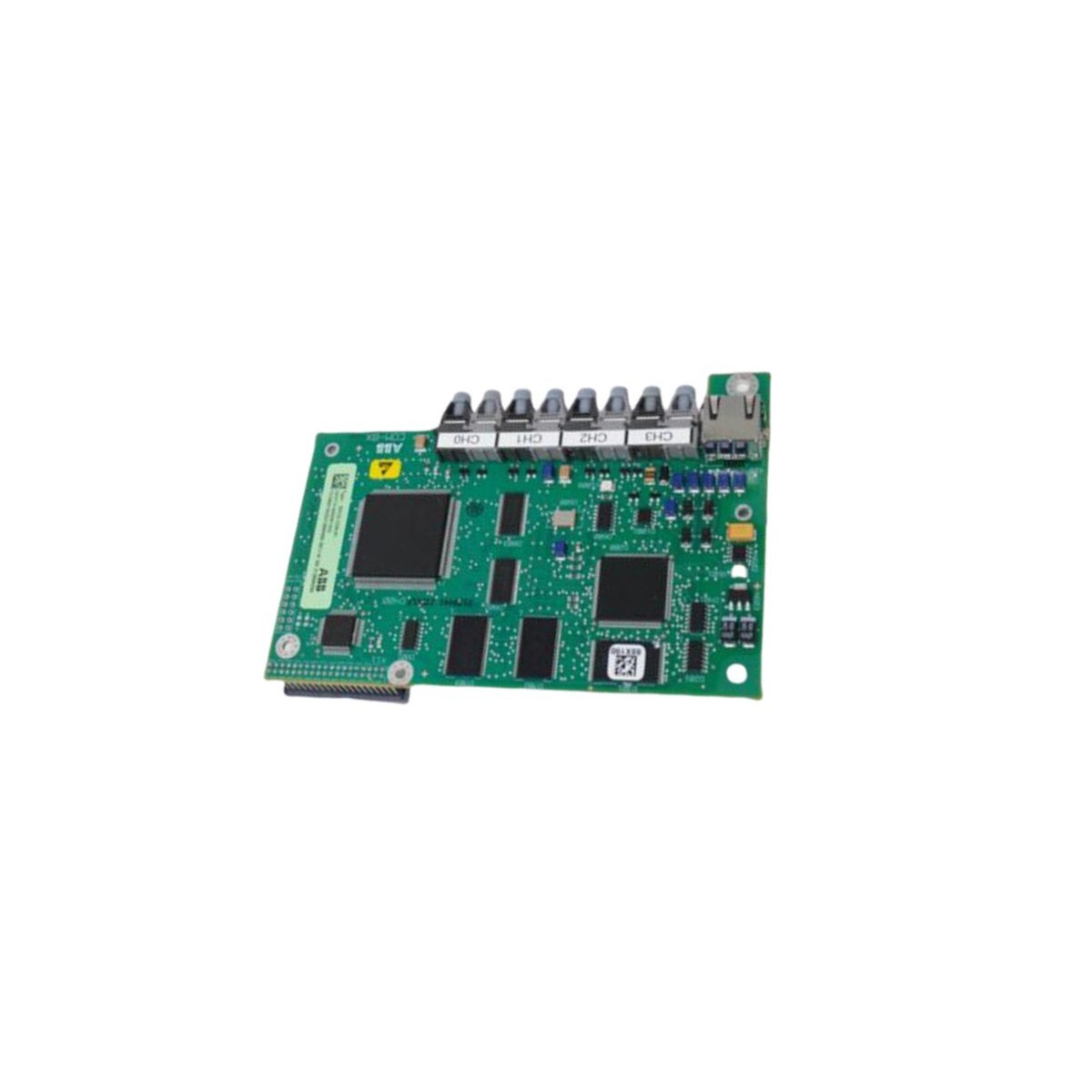

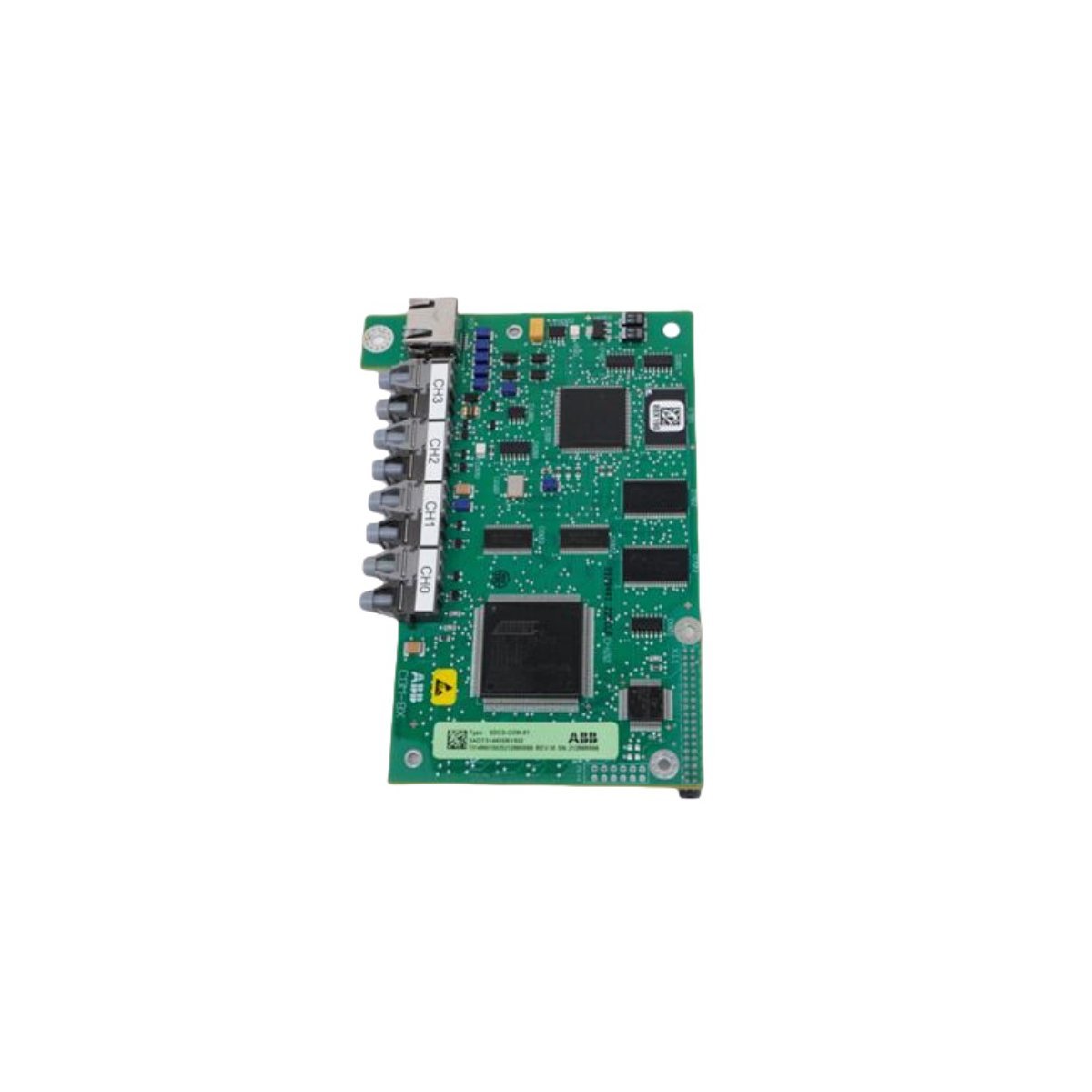

The ABB 3ADX50000439638 is a 32-bit RISC-based industrial control unit featuring a 120 MHz processor and extensive memory for complex automation tasks. This robust PLC board provides reliable data processing and retentive memory storage within demanding DCS and power system environments.

​Product Description

The ABB 3ADX50000439638 serves as a high-speed computational core designed for sophisticated industrial automation and grid protection. By utilizing a 32-bit RISC processor clocked at 120 MHz, this control unit executes complex logic and control algorithms with high precision. The internal architecture provides 2 MB of high-speed work RAM and 8 MB of Flash program memory, ensuring smooth operation for data-intensive applications. Furthermore, the inclusion of 1 MB of retentive memory guarantees that critical system parameters remain secure even during power interruptions.

Hardware Performance and Memory Management

Effective memory management and processing speed allow the 3ADX50000439638 to handle real-time monitoring and protection functions simultaneously. The board integrates advanced communication capabilities, including fiber-optic bus compatibility, which facilitates high-speed data exchange in automated substations. Because the unit supports remote configuration and detailed diagnostics, maintenance teams can significantly reduce system downtime through proactive monitoring. Consequently, this control unit excels in managing variable frequency drives and protective relay functions across utility and industrial networks.

Environmental Engineering and Physical Build

Engineers designed the 3ADX50000439638 to withstand extreme operational conditions without compromising performance. The unit operates reliably across a temperature spectrum of -25°C to +60°C and tolerates non-condensing humidity levels as high as 95%. Its slim, space-saving form factor measures only 2 cm in thickness, allowing for high-density installation in standard control cabinets. Transitioning to this board offers a blend of thermal resilience and mechanical durability, ensuring long-term service life in harsh manufacturing or power generation environments.

Technical Specification Table
