Description

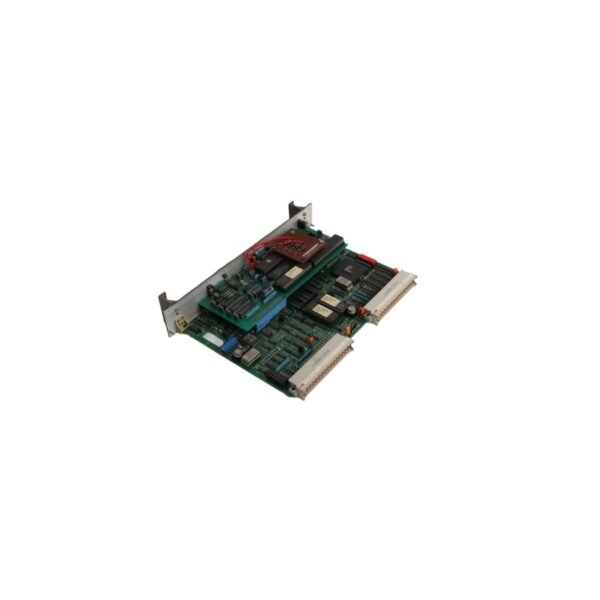

Configured for precise torque and speed regulation within the UNITROL Excitation Systems platform, the ABB HIEE400947R1 (UPB011 BE Drive Control Board) provides direct physical and electrical execution for motor control loops.

Hardware Specifications

Industrial Control & Network Determinism

The ABB HIEE400947R1 integrates into UNITROL excitation architectures primarily through high-speed backplane bus communication. Consequently, to maintain consistent deterministic network performance, the module utilizes optimized firmware flash compatibility; this specifically ensures precise synchronization with field-oriented control loops. Furthermore, the board is engineered to handle rigorous I/O density scaling requirements within the excitation rack. By doing so, it facilitates low-latency command execution. Ultimately, these integrated processes maintain total communication integrity across the system’s Ethernet-based router interfaces, thereby ensuring stable operational throughput.

Frequently Asked Questions

Q: Does the HIEE400947R1 support hot-swap functionality?

A: No. Power must be removed from the excitation rack backplane before attempting to install or remove the control board to prevent damage to the communication bus and onboard circuitry.

Q: What is the primary function of the Ethernet router service integrated into this board?

A: The onboard Ethernet interface handles diagnostic data transmission and synchronizes control parameters with the higher-level DCS or supervisory controller, ensuring real-time monitoring of excitation status.

Field Installation Guidelines

• Static Protection: Ensure the use of a properly grounded ESD wrist strap before handling the HIEE400947R1 to protect sensitive MOS components.
• Mounting Stability: Secure the board into the designated UNITROL chassis slot using the factory-provided locking levers. Verify that the backplane pins are fully aligned before seating to prevent pin deformation.
• Wiring/Cabling: Utilize shielded twisted-pair cabling for the Ethernet interface to mitigate electromagnetic interference (EMI). Route communication cables separately from high-voltage AC power lines.
• Grounding: Ensure the chassis frame is bonded to the main plant ground bus to ensure signal reference stability for the control board’s internal circuits.
