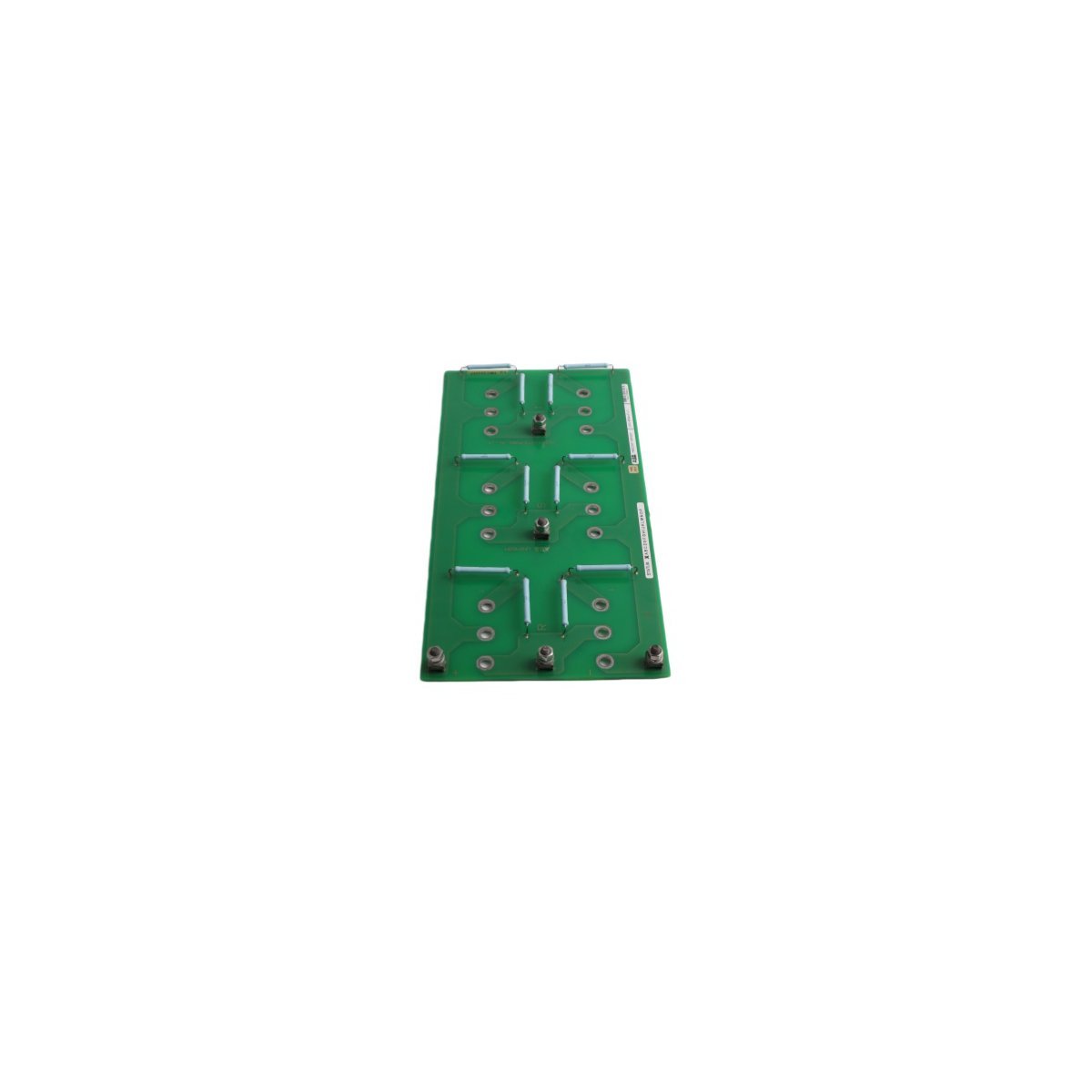

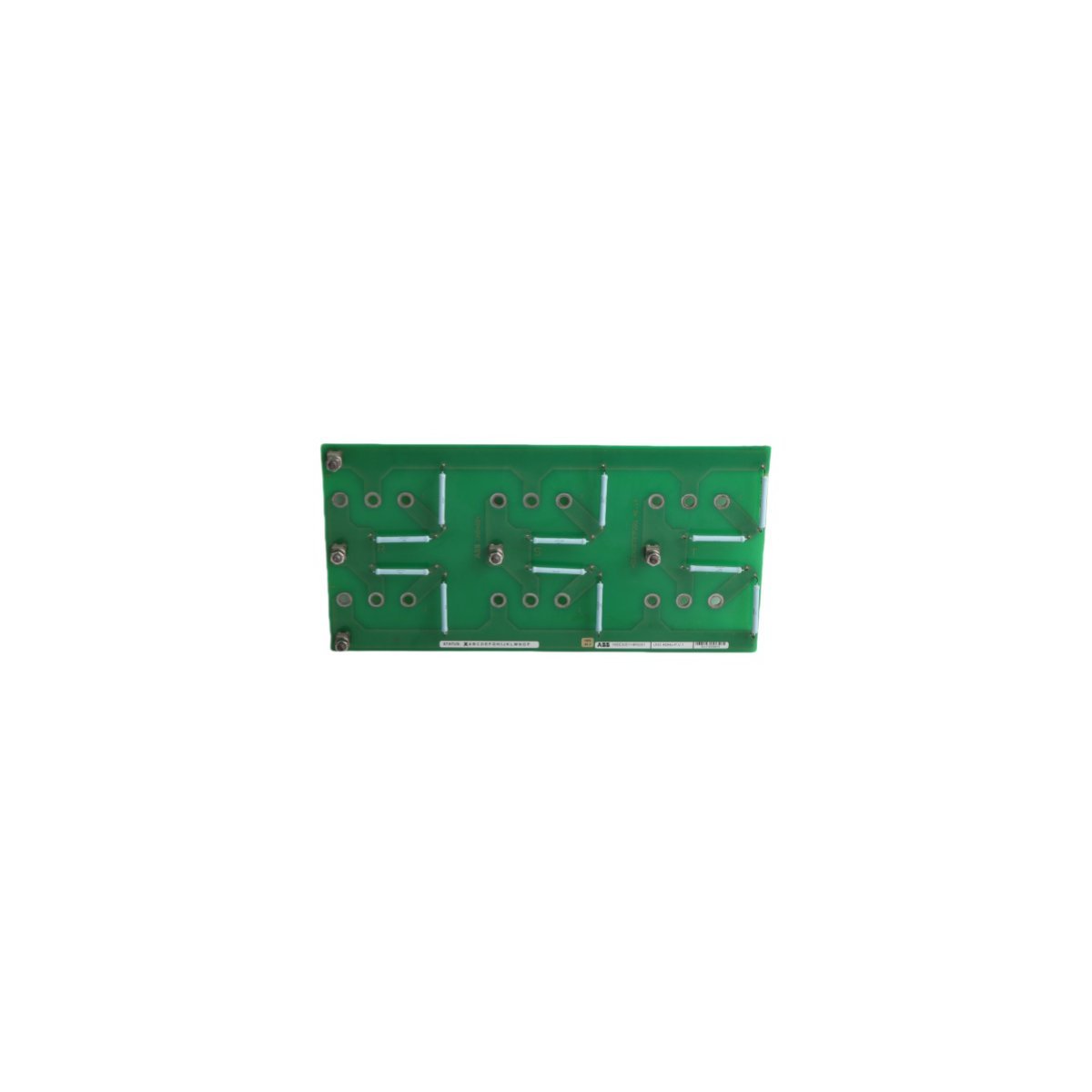

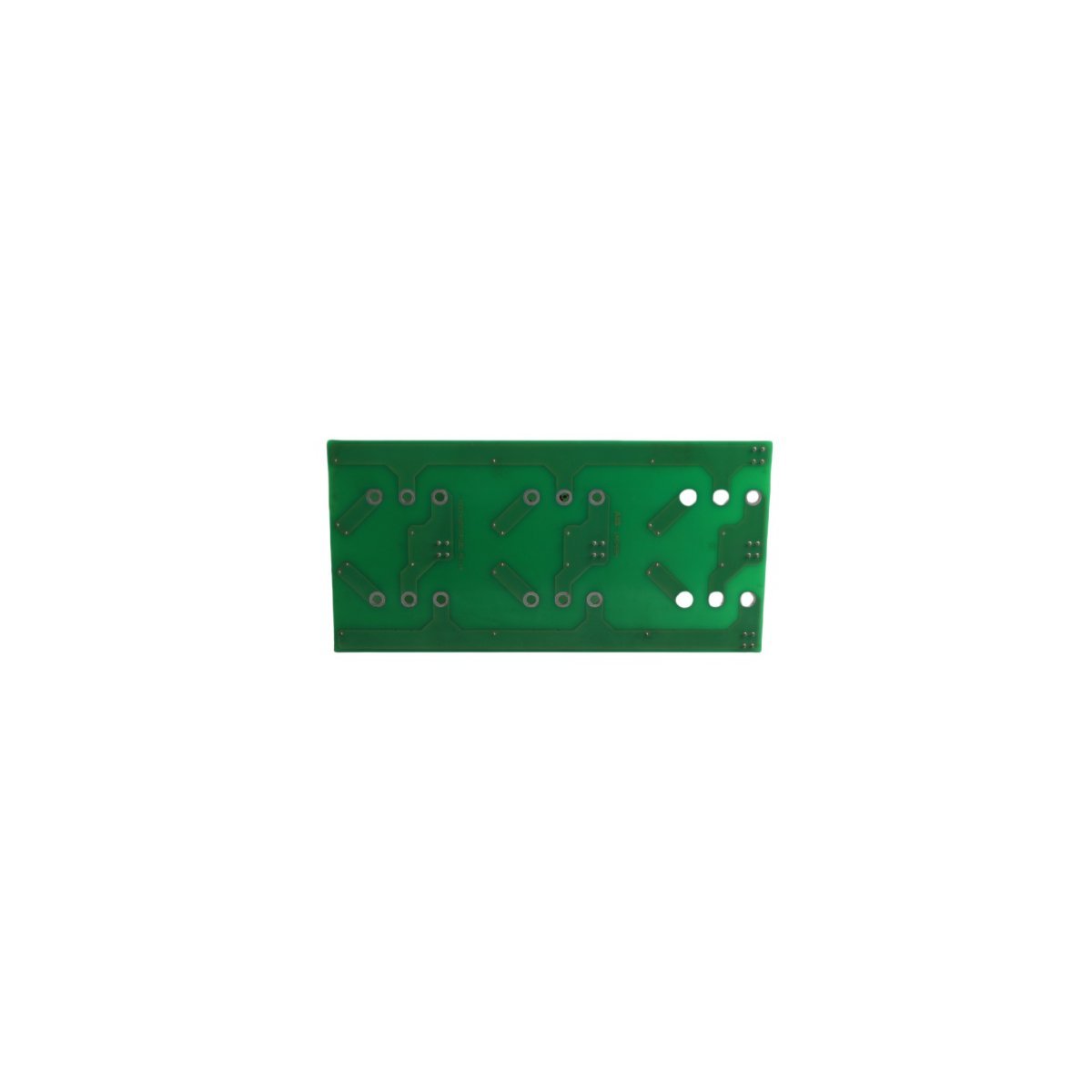

ABB HIEE305114R0001 UNS4684A-P UNITROL 6000 PCB Assembly
The ABB HIEE305114R0001 UNS4684A-P is a specialized PCB assembly for UNITROL 6000 excitation systems. It provides advanced overvoltage protection and high-speed signal processing to ensure the stability and safety of industrial power automation networks.
Description
Product Overview
The ABB HIEE305114R0001 UNS4684A-P is a critical printed circuit board assembly designed for the UNITROL 6000 excitation series. This high-reliability module facilitates precise signal processing and overvoltage protection to safeguard large-scale power generation assets and industrial converters.
Product Features and Technical Functions
The UNS4684A-P serves as a fundamental hardware layer within the UNITROL 6000 ecosystem, where it manages high-speed logic execution and interface tasks. By leveraging specialized circuitry, the board maintains system integrity during transient electrical events.
- Optimized Signal Integrity: Advanced PCB layout techniques minimize electromagnetic interference, which ensures clean data transmission across the control network.
- Superior Thermal Management: The board utilizes high-grade FR-4 epoxy resin substrates to provide excellent heat resistance, allowing for stable operation in high-temperature industrial cabinets.
- Precision SMT Engineering: Surface Mount Technology improves electrical conductivity and mechanical bond strength, effectively extending the module’s operational lifespan in high-vibration environments.
- Robust Overvoltage Protection: Integrated OVP circuits actively monitor voltage levels to prevent damage to sensitive downstream components during grid fluctuations.
- Seamless DCS Integration: The board supports standard communication interfaces and Ethernet router services, enabling direct connectivity with ABB’s distributed control systems.
Technical Specifications
| Attribute | Specification |
| Manufacturer | ABB |
| Model Number | UNS4684A-P |
| Order Number | HIEE305114R0001 |
| Module Type | PCB Assembly (OVP / Control) |
| Product Family | UNITROL 6000 |
| Dimensions | 27.1 x 13.6 x 2.0 cm |
| Net Weight | 0.18 kg |
| Base Material | FR-4 Epoxy Resin |
| System Origin | Sweden |
Application Fields
Engineers typically integrate the HIEE305114R0001 UNS4684A-P into heavy-duty industrial automation frameworks. Its primary applications include:
- Excitation control for synchronous machines in hydroelectric and thermal power plants.
- Voltage regulation and protection within high-capacity industrial power converters.
- Automation modules for distributed control systems (DCS) in manufacturing.
- Critical signal routing for high-reliability energy management infrastructure.
Additional information
| Weight | 0.18 kg |
|---|---|
| Country of Origin | Sweden |
| Dimension | 27.1 x 13.6 x 2 cm |
