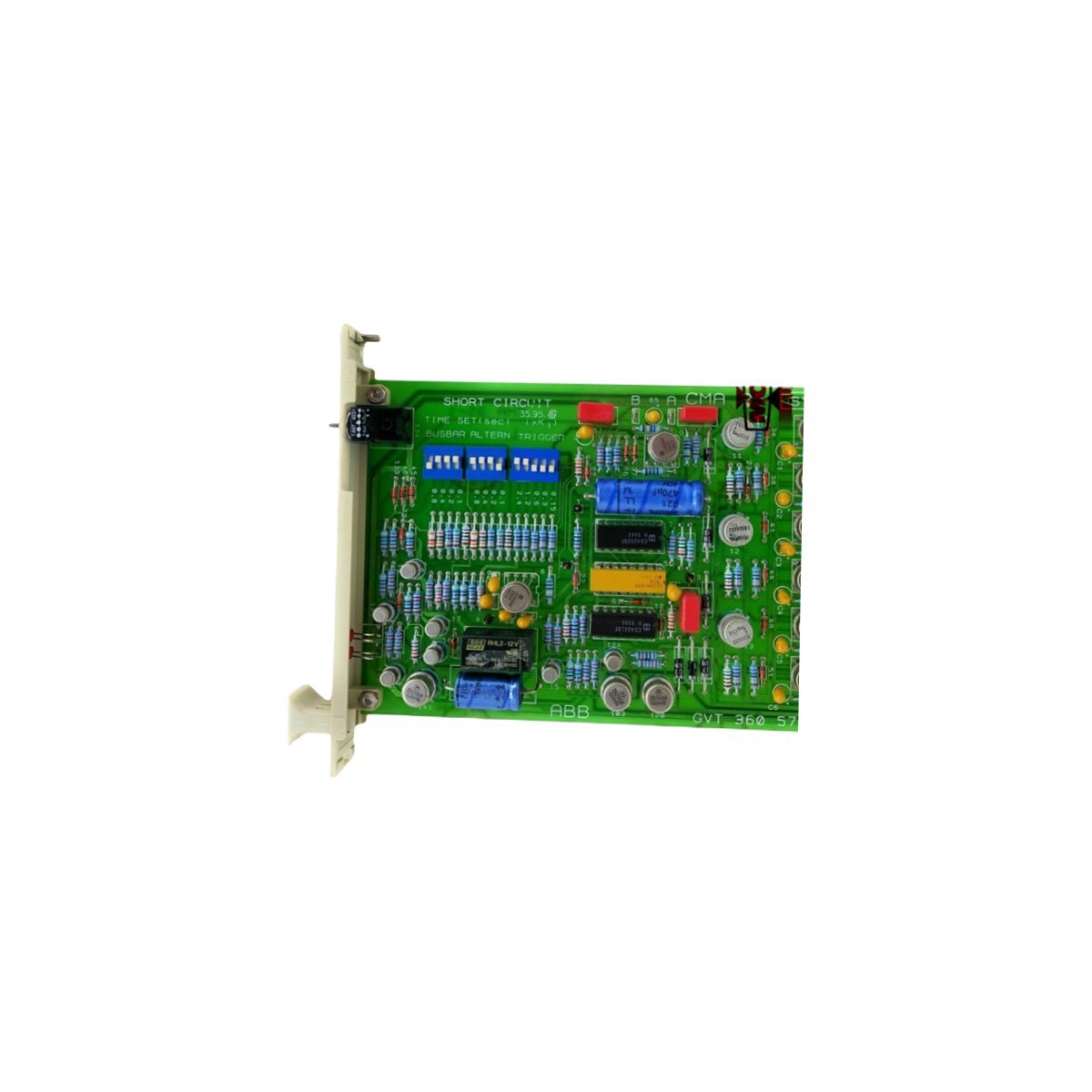

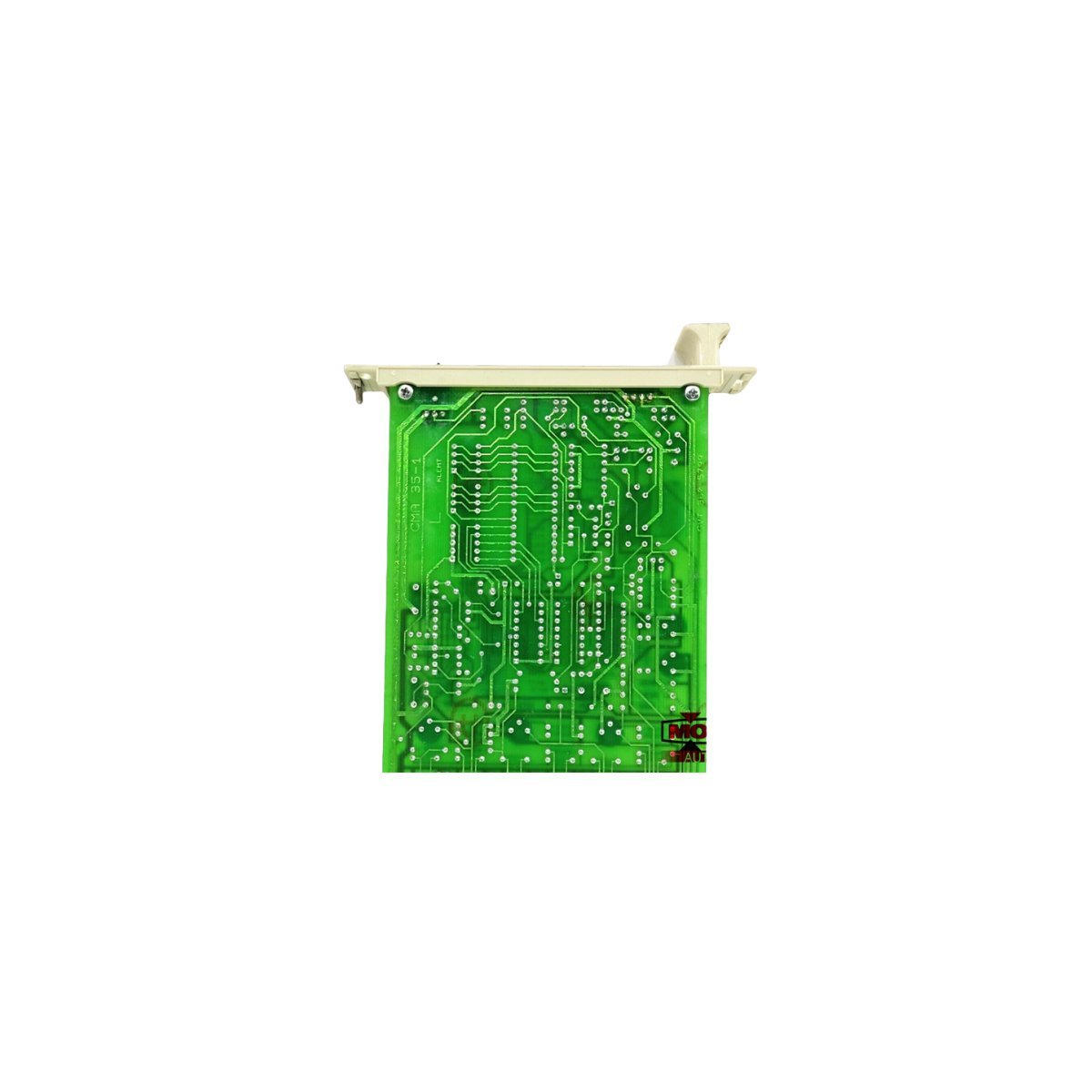

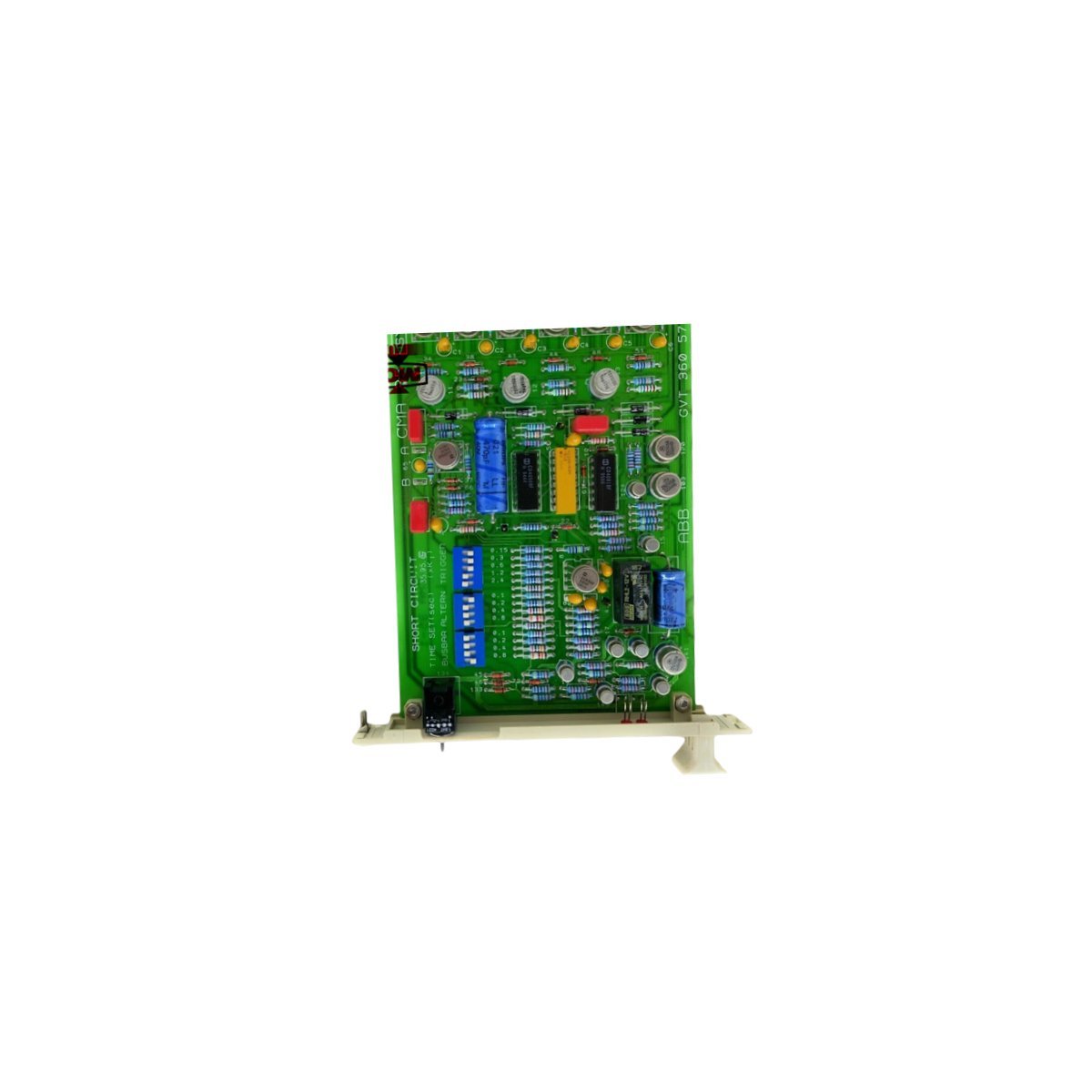

ABB CMA35 GVT3605799 Short Circuit PCB Interface Card
The ABB CMA35 GVT3605799 is a precision-engineered short-circuit protection card for AC500 and Synpol systems. This compact PCB module provides reliable fault detection and high-speed data interfacing for industrial DCS applications, ensuring system stability and secure Ethernet routing in demanding environments.
Description
Technical Function and Industrial Purpose
The ABB CMA35 GVT3605799 serves as a specialized short-circuit protection and interface card within the AC500 and Synpol control frameworks. It primarily functions as a high-speed monitoring component that safeguards the integrity of Distributed Control Systems (DCS) by managing signal isolation and fault detection. By integrating this module into a control architecture, engineers can maintain stable communication between the central processing units and external field instrumentation, even under fluctuating electrical conditions.
Key Performance Characteristics
This PCB module incorporates advanced diagnostic circuitry to provide real-time status updates and fault localization. Because the card utilizes optimized signal pathways, it facilitates rapid data transfer which is essential for instantaneous decision-making in automated environments. The unit features a compact, low-profile design that allows for high-density mounting within standard control cabinets. Furthermore, the GVT3605799 utilizes high-grade industrial materials to ensure long-term durability against electromagnetic interference and thermal stress.
System Integration and Compatibility
ABB designed the CMA35 to offer flexible connectivity across various industrial networks. The module acts as an Ethernet-capable routing component, allowing for seamless integration into existing Ethernet-based infrastructures. Its primary application involves serving as a terminal interface for complex automation sequences where secure data exchange is mandatory. Consequently, this card reduces the complexity of system retrofitting and expansion by providing a standardized hardware interface that complies with international safety regulations.
Technical Specifications
- Brand: ABB
- Model: CMA35
- Order Number: GVT3605799
- Module Type: Short Circuit Card / PCB Interface
- Product Series: AC500 / Synpol
- System Category: Distributed Control System (DCS)
- Dimensions: 1.5 x 18.6 x 12.8 cm
- Net Weight: 0.12 kg
- Manufacturing Origin: Sweden
Additional information
| Weight | 0.12 kg |
|---|---|
| Country of Origin | Sweden |
| Dimension | 1.5 x 18.6 x 12.8 cm |
