Description

Brief Product Description

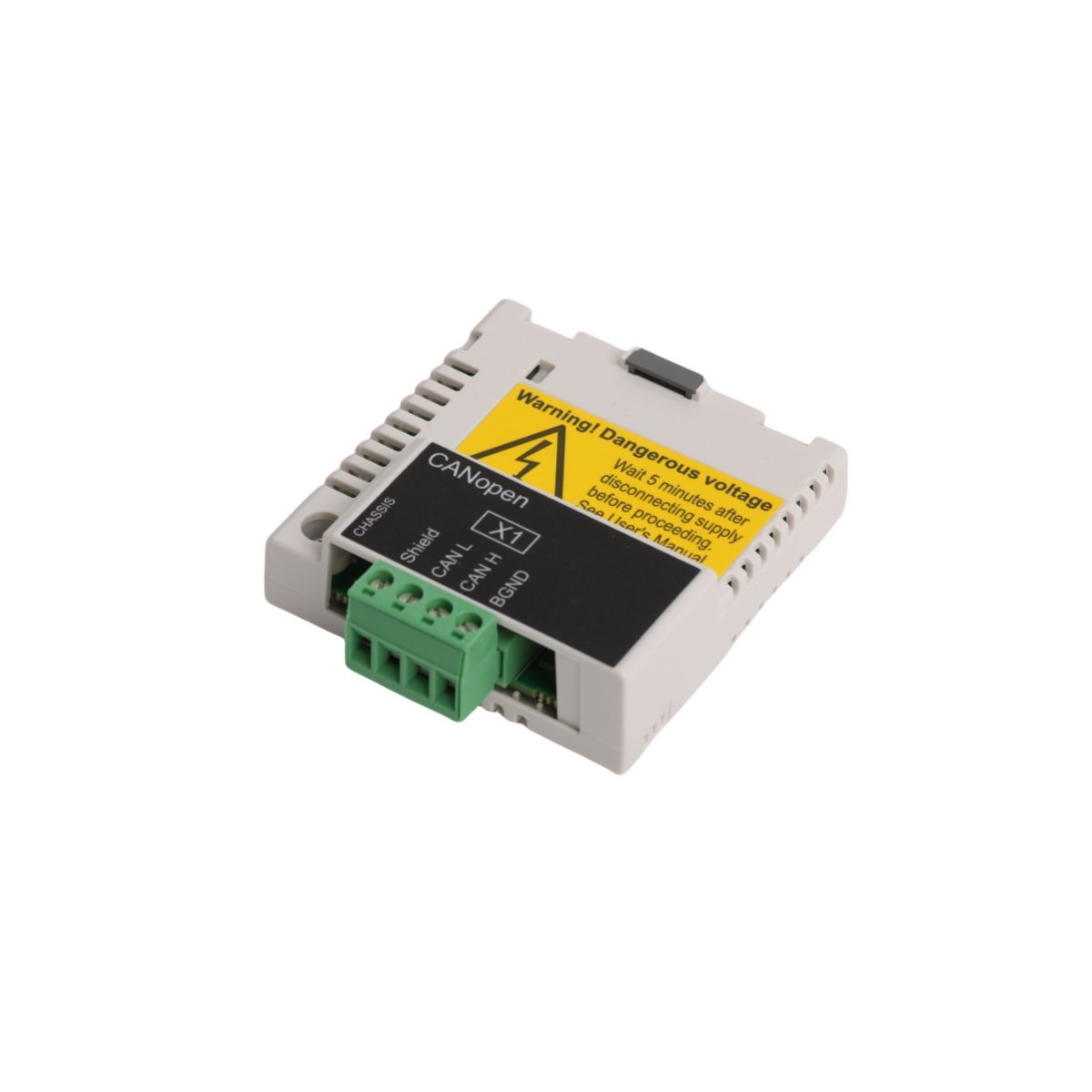

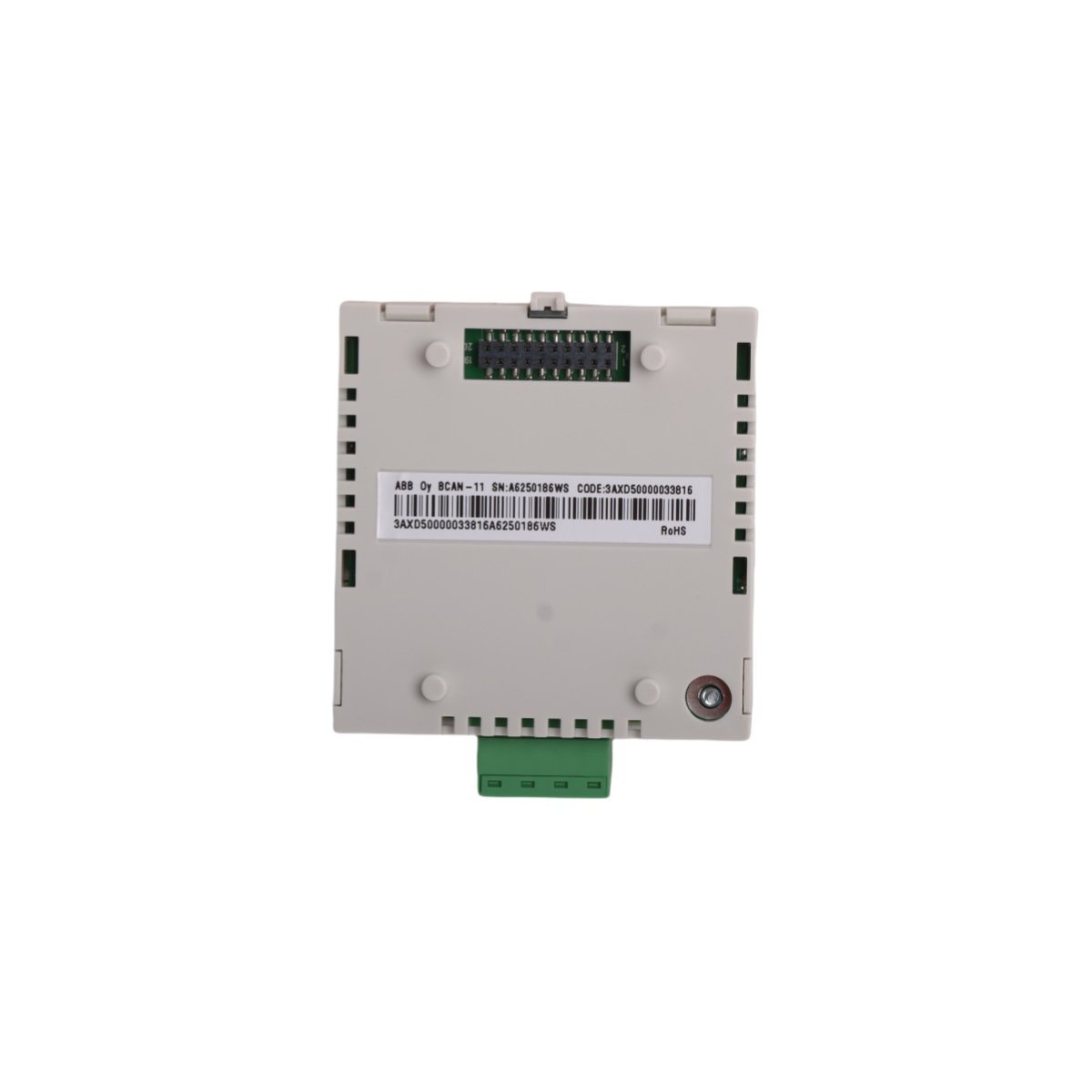

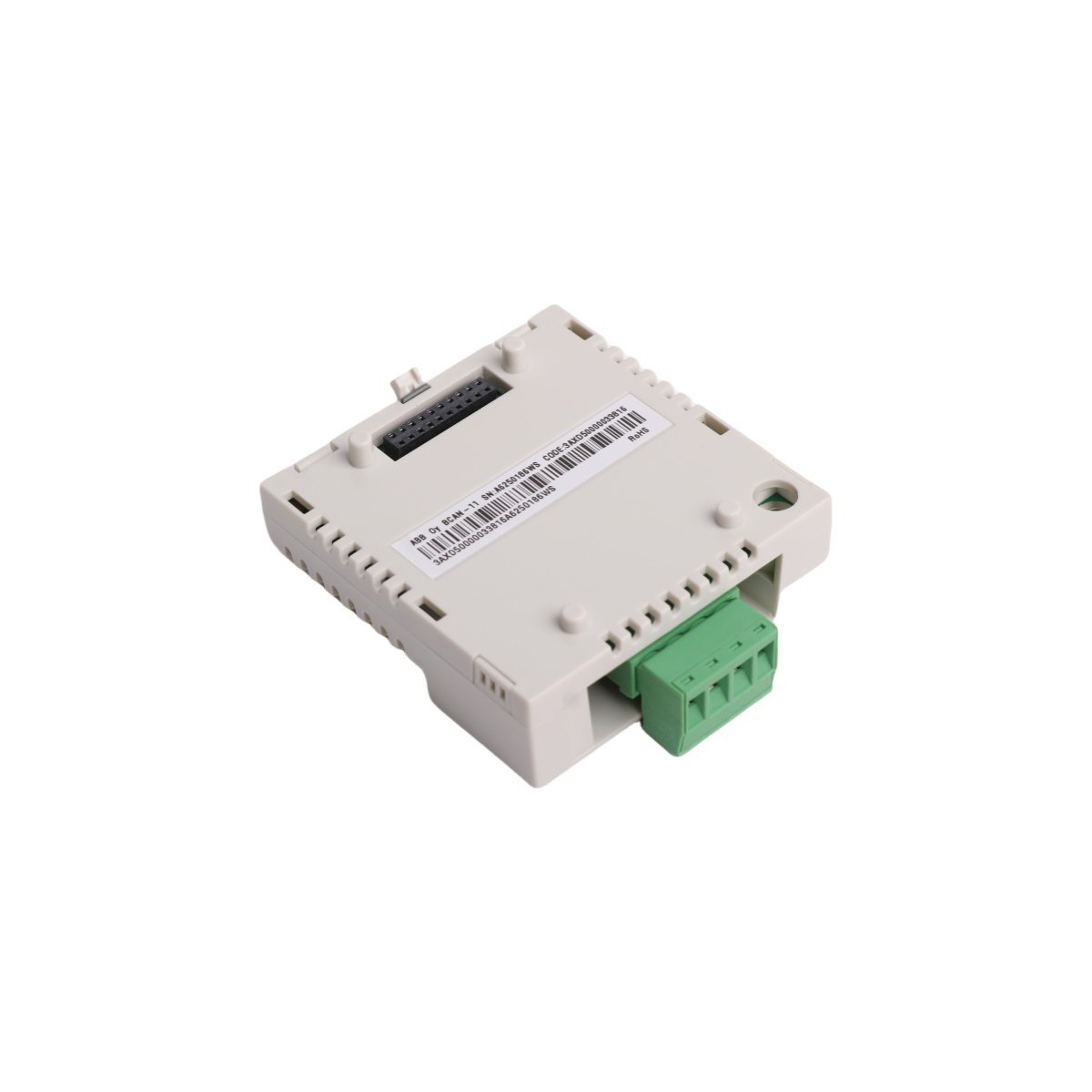

The ABB BCAN-11 (3AXD50000033816) is a specialized fieldbus adapter that provides high-speed CANopen connectivity for ABB industrial drives, specifically the ACS580 series. This compact interface enables seamless data exchange between motor drives and PLC systems to ensure precise motion control and real-time diagnostics.

​Product Description

High-Speed Network Integration

The ABB BCAN-11, identified by part number 3AXD50000033816, serves as a dedicated gateway between industrial motor drives and CANopen-based control networks. This interface module facilitates the transmission of critical operational parameters, including speed references, torque commands, and actual values. By integrating the BCAN-11 into an automation architecture, engineers achieve synchronized motor control across multiple drive units. This coordination remains essential for complex machinery where timing and speed precision directly impact production quality.

Industrial Durability and Environmental Protection

ABB engineered this module to maintain the integrity of the drive system even in rigorous industrial environments. The hardware architecture aligns with the high protection standards found in ACS580 drive lineups, effectively resisting the ingress of dust and moisture. Because the module undergoes extensive vibration and thermal testing, it ensures uninterrupted communication in settings characterized by mechanical stress or temperature fluctuations. This resilience prevents network dropouts and safeguards the process from unexpected downtime caused by communication failures.

Simplified Configuration and System Scalability

Commissioning the BCAN-11 3AXD50000033816 is straightforward due to its plug-and-play design. The module mounts directly onto the drive’s control unit, drawing power internally and requiring minimal external wiring. Furthermore, it integrates natively with ABB’s AC500 PLC platform and other third-party CANopen masters. Transitioning to this fieldbus solution allows facilities to scale their automation networks without complex hardwiring, as the digital interface supports remote diagnostics and centralized parameter management. These features ultimately reduce the total cost of ownership by streamlining both installation and long-term maintenance.

Technical Specification Overview
