Description

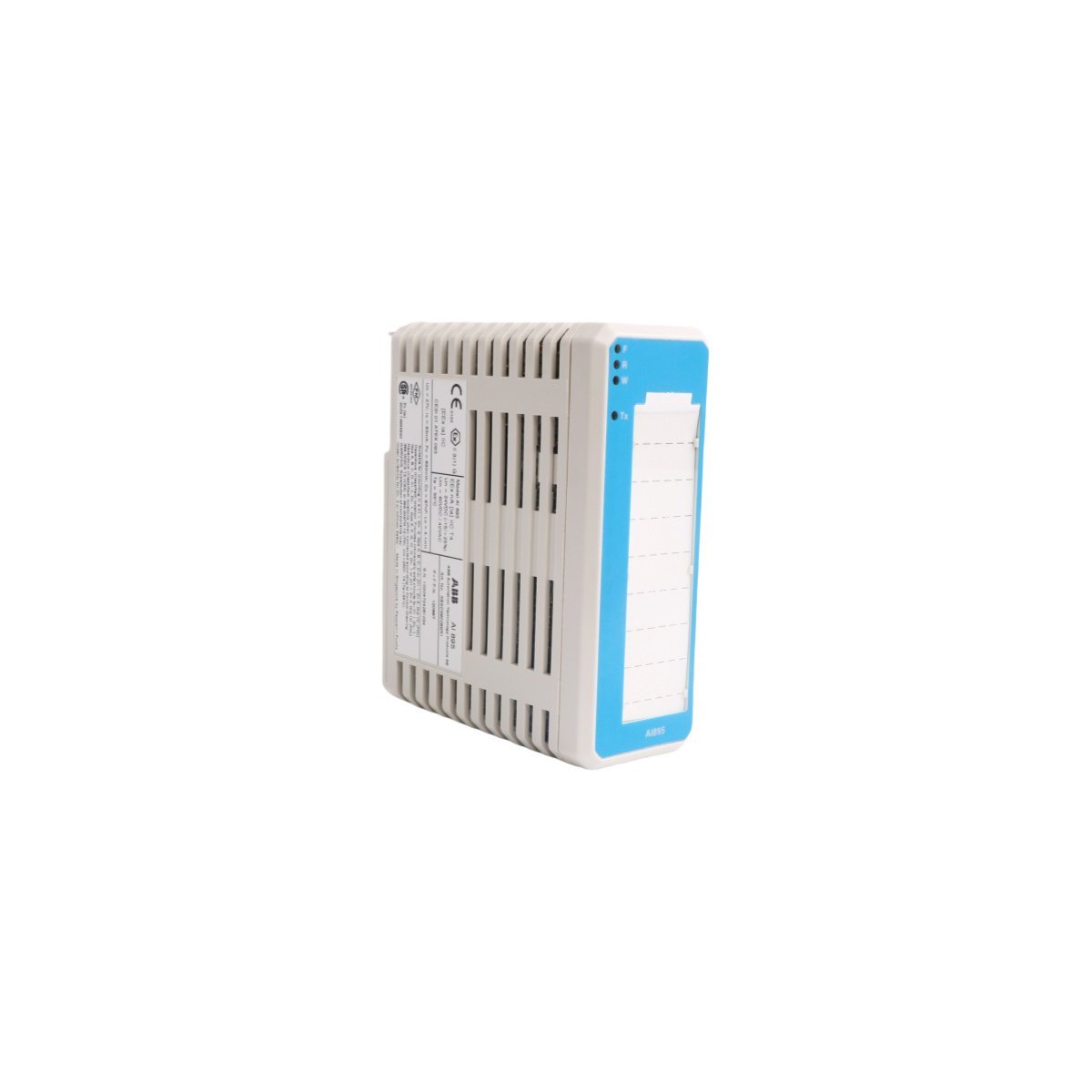

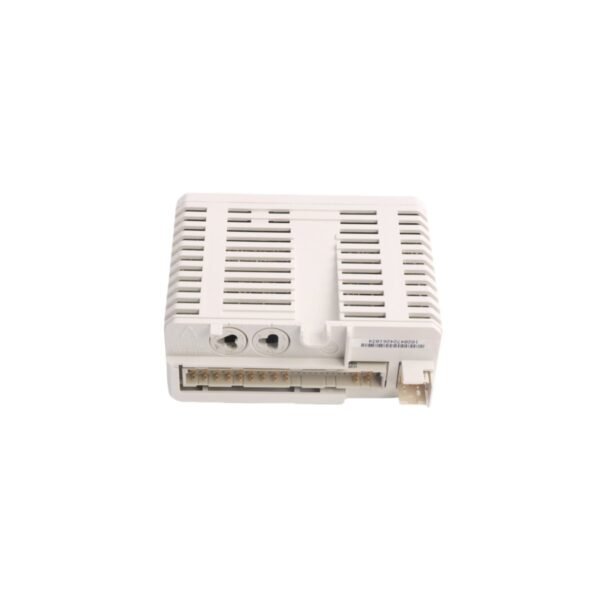

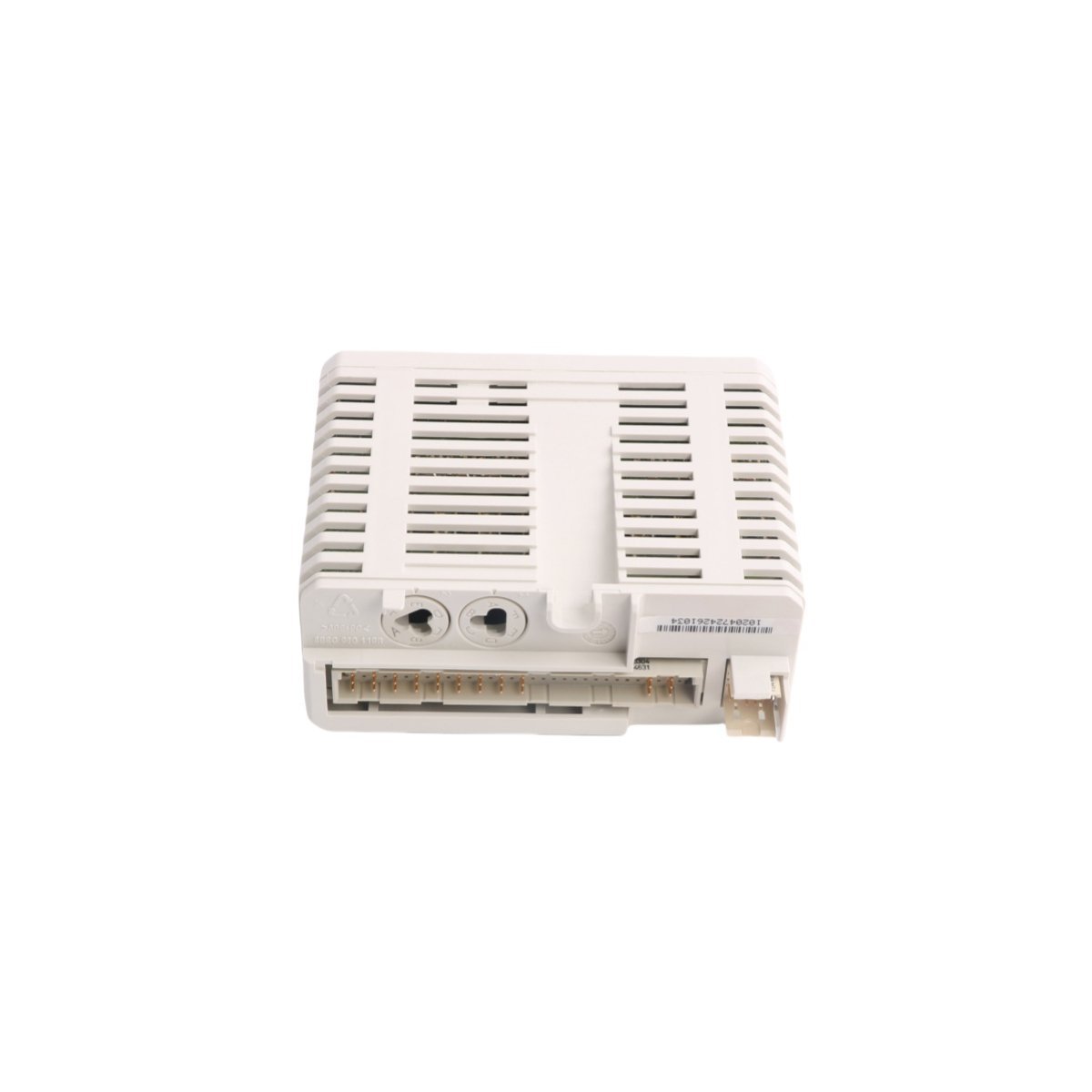

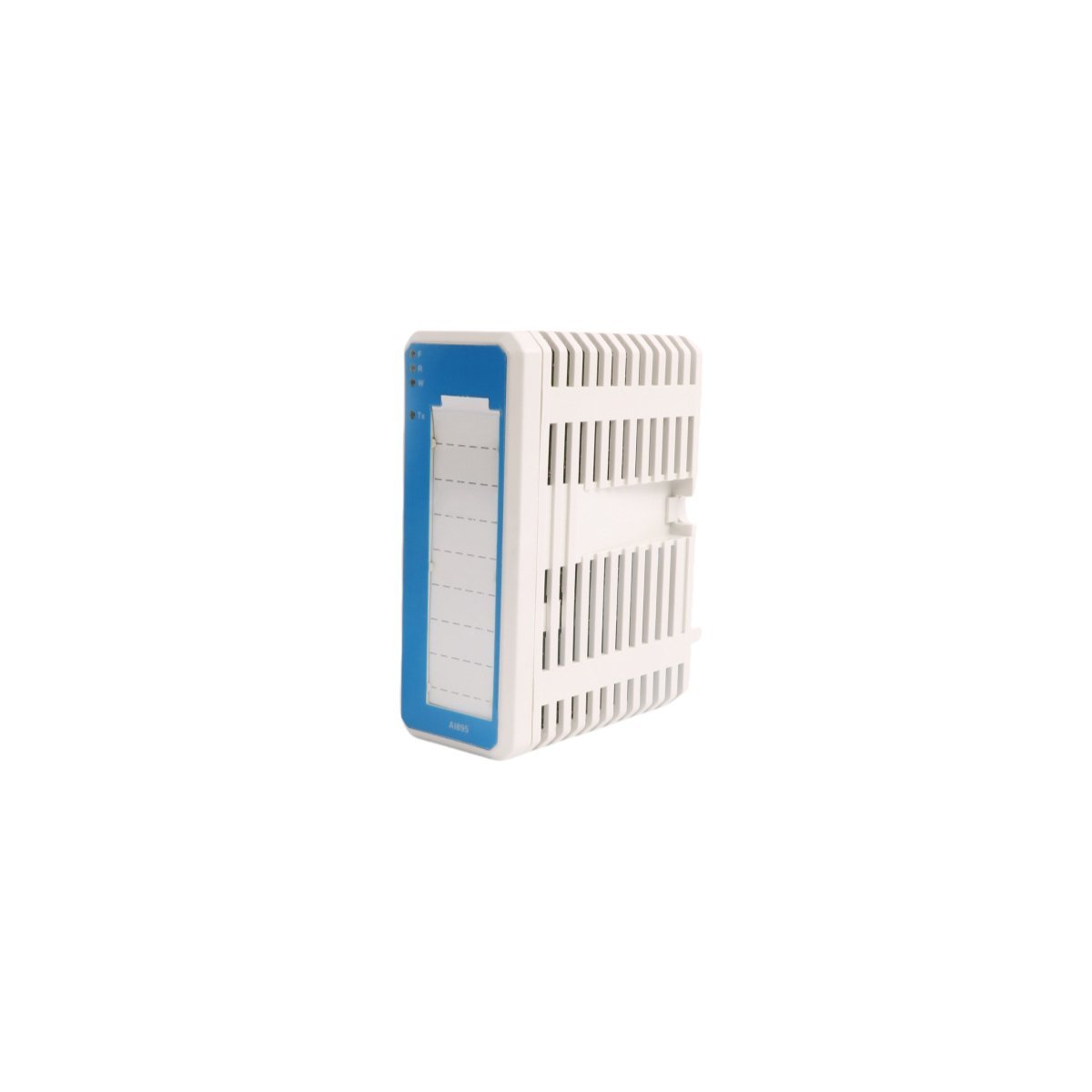

The ABB AI895 (Part Number 3BSC690086R1) is a high-density analog input module designed for the S800 I/O system. This unit provides eight channels for interfacing with intrinsically safe field devices. It specifically supports HART communication protocol pass-through. Consequently, operators can perform remote configuration and diagnostics of field transmitters. This module serves as a critical interface for process variables in hazardous industrial zones.

Core Technical Specifications and Parameters

Precision Signal Acquisition and HART Integration

The AI895 module excels at converting low-level analog signals into high-resolution digital data. It manages eight independent channels simultaneously to optimize cabinet space. Because the hardware includes HART multiplexing, it retrieves device-specific data without additional wiring. This integration allows the control system to monitor secondary variables and device health. Furthermore, the high accuracy rating of ±0.05% ensures superior process control stability.

Rugged Design for Hazardous Environments

ABB engineered the AI895 with an intrinsically safe interface for Zone 1 or Zone 0 applications. The robust construction allows for reliable operation in temperatures from -25°C to +60°C. Additionally, the IP20-rated housing protects internal circuits from typical industrial contaminants. This resilience makes the module ideal for chemical plants and oil refineries. The unit also features galvanic isolation to prevent ground loops and protect the central processor.

System Compatibility and Installation

This S800 I/O module integrates perfectly into the Advant OCS and 800xA control architectures. It supports hot-swapping functionality to reduce system downtime during maintenance. Technicians can replace modules while the rest of the station remains powered. Moreover, the compact form factor facilitates easy mounting on standard DIN rails. The clear diagnostic LEDs on the front panel provide instant feedback on channel status.

Key applications include:

• Monitoring pressure and flow transmitters in explosive atmospheres.
• Integrating smart field devices via HART protocol.
• Providing intrinsically safe barriers for process control loops.
• Enhancing data density in decentralized I/O stations.
