Description

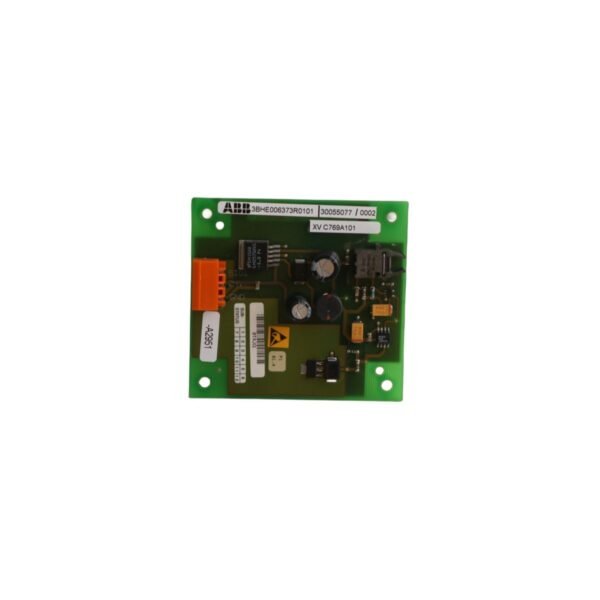

The ABB 3BHE006373R0101, also cataloged as the 3BHE006373R0101 OEI-Board, operates as a dedicated hardware component for UNITROL excitation system logic interface within DCS networks.

Hardware Specifications

PLC and DCS Communication Architecture

The 3BHE006373R0101 utilizes a high-speed backplane interface designed for strict deterministic timing. Integration within the UNITROL excitation platform requires firmware flash compatibility checks to ensure alignment with existing controller modules. The module supports high-speed data exchange for excitation parameters, with communication latency maintained via dedicated hardware registers. Backplane bus communication velocity is optimized for low-jitter scanning, ensuring the regulation loop remains consistent during DCS-side supervision.

Frequently Asked Questions

Q: Is the 3BHE006373R0101 board hot-swappable during excitation control operation?

A: No. Field connections must be isolated and power removed from the specific rack slot prior to module removal or insertion to prevent electrical transients.

Q: Does the module require specific firmware matching for integration?

A: Yes. Firmware flash compatibility must be verified against the host controller’s current revision matrix to ensure valid address mapping.

Q: Are there specific installation requirements for the backplane connection?

A: Ensure the connector pins are free of debris and properly aligned before insertion. The board must be seated fully to maintain a low-impedance contact for the backplane bus.

Field Installation Guidelines

• Verify the environment is free of conductive dust and moisture before handling the OEI-Board.
• Use appropriate electrostatic discharge (ESD) protective equipment to avoid damage to the PCB components.
• Carefully align the board with the corresponding chassis guides and press firmly to ensure proper electrical contact with the backplane.
• After installation, perform a status check via the host DCS diagnostic software to confirm the module is identified on the network.
• Ensure cabling connected to the module is routed away from high-current power conduits to mitigate electromagnetic interference.
