Description

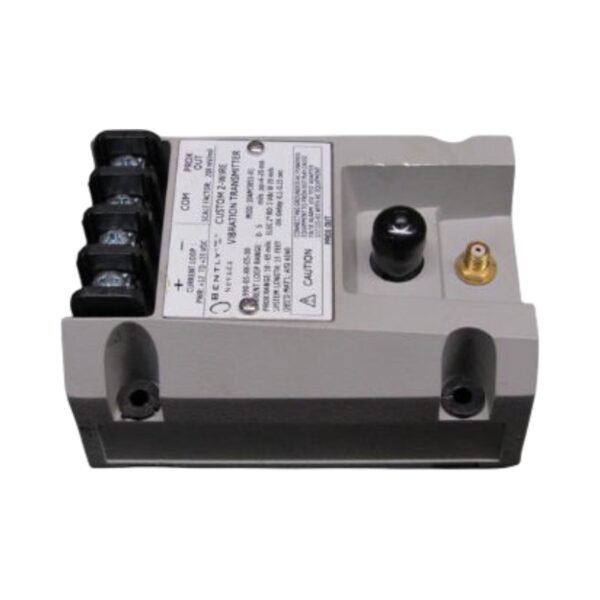

The Bently Nevada 990-04-XX-03-00 operates as a rugged, standalone, loop-powered device engineered to provide continuous shaft vibration measurements on rotating industrial machinery, such as centrifugal air compressors, pumps, fans, and small motors. This 2-wire transmitter incorporates an integrated Proximitor Sensor core within its potted enclosure, eliminating the need for separate signal conditioners or bulky rack monitoring systems. Consequently, it conditions raw high-frequency eddy-current data into a linearized, industry-standard 4–20 mA analog output suitable for direct integration into plant PLCs, DCSs, and SCADA systems.

Part Number Breakdown

The specific model string 990-04-XX-03-00 corresponds to the following factory configurations:

• 04 (Full-Scale Option): 0 to 4 mils peak-to-peak (0 to 100 $\mu$m pp) radial vibration displacement range.
• XX (System Length Option): A variable placeholder for total electrical system length (typically 50 for 5.0 meters or 70 for 7.0 meters), matching specialized probe calibration constraints.
• 03 (Mounting Option): Bulkhead or panel mounting configuration, utilizing heavy-duty integrated mounting ears instead of DIN rail clips.
• 00 (Agency Approval Option): General-purpose installation package (No hazardous area approvals required).

Hardware Specifications

Diagnostics & TSI Integration Characteristics

Unlike basic field transmitters, the 990-04-XX-03-00 retains dedicated multi-layered diagnostic pathways designed for Turbomachinery Protection System (TSI) support.

• Direct Diagnostics via BNC: The faceplate features a non-isolated PROX OUT coaxial BNC connector alongside manual terminal points. This output provides raw, unconditioned dynamic vibration waveforms and DC gap voltage signatures. Field technicians can attach portable oscilloscopes or data analyzers directly to this point to examine complex rotor dynamics and target orbits without interrupting the primary 4–20 mA safety feedback loop.
• Target Gapping Validation: Accurate operation requires gapping the companion 3300 NSv probe between 0.5 mm and 1.75 mm (20 to 55 mils) from the shaft target surface. This ensures the transducer operates well within its linear range (1.4 mm or 55 mils total span).
• NOT OK / Signal Defeat Protection: The internal circuitry continuously validates probe health and loop continuity. If a probe cable breaks, short-circuits, or drifts away from valid gapping limits, the transmitter drops its loop current to less than 3.6 mA. This distinct out-of-bounds state signals a Not OK hardware fault to the host PLC/DCS, preventing false machinery-trip execution.
• Power-Up Inhibit Circuitry: To prevent transient line spikes from simulating a massive vibration event during plant startups, internal timers force the analog output to clamp low for 2 to 3 seconds until the sensor bias stabilizes.

Frequently Asked Questions

Q: Can I use standard, grounded, AC-powered test gear on the PROX OUT BNC jack?

A: If using grounded, AC-powered test equipment, you must route the signal through a Bently Nevada 122115-01 Test Adapter. This device isolates and inverts the signal to match industry-standard diagnostic instrument orientations. Battery-powered, ungrounded, or fully isolated test analyzers can connect directly to the BNC without an adapter.

Q: Is this transmitter interchangeable with standard 3300 XL 8mm proximity probe systems?

A: No. The 990-04-XX-03-00 is specifically matched to the 3300 NSv proximity probe and its companion extension cable. The 3300 NSv family utilizes an altered scale factor optimized for tight mechanical clearances and counterbore installations typical of small centrifugal compressors.

Field Installation Guidelines

• Chassis Grounding: Securely bolt the bulkhead casing to a clean, instrument-grounded sub-panel. Ensure that all terminal shields are landed only at one common instrument star ground to eliminate stray earth loops from inducing noise on the 4–20 mA signal wire.
• Coaxial Connector Weatherproofing: While the internal module features 100% condensing humidity potting protection, ensure that the connection point between the probe extension cable and the transmitter casing remains dry. Utilize heat-shrink tubing or silicone self-fusing tape loops to protect the coaxial junctions.
• Signal Cable Isolation: Route the 2-wire 4–20 mA signal output pairs away from heavy industrial motor supply conductors, variable frequency drives (VFDs), and switchgear lines. Maintain a minimal parallel separation gap of 30 cm to suppress inductive EMI.
