Product Overview

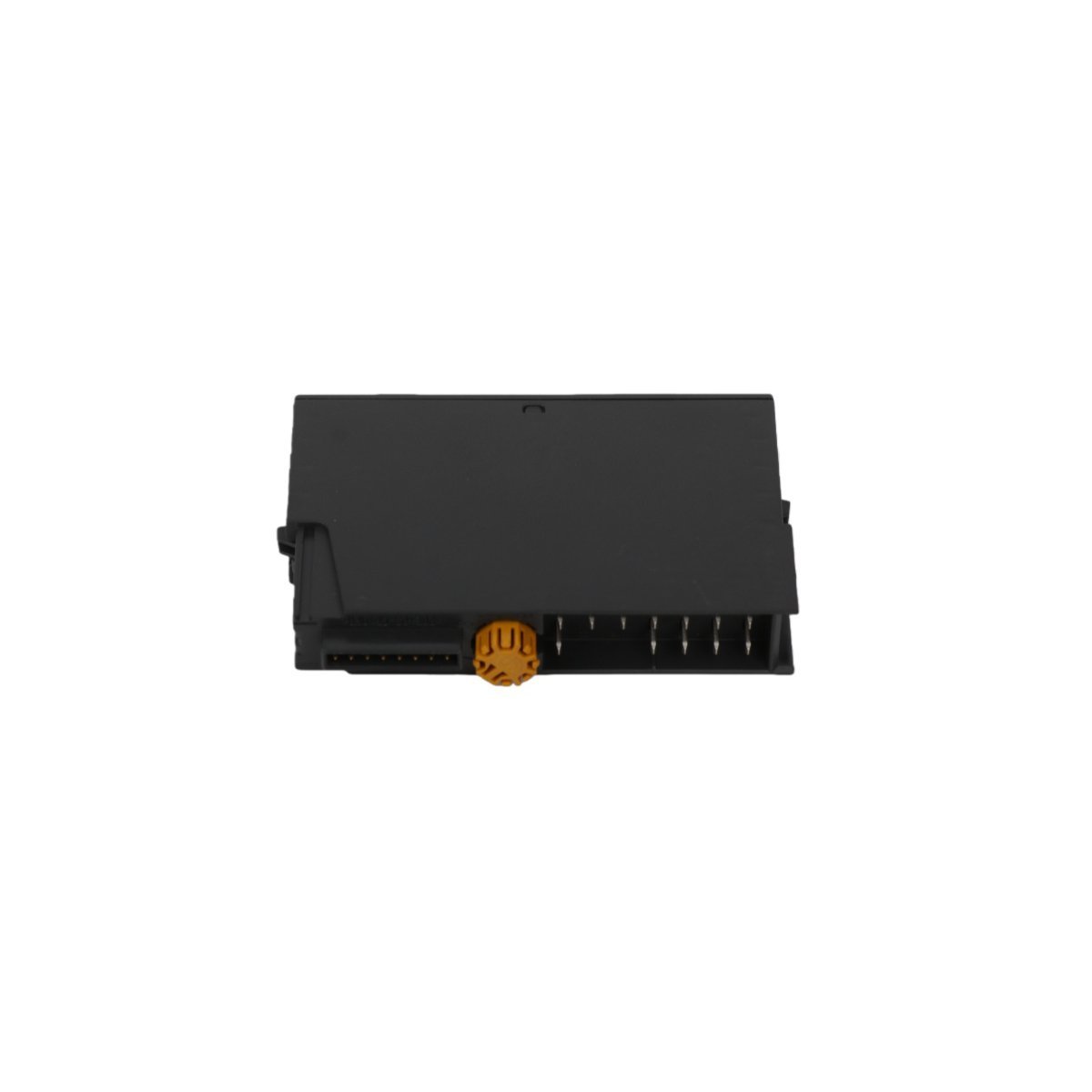

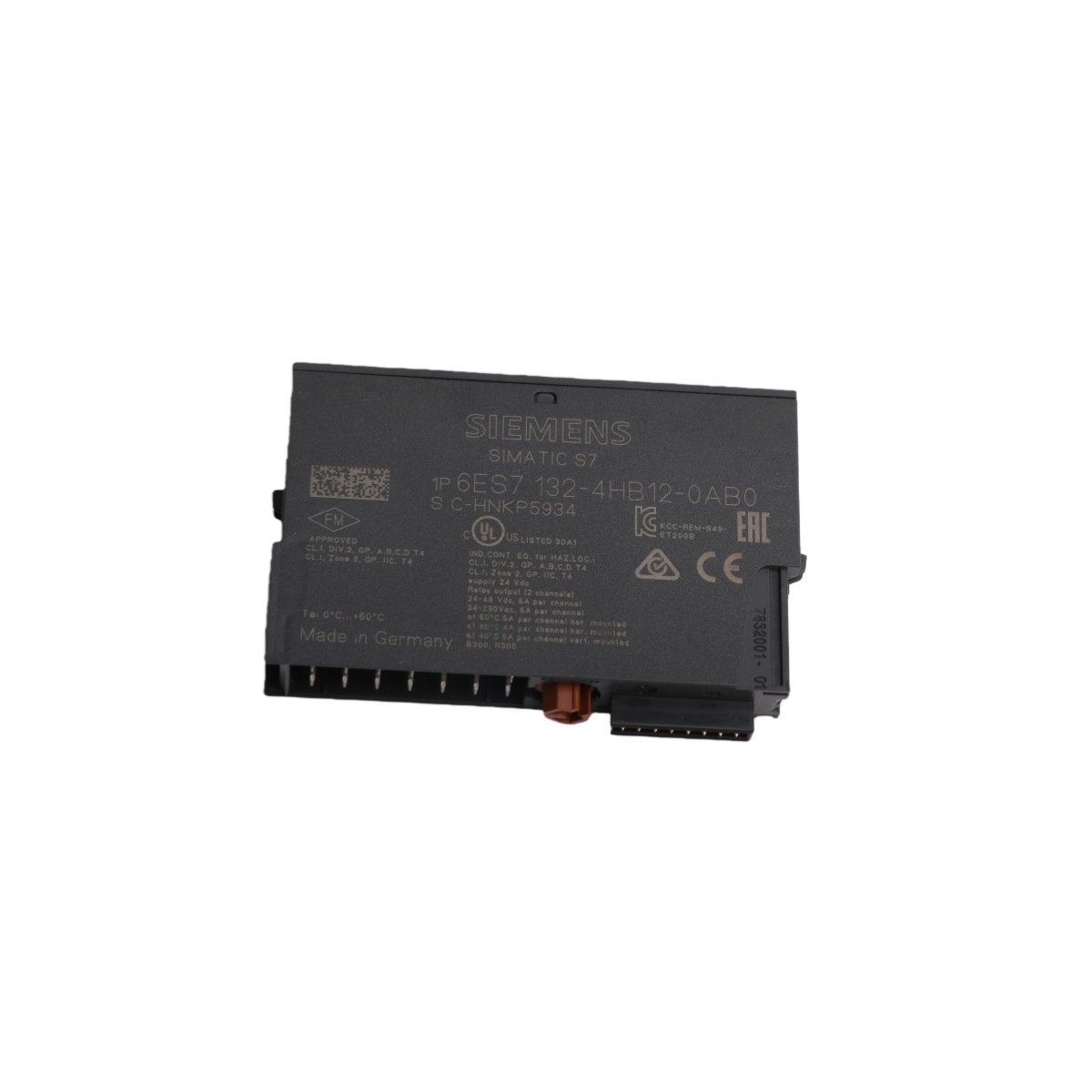

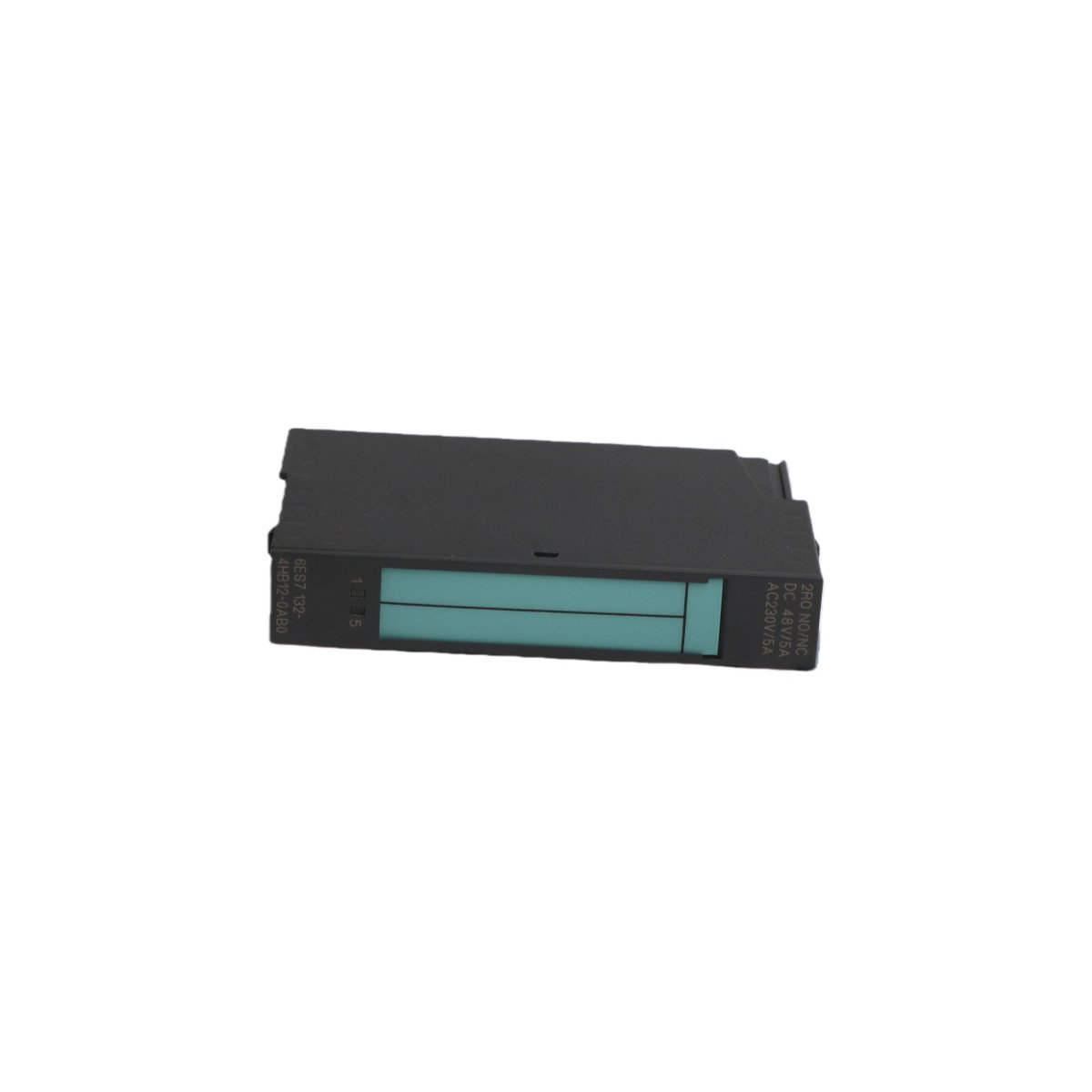

The Siemens 6ES7132-4HB12-0AA0 is a specialized 2-channel digital relay output module designed for the SIMATIC ET 200S distributed I/O system. It provides a robust interface for switching high-current loads and managing diverse voltage ranges in industrial control environments.

High-Capacity Relay Switching

This electronic module features two high-performance relay outputs that handle significant electrical loads up to 5A per channel. Consequently, the 6ES7132-4HB12-0AA0 allows for the direct control of power-hungry industrial components such as large solenoid valves, DC contactors, and high-intensity indicator lamps. By utilizing this module, engineers eliminate the need for intermediate coupling relays in many standard applications, which simplifies cabinet wiring and reduces potential points of failure.

Versatile Voltage and Contact Configuration

The 6ES7132-4HB12-0AA0 offers exceptional operational flexibility because it supports both AC and DC switching within the same unit. Operators can apply this module to DC circuits ranging from 24V to 48V, or standard AC power systems up to 230V. Furthermore, each output channel provides both normally open (NO) and normally closed (NC) changeover contacts. This configuration empowers technicians to implement complex safety interlocks and diverse control logic without requiring additional hardware variants.

Robust Engineering and Lifecycle Status

Siemens engineered this module with galvanically isolated outputs to protect the central PLC backplane from electrical noise and load-side transients. Although the 6ES7132-4HB12-0AA0 provides reliable service in existing installations, users should note that this specific product line has transitioned to a “legacy” or “phased-out” status. Therefore, while it remains a critical component for maintaining current SIMATIC ET 200S architectures, Siemens recommends evaluating newer ET 200SP or ET 200MP alternatives for all new systems to ensure long-term support and part availability.
