Description

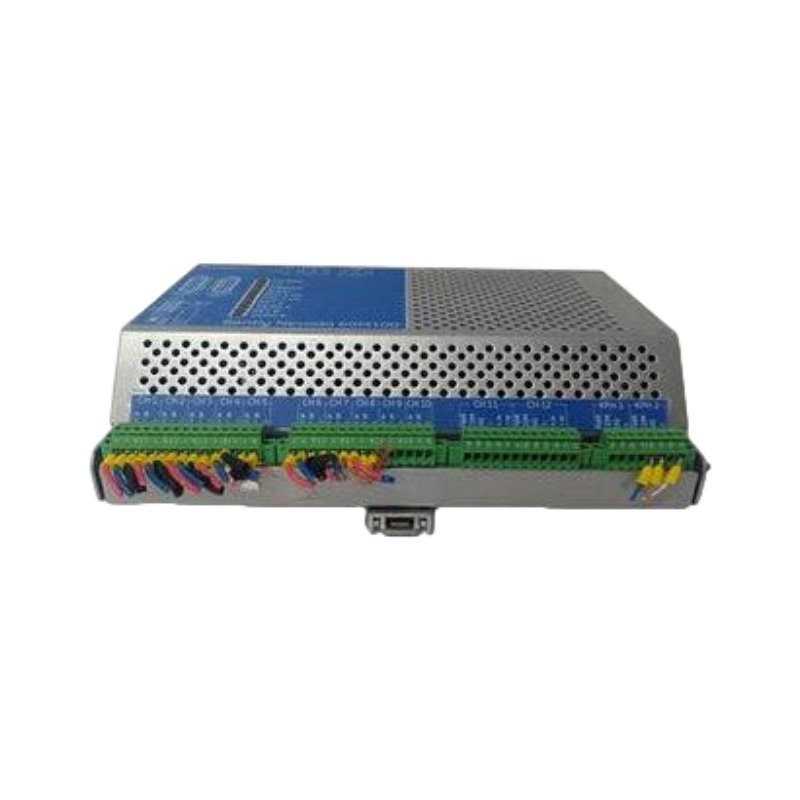

The Bently Nevada 60M500-05-00, also cataloged as the 60M500 vbOnline Pro Monitor, serves as the primary 60M500 Condition Monitoring System utilized to execute continuous real-time vibration data processing across plant asset networks. The device ingests up to 12 independent analog dynamic signals and two concurrent phase-reference speed inputs directly from field transducers. It provides digital conversions and algorithmic data extraction over an integrated Ethernet pipeline, feeding structural performance indices to upper-level diagnostic computers.

Suffix Breakdown & Model Matrix

• 05: Agency Approvals Option (Multi-agency certification including CSA, IECEx, and ATEX standards)
• 00: System 1 License Option (No baseline internal System 1 software seat license included)

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 60M500-05-00 controls dynamic data collection for high-frequency Turbomachinery Instrumentation (TSI) setups via internal 24-bit analog-to-digital processing paths. The system maintains continuous channel cross-talk suppression by routing independent input traces through individual Sigma-Delta converter banks, shielding structural waveforms from signal bleeding. The processor supports variable eddy-current probe scaling matrices alongside standard industrial accelerometer calibration targets. While managing transient machinery states, the hardware cross-checks continuous gap voltage validation parameters and logs deviations from nominal -10 VDC targets. This structural verification path separates absolute shaft-to-casing relative dynamics from transducer faults, preventing accidental safety loops from triggering while recording raw rotor dynamics profiles.

Frequently Asked Questions

Q: How does the dual Ethernet architecture function under simultaneous network tracking routines? A: The hardware isolates Network A and Network B onto separate physical controller ports. Network A runs 10/100 BaseT loops utilizing DHCP for automated server handshakes, whereas Network B handles local static IP assignments to transmit trended parameters like direct, bias, and gap voltage values to a Modbus-enabled DCS.

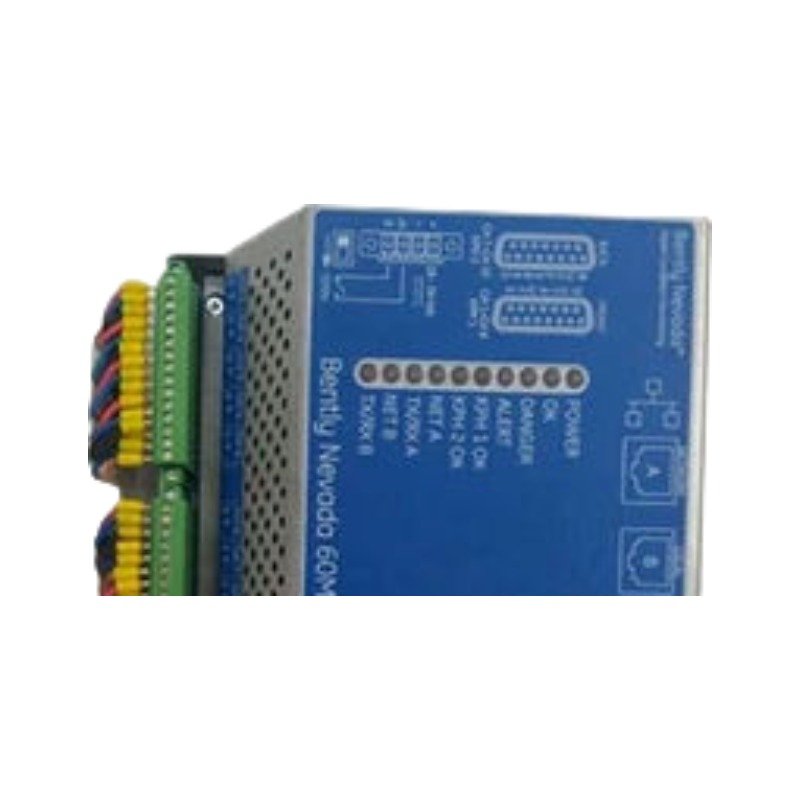

Q: What are the integrated LED indicators on the 60M500-05-00 front panel engineered to communicate? A: The front panel maps local hardware states using distinct visual light pipelines: a dedicated Power LED confirms voltage compliance; the OK LED validates diagnostic status; and discrete Alert and Danger LEDs track active alarm threshold crossings. Two individual Kph LEDs mirror real-time triggering pulses from the attached phase sensors.

Field Installation Guidelines

• DIN Rail Mounting Footprint: Secure the 60M500-05-00 chassis directly to a standard 35 mm metallic DIN rail inside an industrial enclosure. Verify that the plastic mounting latch snaps completely over the rail edge to maintain stability under continuous machine-floor vibration profile conditions.
• Power Supply Termination Constraints: Connect power cables ranging from 0.5 to 2.5 mm squared (20 to 14 AWG) to the screw-clamp terminal block inputs. Ensure the incoming source remains within the 18-36 VDC window, and tighten terminal screws to a maximum value of 0.50 N-m (4.4 in-lb).
• Signal Grounding and Shield Integrity: Route external sensor cables inside rigid steel conduits away from electromagnetic power switching gear. Ground the copper cable shield at the 60M500-05-00 terminal strip only; leave the transducer end isolated to shield the internal 110 dB SNR conversion matrix from stray common-mode loop currents.
