Description

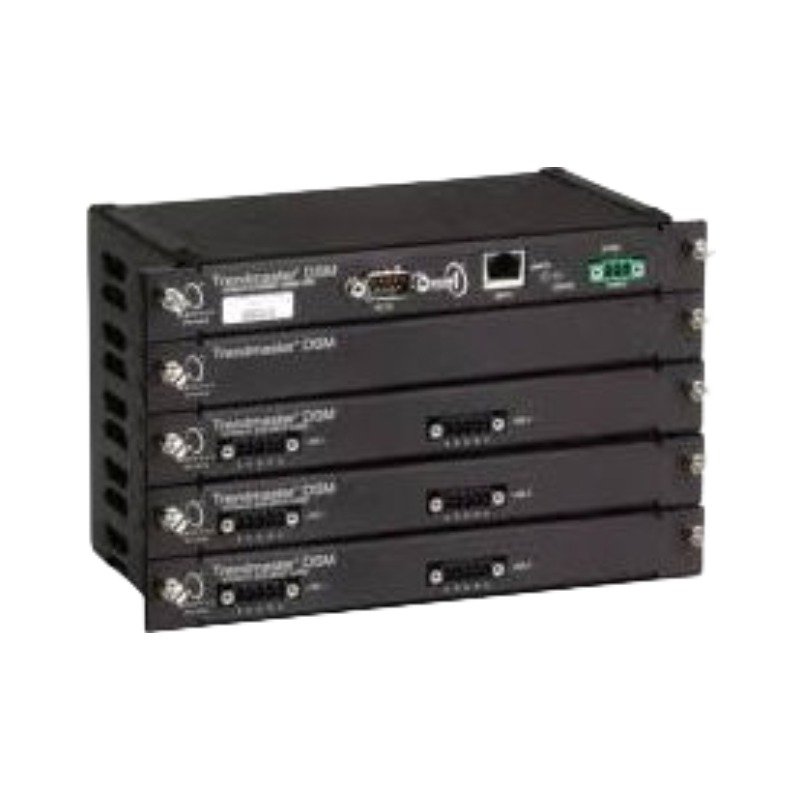

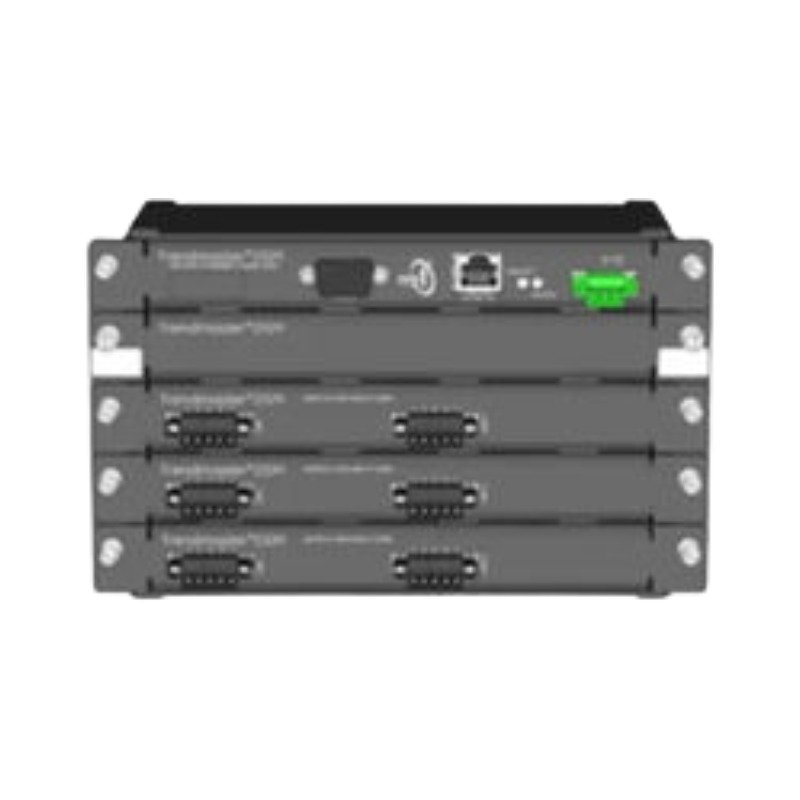

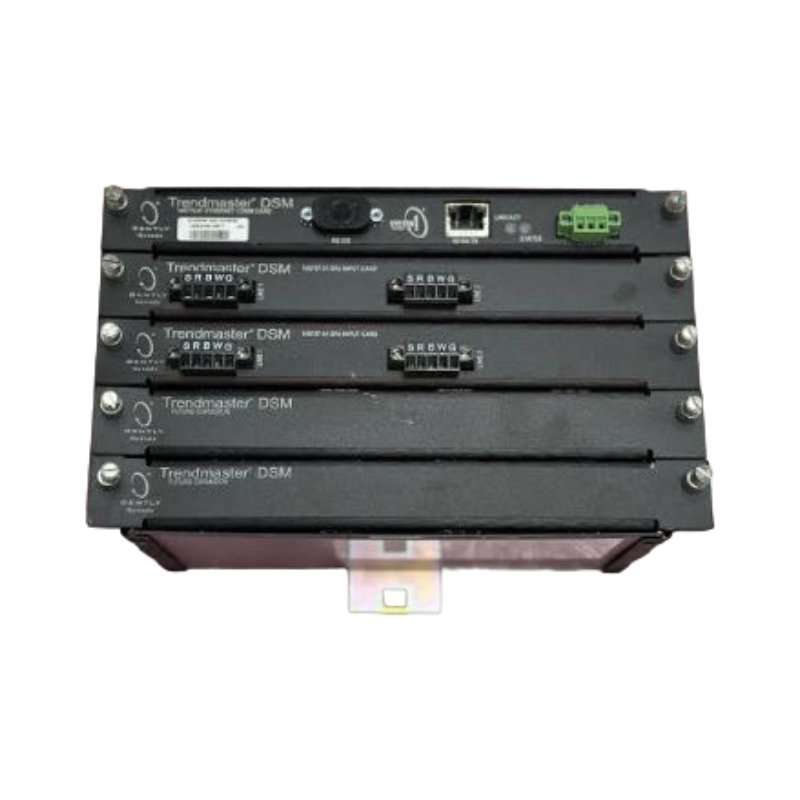

The Bently Nevada 149744, also cataloged as the 149744 Trendmaster Dynamic Scanning Module (DSM), operates as a dedicated hardware component for high-density machine asset data acquisition within plantwide condition monitoring networks. The module utilizes a 5-slot rack configuration architecture to house communication boards and local input cards, processing raw sensor waveforms independently before passing the post-processed variables back to the host computer framework.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 149744 forms the critical structural hub for Trendmaster localized diagnostic arrays, shifting the sensor processing load away from the primary server host via automated onboard processing loops. The modular frame implements specialized cross-talk suppression paths across the internal bus planes, shielding vulnerable low-amplitude sensor feeds when adjacent channels track simultaneous transits. The system adapts dynamically to changing input metrics, maintaining variable eddy-current probe scaling protocols and monitoring live gap voltage validation metrics across standard proximity setups. If a sensor reports outside standard operational parameters, the local processing card isolates the channel, maintaining uninterrupted rotor dynamics surveillance across remaining plant nodes while broadcasting clear data fault flags over Modbus paths.

Frequently Asked Questions

Q: How does the 149744 reduce plantwide network bandwidth requirements while processing multiple data channels?

A: The input cards installed in the 149744 execute real-time processing directly on the hardware plane, deriving variables such as True RMS, peak-to-peak, 1X, and 2X amplitudes locally. The module returns these small numeric post-processed variables to the system host during routine monitoring cycles, transmitting massive raw waveforms and high-resolution spectrum files only when explicit user diagnostics demand it.

Q: What are the capacity limits when utilizing the 149744 with a Transducer Interface Module (TIM) layout?

A: Each TIM input card mounted in the 149744 chassis operates two distinct lines. Each line accommodates up to 255 TIM, proTIM, or flexiTIM modules, meaning a fully packed module rack can acquire performance parameters from hundreds of active machine points simultaneously over single multi-drop cable configurations.

Field Installation Guidelines

• Chassis Mounting and Ground Continuity: Mount the 149744 assembly directly to a 35 mm metallic DIN rail or secure it to a flat surface plate using four #8 bulkhead screws. The hardware requires a minimum rail spacing of 26.7 cm (10.5 inches); ensure direct bare-metal contact between the chassis base and the plant grounding plane to manage electrical interference.
• Power Connection Restrictions: Connect the 20 to 30 VDC incoming power supply line exclusively to the dedicated screw-clamp power plug located on the main communication card face. Use wiring sizes matching 18 to 14 AWG and verify that a 1 amp slow-blow protection fuse remains installed in the loop.
• Cable Protection and Conduit Segregation: Route the primary Category 5 Ethernet or multi-mode fiber optic links away from heavy electric switchgear, limiting copper cable runs to 100 meters (328 feet) max. Enclose all field transducer or TIM lines within dedicated steel conduits to keep physical damage or industrial electromagnetic fields from compromising the 16-bit signal conversion stability.
