Description

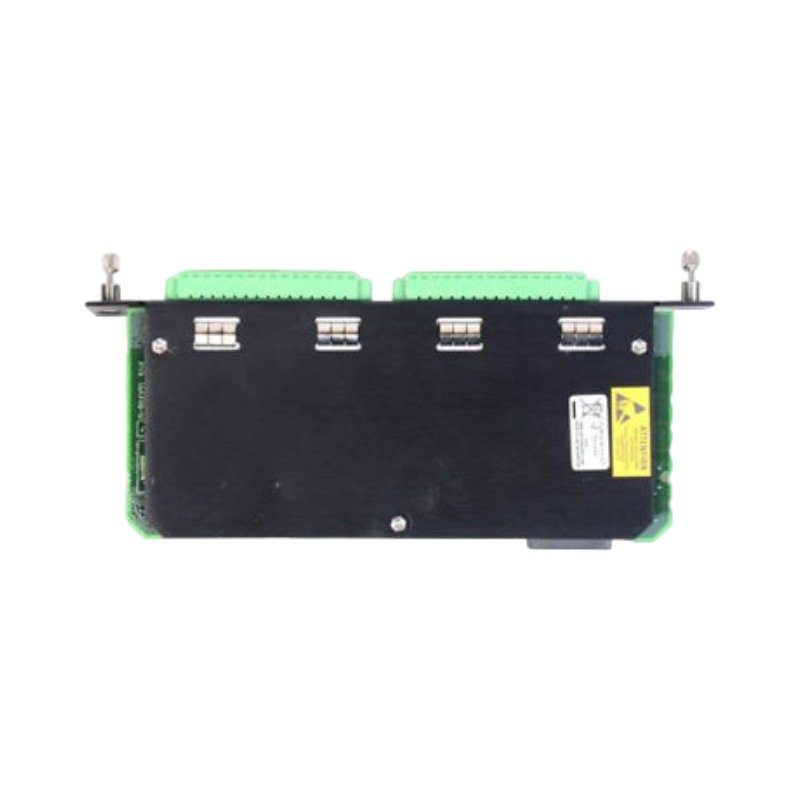

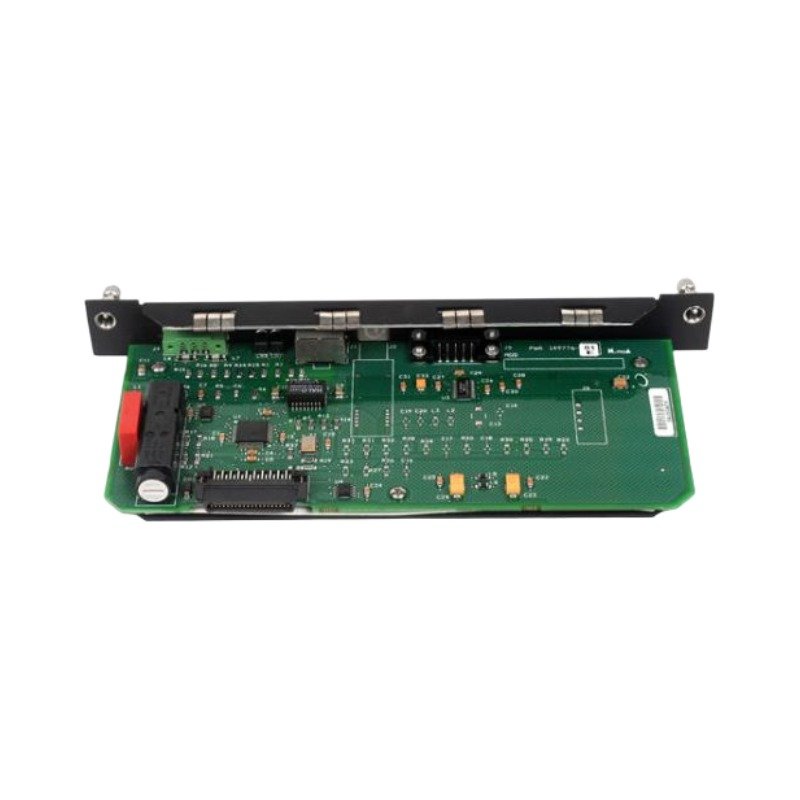

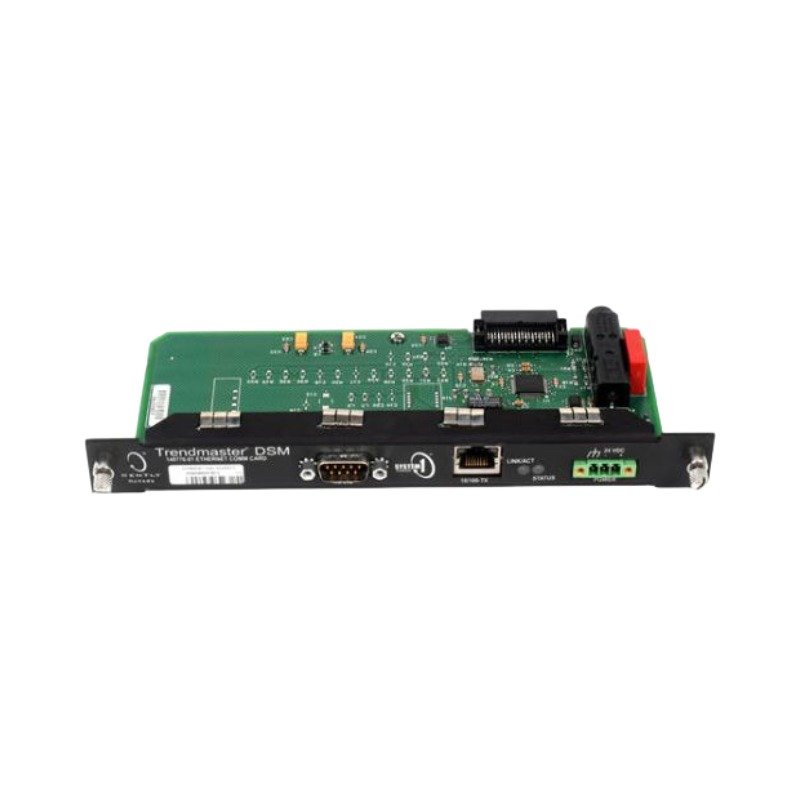

The Bently Nevada 149776-02, also cataloged as the 149776-02 100 base FX Fiber Optic Communication Card, operates as a dedicated hardware component for high-speed industrial network interface execution within the Bently Nevada Trendmaster Dynamic Scanning Module (DSM) system. The module installs into Slot 1 of the 149744 chassis assembly to bridge local process inputs and raw sensor data with the host data acquisition network. By using optical medium isolation, the component transmits machinery condition parameters across extended distances without risk of data degradation from electrical noise.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 149776-02 manages upper-level transmission tasks for high-density Turbomachinery Instrumentation (TSI) setups by standardizing the output signals parsed from diverse field transducers. As raw waveforms flow from Transducer Interface Modules (TIMs), the card packetizes the calculated data into deterministic industrial layers while maintaining cross-talk suppression benchmarks between hardware nodes. The processing layer supports direct integration with System 1 software, packaging calibrated variables derived from eddy-current probe scaling and continuous gap voltage validation loops. If a remote machine node experiences an offset from nominal -10 VDC targets, the module coordinates the diagnostic broadcast, passing real-time fault states alongside fundamental rotor dynamics profiles to prevent false machine trips.

Frequently Asked Questions

Q: What are the absolute cable length limitations for the 149776-02 interface when deploying multimode fiber optic lines? A: The physical routing limit depends directly on the configuration of the network duplex mode. The 149776-02 supports a maximum distance of 400 meters (1312 feet) when operating in half duplex mode, and extends up to 2000 meters (6562 feet) when configured for full duplex communication.

Q: How do the integrated front panel tri-color LEDs communicate card operational health and link states? A: The card splits local visualization into two distinct LED pipelines. The Status LED uses variable blink sequences and color mixtures to report the internal hardware condition of the DSM rack, while the Link/ACT LED changes frequency and hue to represent active fiber optic synchronization and real-time network traffic patterns.

Field Installation Guidelines

• Slot Insertion Limits: Install the 149776-02 exclusively into Slot 1 of the Trendmaster 149744 rack chassis. Slide the card edge smoothly along the top and bottom structural guide tracks, and press firmly to seat the internal 96-pin connector into the backplane receptacle before locking the faceplate screws.
• Optical Connection Maintenance: Inspect the MT-RJ optical ferrule with a fiber scope to confirm the interface remains free of particulate contaminants before insertion. Clean the connector tip using an alcohol-free mechanical click-cleaner, then push the connector into the card socket until the integrated retention clips click into place.
• Hazardous Area Isolation Compliance: For installations situated inside Zone 2 environment profiles, the optical transmitter circuitry carries an intrinsic safety coding rating of [Ex op is IIC]. Ensure that all connected optical devices or secondary media converters carry matching safety approvals to prevent compromising the spark-ignition safety barrier boundaries.
