Description

Product Overview

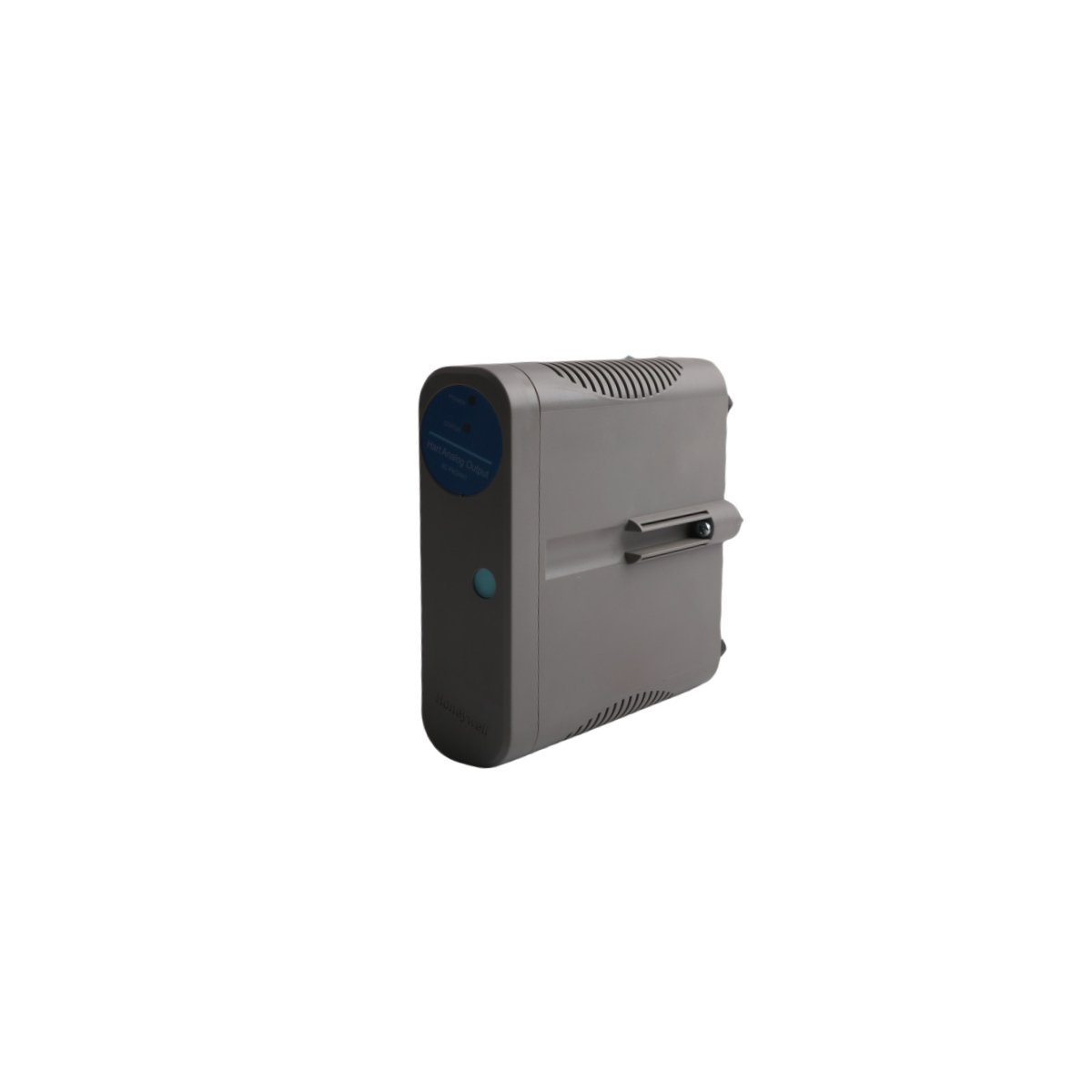

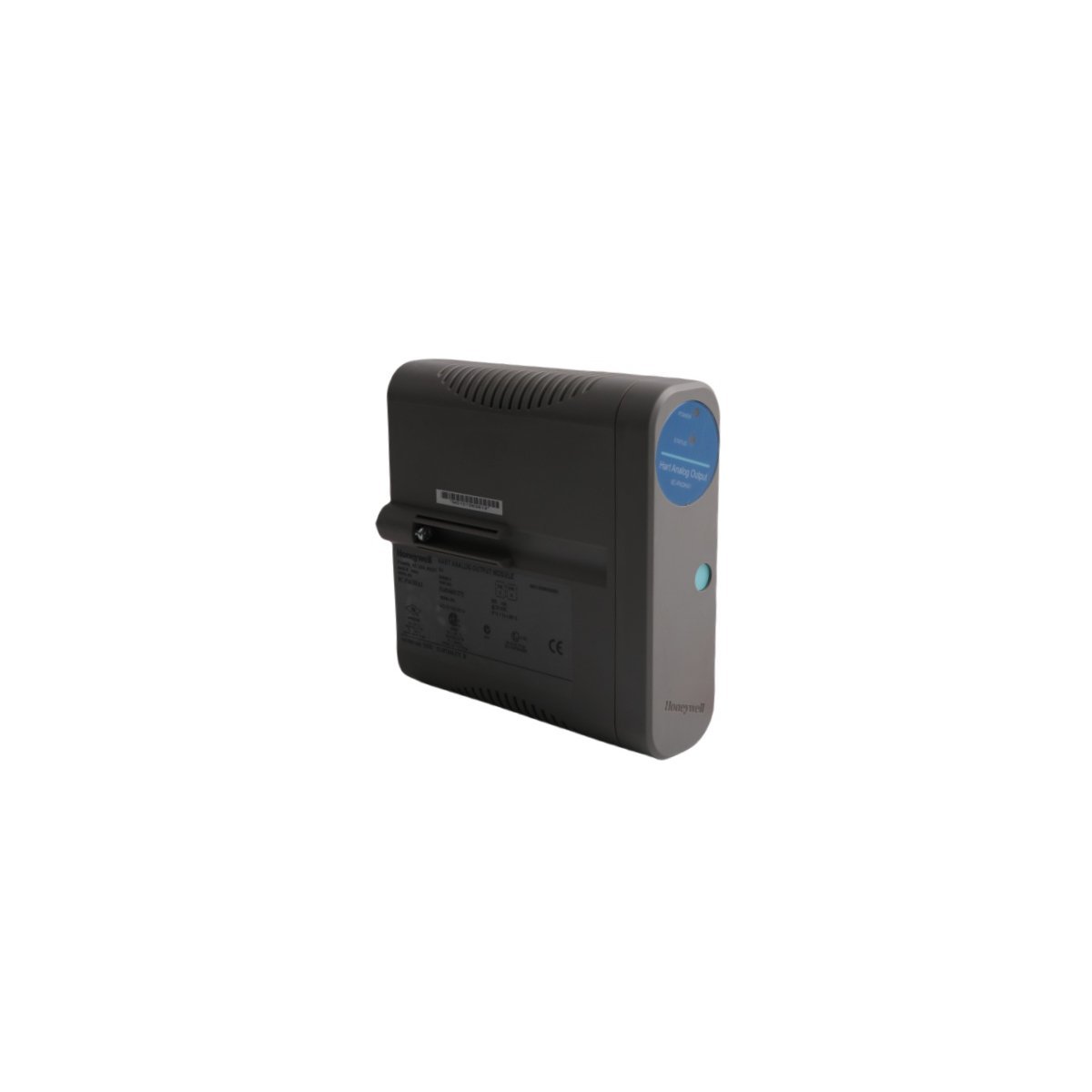

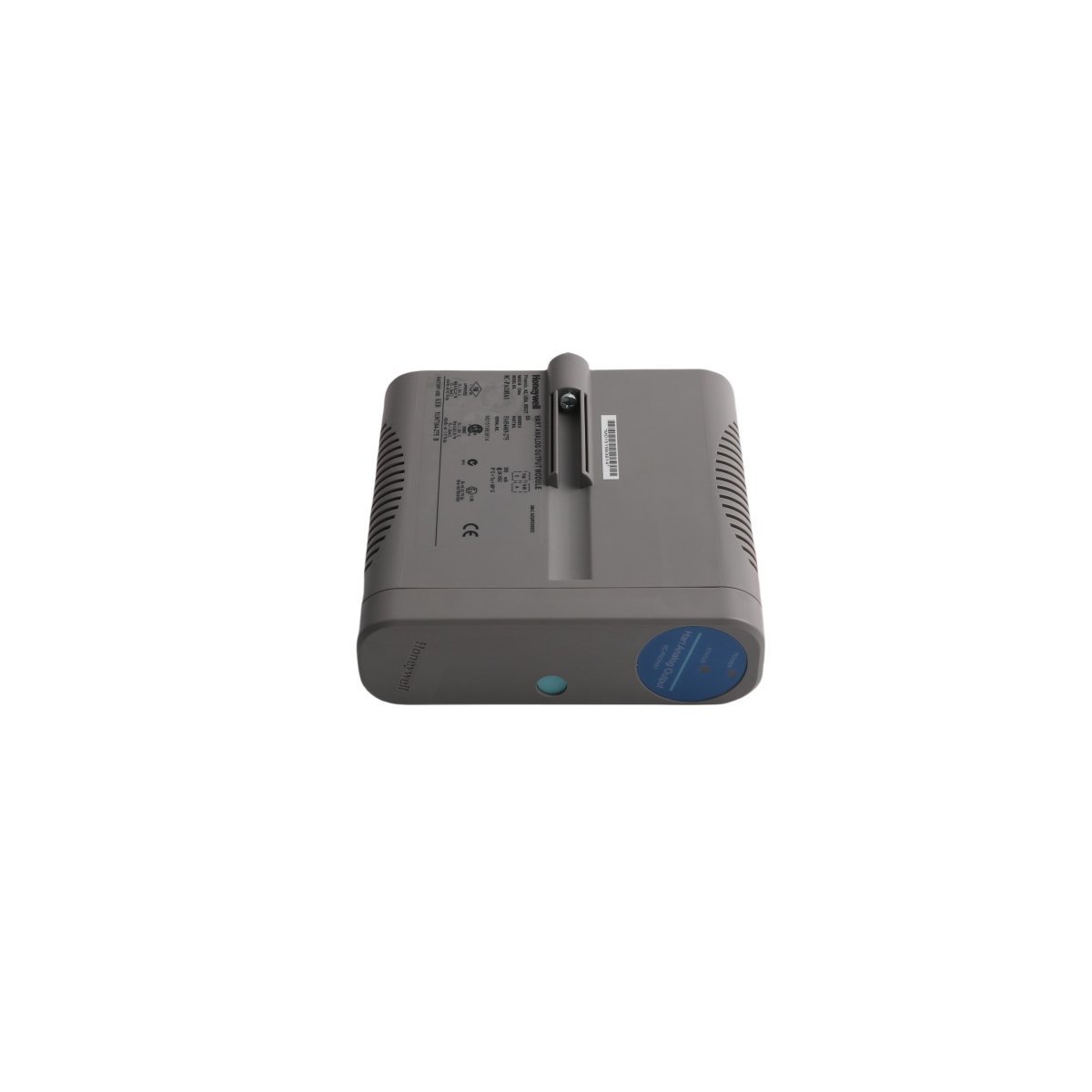

The Honeywell 8C-PAOHA1 (51454469-275) is a high-density Series C Analog Output module designed for the Experion Process Knowledge System (PKS). This 16-channel module provides precise current signaling to field devices, such as control valves and actuators, while supporting integrated HART communication for advanced device management.

High-Density Control and HART Integration

The 8C-PAOHA1 serves as a primary control interface within the Experion PKS architecture, converting digital commands from the controller into standard 4-20mA analog signals. By incorporating 16 channels into a single Series C form factor, this module significantly reduces the required cabinet footprint and simplifies wiring for large-scale deployments. Furthermore, the module supports HART (Highway Addressable Remote Transducer) protocol pass-through. This feature allows the system to access secondary variables and diagnostic data from “smart” field devices without needing separate handheld communicators or auxiliary hardware.

Advanced Diagnostics and Operational Reliability

Honeywell engineered the 51454469-275 with a focus on maximum uptime and proactive maintenance. The module performs continuous internal self-tests and monitors the health of each output loop for open circuits or short-circuit conditions. If the module detects a discrepancy, it immediately alerts the control room via the Experion network, enabling technicians to address issues before they cause a process trip. Additionally, the Series C design features a vertical orientation that promotes natural convection cooling, which effectively extends the lifespan of the electronic components in warm industrial environments.

Industrial Durability and Application

The 8C-PAOHA1 module excels in demanding sectors such as oil and gas refining, chemical processing, and power generation. Its robust construction protects sensitive circuitry from the electromagnetic interference common in heavy industrial settings. Because the module supports “hot-swapping,” maintenance teams can replace units without powering down the entire I/O rack, ensuring continuous process availability. This reliability, combined with high-precision signal output, makes it an essential component for maintaining tight control over critical process loops and ensuring long-term operational safety.

Technical Characteristics
