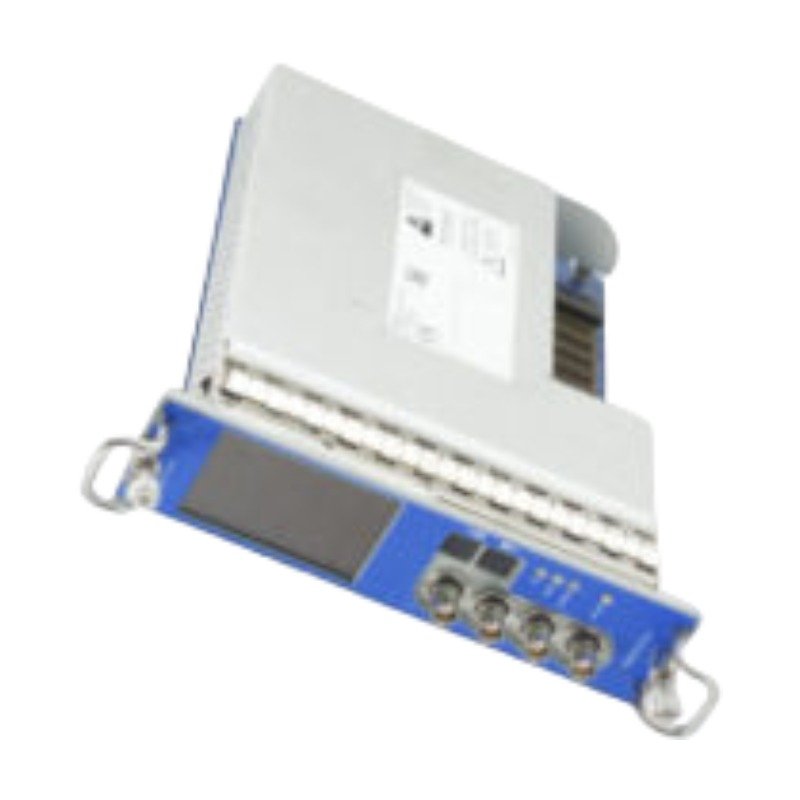

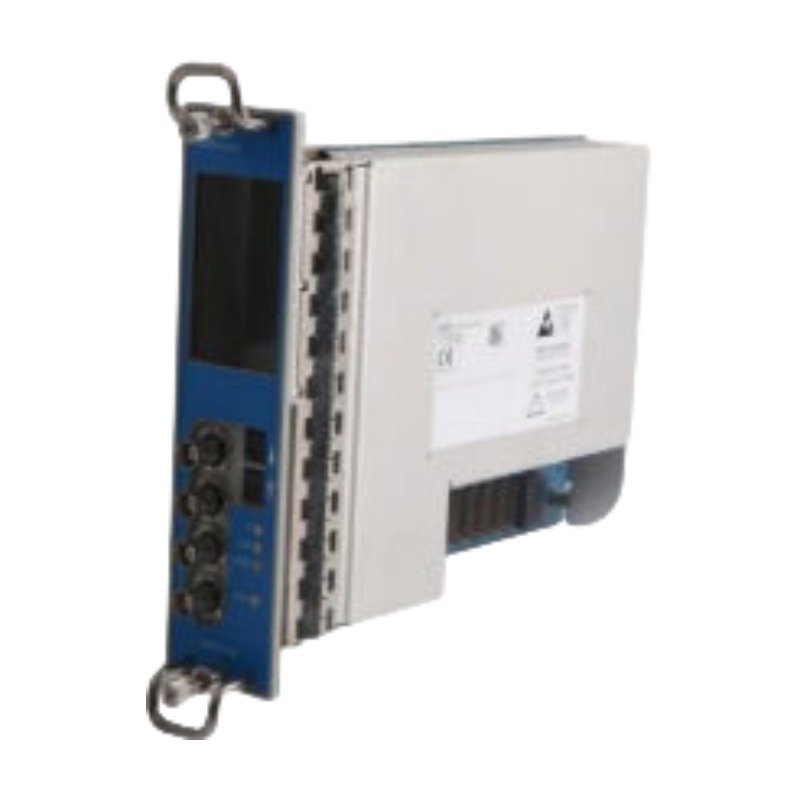

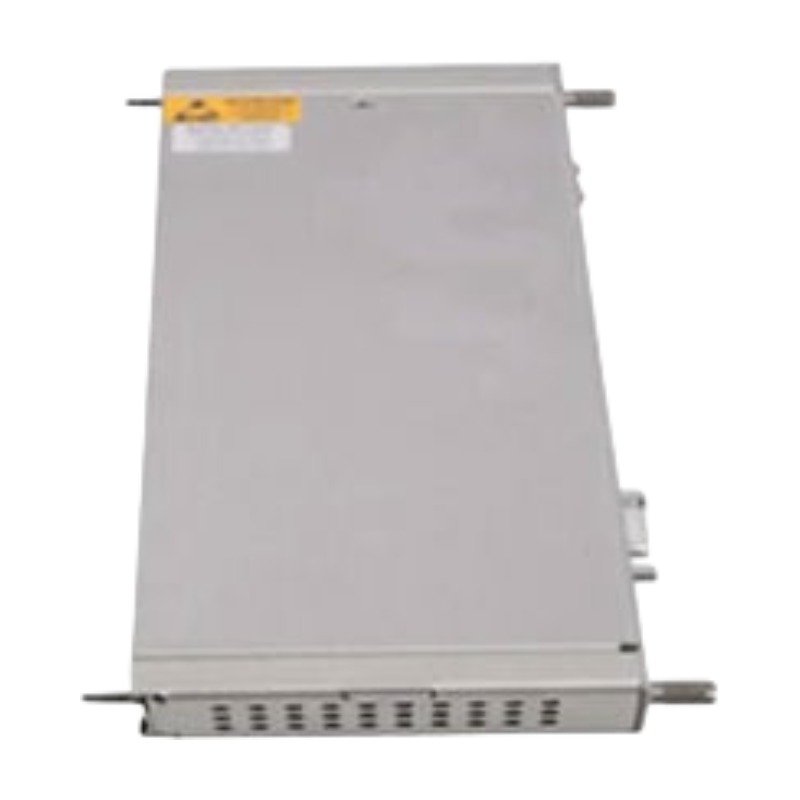

Configured for continuous machinery protection and vibration monitoring in the 3500 Monitoring System, the Bently Nevada 285691-01 (3500/42E Proximity Monitor Module) provides direct physical/electrical execution.

Hardware Specifications

Rotor Dynamics and Signal Conditioning

Consequently, the 3500/42E module executes continuous gap voltage validation to preserve accurate eddy-current probe scaling across all active channels. During operation, the hardware continuously samples the DC bias voltage to verify that the value tracks within the nominal -10 VDC targets required for linear range calibration. Meanwhile, internal digital signal processing algorithms maintain active cross-talk suppression between adjacent transducer lines, thereby mitigating electromagnetic interference and stabilizing signal integrity during critical rotor dynamics analysis.

Frequently Asked Questions

Q: Why does the module continuously verify the probe gap voltage during operation?

A: Because the gap voltage indicates the physical distance between the eddy-current probe face and the target shaft surface, the module monitors this value to confirm the probe remains within its linear calibration range. Consequently, this tracking prevents false readings during radial vibration and axial position measurements.

Q: Does the 3500/42E module support hot-swapping while the rack remains powered?

A: Yes, technicians can hot-swap the 3500/42E monitor module within a powered 3500 rack. However, removing an active module immediately suspends machinery protection for those specific channels and subsequently triggers a rack alarm condition.

Field Installation Guidelines

• Chassis Insertion: First, clear all debris from the chassis slot guides. Next, slide the module firmly into the 3500 backplane until the top and bottom chassis ejector levers engage completely. Finally, tighten the panel retention screws to secure the unit and establish ground continuity.
• Transducer Shielding: Terminate all coaxial or twisted-pair transducer shields exclusively at the designated chassis ground bar on the 3500 rack. Conversely, do not ground the shield at the field end, as this dual-grounding creates ground loops that introduce noise into the measurement circuit.
• Wiring Separation: Route transducer input wiring through dedicated conduit or cable trays. Furthermore, isolate these paths from high-voltage AC power distribution lines to prevent inductive coupling from corrupting the signal.
