Description

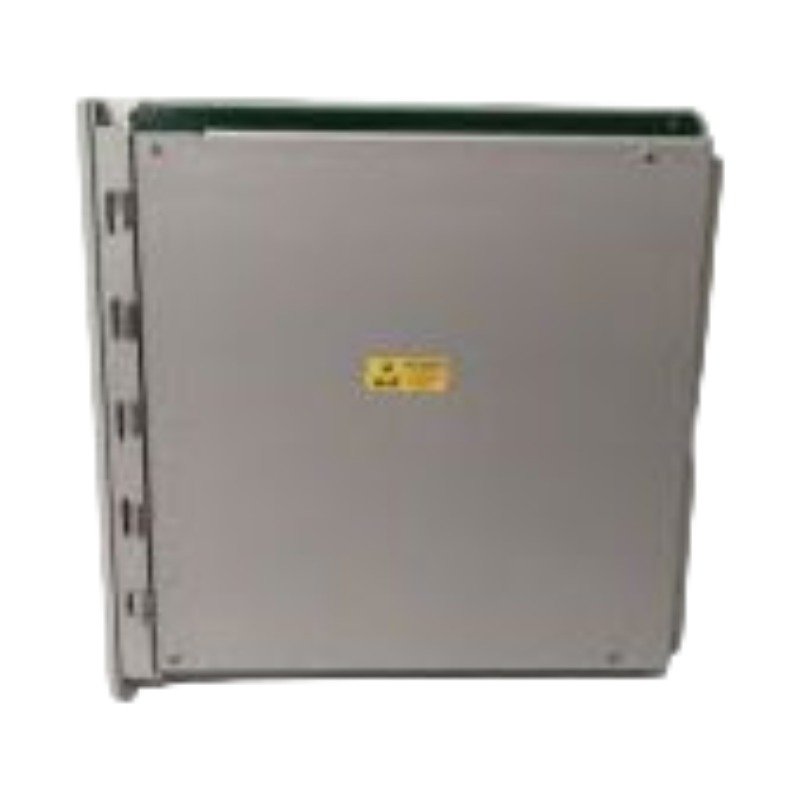

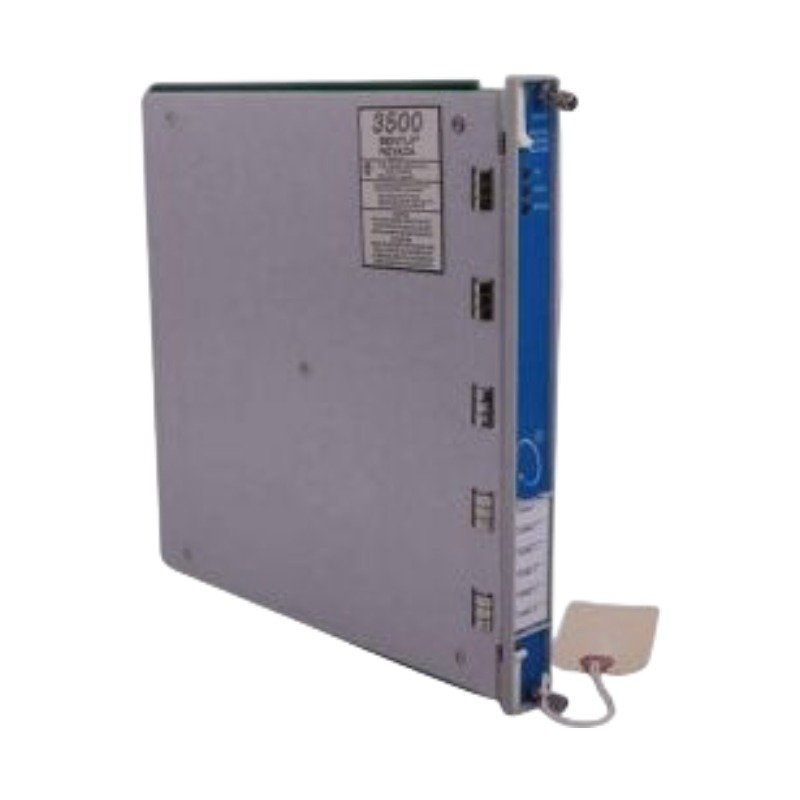

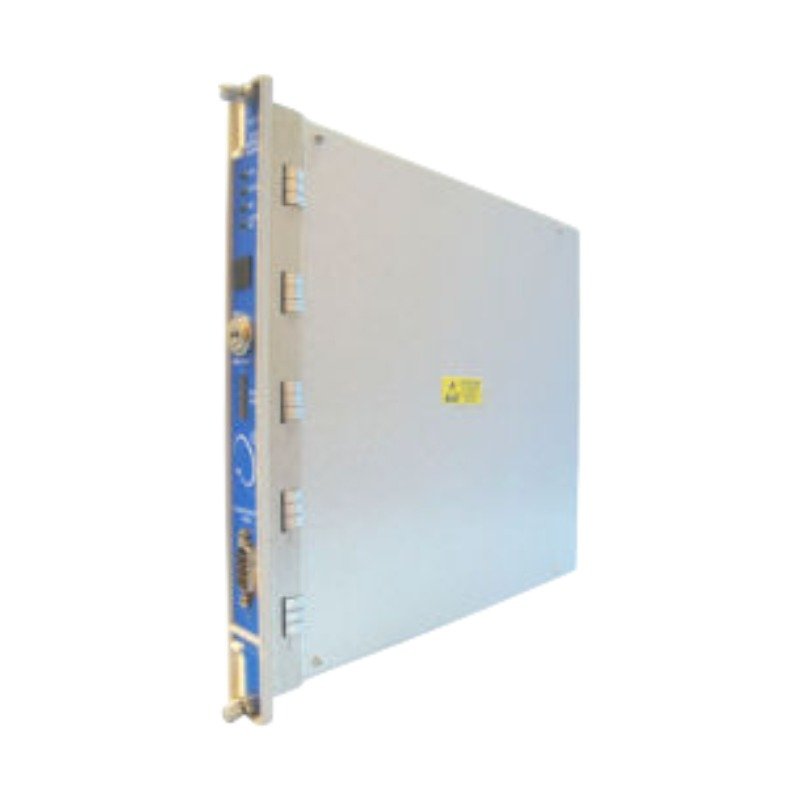

The Bently Nevada 3500/20 125744-02, also cataloged as the 125744-02 Standard Rack Interface Module, operates as a dedicated hardware component for rack configuration and machinery data retrieval within Bently Nevada 3500 Machinery Protection System platforms. Positioned exclusively in Slot 1 adjacent to the power supplies, this module executes proprietary protocol sequence controls to poll internal chassis diagnostics and dispatch data to external communication processors or host software interfaces.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 3500/20 125744-02 acts as the centralized configuration gateway that stores calibration data matching the eddy-current probe scaling for the entire rack instrumentation setup. Although the module does not lie directly in the critical machinery shutdown path, its internal memory contains the linearized curve parameters essential for validating the -10 VDC targets during transducer loop setup. Proper optimization of the data packet transmission cycles via the interface circuit ensures that continuous rotor dynamics information transitions smoothly to the network layer without introducing software lag. Built-in bus separation rules prevent digital frame generation from leaking into sensitive backplane pathways, maintaining clean cross-talk suppression for high-frequency analog signals.

Frequently Asked Questions

Q: What is the technical difference between the RUN and PROGRAM positions on the front panel key switch?

A: The RUN position locks the current operational profile and prevents any unauthorized remote or local modification of monitor configuration files. The PROGRAM position unlocks the rack memory to accept parameter downloads while maintaining standard machinery tracking functions.

Q: Can the 125744-02 module be hot-swapped while the 3500 system is actively protecting machinery?

A: Yes. Because this module handles communication and configuration rather than the real-time protection path, withdrawing or inserting the card does not disrupt active monitor channels or cause false trip status changes.

Field Installation Guidelines

• Slot Allocation Constraint: Mount the main circuit board assembly exclusively in Slot 1 of the 3500 chassis, which is the dedicated position situated directly to the right of the system power supplies.
• Key Lock Management: Remove the physical configuration key from the front faceplate assembly once deployment parameters are finalized to secure the system against operational modifications.
• Relay Terminal Grounding: Wire the rear I/O OK relay contacts with standard twisted-shielded cable, ensuring the cable shield isolates fully from intermediate metal enclosures and returns to the master panel earth terminal.
• Serial Cable Length Limits: Restrict the physical length of the front-facing RS232 diagnostic cable to a maximum of 30 meters (100 feet) to prevent bit dropouts and framing errors during configuration uploads.
