Description

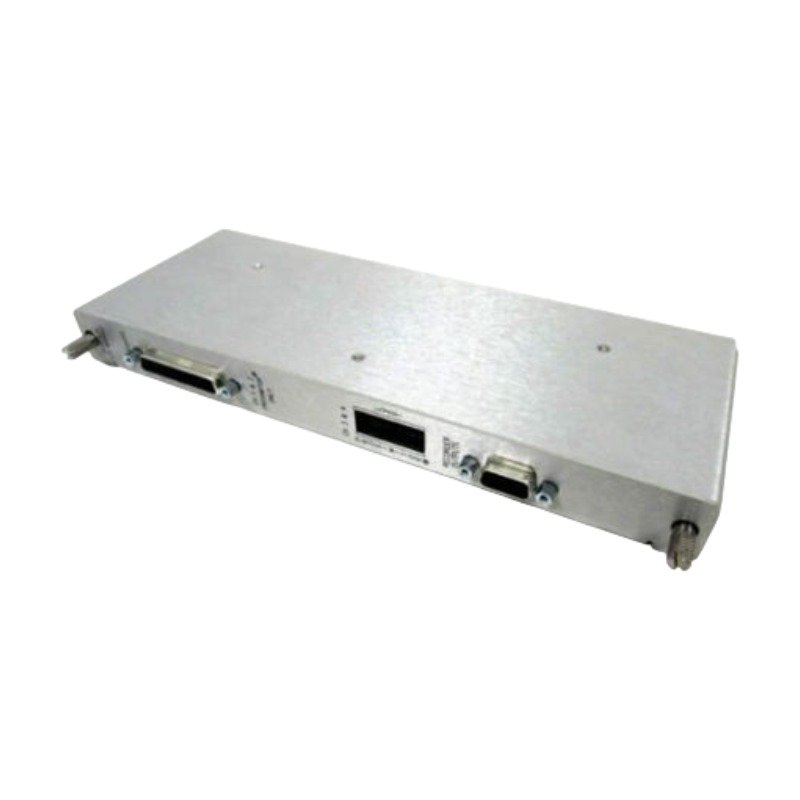

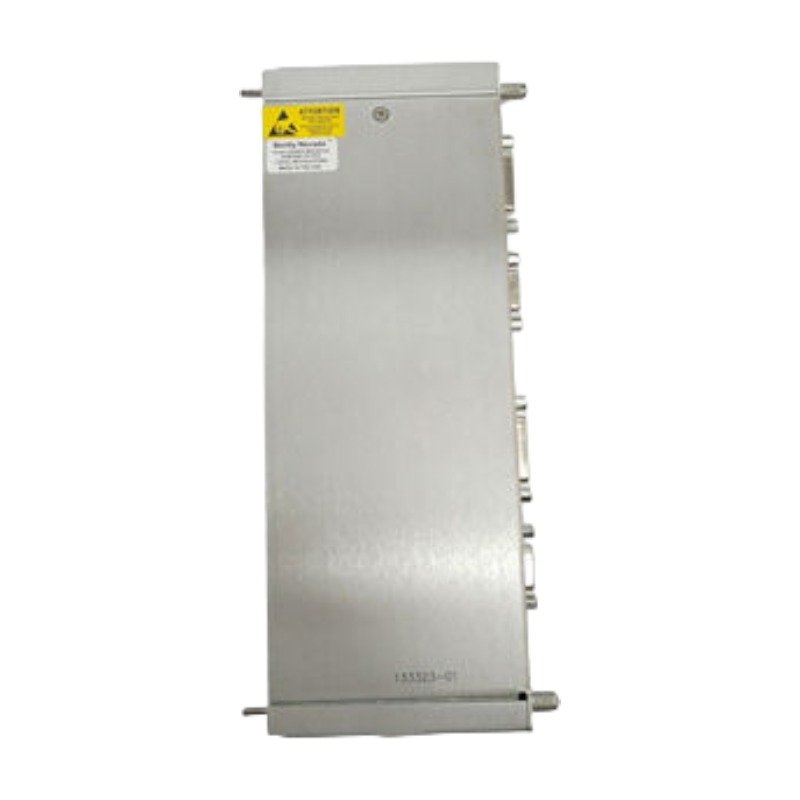

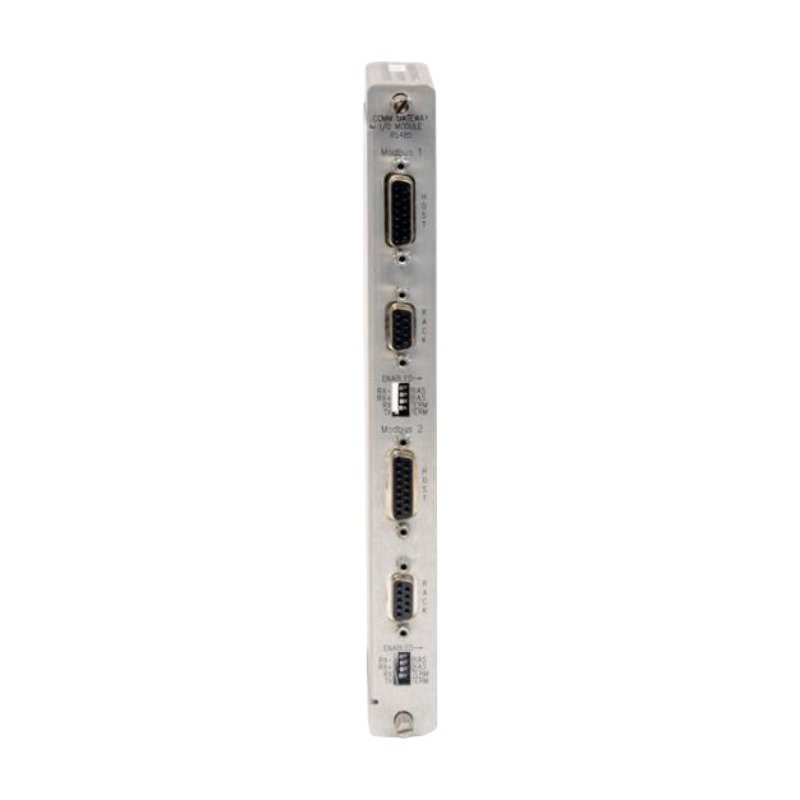

Configured for high-speed serial data transmission in 3500 Machinery Protection System platforms, the Bently Nevada 133323-01 (3500/92 Modbus RS485 I/O Module) provides direct physical/electrical execution. This backend hardware component interfaces directly with the main 3500/92 Communication Gateway module. Consequently, it transmits collected rack parameters, alarm registers, and operational statuses directly to distributed control systems (DCS) and programmable logic controllers (PLC) over a deterministic serial bus.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 133323-01 transforms raw system diagnostics into digital telemetry, exporting numerical registers that mirror the calibrated eddy-current probe scaling established across individual monitor cards. While processing high-frequency rotor dynamics over the internal backplane, the module packs peak-to-peak vibration values, phase angles, and the steady-state gap voltage validation (-10 VDC targets) into standardized Modbus holding registers. Field engineers utilize the Configurable Modbus Register Utility to map specific hardware addresses. As a result, this utility optimizes bandwidth and establishes robust cross-talk suppression between concurrent digital requests and adjacent analog backplane tracks.

Frequently Asked Questions

Q: How does the 133323-01 interface with the 3500 system configuration software?

A: The serial I/O card acts as a hardware bridge. It pipes configuration data packets from the front-facing port or Ethernet backbone straight to individual internal monitor microprocessors during online programming sequences.

Q: Does a failure or removal of this rear I/O component interrupt critical machinery trip logic?

A: No. The module executes data gateway operations independently from the primary protective relay logic. Consequently, extracting this component from the backplane under live conditions does not compromise machinery shutdown loops.

Field Installation Guidelines

• Chassis Slot Alignment: Insert the card exclusively into the dedicated rear slot directly corresponding to the front-facing 3500/92 Communication Gateway processor board.
• Termination Resistor Engagement: Apply an external 120-ohm terminal link across the final physical node of the RS485 network array to mitigate line reflections and data distortion.
• Terminal Screw Tensioning: Tighten the serial port wiring block fasteners to a maximum torque spec of 0.56 N-m (5 in-lb) to prevent internal circuit footprint fractures.
• Shield Ground Tracking: Terminate the external communication cable drain wire strictly at the host system ground point, maintaining total physical isolation along intermediate field junctions.
