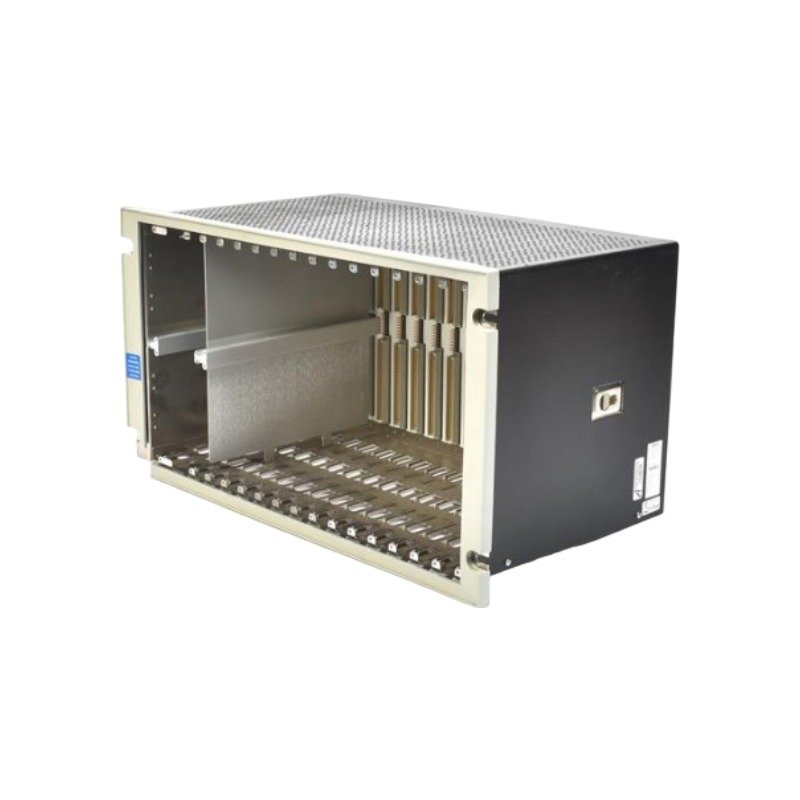

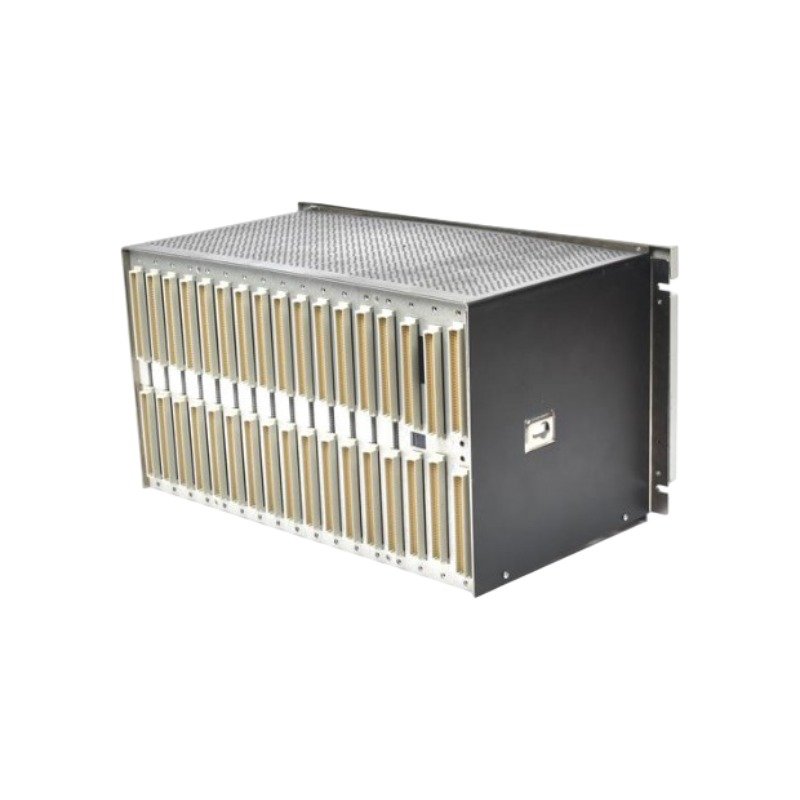

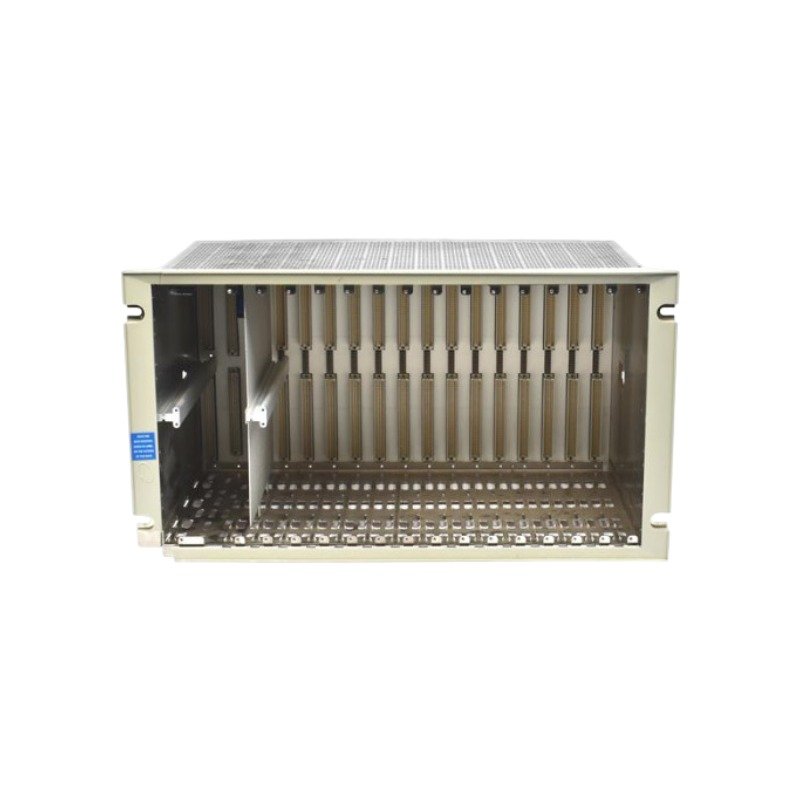

Bently Nevada 3500/05-02-04-01-00-01 3500 System Rack
Bently Nevada 3500/05-02-04-01-00-01 is a full-size 19-inch panel mount system rack with 14 slots and hazardous area approvals. Brand New, Original Stock with Global Shipping.
Description
The Bently Nevada 3500/05-02-04-01-00-01 serves as the primary 3500/05 System Rack utilized to execute structural housing and backplane power distribution across Bently Nevada 3500 Series Machinery Protection platforms. Consequently, this hardware component forms the foundational backbone that interconnects monitoring modules, power supplies, and transient data interfaces.
Suffix Breakdown & Model Matrix
- 3500/05: Base part number for the 3500 System Rack.
- -02: Rack size option designating a 19-inch Full-Size Rack with 14 available monitor slots.
- -04: Mounting option specifying a Panel Mount configuration for direct cutout installation.
- -01: Agency approval option designating European ATEX, IECEx, and North American hazardous area certifications.
- -00: Reserved option slot designating standard production configuration.
- -01: Special option flag designating compliance with specific regional technical or environmental safety standards.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/05-02-04-01-00-01 |
| Brand | Bently Nevada |
| Origin | United States |
| Weight | 7.11 kg |
| Dimensions | 482.6 mm x 265.9 mm x 349.3 mm (19-inch 6U) |
| Operating Temp | -20 to +65 deg C |
| Power Consumption | Passive backplane bus (modules draw via dual supplies) |
| Slot Capacity | 14 monitor slots, 2 power supply slots, 1 TMR slot |
| Communication Bus | High-speed parallel backplane network |
| Mounting Footprint | Standard 19-inch rack-mount standard spacing |
Transducer Interface & Mechanical Monitoring Characteristics
This structural backplane maintains stable impedance pathways for low-level analog lines, thereby preserving strict eddy-current probe scaling for every inserted card. The power layer provides noise-free voltage lines to ensure flawless gap voltage validation (-10 VDC targets) across multi-channel proximity modules. Furthermore, integrated physical separation traces execute cross-talk suppression between adjacent slots, protecting high-frequency data pathways that analyze critical rotor dynamics.
Frequently Asked Questions
Q: How does the rack architecture handle power distribution and system redundancy?
A: The rack allocates two dedicated slots on the far left side for power supplies. Consequently, technicians can install dual redundant power supplies, allowing the secondary unit to accept the full system load instantly without causing monitoring disruption if the primary supply fails.
Q: Can maintenance personnel insert or remove monitoring modules while the rack is live?
A: Yes, the 3500/05 rack backplane supports hot-swapping functionality for individual monitor modules. However, engineers must carefully follow the specific module bypass guidelines to prevent accidental machinery trip execution during live hot-swap procedures.
Field Installation Guidelines
- Cut out panel dimensions strictly matching the 19-inch panel mount specifications before attempting to seat the chassis framework.
- Fasten the rack framework using all designated mounting holes to eliminate structural resonance induced by nearby heavy industrial machinery.
- Connect the primary system ground terminal directly to the main plant instrumentation ground bus using a heavy-gauge copper conductor.
- Verify clearance zones around the upper and lower ventilation slots to maximize natural thermal dissipation profiles across the installed modules.
