Description

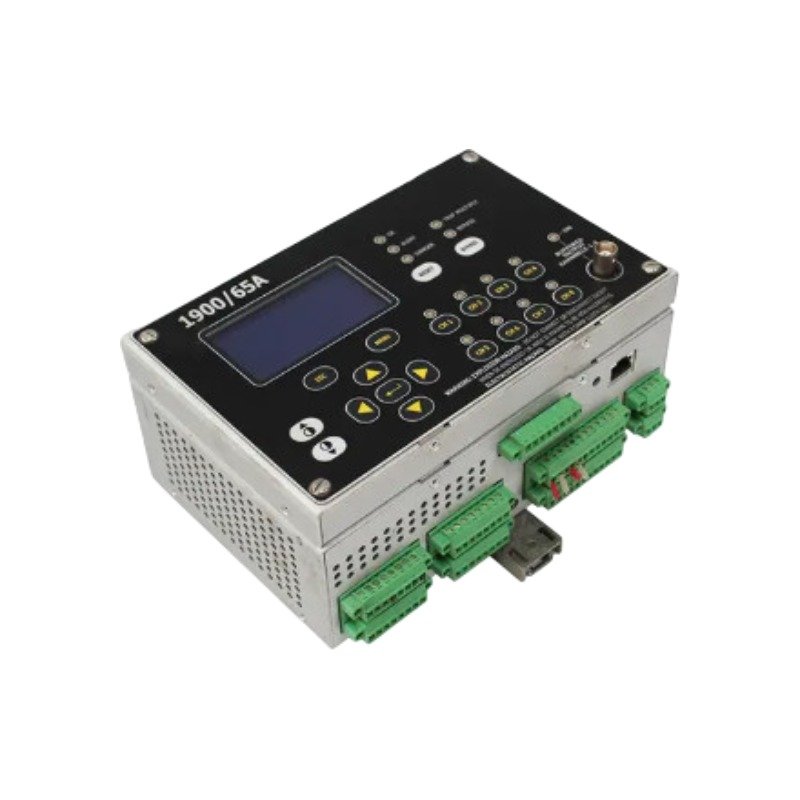

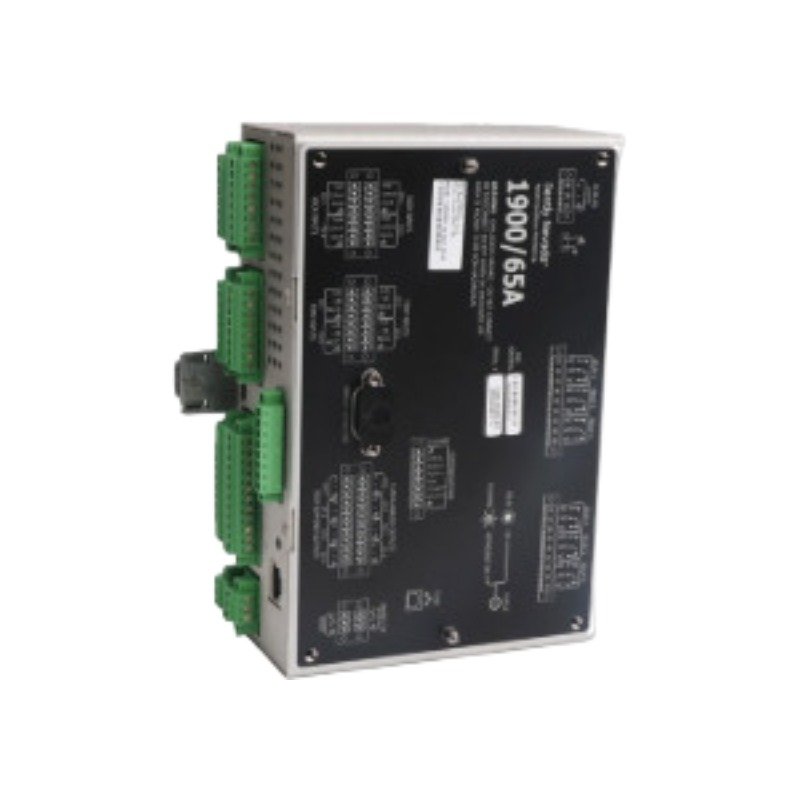

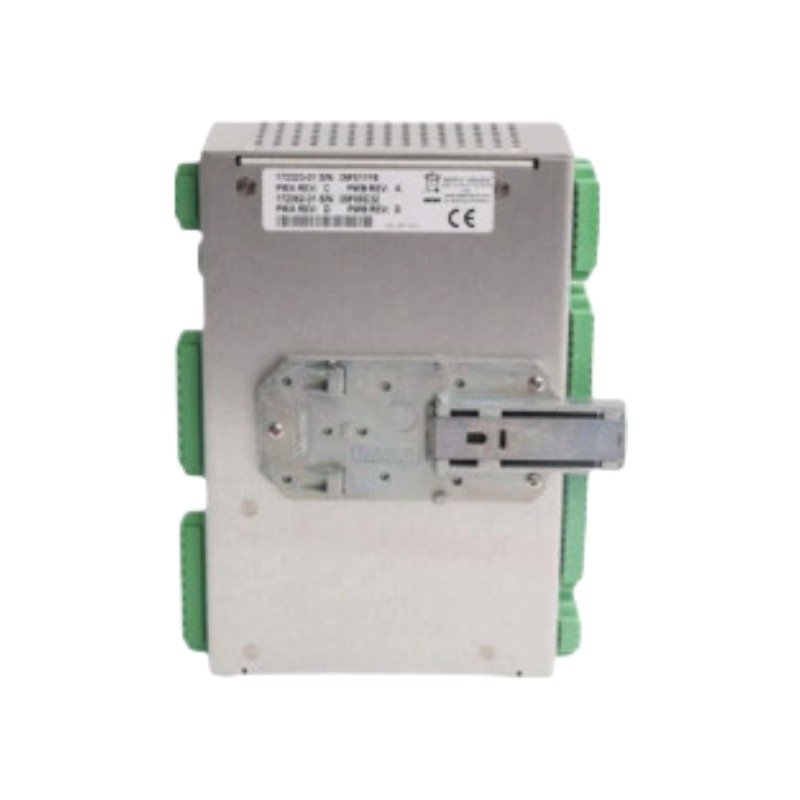

The Bently Nevada 172323-01, also cataloged as the 1900/65A General Purpose Equipment Monitor, operates as a dedicated hardware component for continuous machinery vibration and temperature monitoring within critical industrial asset infrastructure. Consequently, this standalone monitor handles multi-channel processing to drive safety shutdowns and operational alarms.

Hardware Specifications

Transducer Interface & Mechanical Monitoring Characteristics

This unit maps direct input signals into independent hardware channels, thereby preserving strict eddy-current probe scaling across proximity systems. To ensure correct measurement baselines, internal diagnostics perform constant gap voltage validation (-10 VDC targets) alongside automated sensor OK tracking. Additionally, high-performance input filters supply robust cross-talk suppression and signal isolation, which isolates background electrical noise from raw spectral frequencies to track rotor dynamics accurately.

Frequently Asked Questions

Q: Which distinct sensor types can technicians connect to the four primary transducer inputs?

A: The input circuitry accepts 2-wire and 3-wire accelerometers, velocity sensors, and proximity probes. Furthermore, operators configure individual channels independently via the 1900 Configuration Software to match the chosen sensor profile.

Q: How does the hardware execute system alarms and automatic machinery trip functions?

A: The monitor drives six physical onboard relays to trigger system trips and warnings. Specifically, internal logic cross-references the processed signals against user-defined thresholds, driving the dry contacts to change states upon detecting OK, Alert, or Danger status conditions.

Field Installation Guidelines

1. Mount the core monitoring module firmly inside an IP54 or higher rated industrial enclosure to mitigate environmental contamination.
2. Route all low-level transducer field wiring inside dedicated, grounded steel conduits to establish full shielding against electromagnetic interference.
3. Establish a single, solid connection between the triaxial shield wires and the instrument ground bus, while explicitly avoiding duplicate ground terminations at the machine housing to prevent ground loops.
4. Verify the 18 to 36 VDC power source lines provide stable input voltages before energizing the terminal strip to prevent internal power supply stress.
