Technical Overview

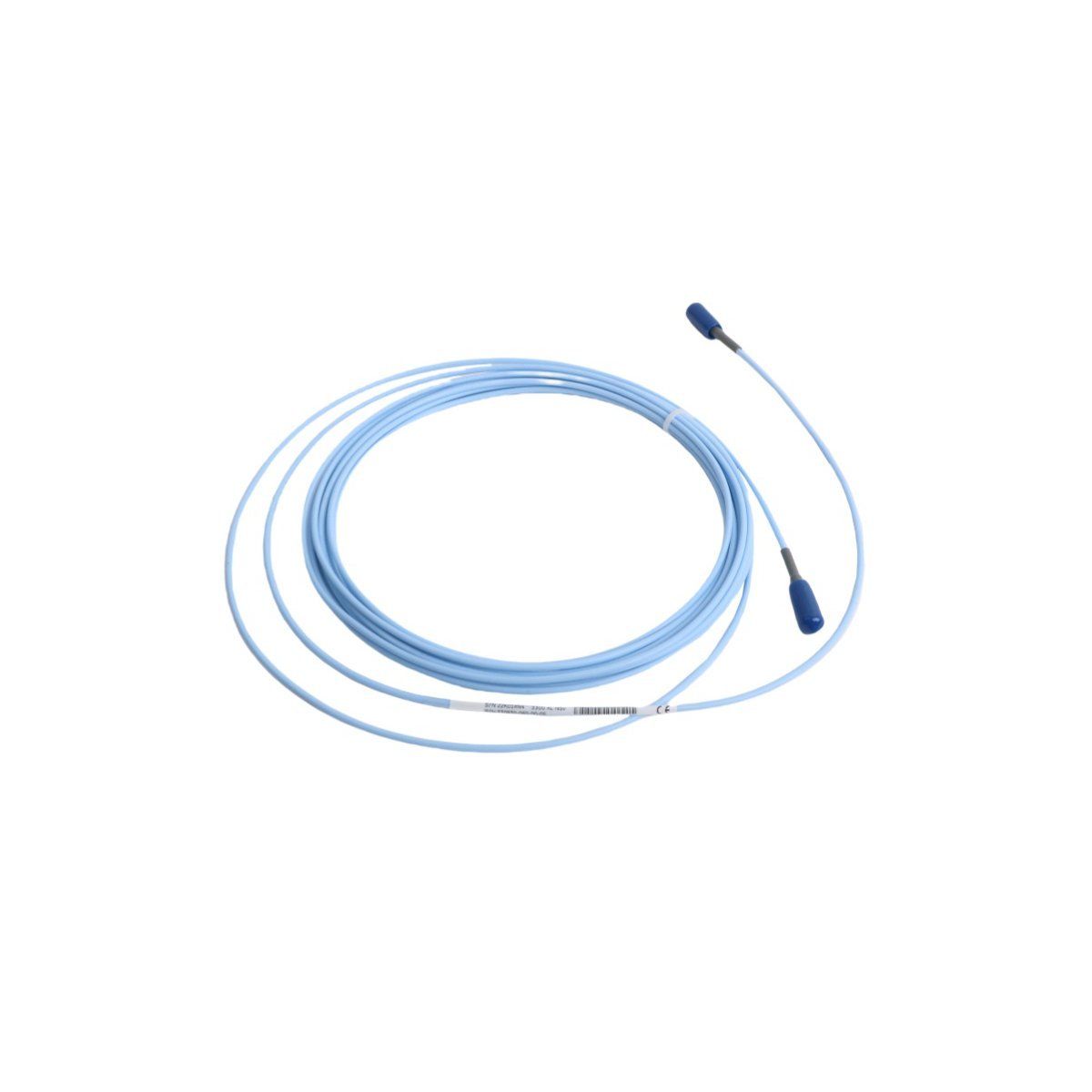

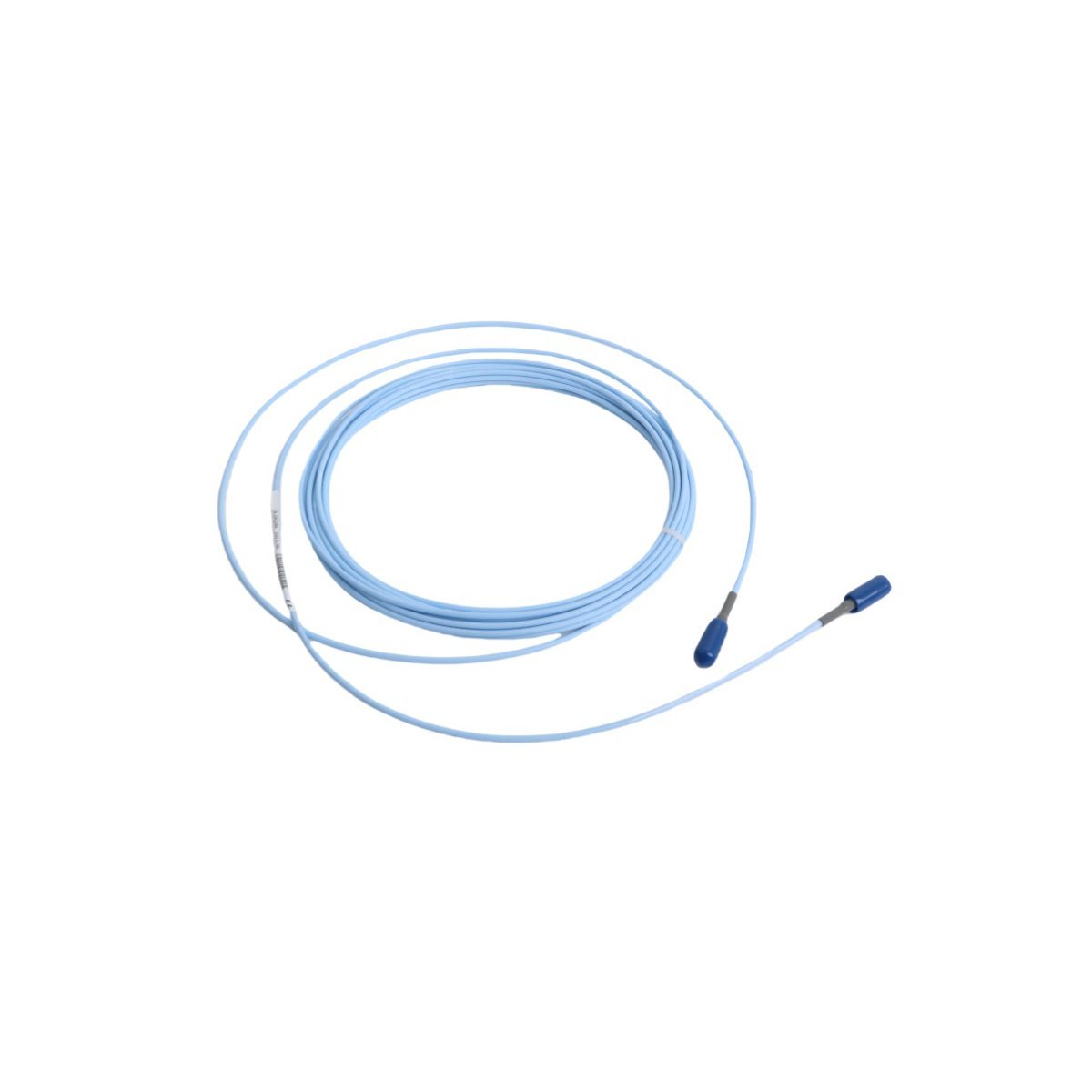

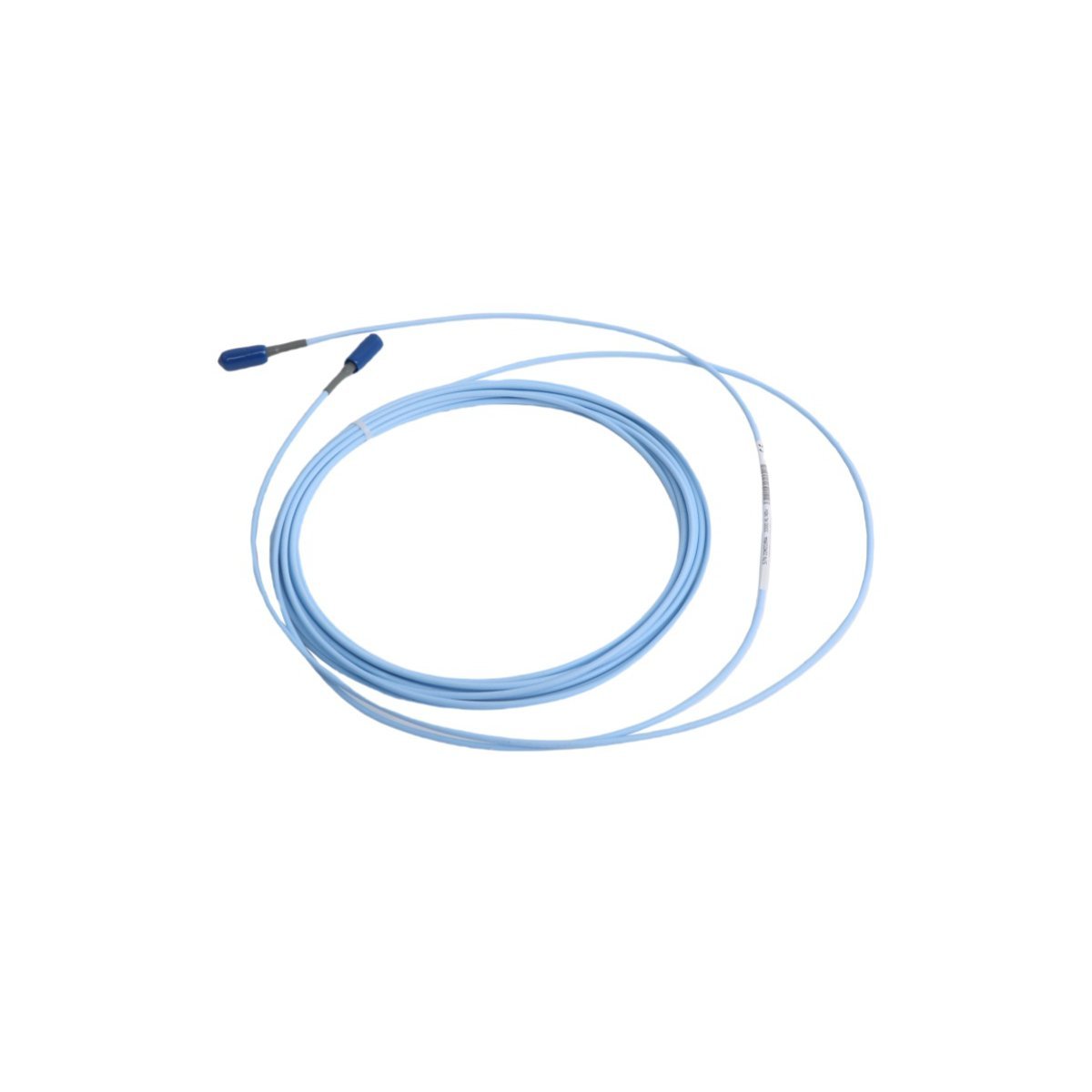

The Bently Nevada 3300 XL Standard Extension Cable (Model: 330930-060-00-CN) is a high-integrity, engineered interconnect solution designed specifically for demanding industrial condition monitoring applications. As part of the globally trusted 3300 XL Proximitor® sensor system, this 60 ft (18.3 m) extension cable ensures reliable signal transmission between proximity probes and前置 signal conditioners—without compromising measurement fidelity, noise immunity, or long-term stability. Its construction adheres to stringent API 670 (4th & 5th Edition) and ISO 10816 standards, making it ideal for critical rotating machinery protection in power generation, oil & gas, petrochemical, and pulp & paper facilities.

Engineered with precision-matched impedance (50 Ω nominal) and low-capacitance coaxial design, the 330930-060-00-CN minimizes signal attenuation and phase distortion across its full operational bandwidth (0–10 kHz). The cable features double-shielded construction (foil + braided copper), robust polyurethane jacketing rated for –40°C to +85°C continuous operation, and IP67-rated molded connectors compatible with 3300 XL series probes and monitors. Its consistent velocity of propagation and controlled dielectric properties ensure repeatable calibration traceability—essential for compliance-driven asset health programs and predictive maintenance strategies.

Key Features

• API 670–Compliant Design: Meets vibration and proximity monitoring requirements for machinery protection systems (MPS) in safety-critical applications.
• High-Noise Immunity: Dual-layer shielding (aluminum foil + tinned copper braid) suppresses EMI/RFI in electrically noisy plant environments.
• Field-Ready Durability: Abrasion-, oil-, and ozone-resistant polyurethane jacket with reinforced strain relief at both ends for extended service life in harsh industrial settings.
• Plug-and-Play Integration: Pre-terminated with industry-standard 3300 XL M12 connectors—no field termination required, reducing installation time and eliminating calibration drift risks.
• Traceable Calibration Support: Maintains probe system sensitivity and linearity across the full extension length, preserving OEM-calibrated performance.

Specifications

• Part Number: 330930-060-00-CN
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: 3300 XL Standard Extension Cable — 60 ft (18.3 m), coaxial, shielded
• Warranty: 24-month limited warranty against defects in materials and workmanship

Contact us for bulk pricing and availability
