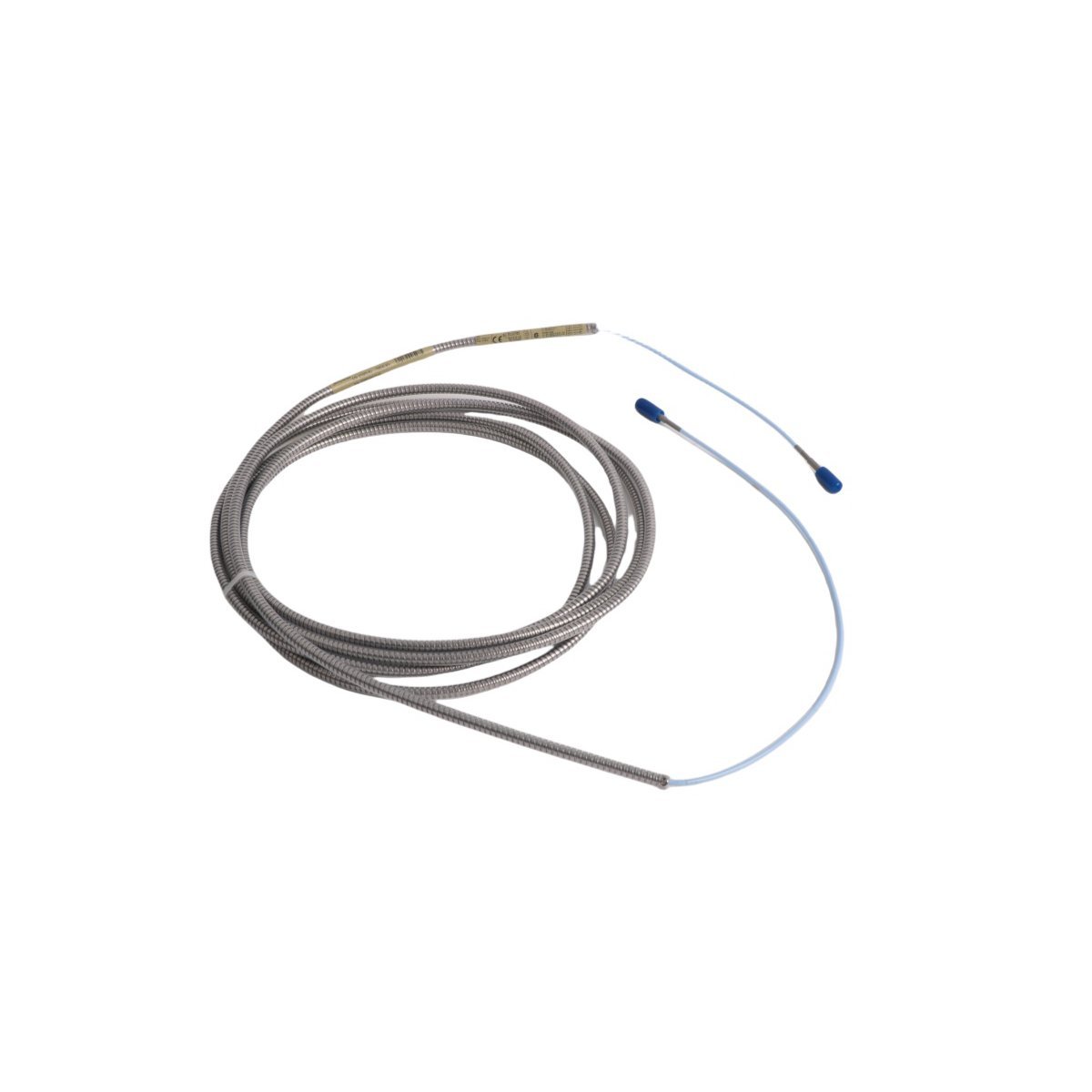

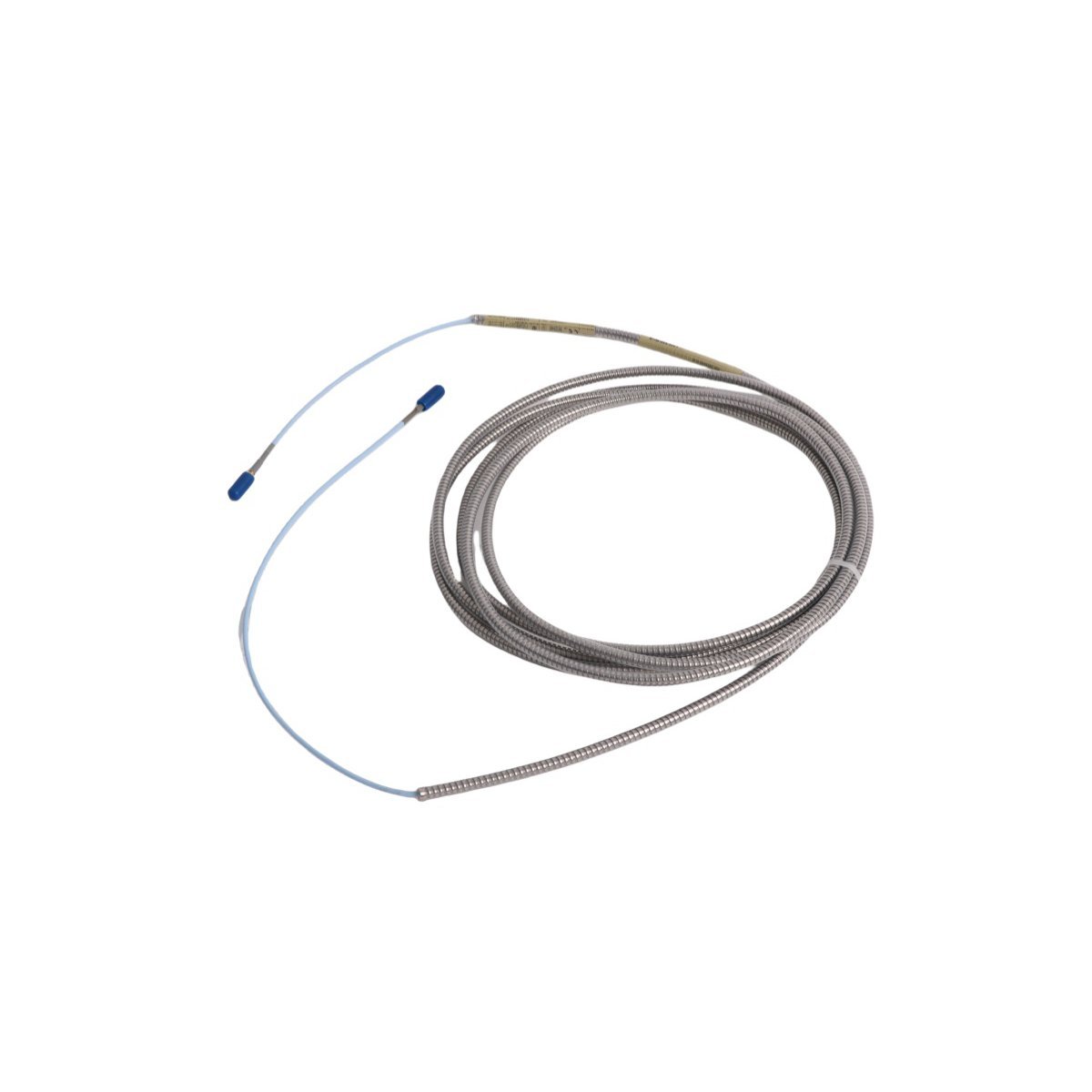

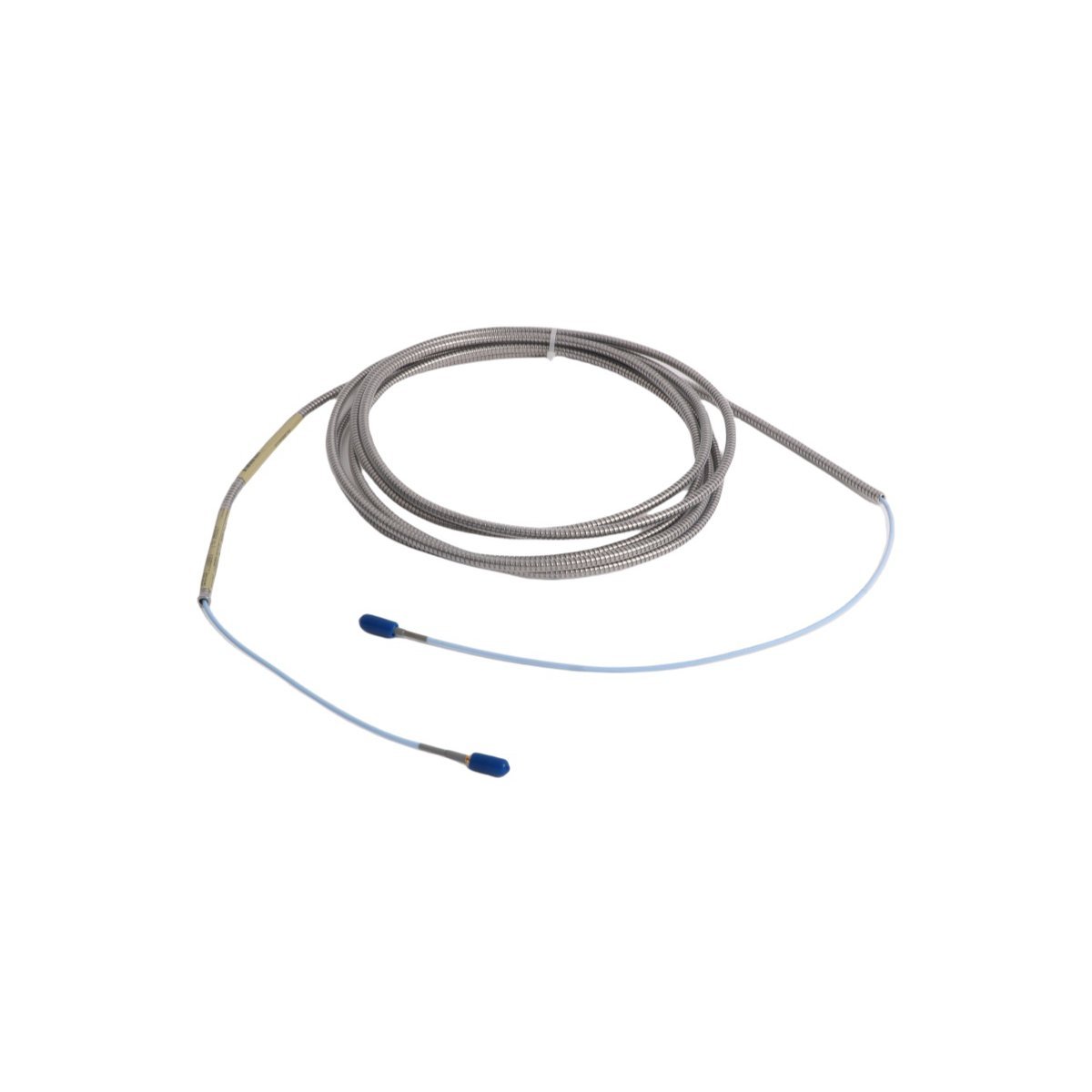

The Bently Nevada 330930-045-01-05 3300 NSv Extension Cable is a precision-engineered, high-fidelity signal transmission solution designed exclusively for integration within the industry-leading Bently Nevada 3300 Series vibration monitoring system. Manufactured by Baker Hughes (formerly Bently Nevada), this extension cable serves as a critical interface between proximity probe sensors and the 3300 NSv (Next-Generation System with vibration) monitor modules or前置 signal conditioners. Engineered to preserve signal integrity across extended distances—up to 45 feet (13.7 meters)—the cable minimizes electromagnetic interference (EMI), thermal drift, and phase distortion, ensuring compliance with API 670 (4th Edition) and ISO 10816 standards for machinery protection systems. Its coaxial triple-shielded construction, low-noise twisted-pair inner conductors, and proprietary impedance-matched design guarantee consistent sensitivity calibration and repeatable dynamic response from 0 to 10 kHz. The cable is rigorously tested for continuous operation in harsh industrial environments—including petrochemical refineries, power generation facilities, gas compression stations, and marine propulsion systems—where reliability, long-term stability, and traceable metrological performance are non-negotiable. Each unit undergoes 100% factory calibration verification against reference probes and is supplied with full traceable documentation including serial-numbered test reports, RoHS compliance certification, and NIST-traceable calibration data.

Detailed Specifications

Key Features

• Factory-Calibrated Signal Integrity: Pre-tested and certified to maintain ≤±0.25% full-scale linearity deviation over full temperature range, eliminating field recalibration requirements when used with OEM 3300 NSv probes and monitors.
• Triple-Shielded EMI Immunity: Proprietary layered shielding architecture delivers >110 dB common-mode rejection ratio (CMRR) at 1 MHz, critical for installations near VFDs, switchgear, and high-current bus ducts.
• Thermally Stable Construction: Low-thermal-coefficient dielectric (PTFE/Teflon®) and matched CTE conductors ensure minimal zero-shift (<0.1 mil/°C) during ambient fluctuations typical in turbine halls and compressor sheds.
• OEM-Interchangeable Connectors: Features precision-machined 5-pin MIL-C-5015 style connectors with gold-plated contacts and hermetic sealing—fully compatible with 3300 NSv Probe Adapters (e.g., 330180-50-00), Monitor Modules (330780-90-00), and System Interfaces (330190-10-00).
• Extended Service Life: UV-resistant, hydrolysis-proof polyurethane outer jacket provides exceptional abrasion resistance and longevity exceeding 25 years in continuous service per accelerated life testing (IEC 60068-2-64).
• Traceable Metrology Package: Each cable ships with a unique serial-numbered Certificate of Conformance, NIST-traceable calibration report, and spectral noise floor validation data (measured per ANSI S2.17).
• Global Regulatory Ready: Pre-certified for hazardous locations across North America, EU, UK, Middle East, and APAC—reducing commissioning delays and third-party certification costs.

Applications

• Turbomachinery Protection: Real-time shaft vibration, axial position, and differential expansion monitoring for steam/gas turbines, centrifugal compressors, and turboexpanders in power plants and LNG facilities.
• Rotating Equipment Health Monitoring: Continuous surveillance of motor-driven pumps, fans, gearboxes, and blowers in oil & gas production, refining, and chemical processing units.
• Critical Infrastructure Resilience: Integration into Machinery Protection Systems (MPS) for nuclear plant auxiliary systems, hydroelectric generators, and district heating networks requiring SIL-2 compliance per IEC 61508.
• Marine & Offshore Platforms: Vibration sensing in main propulsion engines, thrusters, and diesel generators where salt-spray resistance, shock/vibration tolerance, and explosion-proof ratings are mandatory.
• Condition-Based Maintenance (CBM) Programs: Foundation component for predictive analytics platforms leveraging Bently Nevada System 1™ software, enabling trend analysis, alarm rationalization, and failure mode forecasting.
• Retrofits & System Upgrades: Seamless replacement for legacy 3300 XL or 3300/50 series cables during migration to 3300 NSv architecture—preserving existing probe mounting hardware and rack infrastructure.
