Description

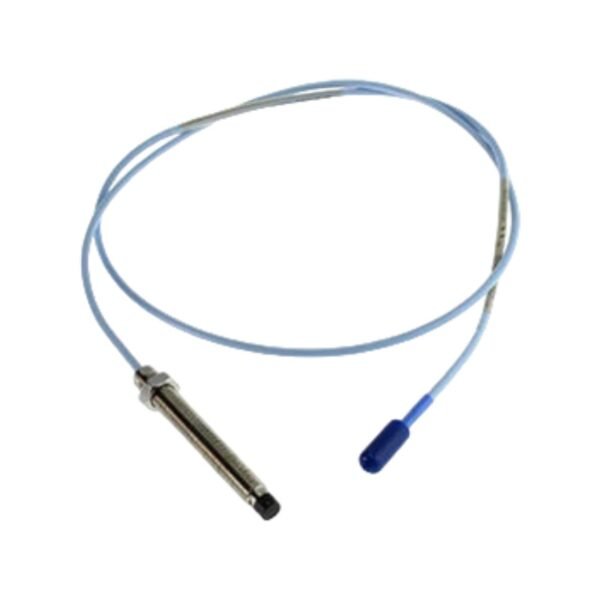

Configured for shaft vibration and axial position measurement in confined machinery installations, the Bently Nevada 330901-00-40-10-02-05 (330901 Proximity Probe) provides direct physical/electrical execution. This eddy-current sensor operates within small-bore target areas where narrow physical clearances restrict the deployment of standard-diameter proximity probes.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Calibration

The Bently Nevada 330901-00-40-10-02-05 generates a high-frequency electromagnetic field that interacts directly with conductive metal targets. Consequently, changes in the gap distance modulate the eddy-current amplitude, which the connected 3300 NSv Proximitor sensor converts into a linear voltage. Because this probe utilizes a smaller 5 mm tip diameter, it maintains an accurate scale factor of 7.87 V/mm (200 mV/mil) even when targeting narrow shaft surfaces down to 9.5 mm (0.375 inches) in diameter. Furthermore, the specialized design provides robust cross-talk suppression when field technicians route adjacent probe cables inside compact bearing housings. Ultimately, this tight electrical calibration yields stable gap voltage validation, targeting a nominal -10 VDC center-point within the linear range.

Frequently Asked Questions

Q: How does the 0.5 m cable length affect the selection of the extension cable?

A: The total electrical length of the proximity transducer system must equal exactly 5.0 m or 7.0 m depending on the Proximitor sensor model. Because this probe has a 0.5 m integrated cable, field technicians must match it with a 4.5 m or 6.5 m extension cable to maintain calibrated probe scaling.

Q: What function does the coaxial armor option provide on this specific model?

A: The flexible stainless steel armor jacket prevents mechanical abrasion, cutting, and pinching of the internal coaxial cable. Concurrently, it shields the dielectric layer from harsh oil mist and chemical contaminants present inside the machine housing.

Field Installation Guidelines

• Verify Side Clearance: Maintain a minimum of 9.5 mm (0.375 inches) of clear space around the probe tip to prevent counterbore interference from altering the calibration.
• Observe Thread Torque Limits: Tighten the 3/8-24 UNF threaded probe body into the bracket using a calibrated torque wrench. Do not exceed 11.3 N-m (100 in-lb) to avoid stripping or structural deformation.
• Isolate Armored Shields: Ensure that the outer coaxial armor does not touch internal machine surfaces or metal conduit walls. This precaution prevents external ground loops from degrading the proximity signal.
• Secure Miniature Connectors: Inspect and clean the miniature coaxial connections before assembly. Afterward, tighten the connectors finger-tight and apply self-fusing silicone tape to seal out moisture.
