Description

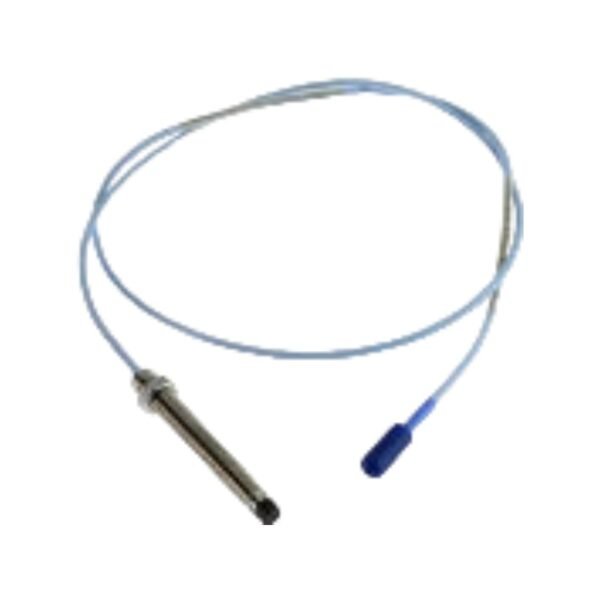

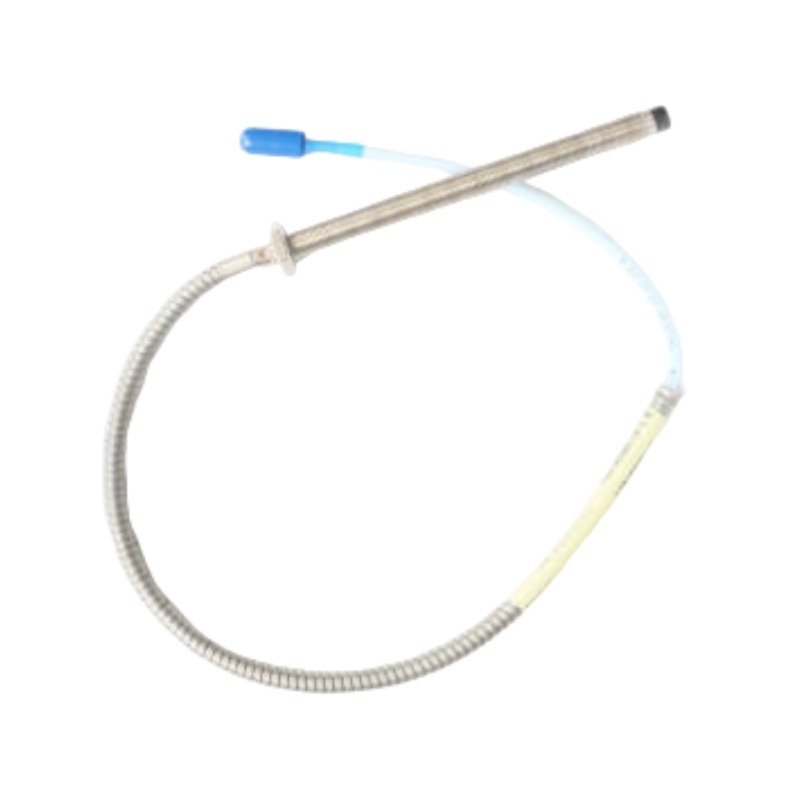

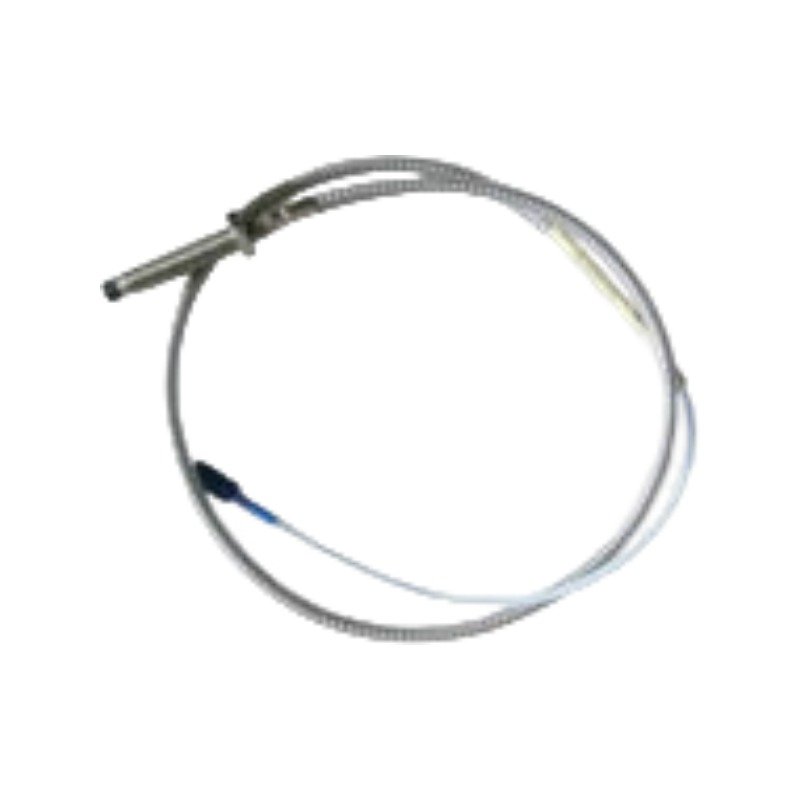

The Bently Nevada 330104-00-13-05-02-00, also cataloged as the 330104 Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement and vibration monitoring within 3300 XL Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and Rotor Dynamics Integration

The armored probe facilitates real-time digital signal conditioning for critical rotor dynamics analysis. Simultaneously, the coupled Proximitor sensor enforces strict gap voltage validation, tracking the output against target thresholds near -10 VDC to verify standard linear operation under continuous machinery loads. Consequently, the specialized transducer tip layout optimizes eddy-current probe scaling, which transforms physical gap variation into a precise millivolt-per-mil electrical signal. Furthermore, internal insulation design principles promote effective cross-talk suppression, preventing high-frequency carrier interference when technicians mount multiple proximity probes in close physical proximity on a single machine bearing housing.

Frequently Asked Questions

Q: How does the system architecture achieve proper eddy-current probe scaling?

A: The probe tip coil generates a high-frequency RF field. As the conductive target moves within this field, the Proximitor sensor conditions the eddy-current losses, thereby transforming the physical distance changes into a linear output voltage proportional to the gap.

Q: What specific protection does the integrated stainless steel armor provide?

A: The flexible stainless steel armor encases the internal coaxial lead cable. This design choice prevents mechanical abrasion, pinching, and damage from hot machine oils inside the bearing housing or fluid pathways.

Field Installation Guidelines

• Thread the probe body into the bracket by hand, then lock the position using the specified jam nut to maintain a stable, calibrated physical gap.
• Connect the miniature coaxial ClickLoc fittings together until they audibly click, ensuring a positive lock without using special mechanical wrenches.
• Run the armored extension cable through dedicated, rigid metal conduit to shield the low-voltage sensor lines from surrounding high-power electrical noise.
• Verify the initial mechanical standoff installation by measuring the physical gap or evaluating the DC bias voltage output using the asset monitoring software.
