Description

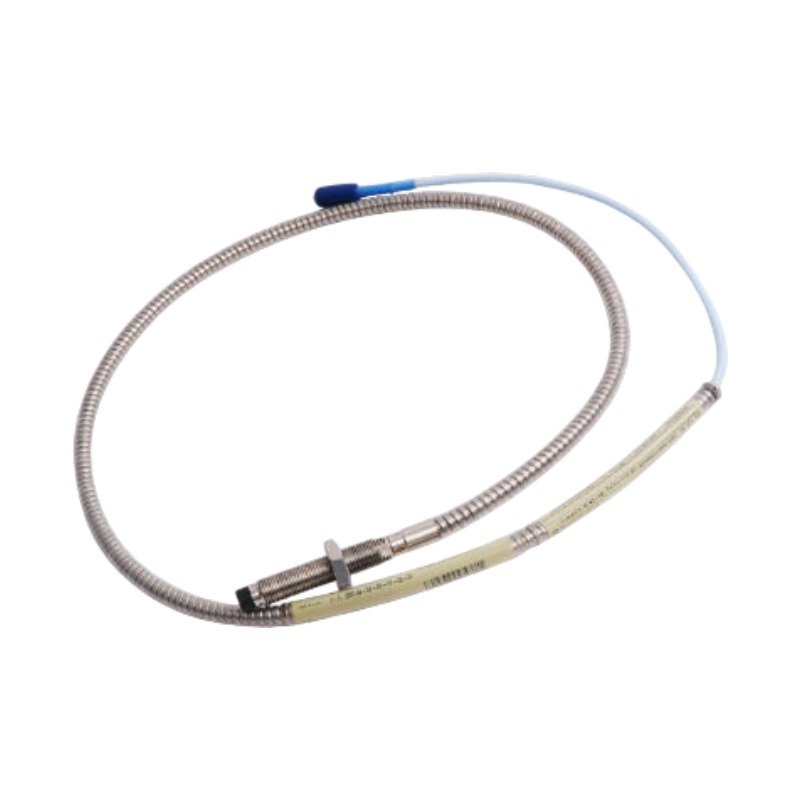

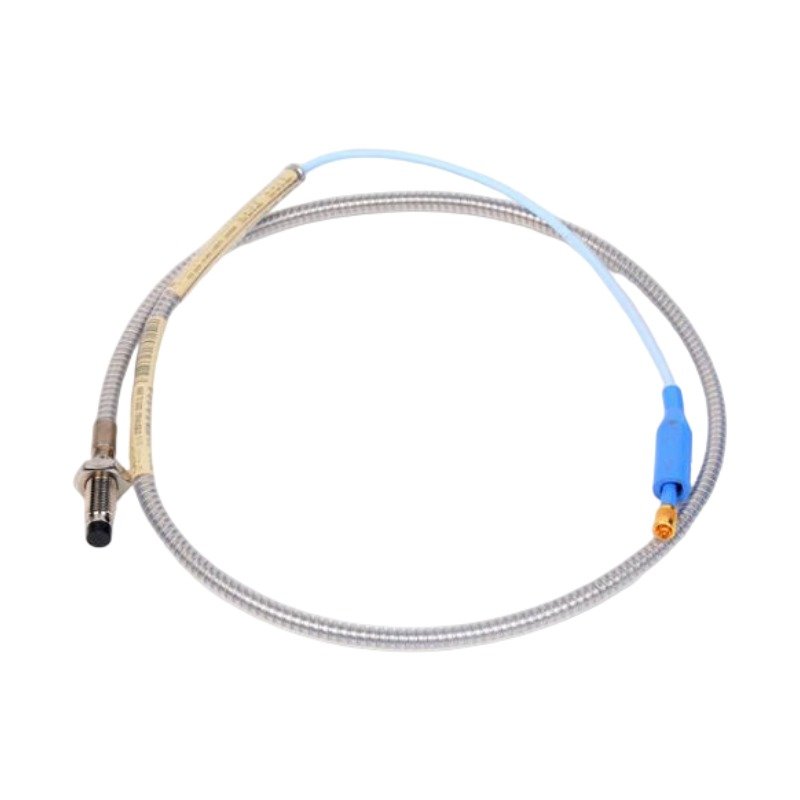

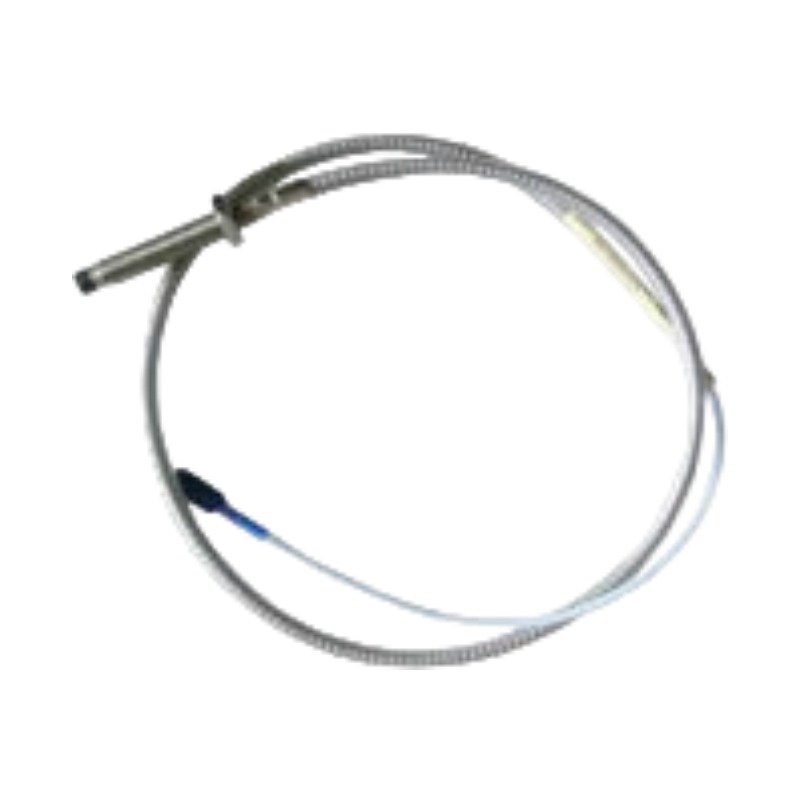

The Bently Nevada 330104-00-08-10-01-05 serves as the primary 330104 Proximity Probe utilized to execute non-contacting displacement monitoring across 3300 XL Proximity Transducer platforms. The component targets high-frequency eddy-current field generation to monitor the relative movement of industrial machine shafts. Operating via radio frequency coupling, the probe tracks dynamic variations in tip-to-target gaps, converting mechanical rotor dynamics into precise electrical oscillations for continuous machinery diagnostics.

Suffix Breakdown & Model Matrix

• 330104: 3300 XL 8 mm Proximity Probe core assembly with M10 x 1 thread and integral stainless steel armor.
• 00: Unthreaded Length Option – 0 mm unthreaded case configuration.
• 08: Overall Case Length Option – 80 mm total case thread length.
• 10: Total Length Option – 1.0 meter (3.3 feet) integral cable assembly length.
• 01: Connector and Cable-Type Option – Miniature coaxial ClickLoc connector with pre-installed connector protector, standard cable layout.
• 05: Agency Approval Option – Multiple international safety certifications including CSA, ATEX, and IECEx approvals.

Hardware Specifications

Machinery Monitoring and Eddy-Current Probe Scaling

The spatial position of the probe tip relies on accurate eddy-current probe scaling to convert target proximity into linear electrical changes. The Proximitor sensor drives an excitation voltage into the probe tip coil, generating an alternating magnetic field that requires precise gap voltage validation (-10 VDC targets) during zero-point alignment. Because cross-talk suppression is maintained by internal geometric isolation, multiple 330104 modules can be placed in close proximity along the same bearing housing without causing magnetic channel interference. This separation allows clean tracking of vibration paths and axial thrust shifts in critical turbomachinery installations.

Frequently Asked Questions

Q: How does the presence of the integrated stainless steel armor layer affect cable routing flexibility?

A: The armor sleeve shields the internal FEP coaxial insulation from physical punctures and abrasive shear forces, but it raises the mandatory minimal flexing threshold. It must not be bent tighter than a 50.8 mm radius during routing.

Q: What happens to the gap voltage validation metrics if the probe tip contacts an uncalibrated steel grade?

A: The standard system calibration is matched to AISI 4140 steel. Facing a non-magnetic or alternative alloy target alters the eddy-current probe scaling slope, skewing the -10 VDC reference gap and corrupting the overall displacement accuracy.

Field Installation Guidelines

• Thread Insertion Depth: Rotate the probe case carefully through the machine bracket housing, ensuring a clean thread engagement before locking the counter-nut to a maximum torque of 4.5 Nm.
• Target Gap Alignment: Use a digital voltmeter connected across the Proximitor sensor terminal taps to verify the mechanical gap equals the target -10 VDC voltage before final torque-locking.
• Connector Insulation Assembly: Verify that the miniature coaxial ClickLoc fitting clicks into place inside the connector protector to keep it completely isolated from any fluid trace.
• Conduit Clearance Limits: Keep the armored cable runs separated from surrounding heavy three-phase AC power lines to avoid introducing high-frequency stray induction anomalies.
