Description

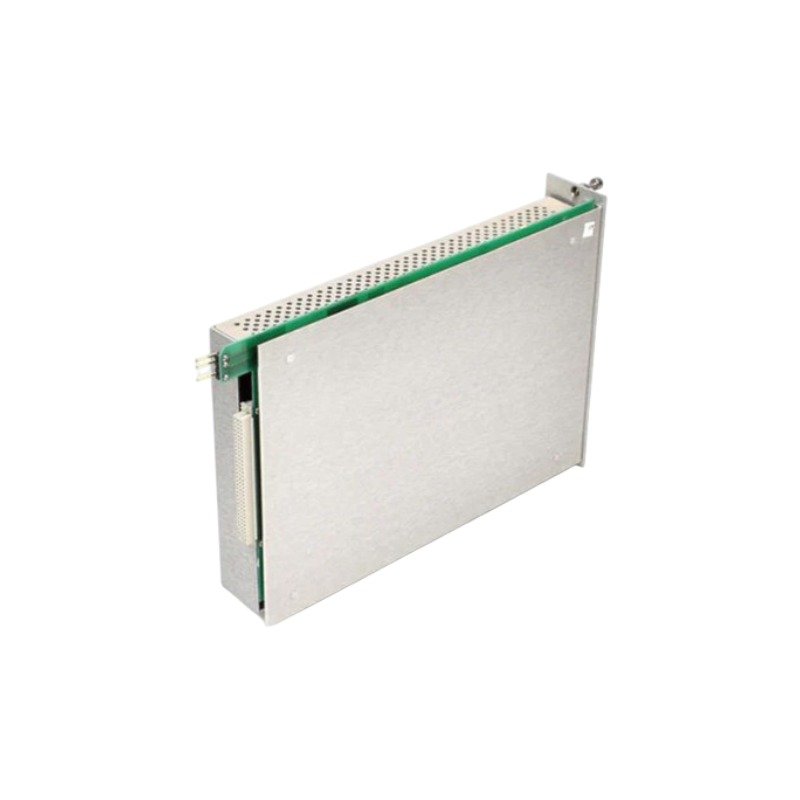

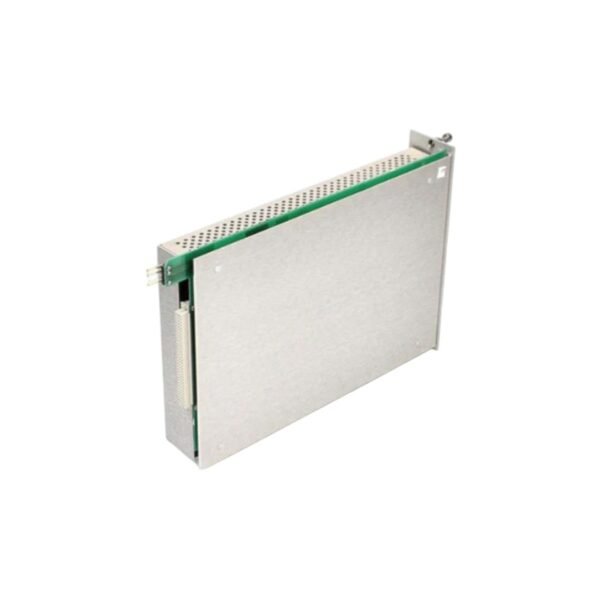

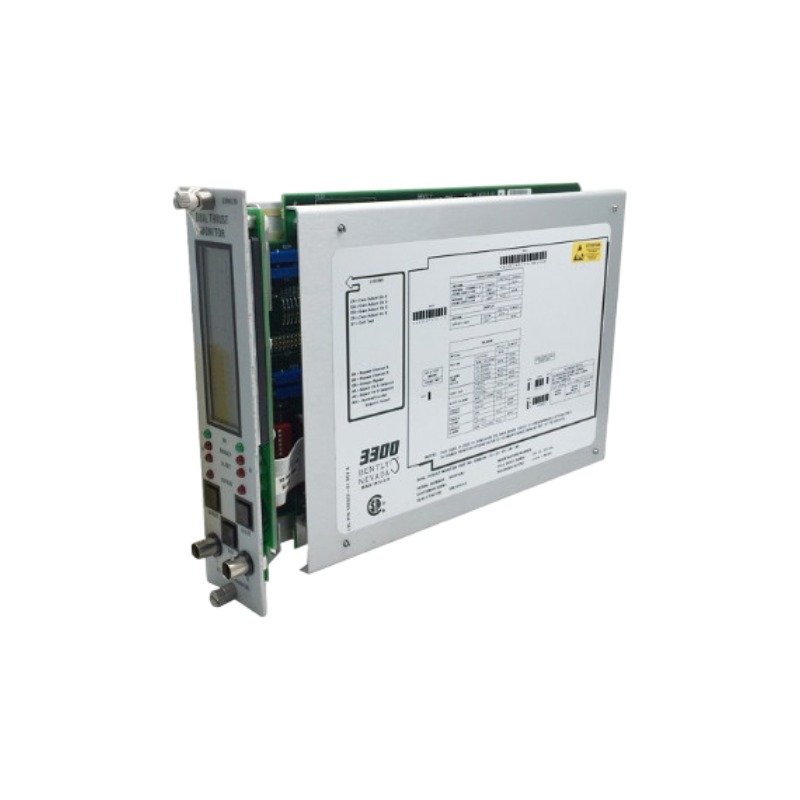

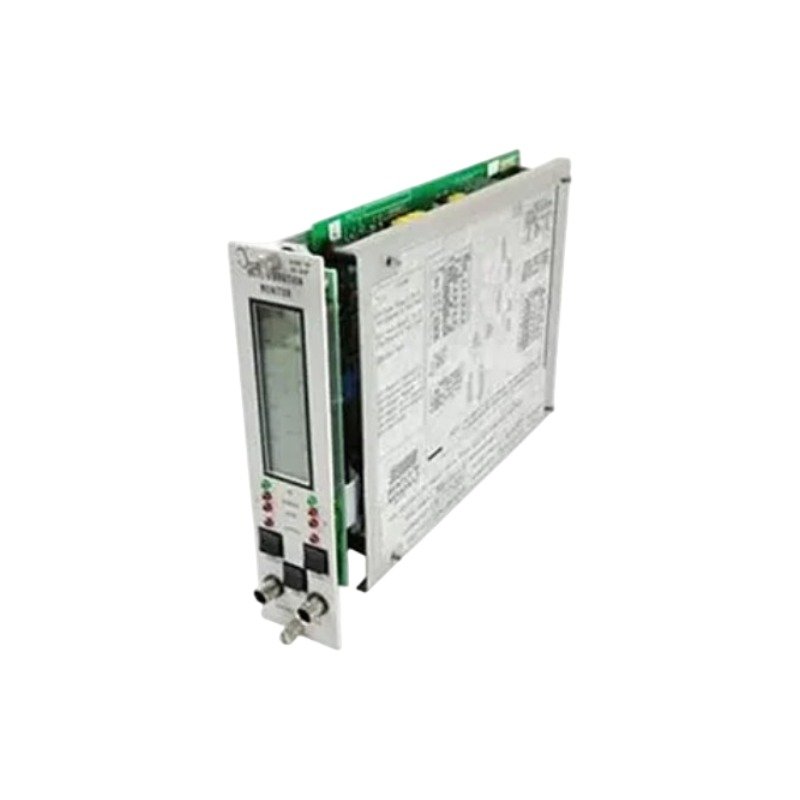

Configured for continuous axial shaft position tracking in 3300 Series Monitoring System networks, the Bently Nevada 3300/20-12-01 (3300/20 Dual Thrust Position Monitor) provides direct physical/electrical execution.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The module interfaces directly with proximity transducer systems and provides the stabilized DC drive required for precise eddy-current probe scaling. Consequently, each channel conducts continuous gap voltage validation (-10 VDC targets) to verify optimal physical positioning of the sensor relative to the thrust collar. The integrated analog processing circuitry filters and translates the high-frequency probe input into continuous axial displacement values. Simultaneously, the module isolates fundamental rotor dynamics and routes dynamic waveforms to external diagnostics. To maintain data integrity, integrated active filtering enforces rigorous cross-talk suppression between adjacent probes mounted on the same thrust bearing housing, thereby preventing false high-amplitude indications.

Frequently Asked Questions

Q: How do the front-panel buffered outputs function during routine plant operations?

A: The front panel coaxial connectors provide direct, unfiltered access to the raw transducer signals. Consequently, machinery specialists connect dynamic analysis instruments to these ports without risking signal degradation or affecting internal monitor alarms.

Q: Does the module support extraction while the system is under load?

A: Removing or inserting the monitor while the rack has power induces transient electrical spikes on the backplane. Therefore, engineers must isolate the rack power or bypass external shutdown interlocks before extraction to eliminate the risk of accidental trip execution.

Field Installation Guidelines

• Terminate the proximity sensor field wiring using coaxial or twisted-shielded triplet cable, and then ground the outer shield exclusively at the monitor rack bulkhead.
• Verify that the transducer calibration matches the monitor configuration scale factor (7.87 V/mm or 200 mV/mil) before commissioning the loop.
• Ensure a minimum of five full thread engagements when securing the rear terminal block connections to avoid intermittent open-circuit faults.
• Route all high-voltage AC power wiring through separate conduits isolated from the low-level transducer input lines to eliminate electromagnetic noise coupling.
