Description

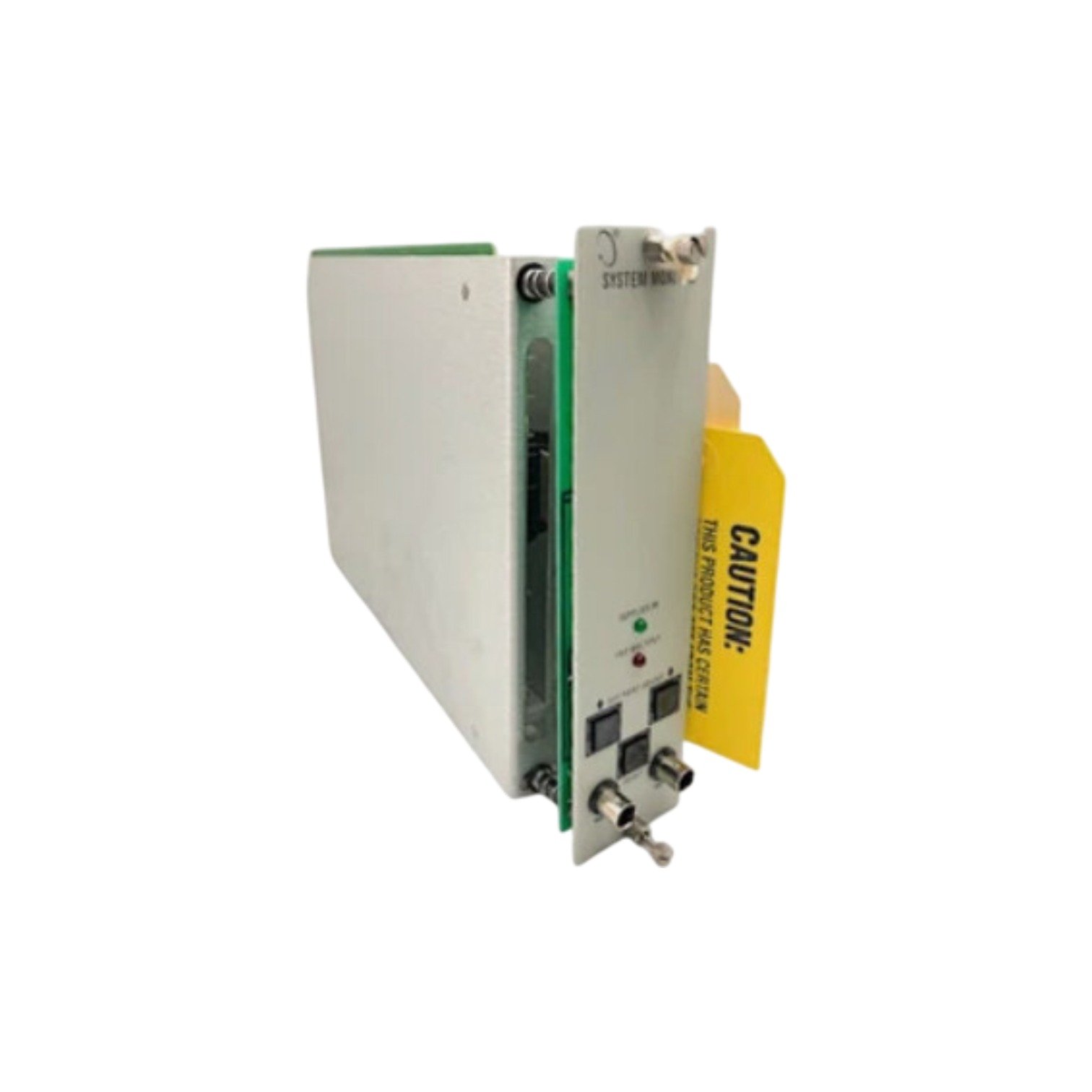

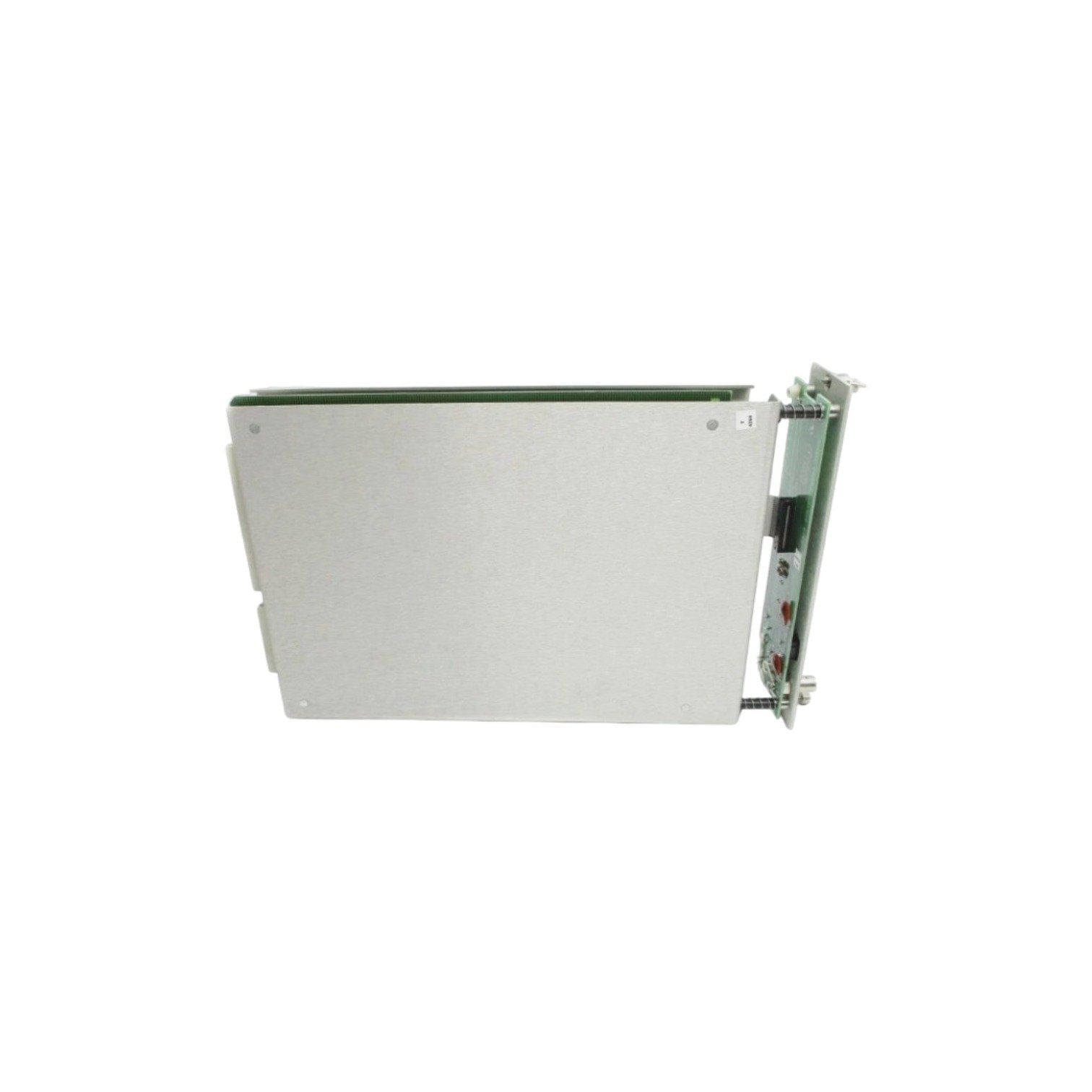

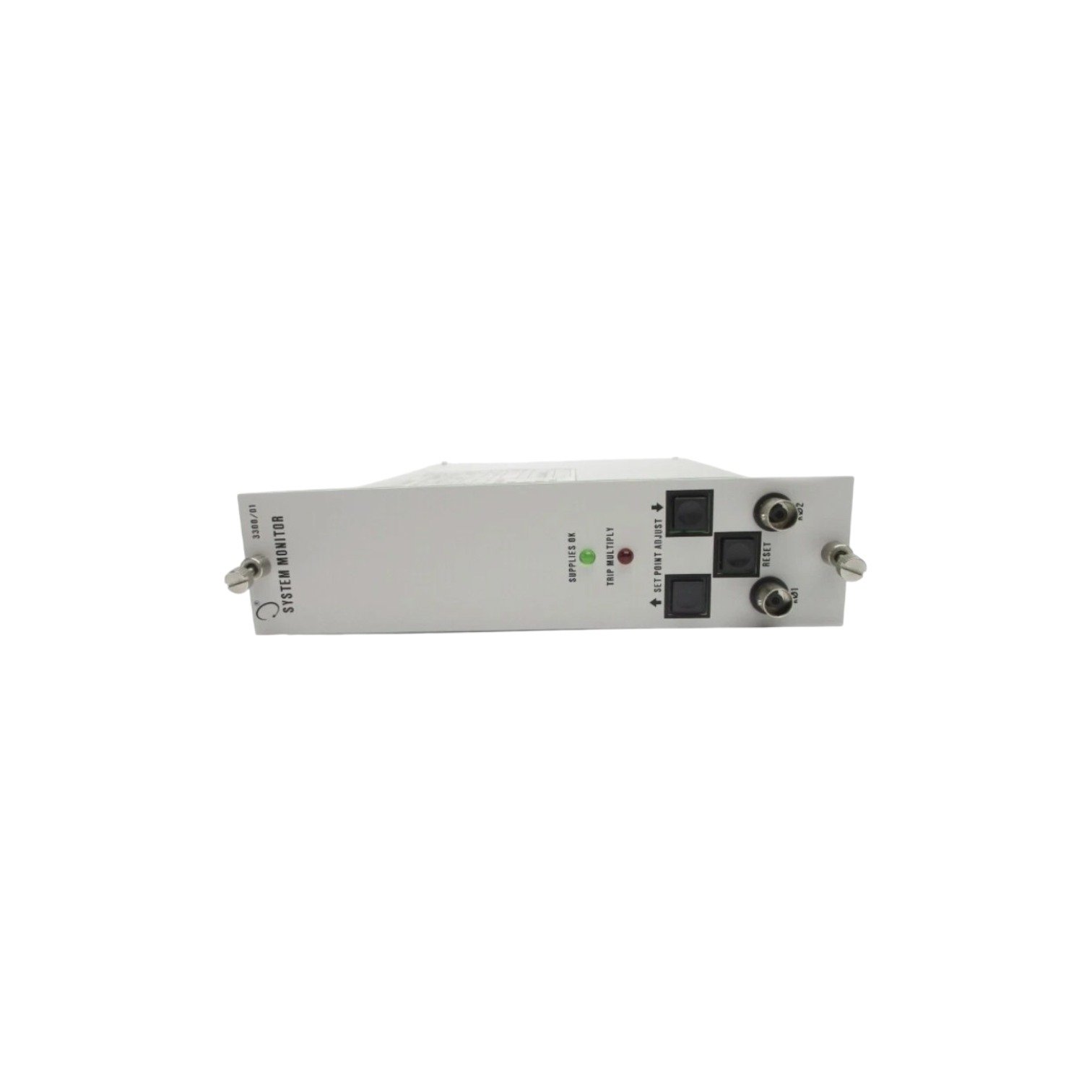

The Bently Nevada 3300/01-01-00 serves as the primary Bently Nevada 3300/01 System Monitor utilized to execute centralized rack power distribution and diagnostics across 3300 Series Machinery Protection System platforms. The hardware component interfaces directly with the backplane to continuously supervise internal power supply rails, aggregate common alarm states, and condition raw Keyphasor speed signals.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The module processes phase data derived from standard eddy-current probe scaling to establish precise timing markers on rotating machinery shafts. Proper setup requires gap voltage validation, targeting standard operational voltage levels to ensure the pulse trigger cleanly transitions through the physical notch threshold. Accurate phase triggering prevents errors in analyzing complex rotor dynamics, including vibration amplitude vectors and critical shaft centerline positions. Internal filtering circuits provide high-frequency cross-talk suppression, isolating the sensitive timing pulses from high-amplitude noise generated by adjacent vibration monitoring cards sharing the same rack chassis.

Frequently Asked Questions

Q: Does the 3300/01-01-00 monitor support online removal or hot-swap?

A: No, this module cannot be hot-swapped. Removing the system monitor disrupts internal backplane power logic, causing all downstream modules in the 3300 rack to drop off-line, which can initiate false machinery trip actions.

Q: What is the primary purpose of the rear OK relay?

A: The physical OK relay provides a discrete dry contact loop to external control architectures, changing state if the rack self-diagnostics detect an internal power rail drop, module failure, or physical transducer fault.

Field Installation Guidelines

• Dedicated Slot Allocation: This module must be installed strictly in Slot 1 (the far left position) of the 3300 instrument rack assembly.
• Shielding Termination: Connect all external Keyphasor transducer and relay cables using shielded twisted pair cabling. Terminate the shield wires only at the dedicated chassis ground rail on the rear I/O terminal block.
• Terminal Block Torquing: Strip cable insulation to exactly 5 mm without scoring the conductor. Tighten all rear terminal block screws to a maximum torque rating of 0.6 N-m to prevent thread stripping.
