Product Description

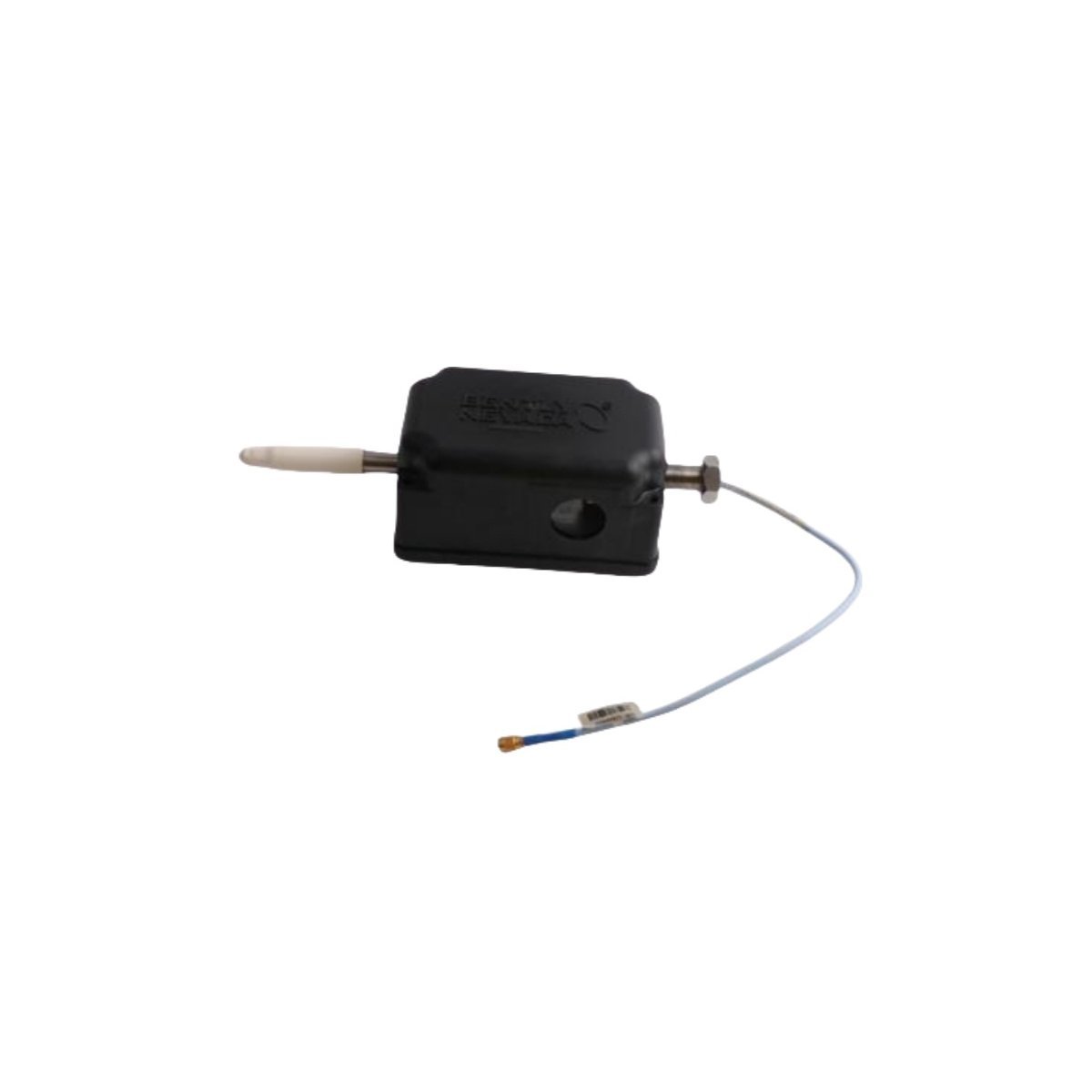

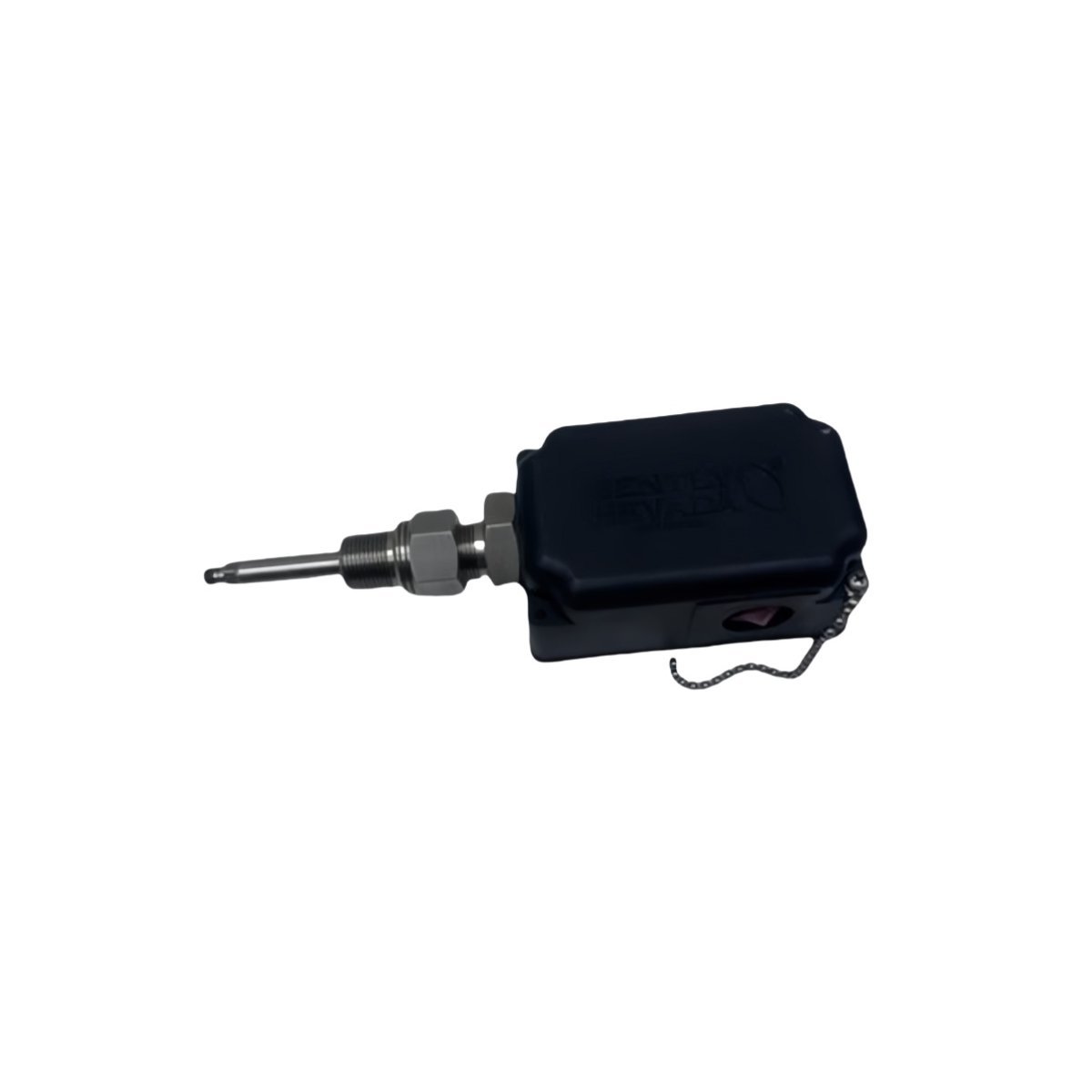

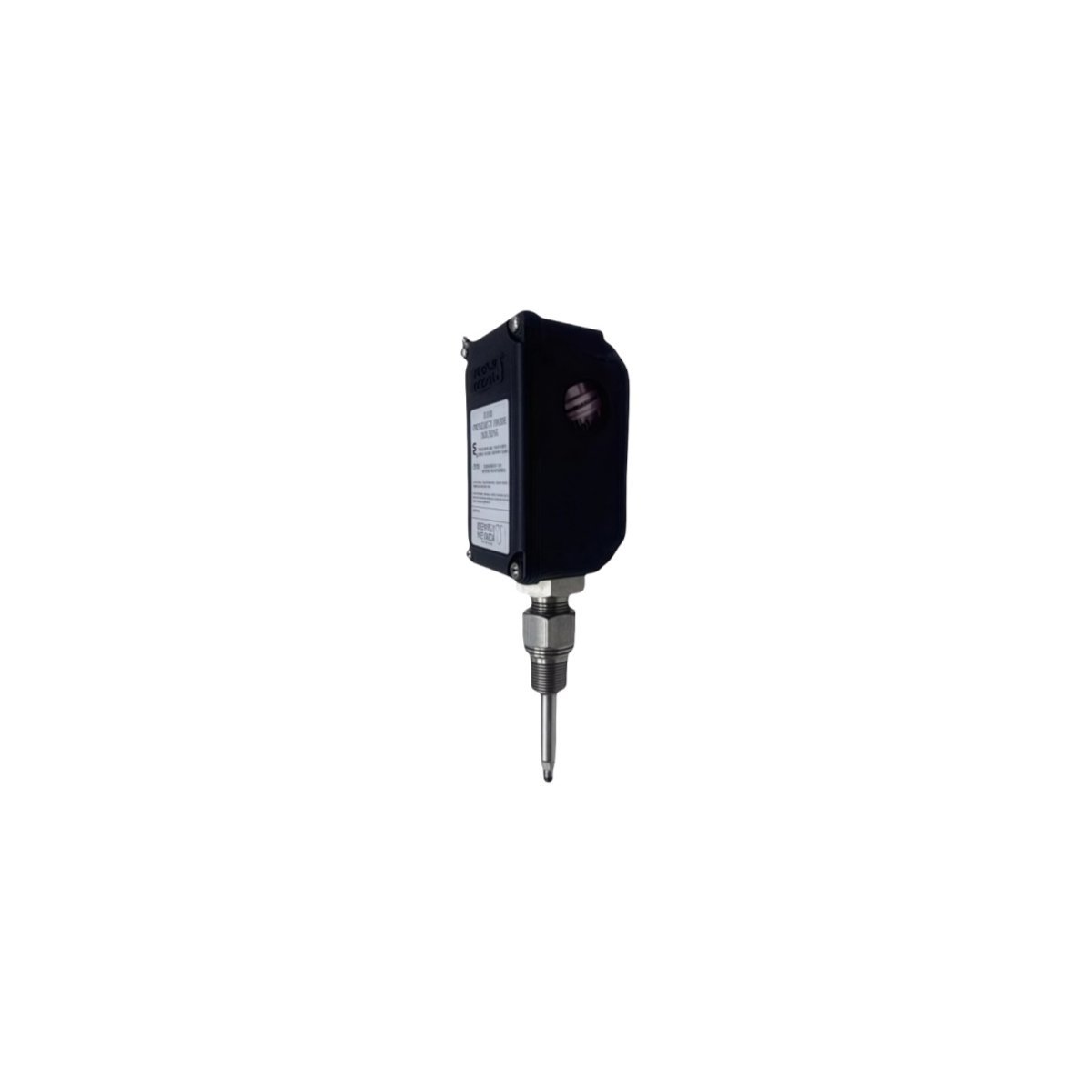

The Bently Nevada 31000-16-05-30-050-02-02 is a robustly engineered Proximity Probe Housing Assembly, designed to provide superior physical and environmental protection for Bently Nevada proximity probes and their corresponding extension cables. As an essential component in a comprehensive condition monitoring system, this housing ensures the integrity and reliability of critical machinery measurements. It is specifically designed to work seamlessly with the Bently Nevada 3500 Machinery Protection System and other vibration monitoring platforms, providing a secure and stable mounting for the eddy current proximity transducer system. The primary function of the 31000-16-05-30-050-02-02 is to shield the sensitive probe from harsh industrial elements such as dirt, moisture, and corrosive agents, while also protecting it from accidental impact. By providing a rigid, fixed installation, it guarantees that the probe maintains its precise gap and orientation relative to the observed machine shaft, which is fundamental for accurate vibration, axial position, and speed measurements.

This specific model, the 31000-16-05-30-050-02-02, is configured with a precise set of features for targeted applications. The part number decodes to reveal its exact specifications: it includes a 1.6-inch (41 mm) standoff adapter, which provides necessary clearance from the machine casing. It is designed to accommodate a 3300 XL 8 mm probe with an M10 x 1 thread and an integral connector, ensuring a perfect fit and secure connection. The housing itself is constructed from high-grade 303 or 304 stainless steel, offering exceptional durability and corrosion resistance in demanding environments commonly found in power generation and petrochemical plants. The housing has a total length of 5.0 inches (127 mm), a critical dimension for achieving the correct probe tip position within the machine. For installation, the 31000-16-05-30-050-02-02 features a standard 3/4 – 14 NPT mounting thread, allowing for secure and straightforward attachment to the machine housing. To complete the environmental seal, it is equipped with a 3/4 – 14 NPT plug for the conduit fitting, effectively preventing ingress of contaminants that could compromise the transducer system’s performance.

Utilizing a genuine Bently Nevada Proximity Probe Housing Assembly like the 31000-16-05-30-050-02-02 is critical for maintaining the accuracy of the entire measurement chain. An improperly housed or mounted probe can lead to signal degradation, false alarms, or missed trips, potentially resulting in catastrophic machinery failure and costly downtime. The precise engineering of the 31000-16-05-30-050-02-02 ensures that the proximity transducer system delivers reliable, repeatable data for assessing machine health. This data is vital for predictive maintenance programs, allowing engineers to detect developing faults such as bearing wear, imbalance, and misalignment long before they become critical. By investing in the correct, purpose-built housing, plant operators protect their high-value rotating assets and ensure the safety and reliability of their operations. The 31000-16-05-30-050-02-02 is the professional choice for ensuring the longevity and optimal performance of your Bently Nevada vibration and position monitoring instrumentation.

Specifications

• Part Number: 31000-16-05-30-050-02-02
• Manufacturer: Bently Nevada
• Product Type
