Description

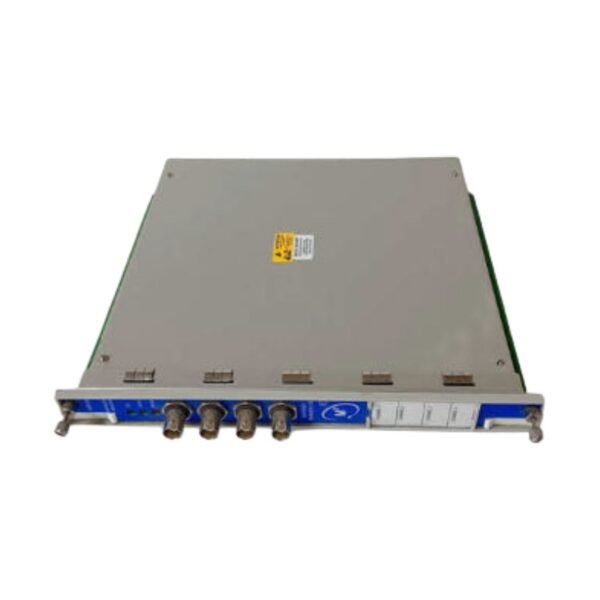

Bently Nevada 176449-01 3500/40M Proximitor Monitor

The Bently Nevada 176449-01 serves as the primary 3500/40M Proximitor Monitor utilized to execute non-contacting vibration, position, and expansion measurements across 3500 Monitoring System platforms. Specifically, this four-channel plug-in module accepts continuous voltage inputs from external field proximity transducers. Consequently, the internal processors condition these raw analog signals into digital values, continuously transmitting machinery protection data across the rack backplane to feed system alarm logs and emergency shutdown relays.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 176449-01 extracts dynamic displacement components from high-frequency radio signals processed by external Proximitor sensors. During routine loops checkouts, technicians verify the DC gap voltage to maintain a steady -10 VDC baseline alignment. This exact adjustment matches the calibrated 7.87 V/mm (200 mV/mil) scale factor envelope. Furthermore, the monitor internal digital processing filters provide rigorous cross-talk suppression between channels if the machine casing layout forces adjacent eddy-current probes into dense installation clusters. Meanwhile, observing precise high-frequency rotor dynamics requires strict mechanical runout filtering. If uncorrected, micro-structural variances in the shaft target introduce parasitic voltage anomalies, causing the monitor to compute erroneous vibration values and skewing true structural orbit profiles on the backplane data line.

Frequently Asked Questions

Q: Can an instrument technician replace a faulty 176449-01 monitor module while the rest of the 3500 rack remains powered?

A: Yes, the 176449-01 main board supports full hot-swap capability. The technician can extract the module from its front chassis slot and slide in a replacement spare without disrupting power or communication lines to adjacent protection modules.

Q: How does the monitor partition its four internal channels for different industrial measurement tasks?

A: The monitor processes channels in distinct pairs using the rack configuration tool. For example, the module can execute radial shaft vibration tracking on channels 1 and 2, while simultaneously executing axial thrust position tracking on channels 3 and 4.

Field Installation Guidelines

• Chassis Slot Seating: Slide the module firmly into the designated full-height front slot of the 3500 rack chassis. Push the module faceplate inward until the rear multi-pin plug connects fully with the backplane motherboard, then torque the upper and lower panel screws to 0.5 N-m (4.4 in-lb).
• Configuration Software Verification: Connect a computer to the 3500 rack interface module and load the configuration tool. Technicians must download the corresponding channel pair parameters, alert thresholds, and scale factors to the 176449-01 flash memory before putting the channel loops into service.
• Buffered Output Signal Testing: Use the front-panel coaxial BNC jacks to access unconditioned, unbuffered raw voltage signals for field diagnostic troubleshooting. Ensure that external measurement equipment maintains a minimum input impedance of 100 kOhm to prevent signal loading and measurement errors.
