Description

Brief Product Description

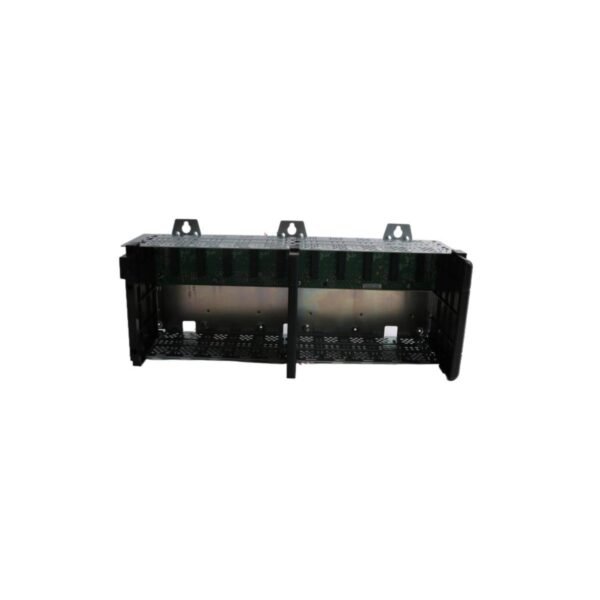

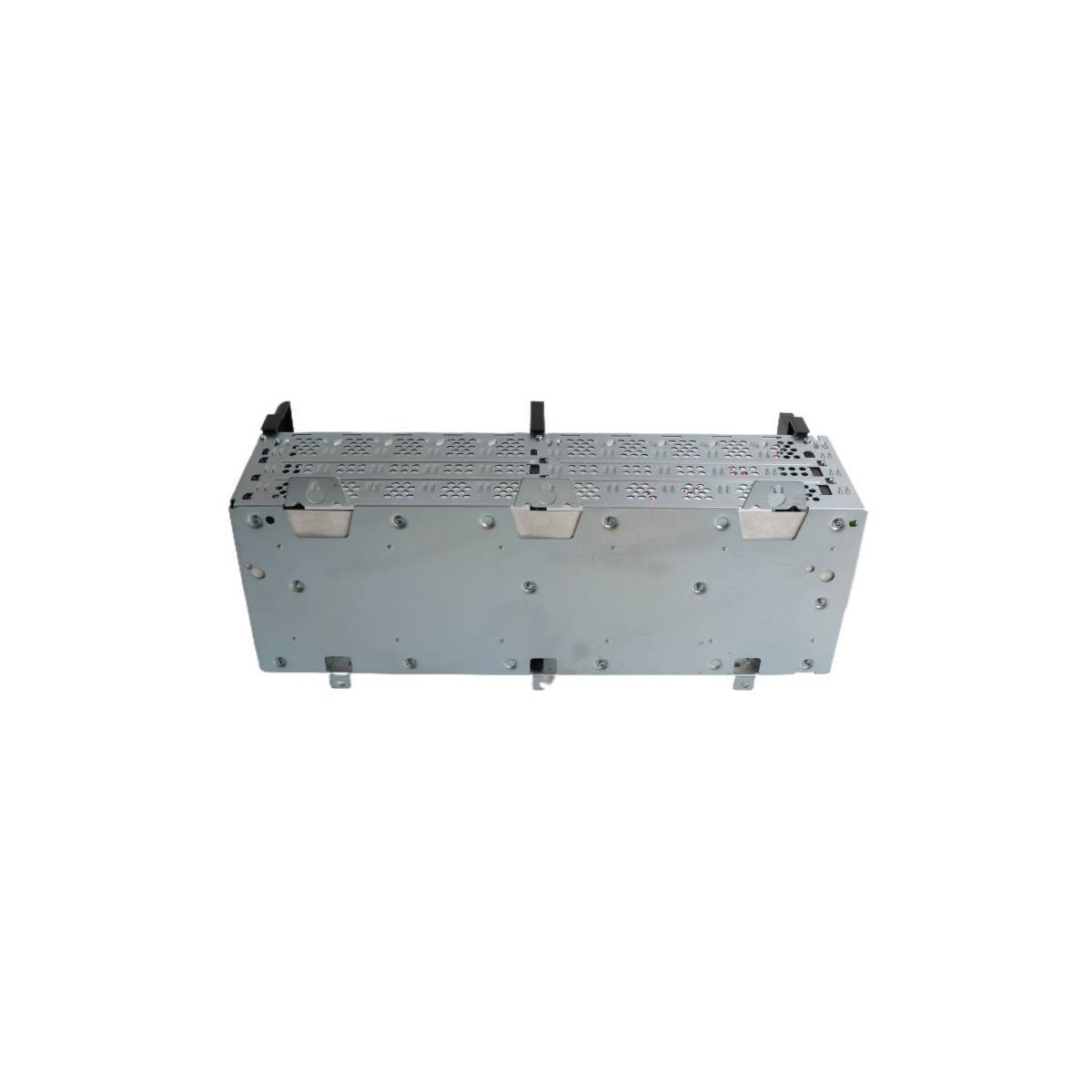

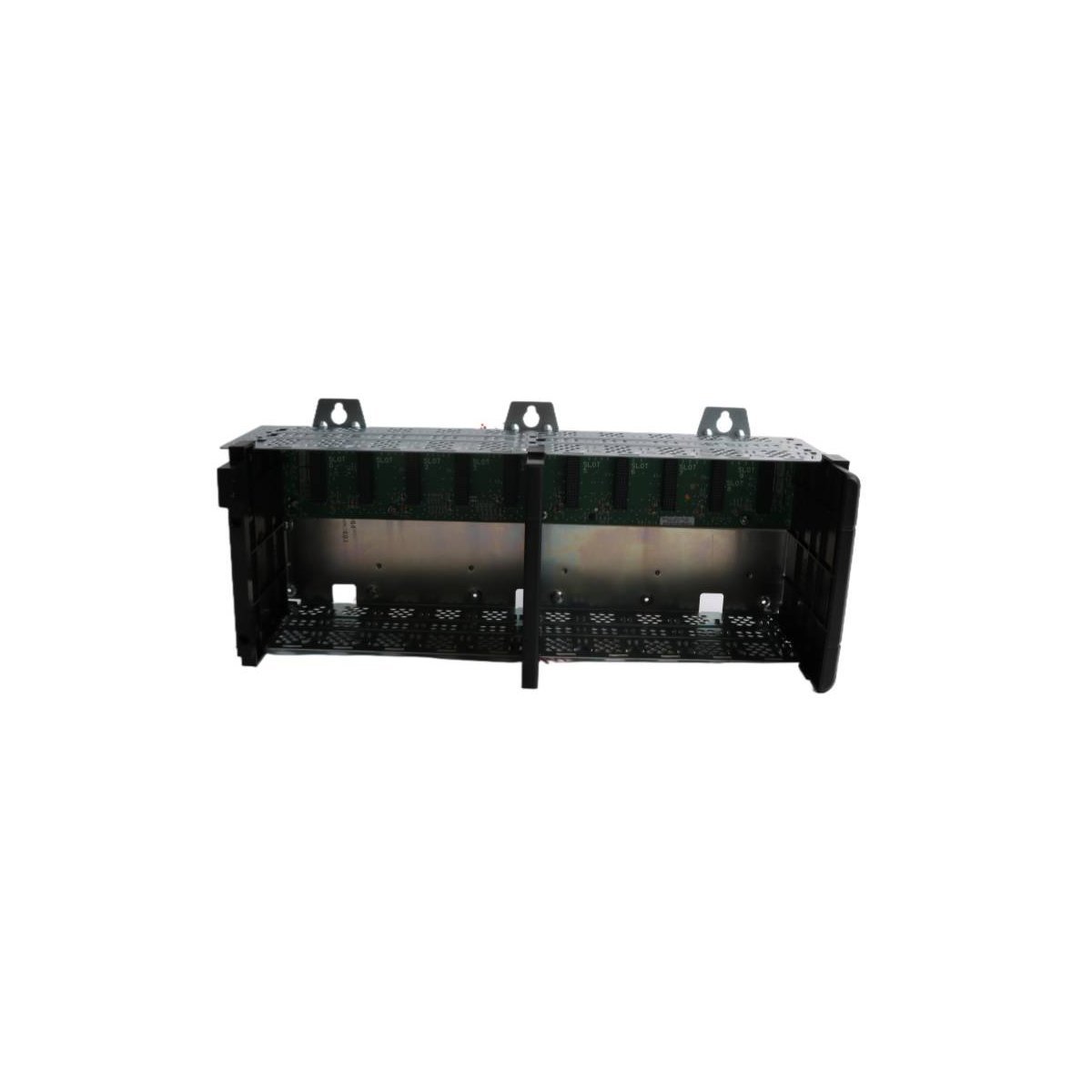

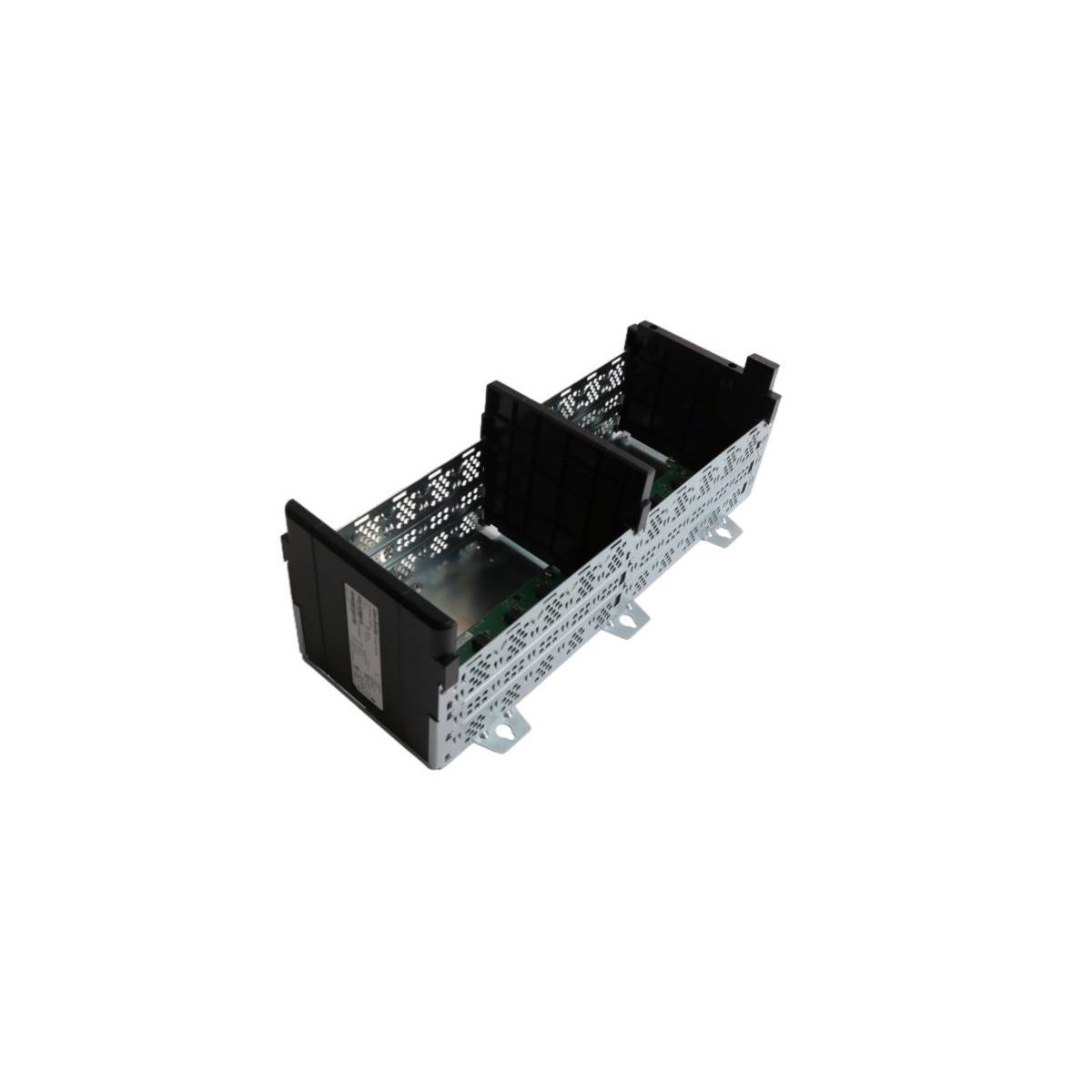

The Allen-Bradley 1756-A10 is a rugged 10-slot chassis designed to provide the physical and electronic foundation for ControlLogix automation systems. It enables high-speed data communication between controllers, I/O modules, and network interfaces while ensuring reliable power distribution across the backplane.

Scalable Foundation for ControlLogix Systems

The Allen-Bradley 1756-A10 serves as the primary structural framework for modular ControlLogix hardware. This 10-slot assembly houses various combinations of processors, specialized communication adapters, and discrete or analog I/O modules. By facilitating high-speed electronic connectivity across the backplane, the chassis ensures that data moves seamlessly between system components. Engineers typically deploy the 1756-A10 when designing scalable control architectures that require a moderate density of I/O points. To maintain optimal performance, installers must follow specific clearance guidelines for top, bottom, and side mounting, which prevents overheating and ensures accessibility for maintenance.

Advanced Backplane Engineering and Power Management

Designers optimized the 1756-A10 to prioritize both power efficiency and system safety. The chassis utilizes a dedicated power supply mounting position on the far-left side, which means the external power supply does not occupy any of the ten functional module slots. This configuration maximizes the available space for automation hardware. Furthermore, the backplane features meticulously regulated current ratings across multiple voltage rails to support a wide range of module requirements. Safety remains a priority through integrated Functional Earth and Protective Earth grounding terminals. These grounding points adhere to strict industrial wiring standards, shielding the internal logic from electrical interference and ensuring long-term operational integrity.

Durability for Demanding Industrial Environments

The 1756-A10 excels in harsh manufacturing settings due to its vibration-resistant construction and high thermal tolerance. Available in both Series B and Series C versions, the chassis offers flexible environmental ratings, with Series C specifically engineered for broader temperature fluctuations. The unit adheres to international IEC 60068-2-27 standards for operational shock and vibration, guaranteeing reliability in heavy-duty machinery applications. With a low power dissipation of only 5 Watts, the chassis remains cool during continuous operation, reducing the load on cabinet cooling systems. This combination of physical toughness and electrical stability makes the 1756-A10 a dependable choice for critical infrastructure and factory automation.

Key Technical Characteristics

• 10-Slot High-Density Capacity: Provides ample space for complex controller and I/O configurations.
• Dedicated Power Slot: Mounts standard or redundant power supplies without sacrificing functional I/O slots.
• High-Speed Backplane: Enables low-latency communication between the processor and distributed modules.
• Ruggedized Series Options: Offers various series ratings to match specific environmental and thermal demands.
• Standardized Grounding: Includes dual grounding terminals to protect against electromagnetic interference.
• Industrial Compliance: Meets global standards for shock, vibration, and safety in process control.

Technical Specifications
