Description

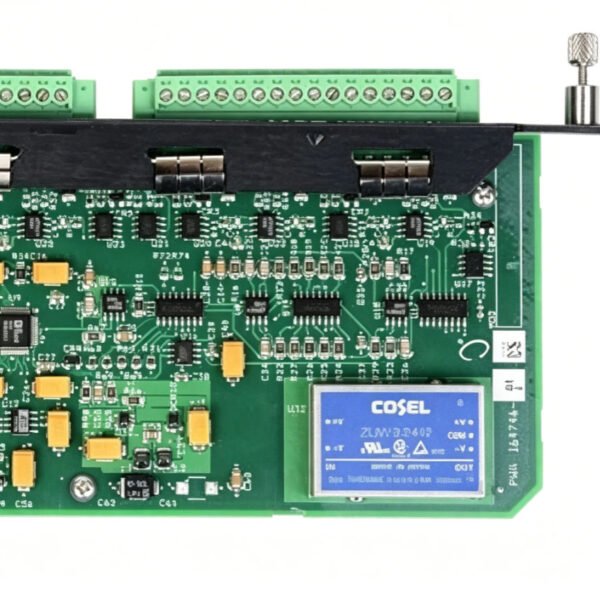

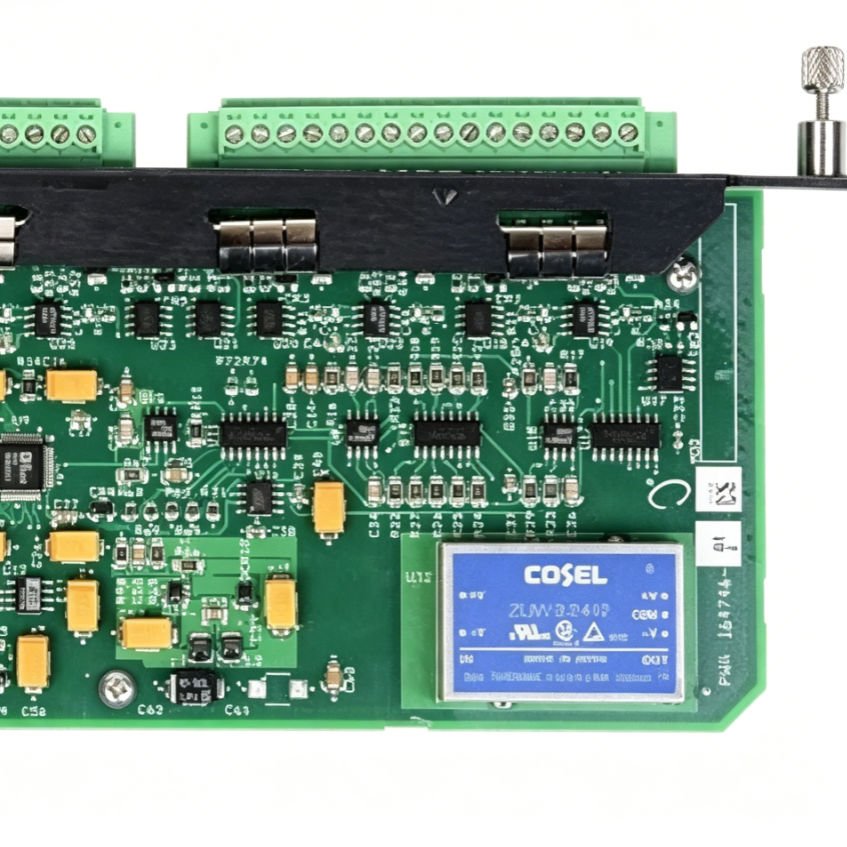

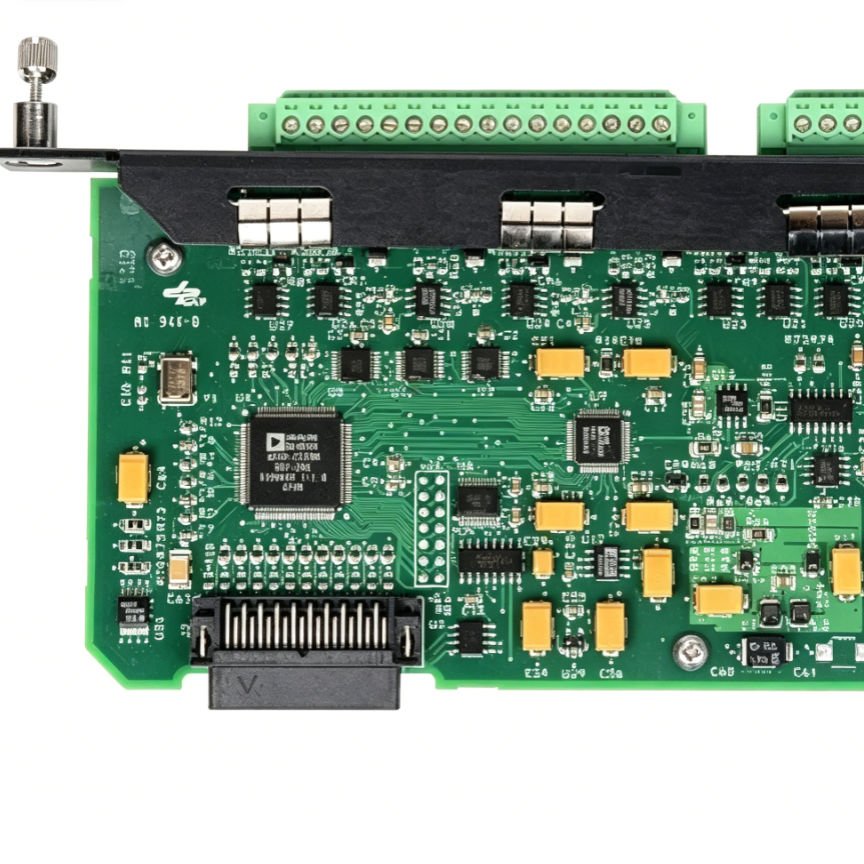

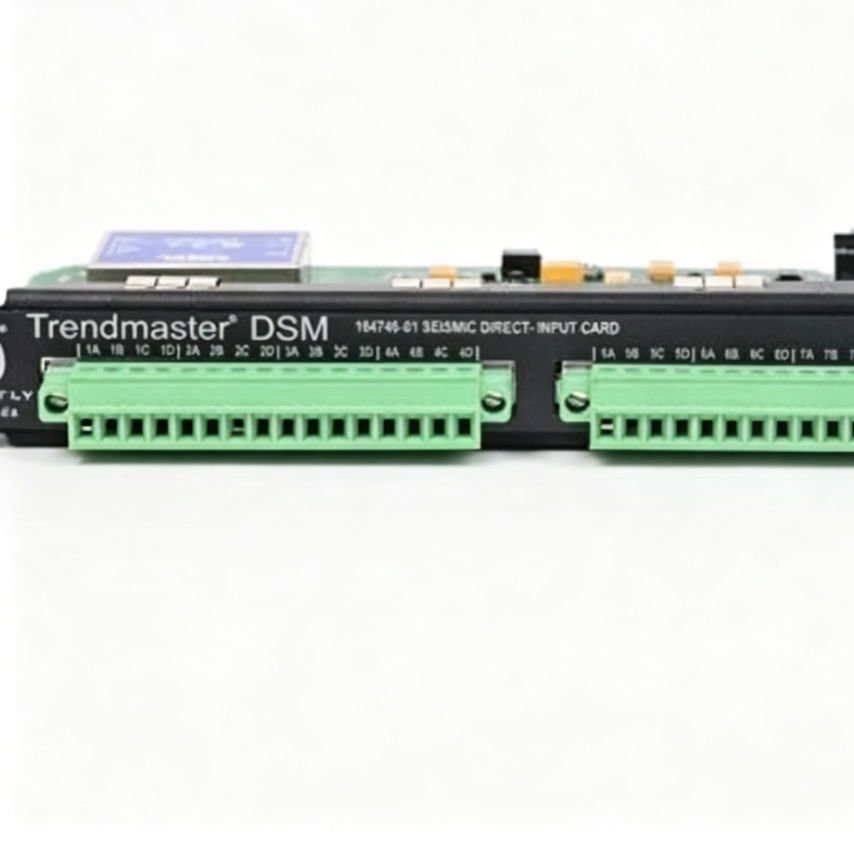

The Bently Nevada 164746-01, also cataloged as the 164746 Seismic Direct Input Card, operates as a dedicated hardware component for high-speed dynamic data acquisition within Trendmaster Dynamic Scanning Module (DSM) systems. Specifically, the card populates an available instrumentation slot within the 149744 Trendmaster chassis platform. It continuously powers, isolates, and conditions physical acceleration signals from up to 8 independent 2-wire constant-current seismic sensors, translating raw mechanical case vibrations into high-resolution digital data for backplane database transmission.

Hardware Specifications

Rotor Dynamics & Eddy-Current Probe Scaling

The 164746-01 tracks high-frequency rotor dynamics and structural casing vibrations through integrated 16-bit analog digitizers. Concurrently, when the system deploys combined measurement arrays, the card interfaces with proximal modules to verify correct eddy-current probe scaling benchmarks. The card maintains a stable constant-current excitation line that allows connected accelerometers to execute automated gap voltage validation across standard sensor biases. To prevent spectral distortion in multi-machine installations, the onboard hardware executes synchronized sampling and applies cross-talk suppression filters. Consequently, this signal path extracts True RMS, peak-to-peak displacement, and 1X/2X tracking amplitudes without noise injection, providing precise structural resonance profiles to diagnostic platforms.

Frequently Asked Questions

Q: What specific types of vibration transducers interface directly with the 164746-01 hardware?

A: The input card interfaces specifically with 2-wire, constant-current mode seismic sensors. This compatibility includes the Bently Nevada 200350 and 200355 piezoelectric accelerometers that operate with a constant current excitation range between 2 mA and 20 mA.

Q: How does the module handle environmental contaminants and humidity inside industrial enclosures?

A: The 164746-01 features an overall layer of industrial conformal coating. Therefore, the physical circuitry resists degradation from atmospheric moisture, conductive dust particles, and trace chemical exposure typical of field monitoring environments.

Field Installation Guidelines

• Chassis Insertion: Slide the 164746-01 card into its assigned slot within the 149744 Trendmaster DSM housing. Push the board forward until the rear gold pin array seats fully into the passive backplane, then tighten all retention hardware to 0.6 N-m torque to secure the common ground path.
• Shield Termination: Technicians must construct the field sensor loops using continuous shielded twisted-pair cabling. Connect the cable’s outer braided shield directly to the central instrumentation ground bus panel at the point of enclosure entry, completely eliminating open pig-tail terminations.
• Cabling Layout Isolation: Maintain a minimum physical separation path of 200 mm between low-voltage seismic sensor wiring bundles and parallel high-voltage AC electrical lines. Consequently, this placement mitigates electromagnetic cross-coupling from inducing false high-frequency spikes.
