Description

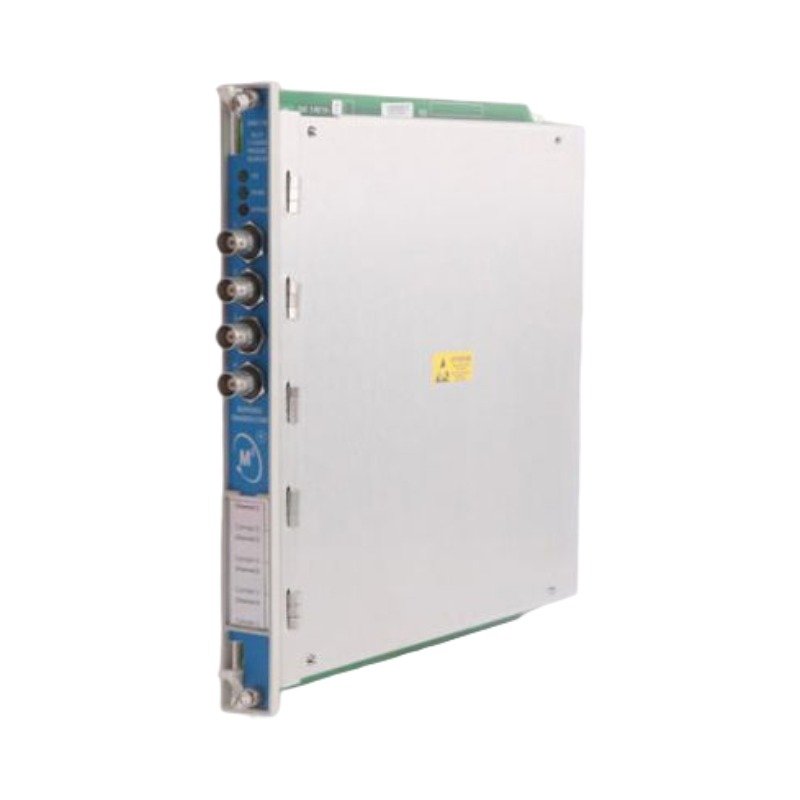

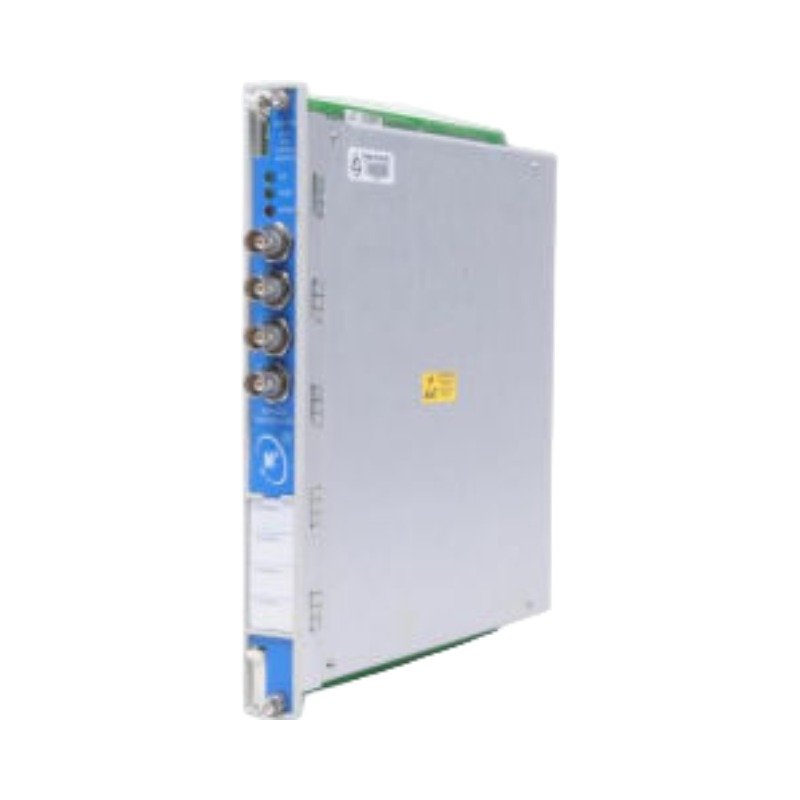

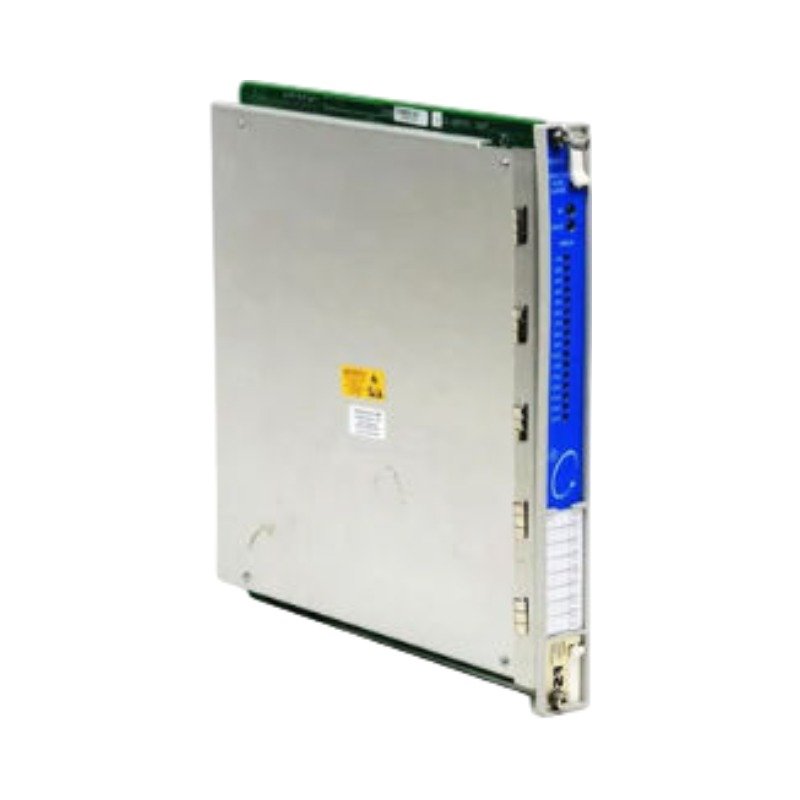

The Bently Nevada 140734-08, also cataloged as the 140734-08 Recip Rod Position Monitor Module, operates as a dedicated hardware component for continuous machinery protection and dynamic rod position tracking within the 3500 Series Machinery Protection System rack.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 140734-08 module executes direct physical signal processing derived from eddy-current proximity probe systems to evaluate reciprocating compressor behavior. Internal processing algorithms demand rigorous gap voltage validation, referencing -10 VDC targets to confirm the proximity transducer remains centered within its linear calibration range. The hardware actively minimizes cross-talk suppression through optimized differential input impedance (10 kOhm) and isolated routing across the 3500 backplane bus. The module captures rotor dynamics and rod drop displacements by executing continuous peak-to-peak, average, or RMS signal conditioning, ensuring precise mechanical tracking against user-programmed alert and danger setpoints.

Frequently Asked Questions

Q: Does the 140734-08 module support hot-swap replacement within an energized 3500 rack?

A: Yes. The 140734-08 hardware permits live insertion and removal (hot-swapping) without interrupting the power distribution or communication across adjacent modules residing in the same 3500 rack backplane.

Q: What are the specific backplane power consumption constraints for system budgeting?

A: The module draws a nominal power load of 7.7 watts from the 3500 rack power supply. System designers must account for this fixed thermal and current draw when calculating total load limitations for redundant 3500/15 power configurations.

Q: Can the front panel LEDs be used to bypass alarm outputs during machinery maintenance?

A: The front panel features a dedicated Bypass LED that illuminates when the channel outputs are masked via software configuration. However, physical hardware bypass execution requires configuring the Rack Configuration Software or bridging the hardware contacts on the associated I/O module.

Field Installation Guidelines

• Backplane Insertion: Align the circuit card with the plastic guides of the designated chassis slot. Push the module firmly into the 3500 backplane connector until the top and bottom chassis levers click into the locked position. Secure the retaining screws to ensure proper chassis grounding.
• Transducer Shielding and Grounding: Connect the coaxial cable shields from the proximity probes directly to the terminal block ground points on the associated I/O module. Maintain a single-point ground configuration at the rack chassis to prevent ground loops from corrupting the low-level signal paths.
• Signal Wire Routing: Route proximity sensor field wiring through dedicated, grounded steel conduits separate from high-voltage AC power lines or variable frequency drive (VFD) output cables. Maintain a minimum separation distance of 300 mm to suppress electromagnetic interference.
• Terminal Engagement: Terminate field wiring using the standard compression terminal blocks. Strip insulation back by exactly 7 mm, insert the conductor into the terminal clamp, and torque all terminal screws to a maximum specification of 0.56 N-m (5 in-lb).
