Description

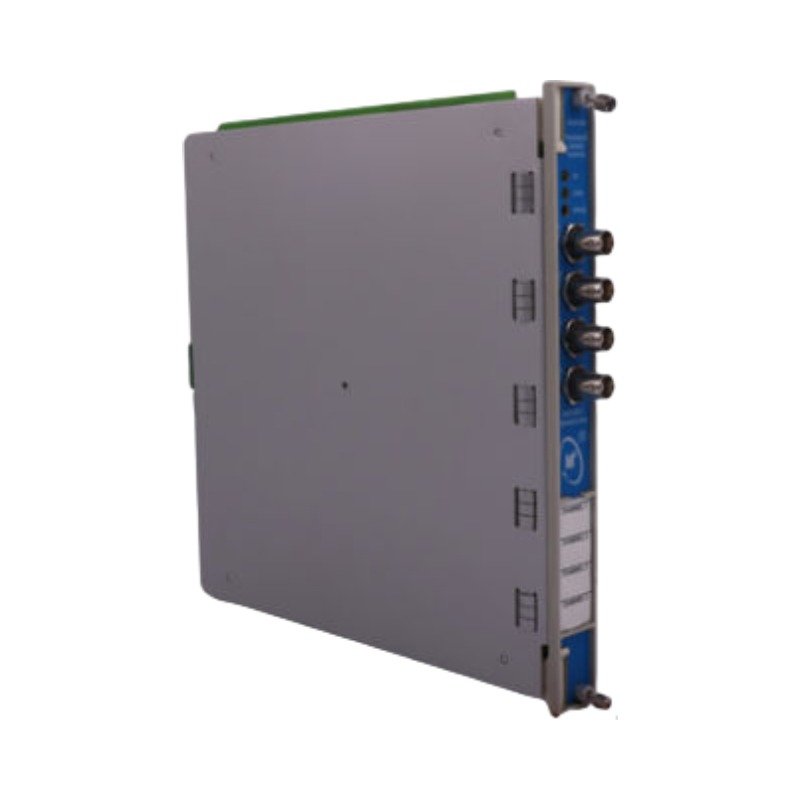

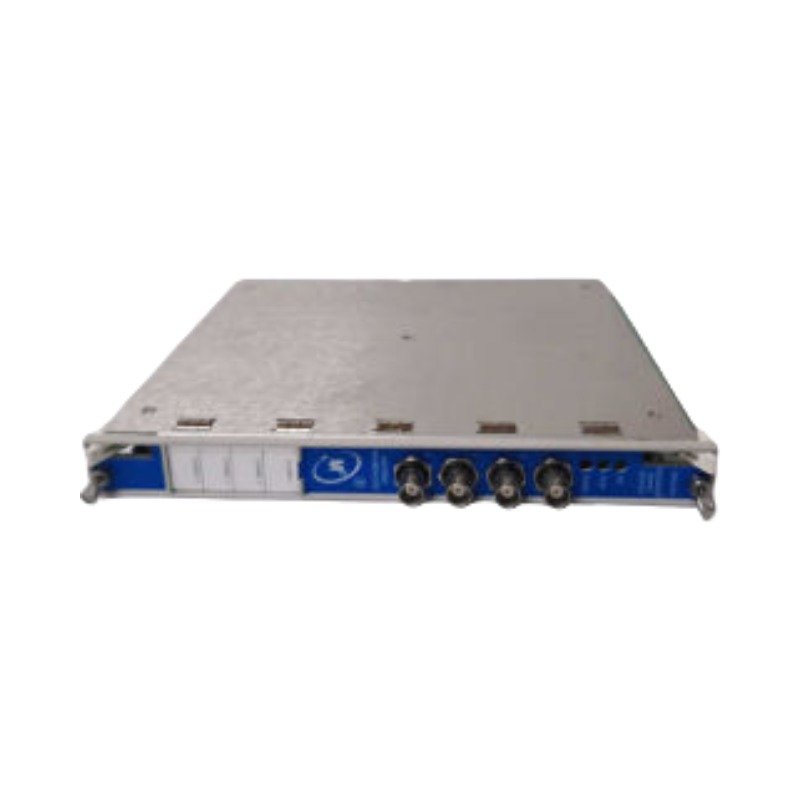

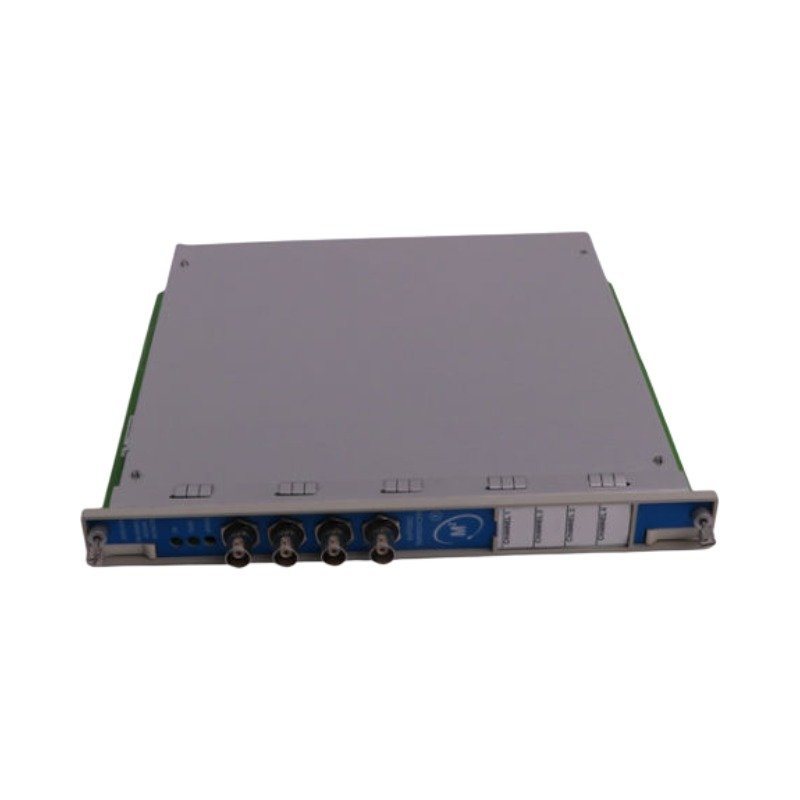

The Bently Nevada 140734-02, also cataloged as the 140734-02 Relay I/O Module, operates as a dedicated hardware component for physical alarm circuit execution within the Bently Nevada 3500 Machinery Protection System. The module provides four independent, programmable relay outputs that interface directly with external machinery shutdown and annunciator circuits. It processes discrete logic drive signals from the main 3500 relay monitor card via the high-speed internal backplane to open or close physical control loops based on pre-configured alert and danger setpoints.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 140734-02 operates in direct synchronization with machinery protection monitors to manage critical Turbomachinery Instrumentation (TSI) voting logic. The physical layout utilizes cross-talk suppression paths across the internal traces to prevent inductive coupling from high-current switching events from degrading nearby proximity transducer inputs. During normal operation, the module cross-references sensor input statuses including eddy-current probe scaling configurations and gap voltage validation targets. If a proximity probe registers outside the standard -10 VDC target threshold (typically indicating a broken wire or transducer failure), the system executes a Not OK logic command to prevent false machine trips while maintaining rotor dynamics surveillance.

Frequently Asked Questions

Q: Can the 140734-02 I/O module be hot-swapped while the 3500 system is powered and monitoring active machinery?

A: Yes. The hardware design allows the 140734-02 I/O module to be hot-swapped under power. However, removing the I/O module breaks the physical connection to the external relay loops, which may actuate fail-safe machinery trip circuits or cause loss of annunciator capability for those specific channels during the replacement window.

Q: How does the module handle backplane power constraints when multiple relay boards are installed?

A: The 140734-02 draws its nominal 2.5 W power directly from the 3500 system backplane power rails. The total current draw must be factored into the overall rack power budget managed by the 3500/15 Power Supply. The internal power distribution circuits limit inrush current during initialization to prevent voltage drops on adjacent monitor modules.

Field Installation Guidelines

• Mounting Protocol: Insert the 140734-02 exclusively into the rear slots of the 3500 rack chassis directly behind the corresponding 3500 relay monitor module. Secure the physical module using the two integrated chassis thumbscrews to ensure continuous chassis grounding and backplane structural integrity.
• Wiring and Conduit Guidelines: Route all external relay control wiring through dedicated, grounded conduits separated from low-voltage transducer signal lines. Strip field wiring insulation back by exactly 7 mm to prevent exposed conductors from shorting against adjacent terminal terminals. Torque all terminal block screws to a maximum specification of 0.56 N-m (5 in-lb).
• Shielding and Grounding: Connect external cable shields to the designated chassis ground terminals on the 3500 rack frame. Do not terminate cable shields at both ends of the run to eliminate the potential for ground loops that could introduce common-mode noise into adjacent instrumentation circuits.
