Description

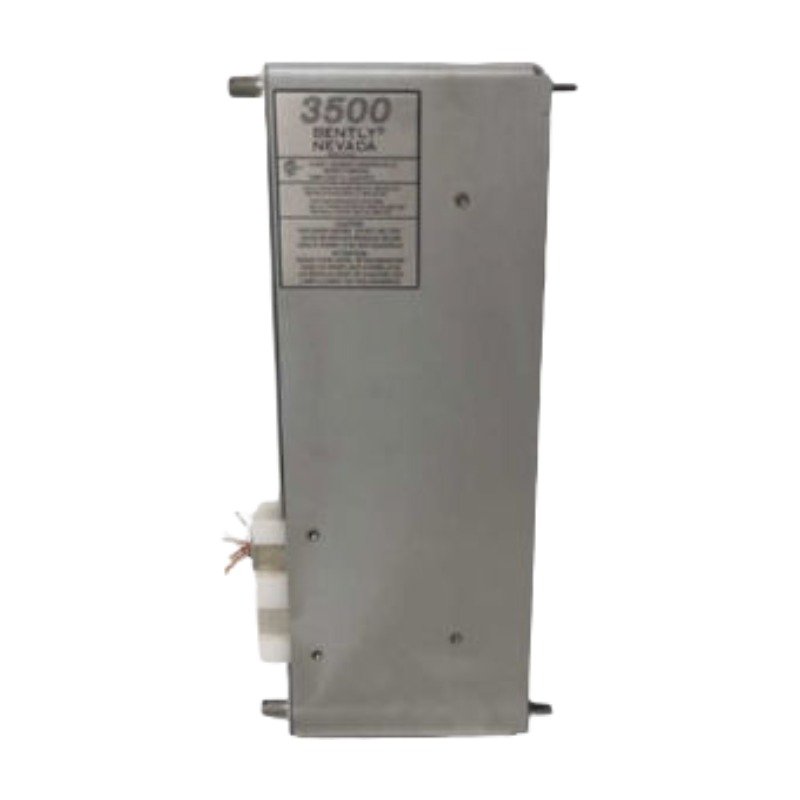

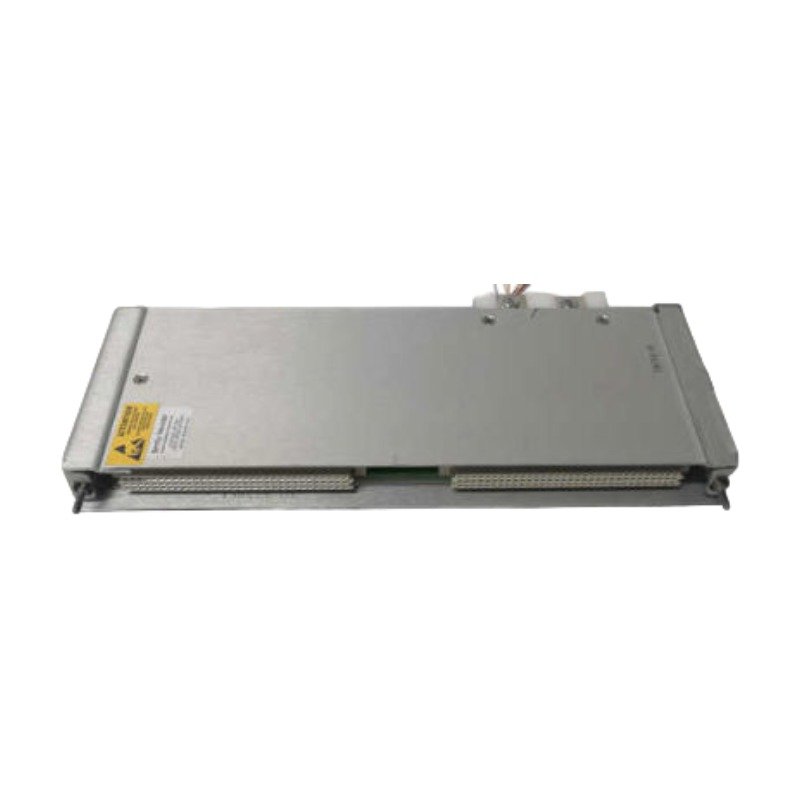

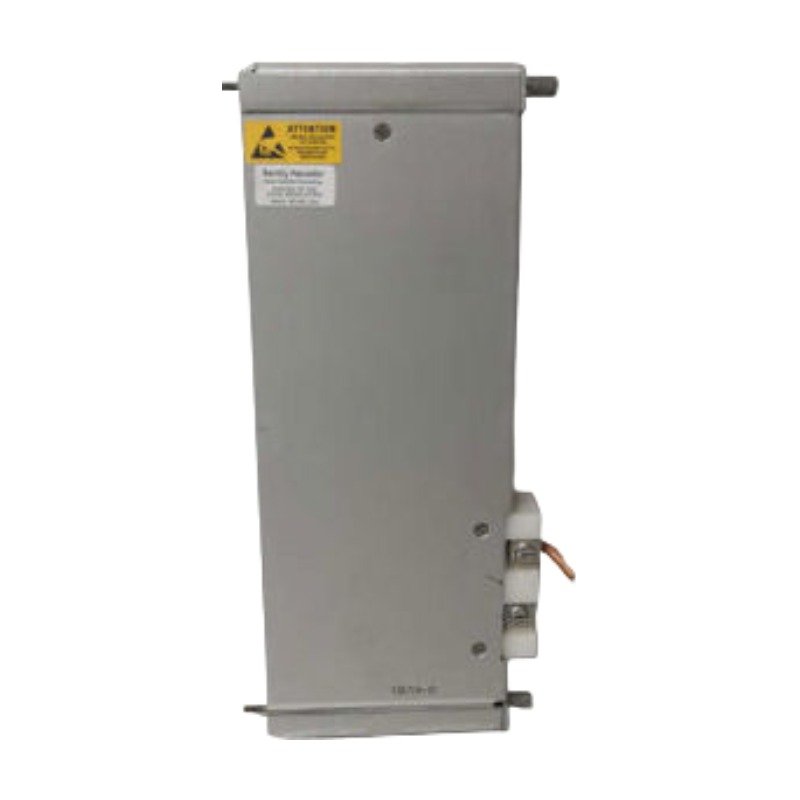

Configured for intrinsically safe electrical grounding within 3500 Machinery Protection System chassis, the Bently Nevada 136719-01 (3500/04 Earthing I/O Module) provides direct physical/electrical execution. This hardware component establishes a dedicated, low-impedance intrinsically safe (IS) earth connection directly through the system backplane plane. It eliminates the requirement for external safety barriers or localized grounding hardware when managing transducers located in classified hazardous environments.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 136719-01 serves a critical safety grounding role that prevents stray voltage from shifting eddy-current probe scaling during high-speed rotor dynamics tracking. By routing the IS earth connection directly through the system backplane, the module stabilizes the reference point for the -10 VDC targets during field gap voltage validation. This internal grounding layout ensures that the high-frequency RF signal pathways maintain zero signal attenuation compared to standard external zener barriers. Additionally, the continuous plane grounding provides cross-talk suppression between adjacent multi-channel transducer inputs sharing the same internal barrier bank.

Frequently Asked Questions

Q: Does the 136719-01 earthing module process active sensor data?

A: No. This is a dedicated grounding component that does not process dynamic vibration or temperature signals. Its sole function is to maintain the integrity of the intrinsically safe earth connection across the rack backplane.

Q: Can this module reside in any slot within the 3500 rack?

A: The module can occupy any general-purpose I/O slot, but it cannot be placed in Slot 1, which is reserved exclusively for the Rack Power Supply.

Field Installation Guidelines

• Physical Separation Rules: Maintain a strict 50 mm (2.0 inches) clearance between hazardous-area field wiring routed above the rack and safe-area wiring routed below the rack.
• Online Maintenance Spacing: When placing standard I/O modules or this earthing module between internal barrier boards, allow a minimum of two open rack positions to allow online access without disturbing adjacent wiring.
• Cabinet Depth Restrictions: Note that internal barrier modules and the earthing module add approximately 50 mm (2.0 inches) to the standard rack depth. They require a minimum cabinet depth of 600 mm or a specialized bulkhead rack assembly.
• Shield Continuity Check: Verify that all field-side transducer shields terminate correctly at the designated internal barrier terminals, relying entirely on the 136719-01 to establish the path to earth ground.
