Description

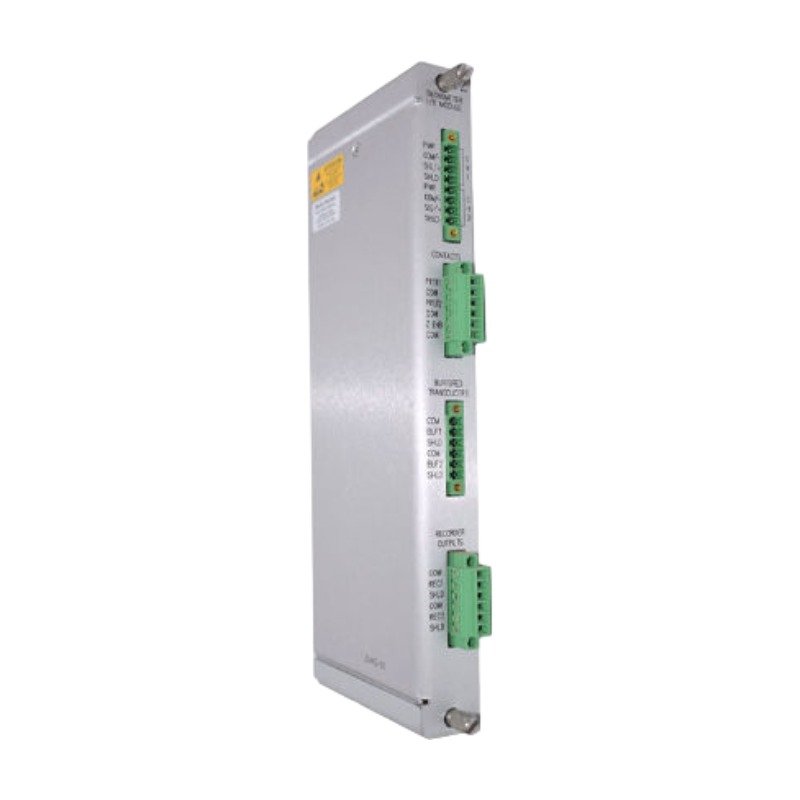

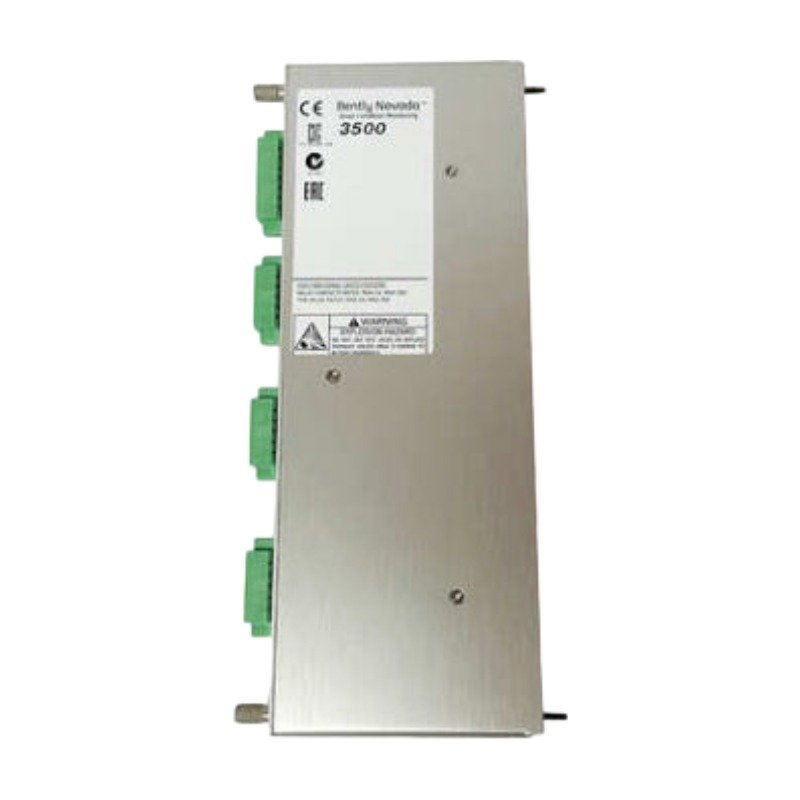

The Bently Nevada 3500/50 133442-01, also cataloged as the 133442-01 Tachometer I/O Module, operates as a dedicated hardware component for processing rotational speed, acceleration, and direction parameters within Bently Nevada 3500 Machinery Protection System platforms. This hardware card sits directly behind the main 3500/50M Tachometer Monitor module, terminating physical field sensor links and routing conditioning pulse sequences directly to the rack processing core.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 133442-01 relies on tight loop thresholds to capture pulse events, transforming physical gaps from proximity sensors or voltage spikes from magnetic pickups into highly responsive speed profiles. Because the module tracks high-frequency rotor dynamics up to 20 kHz, technicians must perform careful gap voltage validation (-10 VDC targets) during installation to position the input probes at the exact midpoint of their triggering zones. Consequently, this precise alignment safeguards the eddy-current probe scaling against pulse skipping or double-triggering. Additionally, the physical architecture of the internal termination block isolates incoming signal lines, which establishes essential cross-talk suppression between adjacent high-speed channels.

Frequently Asked Questions

Q: What is the primary technical function of the internal termination points on the 133442-01 hardware?

A: The internal termination design allows direct wiring of proximity probe or magnetic pickup signal cables straight to the back of the 3500 rack. Therefore, it eliminates the requirement for external termination blocks and intermediate jumper assemblies.

Q: Can this specific I/O module connect directly to sensors situated inside a classified hazardous area?

A: No, the standard 133442-01 contains no internal safety barriers. For hazardous environments, field engineers must deploy the alternative 136703-01 discrete internal barrier I/O module instead.

Field Installation Guidelines

• Terminal Screw Torque: Tighten the internal termination terminal blocks to a maximum torque setting of 0.56 N-m (5 in-lb) to prevent structural damage to the surface-mount connections.
• Transducer Cable Isolation: Wrap the field transducer cable shields completely and terminate them only at the dedicated chassis earth terminals on the I/O block, which prevents ground loop induction.
• Proximity vs. Pickup Configuration: Set the onboard hardware jumpers or backplane software settings to match the exact input transducer type. For instance, assign standard settings for -24 VDC proximity power or passive magnetic pickups.
• Conduit Separation Rules: Route the incoming pulse signal lines within dedicated metal conduit pathways separate from high-current AC motor supply leads to maintain high-frequency signal integrity.
