Description

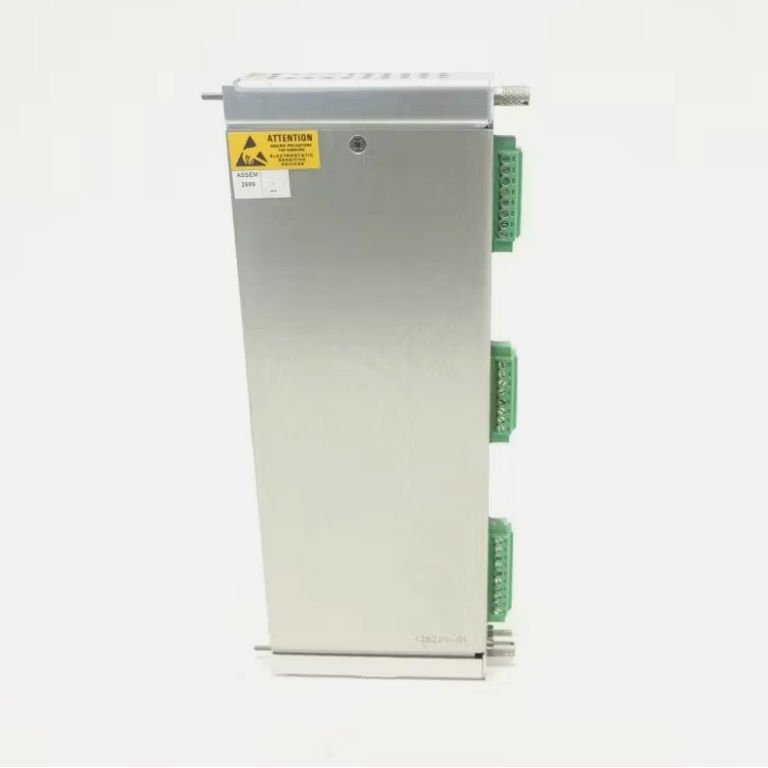

Configured for specific technical tasks in 3500 Series Machinery Protection System networks, the Bently Nevada 128229-01 (128229-01 Proximitor Seismic I/O Module) provides direct physical/electrical execution.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 128229-01 executes continuous dynamic signal tracking to observe critical rotor dynamics. Consequently, field engineers must verify the eddy-current probe scaling configurations within the rack software to achieve correct voltage conversion ratios. Furthermore, technicians perform routine gap voltage validation across all internal terminal connections to guarantee that baseline inputs hover safely near the designated -10 VDC targets. Additionally, the physical architecture incorporates active cross-talk suppression paths across the I/O card layers; as a result, the card blocks adjacent channel signal bleeding inside high-density multi-conductor field routing runs.

Frequently Asked Questions

Q: Does the 128229-01 I/O module permit dynamic hot-swapping while the main monitor remains active?

A: No. Technicians must power down or bypass the associated 3500/42M monitor module before exchanging this backend I/O card. Replacing the I/O interface while live can induce voltage spikes, which triggers false trip signals across downstream machinery protection relays.

Q: How does the internal termination configuration affect field wiring compared to external termination designs?

A: The internal termination design allows direct termination of field sensor leads onto the card screws. Therefore, engineers eliminate the requirement for external patch panels, which decreases terminal junction resistance and limits loop noise susceptibility.

Field Installation Guidelines

• Insert the I/O module straight into the rear chassis slot, thereby ensuring perfect physical alignment with the upper and lower guide rails before tightening the fasteners.
• Maintain strict separation between the sensor field cabling shield and the local frame ground. Specifically, land the shield drain wires exclusively at the 3500 chassis grounding strip to prevent heavy current ground loops from corrupting low-voltage signal paths.
• Strip field conductors exactly to manufacturer specifications, which ensures complete copper contact within the pressure clamp terminals and prevents accidental short circuits from exposed wire strands.
