Description

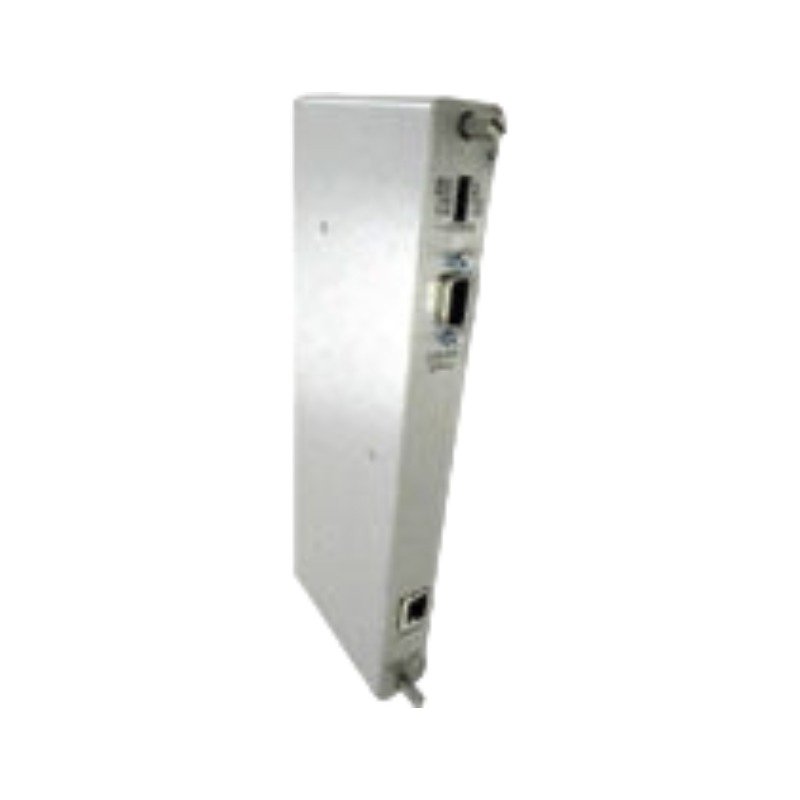

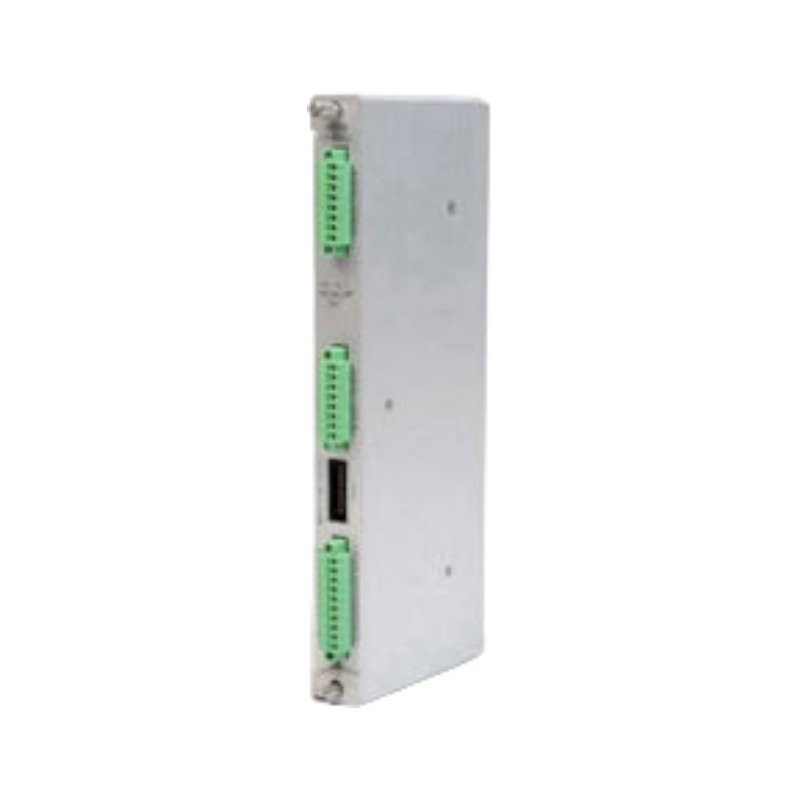

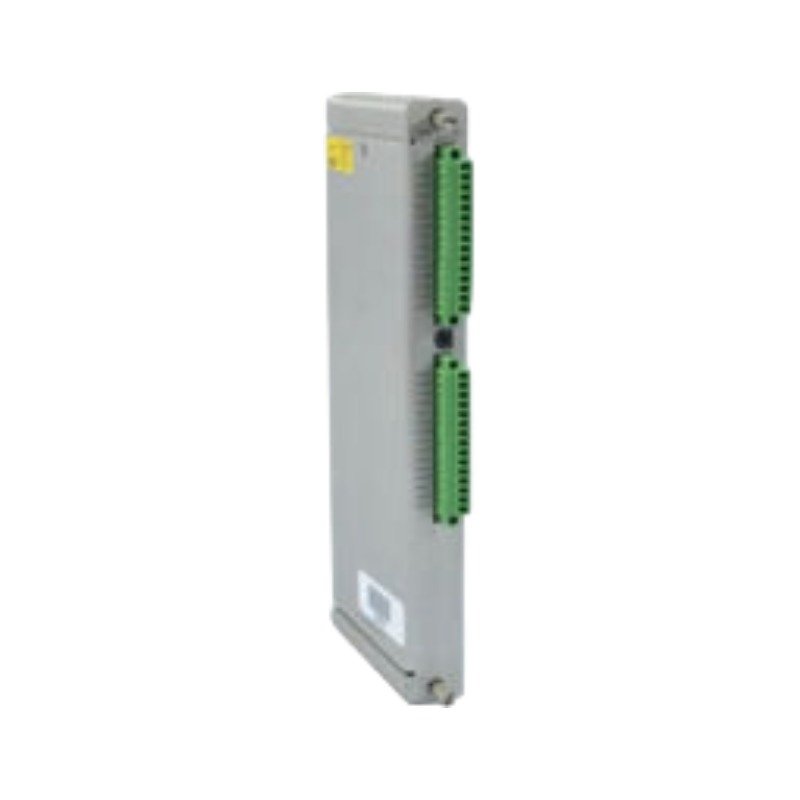

The Bently Nevada 125769-01, also cataloged as the 125769-01 Proximitor Seismic Monitor Module, operates as a dedicated hardware component for continuous machinery protection and vibration monitoring within the Bently Nevada 3500 Series Machinery Protection System network.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The hardware subsystem executes high-velocity signal processing to monitor critical rotor dynamics on rotating machinery. The 125769-01 conditions inputs from eddy-current proximity probes, necessitating strict verification of the -10 VDC target gap voltage during commissioning to ensure linear scale factor performance. Integrated circuit paths deliver cross-talk suppression across all four channels, preventing electromagnetic interference from overlapping transducer fields from degrading the continuous vibration data stream.

Frequently Asked Questions

Q: Does the 125769-01 monitor module support online hot-swap operations within the 3500 rack?

A: Yes, the module supports full online hot-swap capabilities. However, operators must inhibit any associated machinery protection trips prior to extraction to prevent accidental active loop transitions.

Q: What specific input parameters control the sensor failure detection circuit?

A: The module continuously monitors the bias voltage of the connected transducer channel. If the voltage moves outside the configured window (typically exceeding the -1 VDC to -19 VDC operational threshold), the channel enters a Not OK state and disables alarm execution for that specific path.

Field Installation Guidelines

• Ensure correct seating of the front module into the selected slot of the 3500 chassis before securing the captive thumb screws.
• Terminate all instrumentation cable shielding directly at the chassis ground block, maintaining isolated signal shields at the transducer housing to mitigate ground loop currents.
• Verify the backplane connection interface for debris or bent pins prior to insertion to prevent module power fault sequences during live-rack installation.
