Description

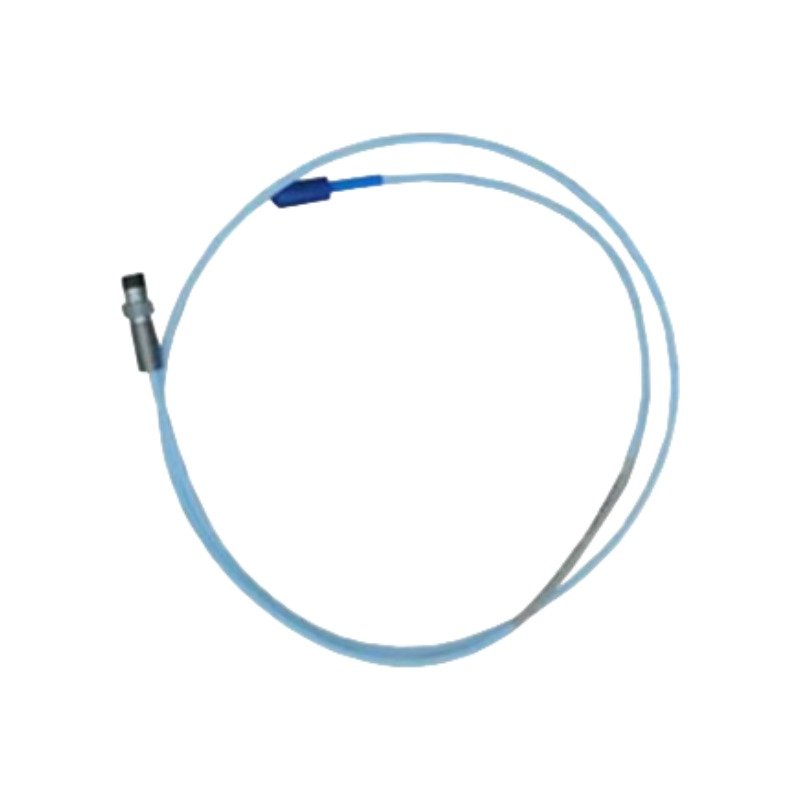

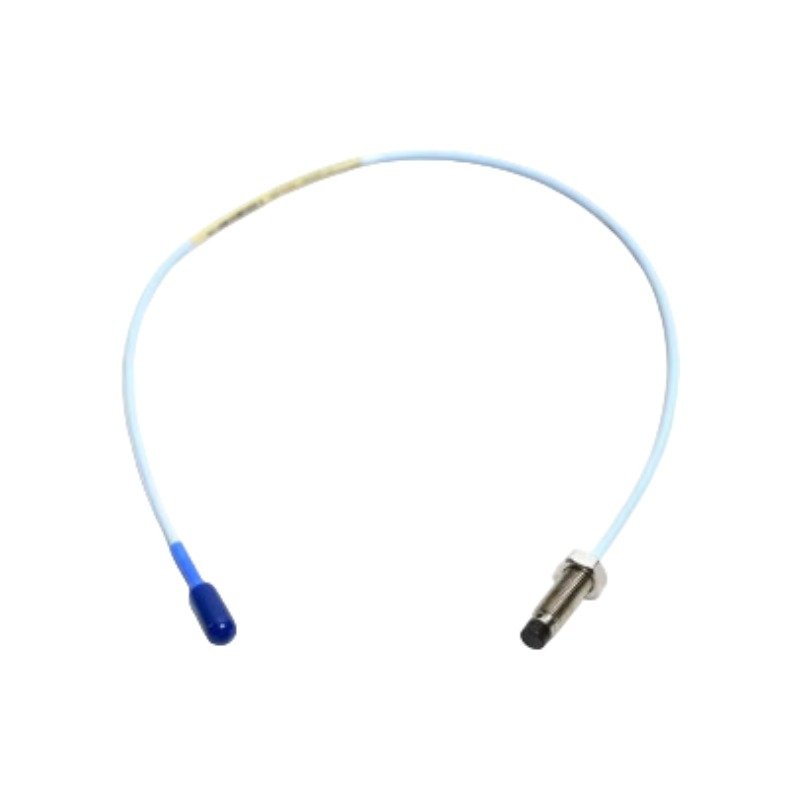

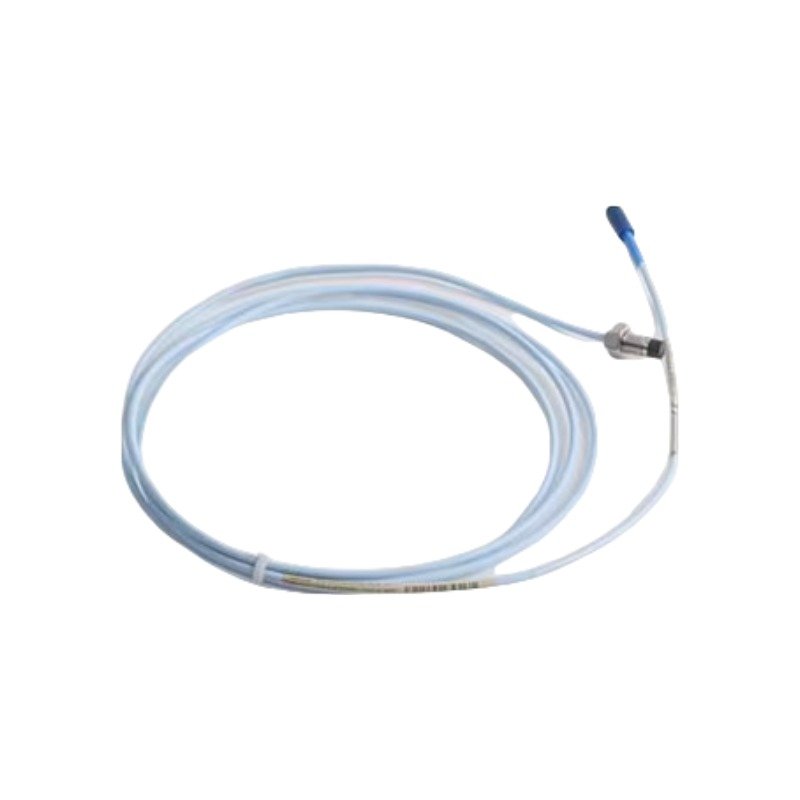

Configured for non-contact shaft vibration and displacement measurements in industrial monitoring systems, the Bently Nevada JNJ5300-08-040-00-00 (JNJ5300 Proximity Probe) provides direct physical/electrical execution. The device translates mechanical distance variations between the tip face and the rotating target area into high-frequency eddy-current variables without establishing physical contact.

Hardware Specifications

Machinery Monitoring and Diagnostic Attributes

The instrument incorporates a high-precision eddy-current sensing tip that directly scales dynamic target proximity into electrical variables. To facilitate stable tracking of rotor dynamics, the sensor matches the internal calibration constants of matching industrial driver devices. Furthermore, the specialized coil architecture executes active cross-talk suppression and validates consistent gap voltage tracking (-10 VDC targets) across fluid-filmed bearing housings or tight target geometries.

Frequently Asked Questions

Q: Can operators substitute alternative cable extensions into this hardware loop without disrupting validation profiles?

A: No. Because the probe tuning depends on precise internal resistance limits and system capacitance parameters, technicians must preserve the original factory cable lengths to prevent severe accuracy drift or calibration scaling shifts.

Q: How does ambient moisture influence the physical coaxial connection point?

A: Fluid ingress at the connector degrades the signal insulation. Consequently, field personnel must deploy external connector protectors or environmental terminal boxes to block oil and water contamination from affecting the dynamic voltage output.

Field Installation Guidelines

First, thread the probe housing into the machined machine casing socket perpendicular to the shaft centerline. Next, adjust the mechanical insertion depth manually while checking the voltage parameters through an external digital multimeter. Once the electrical response stabilizes at the target baseline voltage, secure the position by tightening the primary locknuts. Following this step, run the unarmored coaxial lead through grounded metal conduit networks away from heavy AC power paths. Finally, terminate the external shield layer directly to the designated enclosure grounding terminal to suppress industrial ambient electromagnetic noise from penetrating the dynamic feedback path.
