Description

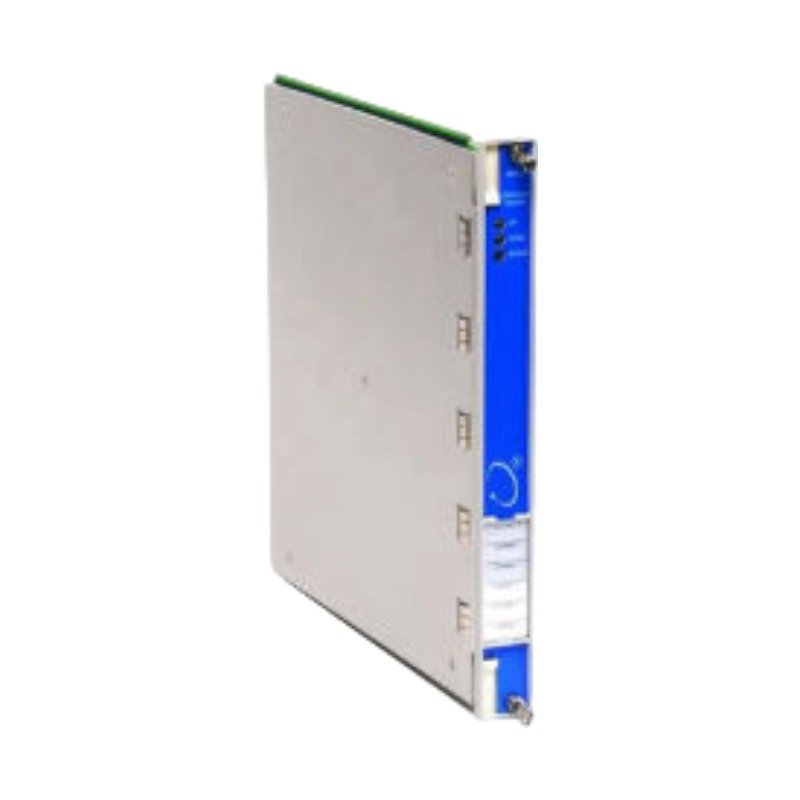

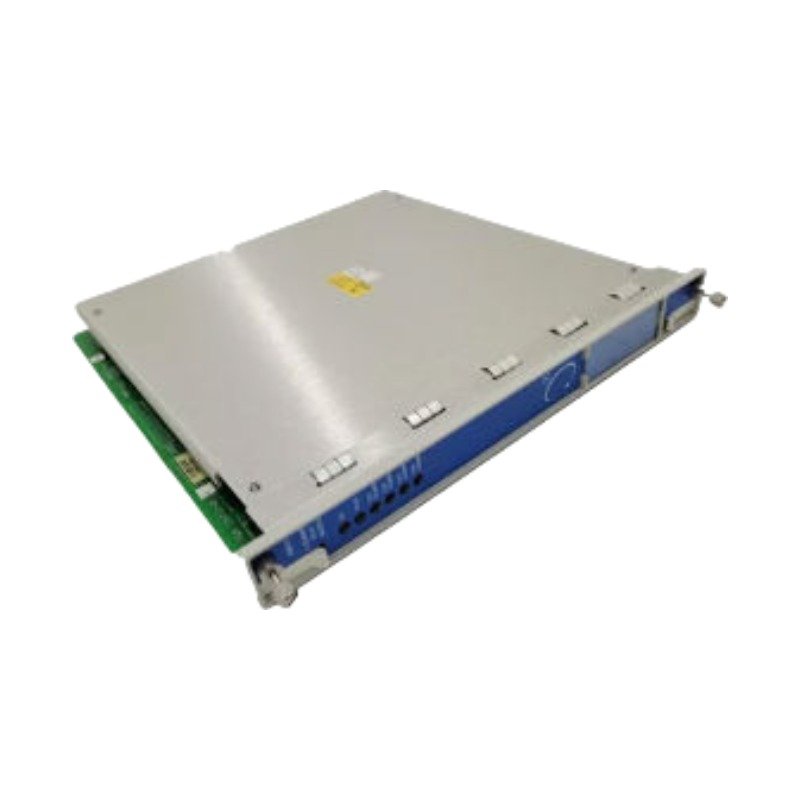

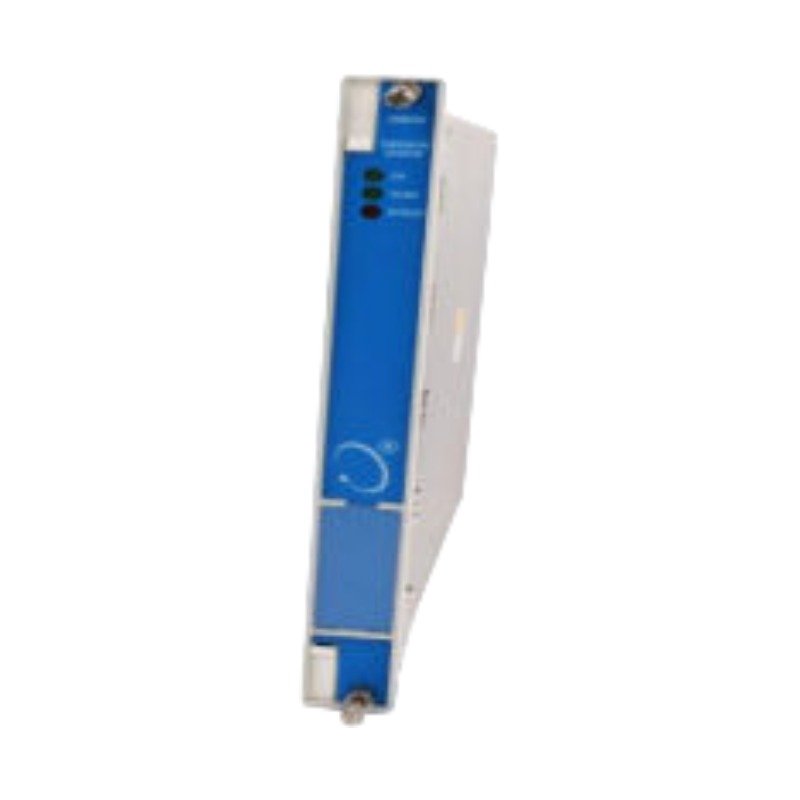

Configured for high-speed dynamic data collection and backplane management in the 3500 Machinery Protection System, the Bently Nevada 125712-01, also cataloged as the 125712-01 Transient Data Interface (TDI) Module, provides direct physical/electrical execution. It establishes the primary interface between the 3500 monitoring rack and external configuration, display, and diagnostic software suites. This module channels steady-state static variables and synchronous/asynchronous dynamic wave data across internal communications networks without interrupting real-time machinery protection functions.

Hardware Specifications

Rotor Dynamics and Cross-Talk Suppression Engineering

The Bently Nevada 125712-01 manages high-frequency input arrays originating from proximity sensors, velocity transducers, and accelerometers tracking high-speed rotor dynamics. To maintain physical signal fidelity across the system backplane, the module deploys specialized cross-talk suppression circuitry that isolates parallel channels processing continuous eddy-current probe scaling. During high-velocity angular transitions, the hardware verifies gap voltage validation against stable -10 VDC targets. This design prevents phase error propagation, eliminates parasitic electrical noise between adjacent cards, and allows the processing unit to calculate exact orbit vectors, shaft centerlines, and Bode plots during transient machine conditions.

Frequently Asked Questions

Q: Does the 125712-01 module support hot-swap replacement within an energized 3500 system rack?

A: Yes, you can replace the 125712-01 module while the 3500 rack is energized. However, removing the TDI module temporarily halts the communication interface to external software and displays, though the individual machinery protection monitors continue their standalone protection functions.

Q: How does the 125712-01 manage firmware flash compatibility across different monitor generations within the same rack?

A: The module contains non-volatile flash memory that aligns and coordinates operational protocols across the backplane bus. When you upgrade firmware, you must check the system compatibility matrix through the configuration software to ensure the baseline operating system matches the revision status of the existing monitor cards.

Field Installation Guidelines

• Insert the module into the designated slot on the left side of the 3500 rack (Slot 1 or Slot 2 depending on whether you employ a redundant configuration).
• Secure the module using the top and bottom chassis retention screws; tighten them to a torque rating of 0.6 N m to maintain proper backplane connection and frame grounding.
• Route all Ethernet and serial communication cables away from high-voltage AC lines or variable frequency drive outputs to minimize electromagnetic induction.
• Connect the coaxial or shielded twisted-pair cables from external keyphasor or proximity sensor drivers directly to the corresponding terminal blocks, ensuring the shield drains connect directly to the system instrument ground bus bar.
