Description

Brief Product Description

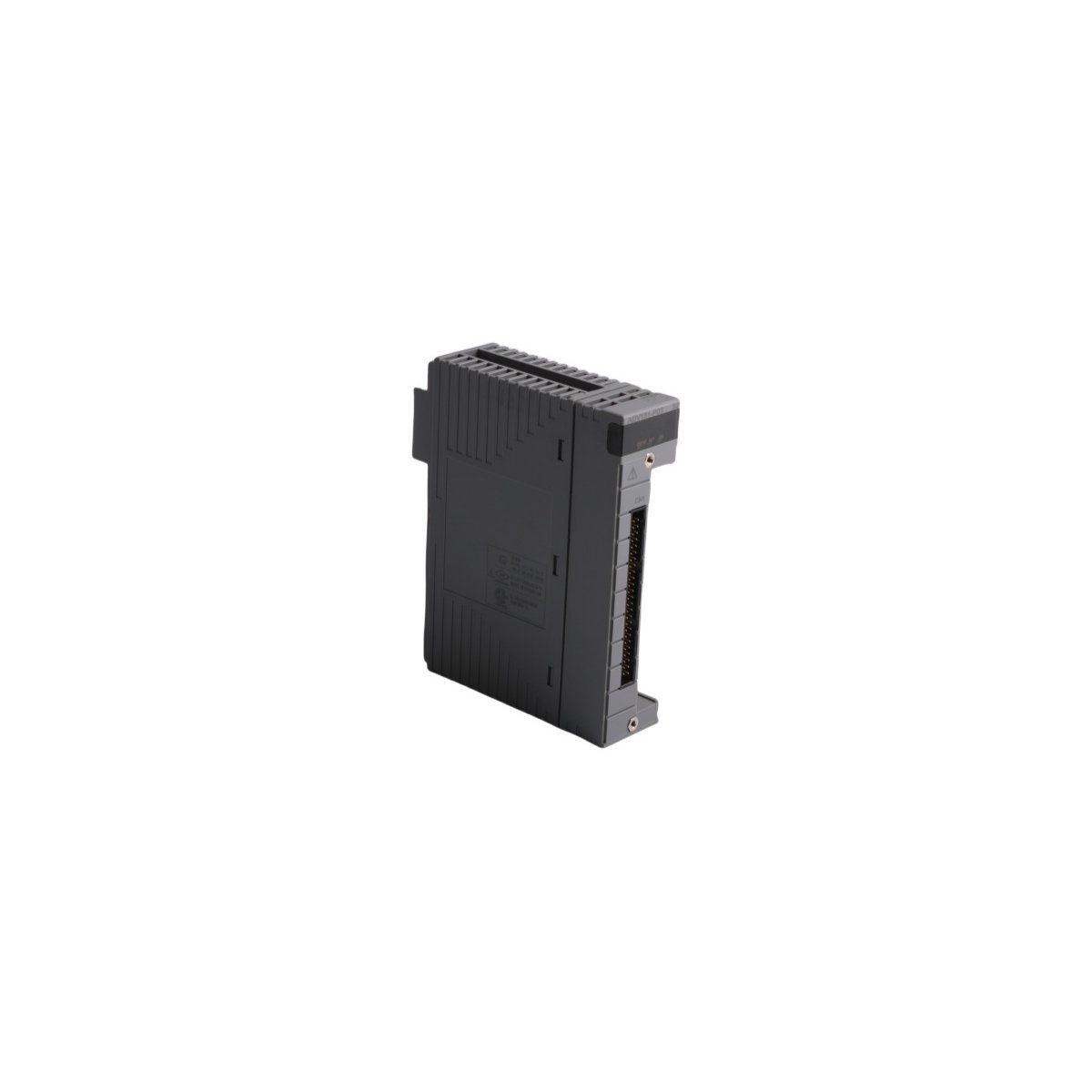

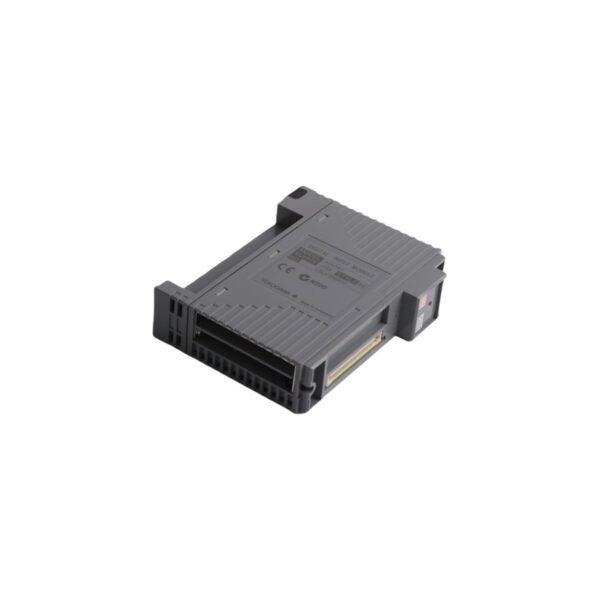

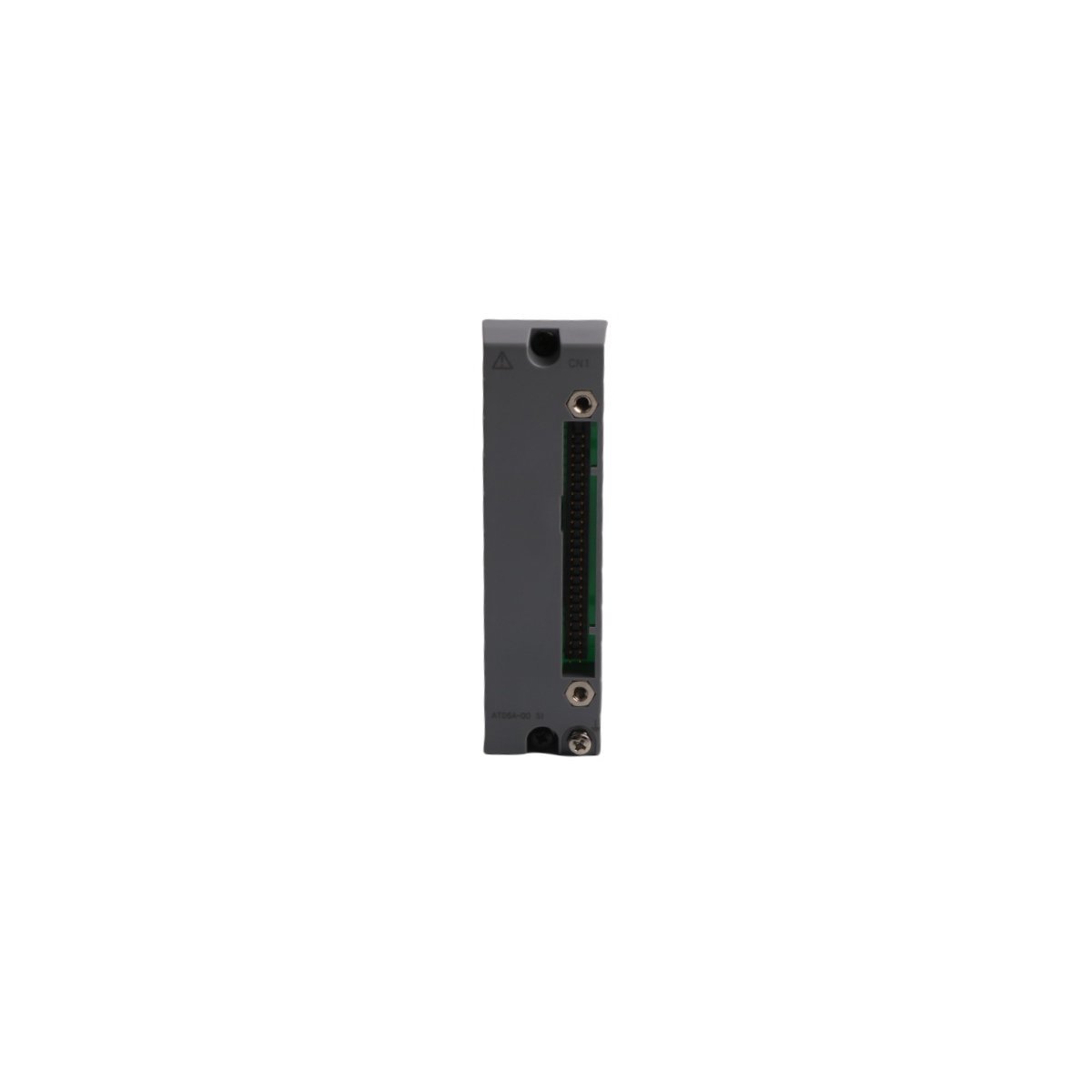

The Yokogawa ADV151-P03 S2 is a professional-grade 32-channel digital input module designed for the Centum VP Distributed Control System. It provides reliable detection of discrete field signals using a standard 24 V DC interface to ensure seamless process monitoring.

Precision Discrete Signal Monitoring

The Yokogawa ADV151-P03 S2 Digital Input Module functions as a high-density interface for capturing discrete states from field equipment such as switches, limit sensors, and relay contacts. By offering 32 independent input channels, this module allows for the consolidation of numerous field signals into a single FIO node, which optimizes cabinet space. The unit operates with a nominal 24 V DC input rating, making it compatible with the majority of industrial sensor architectures. Transitioning data from the field to the control network occurs with high fidelity, providing the DCS with the real-time status updates necessary for complex automation logic and safety interlocking.

Robust Electrical Specifications and Signal Integrity

Engineers designed the ADV151-P03 S2 to maintain strict signal integrity even when facing voltage fluctuations common in industrial power grids. The module utilizes a specific voltage threshold logic, identifying an “ON” state between 18 and 26.4 V DC, while ensuring an “OFF” state is registered at 5.0 V DC or less. This clear differentiation prevents false triggering caused by induced noise or residual voltages. Furthermore, the module regulates current consumption at approximately 4.1 mA per channel. This controlled current draw ensures efficient operation while protecting the internal circuitry from thermal overload during high-density simultaneous switching events.

Seamless System Integration and Maintenance

The ADV151-P03 S2 prioritizes ease of installation and long-term reliability within the Centum VP ecosystem. It supports various connection methods, including pressure clamp terminals and specialized MIL connector cables like the AKB331, allowing for flexible wiring based on site-specific standards. Because the module is built for the FIO (Field network I/O) bus, it supports hot-swap functionality, which enables maintenance teams to replace the card without interrupting the power to adjacent modules. This capability significantly reduces potential downtime in continuous process industries such as oil and gas, power generation, and chemical manufacturing.

Key Technical Characteristics

• 32-Point High Density: Efficiently manages a large volume of discrete inputs in a compact form factor.
• 24 V DC Rated Input: Standardized voltage compatibility for broad industrial transducer support.
• Precise Threshold Logic: Features defined ON/OFF voltage ranges to eliminate signal ambiguity and noise interference.
• Optimized Current Loading: Maintains 4.1 mA per channel to balance signal sensitivity with power efficiency.
• Versatile Connectivity: Interfaces with pressure clamp terminals or MIL connectors for simplified field wiring.
• FIO System Compatibility: Fully integrated for use with Yokogawa Field Control Stations (FCS).
