Description

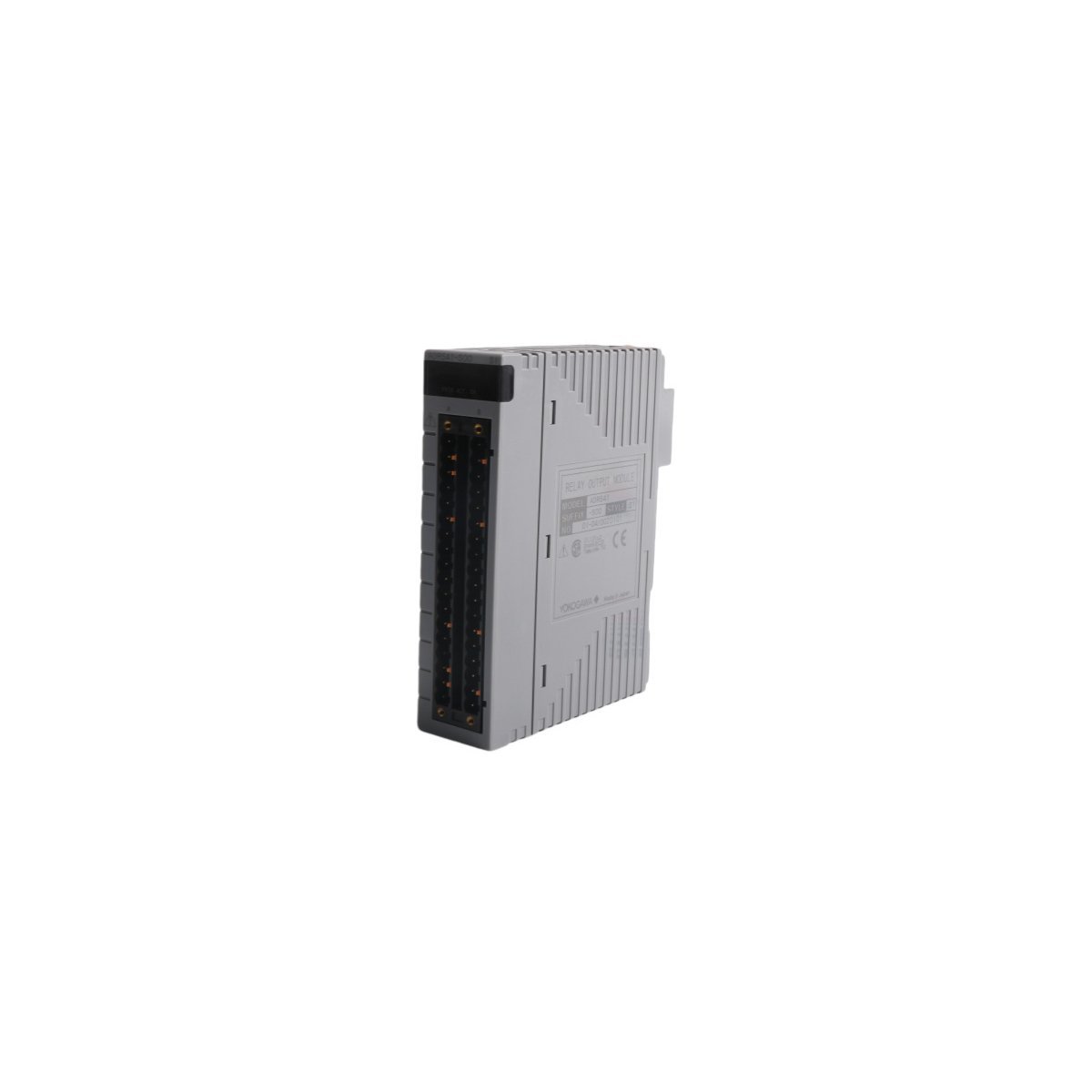

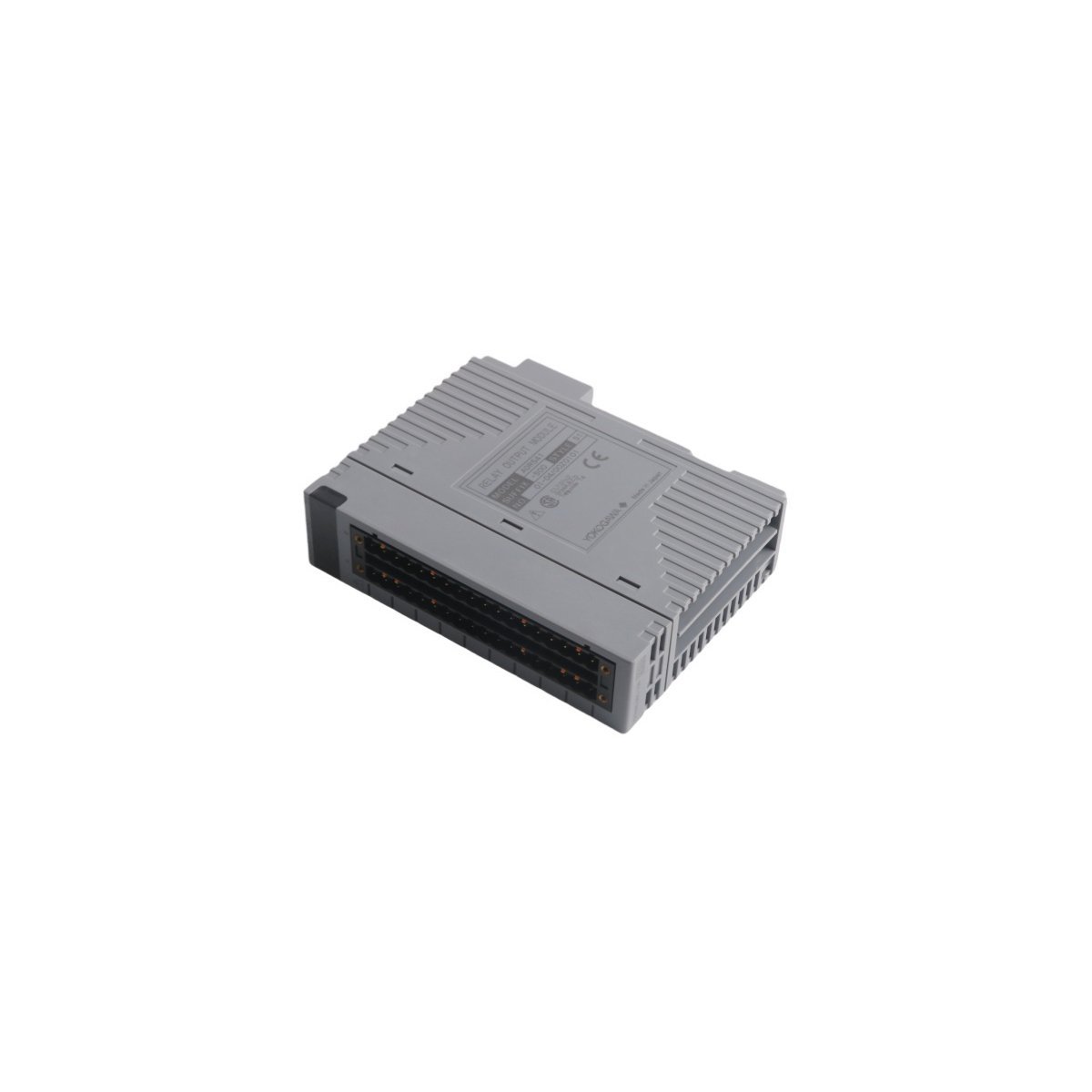

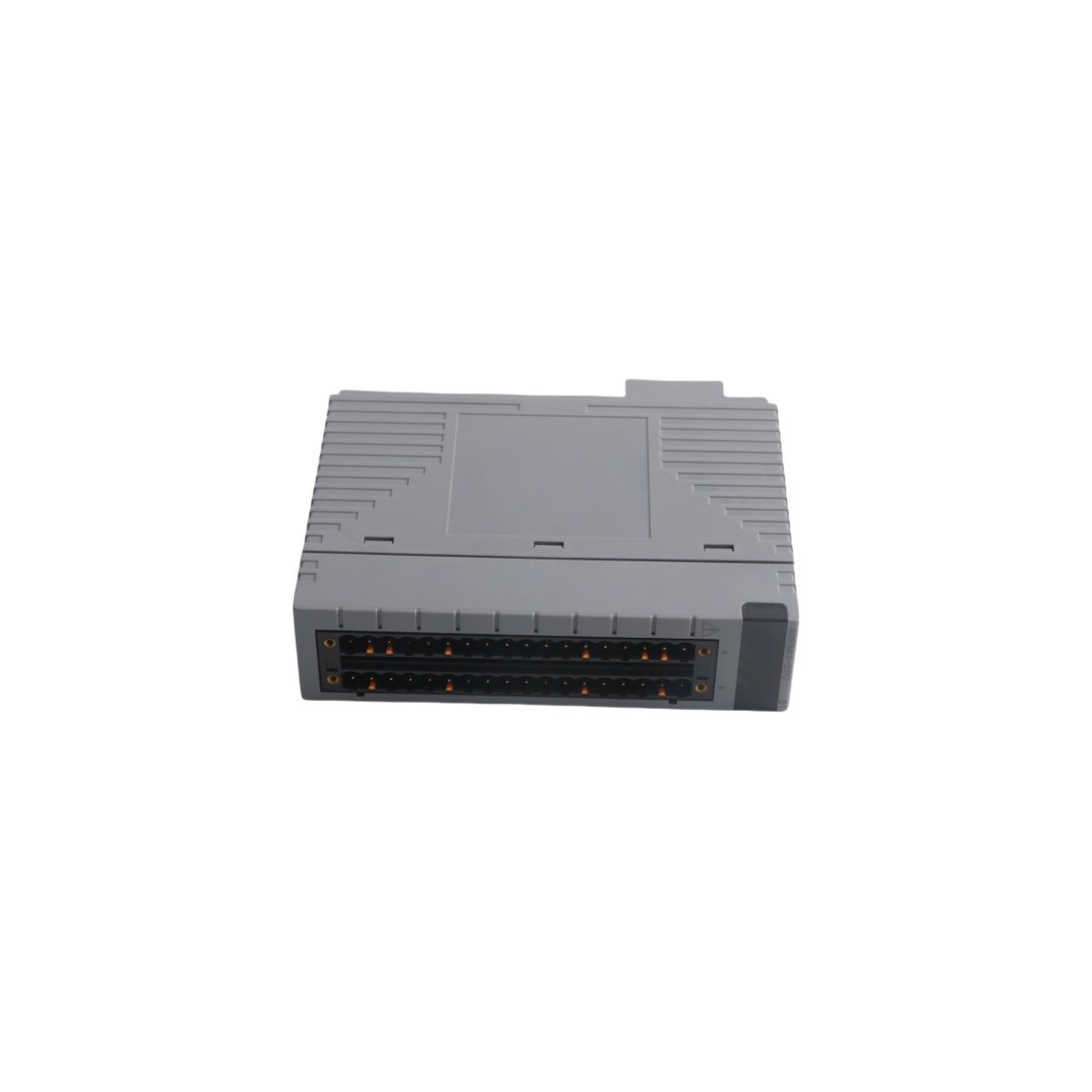

The Yokogawa ADR541-S00 S1 serves as a high-density digital output interface for the CENTUM VP control system. This module provides reliable relay contact outputs to drive field devices. It acts as a critical link between the DCS logic and industrial hardware. Operators use this unit to control valves, motors, and signaling lamps. The hardware excels in managing discrete states with high electrical isolation. Because it utilizes relay logic, it handles varying voltage loads effectively. This versatility makes it a staple in modern process automation.

Technical Parameters and Hardware Data

Core Functionality and Application

Reliability remains the primary focus of the ADR541-S00 S1 design. This module converts digital control commands into physical contact closures. High-quality relay components ensure long mechanical life and minimal maintenance. Furthermore, the unit features built-in protection against electrical noise and surges. It performs exceptionally well in volatile environments like chemical processing. Power generation facilities also utilize this module for safety interlocking. The compact footprint allows for high-density installation in control cabinets. Consequently, engineers can maximize system capacity without expanding physical space.

Integration and Environmental Durability

The ADR541-S00 S1 supports seamless hot-swapping within the CENTUM VP rack. This feature allows for module replacement without interrupting the entire process. It communicates through the standard system bus for rapid response times. Additionally, the module adheres to strict Japanese industrial manufacturing standards. It operates efficiently under high-temperature conditions and vibration. The robust casing protects sensitive internal circuitry from dust and contaminants. Maintenance teams benefit from the clear status indicators on the front panel. These LEDs provide instant visual feedback on channel activity and health.
