Description

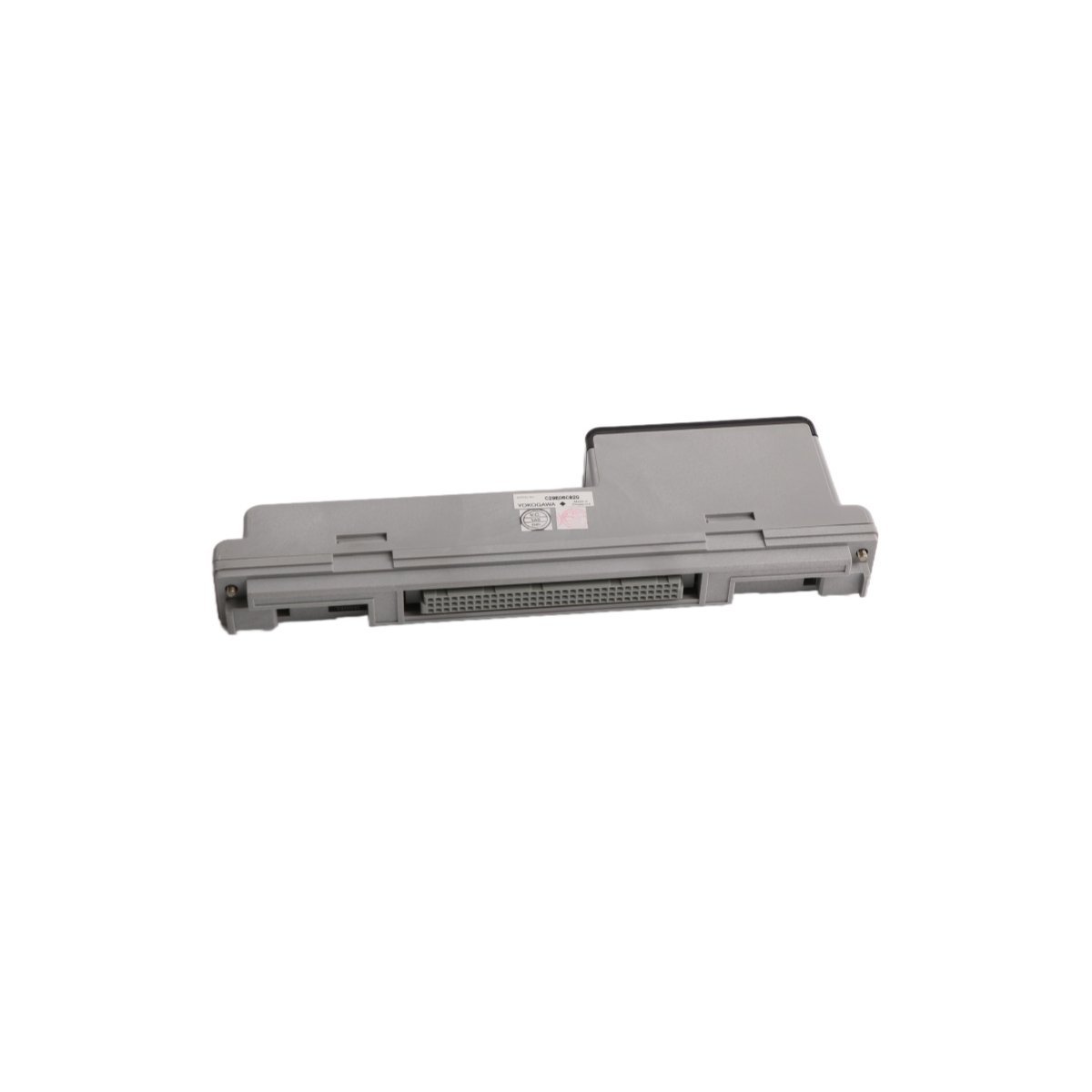

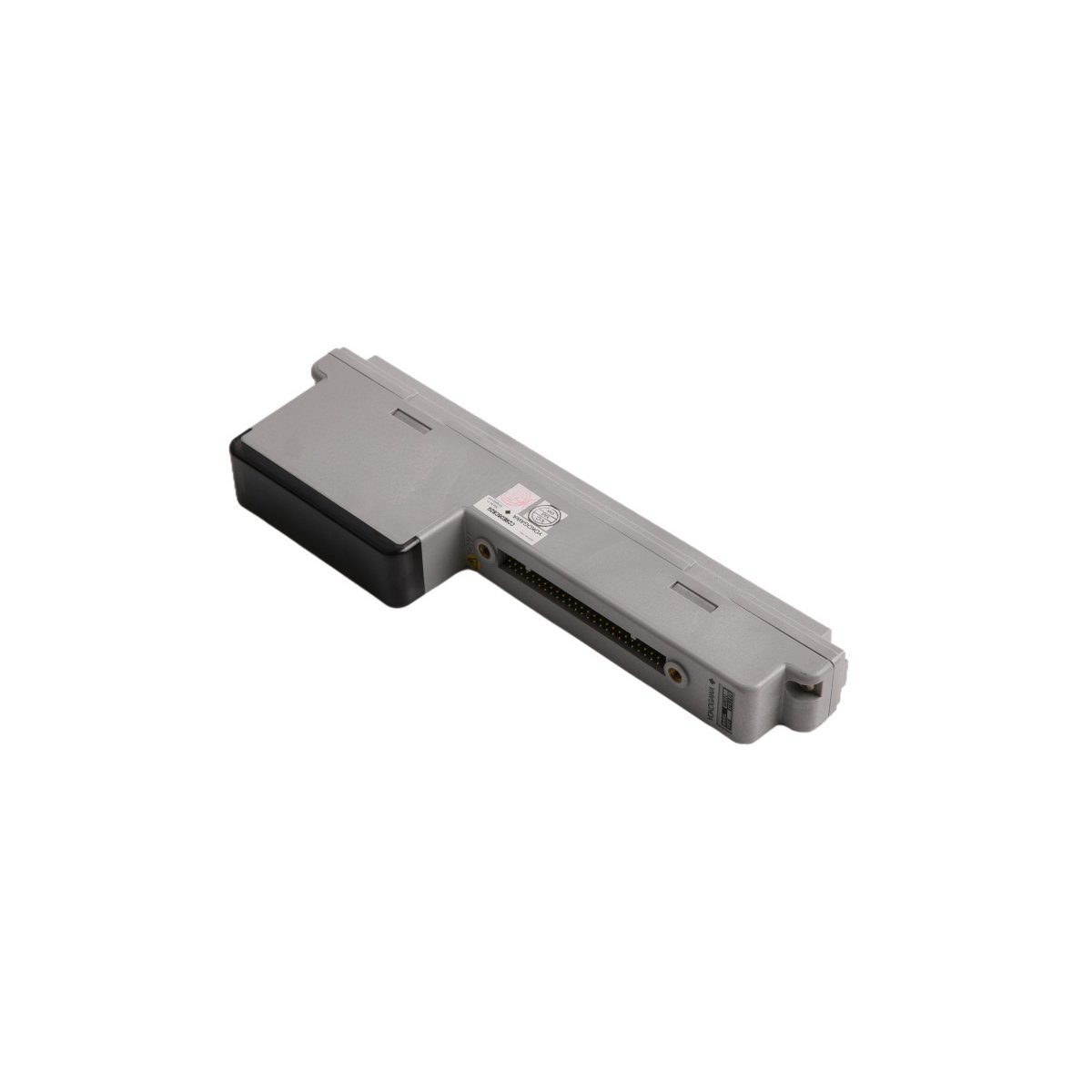

Configured for discrete state monitoring in DCS platforms, the Yokogawa ADM11C (ADM11C Contact Input Module) provides direct physical execution of status signal acquisition.

Hardware Specifications

Process Control Technical Attributes

The Yokogawa ADM11C maintains signal integrity through specialized channel-to-channel isolation, preventing electrical noise propagation between individual input loops in dense DCS architectures. This module supports standard field contact interrogation protocols, ensuring clear state detection for digital process events. Through advanced signal conditioning, it mitigates bounce-related errors in electromechanical field device feedback. The implementation of channel-to-channel isolation minimizes common-mode interference, facilitating consistent logical state transitions in electrically active environments.

Frequently Asked Questions

Q: Does the ADM11C require external loop power for dry contact inputs?

A: The module is designed to supply the necessary interrogation voltage to dry contacts. Ensure that field wiring adheres to the specific impedance and voltage output ratings defined in the system wiring diagrams to avoid exceeding input thresholds.

Q: Can this module be integrated into existing DCS rack configurations without firmware modification?

A: Compatibility is dependent on the existing controller cabinet revision. Verify that the current DCS system software revision supports the ADM11C module ID before insertion to ensure proper auto-configuration of the I/O map.

Field Installation Guidelines

• Mounting: Ensure the module is fully seated within the designated DCS slot. Verify that the locking mechanism is engaged to maintain positive contact with the backplane connectors.
• Wiring: Terminate field signal wires directly to the I/O terminals. Ensure all conductors are stripped to the required length to prevent exposed copper while maintaining sufficient contact surface area.
• Shielding: Use shielded twisted-pair cabling for all input signals to minimize electromagnetic interference. Ground the cable shield at a single termination point as specified by the plant grounding standard.
• Maintenance: Before removing or inserting the module, confirm that the system is in a safe operational state. Inspect the backplane connectors for debris or oxidation to maintain low-resistance signal paths.
