Description

Brief Product Description

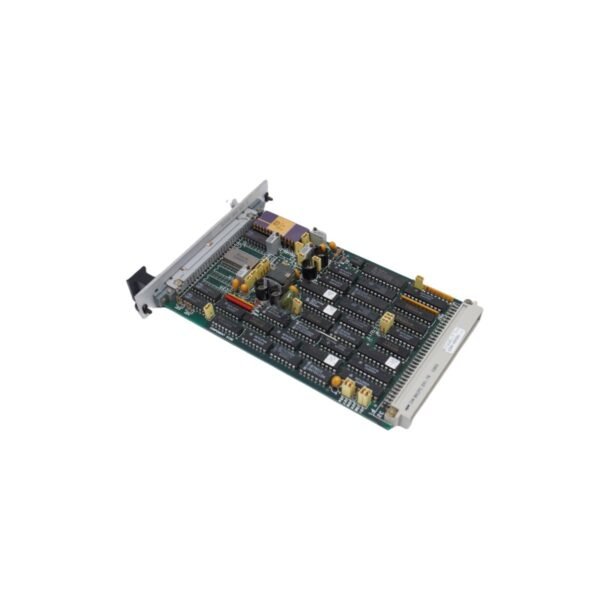

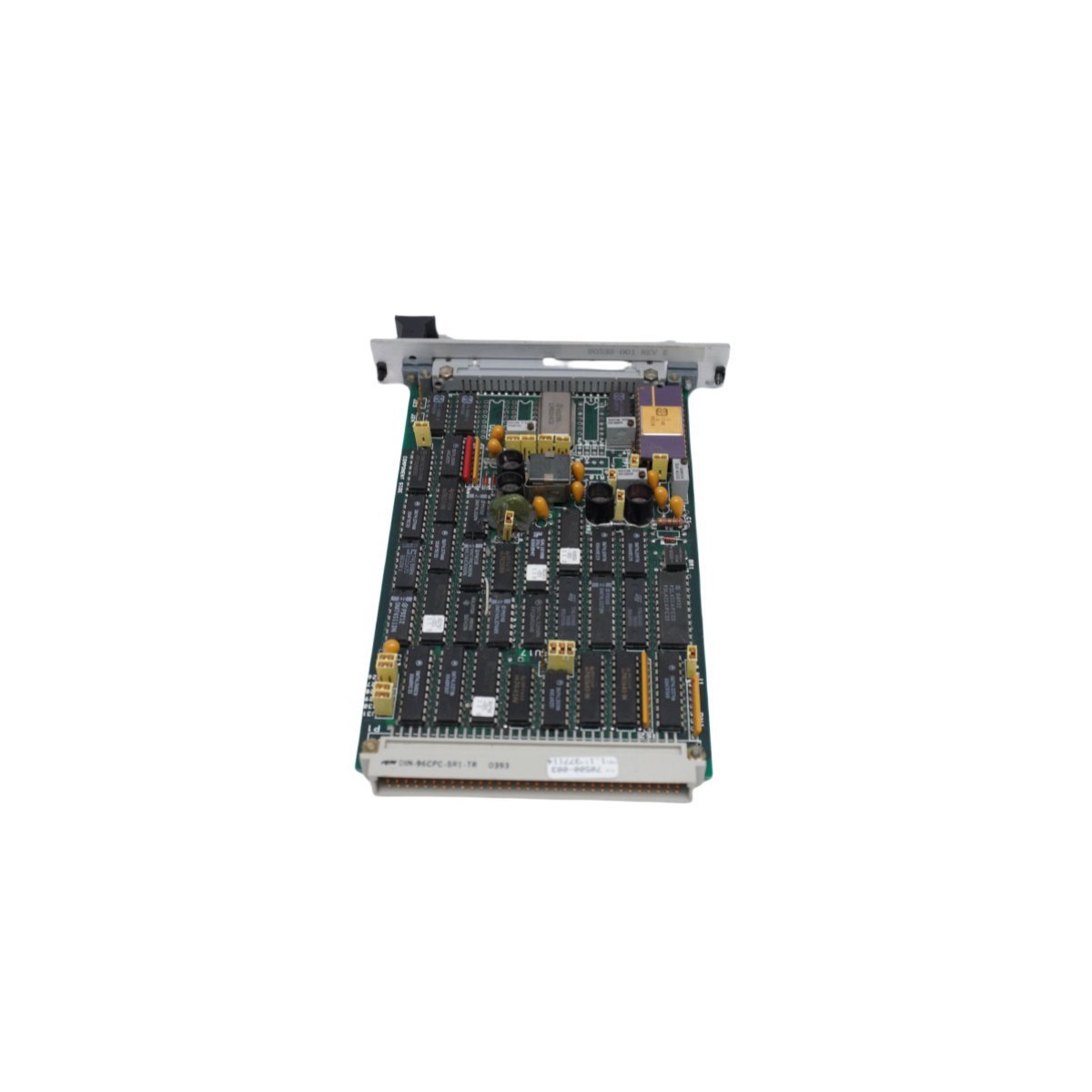

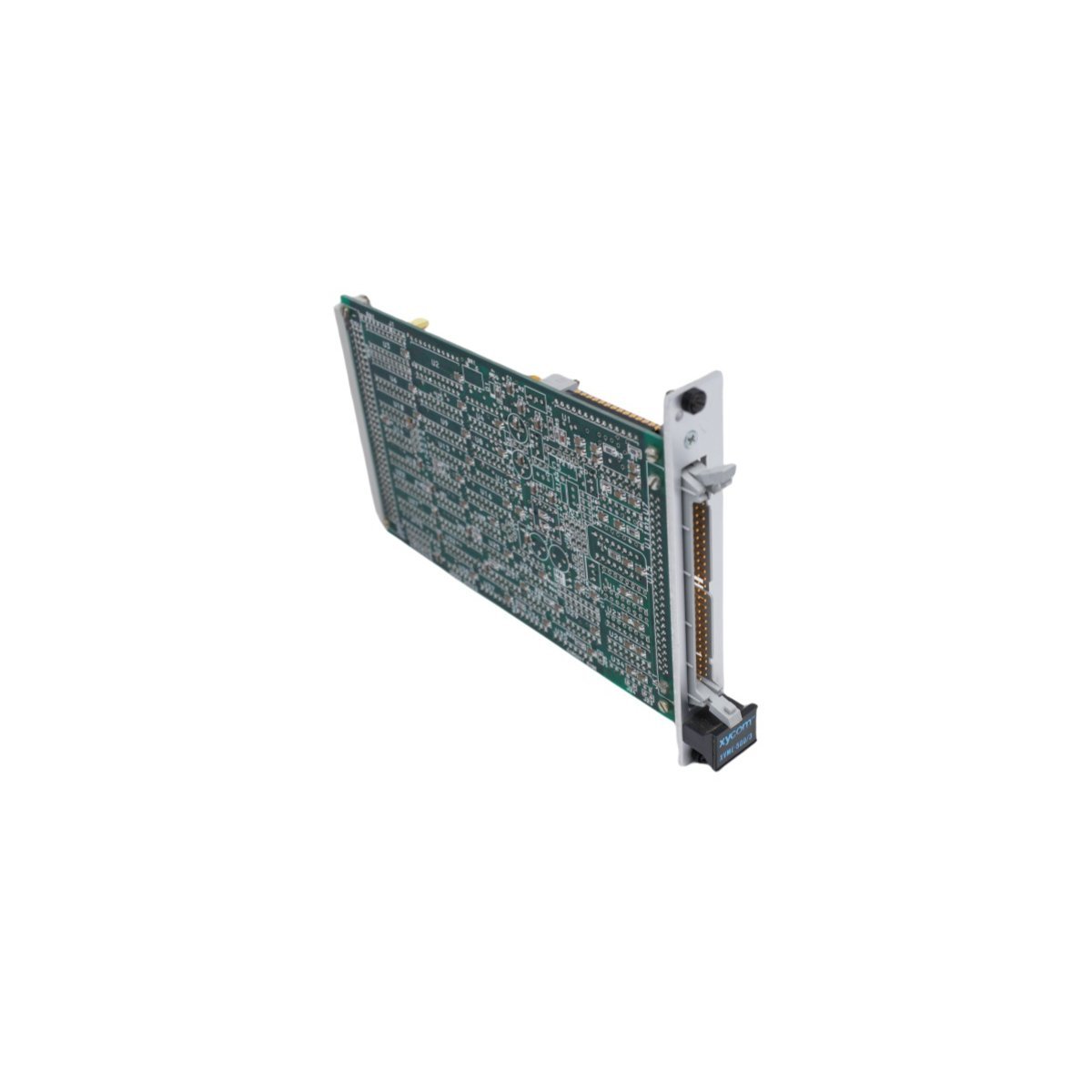

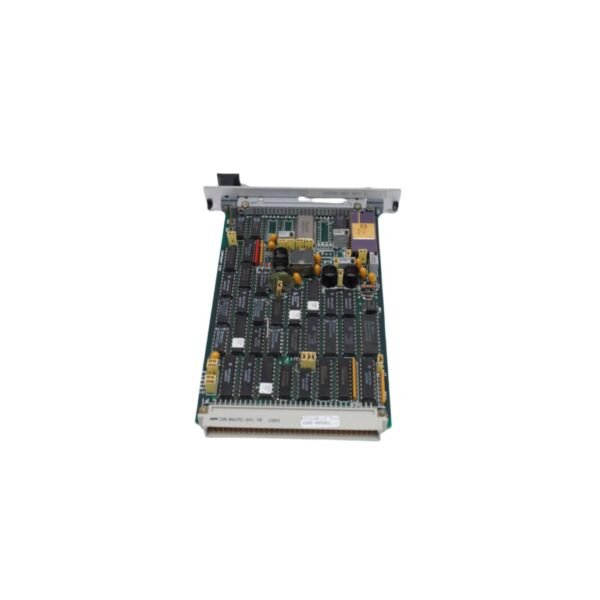

The Xycom XVME-600 (70600-001) is a high-reliability embedded CPU board featuring a 16MHz Motorola 68020 processor designed for the VMEbus architecture. This ruggedized module provides the essential computational foundation for industrial control systems and military-grade applications operating in extreme environments.

Industrial-Grade Computational Power

The Xycom XVME-600 70600-001 serves as a high-performance engine for complex automation tasks and real-time processing. By utilizing the 16MHz Motorola 68020 microprocessor, this board delivers significantly higher throughput than older 68000-based architectures. This increased processing speed allows the system to manage intricate logic sequences and high-speed data acquisition simultaneously. Furthermore, the board adheres to strict VMEbus standards, ensuring that it integrates effortlessly into existing industrial racks. Because the 70600-001 configuration prioritizes both speed and stability, it remains a cornerstone for facility managers who require precise control over manufacturing and process equipment.

Engineered for Extreme Environments

Reliability in harsh conditions defines the XVME-600 70600-001, as Xycom engineered this board to meet rigorous MIL-STD specifications. The hardware withstands substantial mechanical vibration and shock, making it ideal for mobile military units or heavy industrial factory floors. Additionally, the specialized PCB layout and high-grade components allow for continuous operation across a broad temperature spectrum where commercial electronics would fail. Transitioning to this ruggedized platform minimizes the risk of system crashes caused by environmental stress. To further enhance reliability, the board includes a suite of diagnostic tools, such as front-panel LEDs and automated self-test routines, which facilitate immediate status verification and rapid troubleshooting during maintenance intervals.

Seamless Integration and Legacy Support

The XVME-600 70600-001 excels in its ability to support both modern expansions and legacy system maintenance. It functions as a primary programmable logic control platform, bridging the gap between historical VMEbus installations and contemporary industrial I/O requirements. The board’s architecture maintains strict timing accuracy, which is a non-negotiable requirement for synchronized real-time applications in the energy and transportation sectors. Even as automation technology evolves, the 70600-001 remains a preferred solution for upgrading critical infrastructure due to its proven track record and backward-compatible design. By choosing this embedded CPU board, engineers ensure their systems retain maximum uptime and long-term operational viability.

Key Technical Characteristics

• 16MHz Motorola 68020 Processor: Provides efficient 32-bit processing power for demanding industrial logic.
• VMEbus Compatibility: Standardized form factor ensures easy installation in industrial and military backplanes.
• Ruggedized Construction: Designed to operate in high-vibration and extreme temperature environments.
• Integrated System Health Monitoring: Onboard diagnostic LEDs and POST (Power-On Self-Test) capabilities.
• Real-Time Performance: Optimized for low-latency response in mission-critical control applications.
• Flexible Memory Mapping: Supports various RAM/ROM configurations to meet specific application software needs.
