Description

Brief Product Description

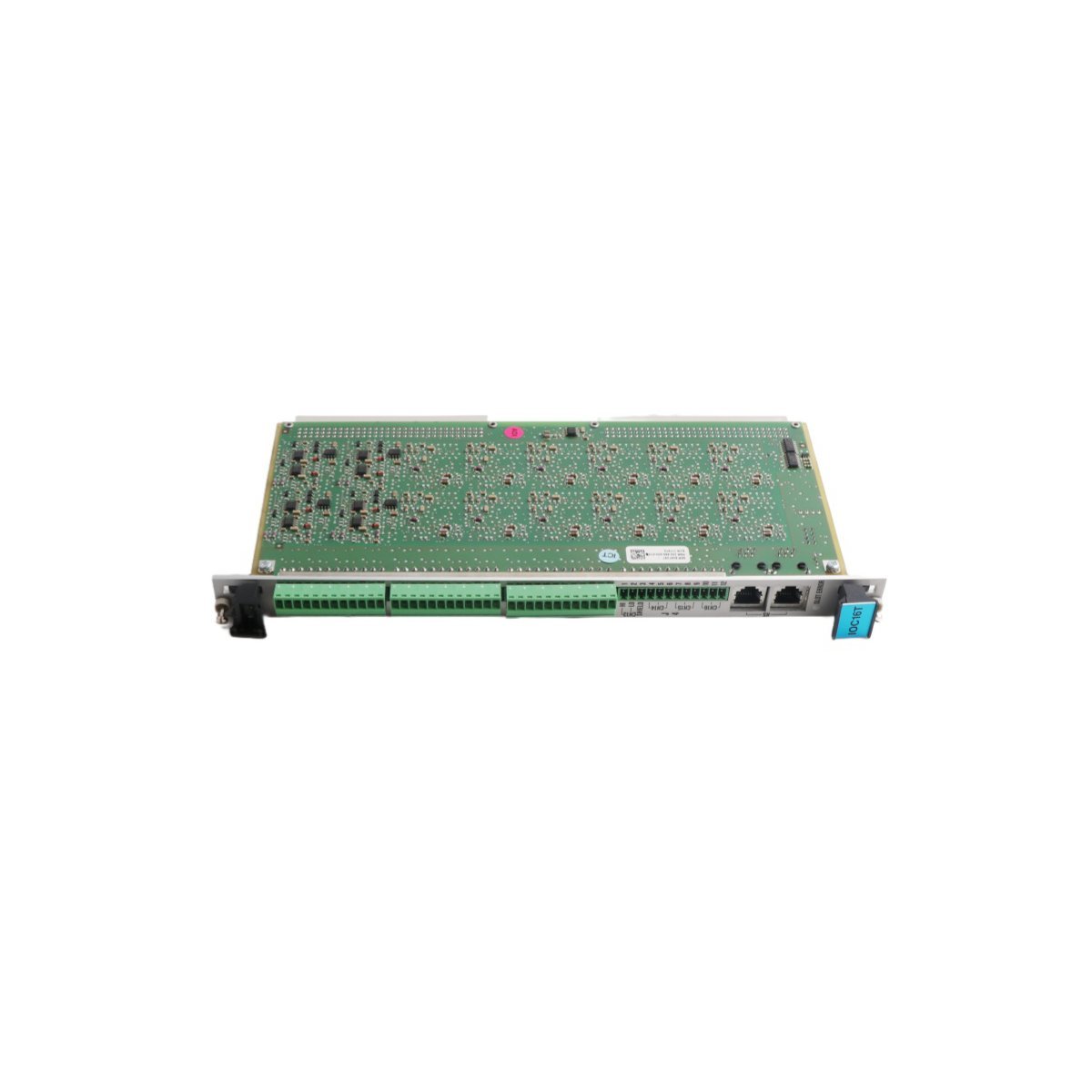

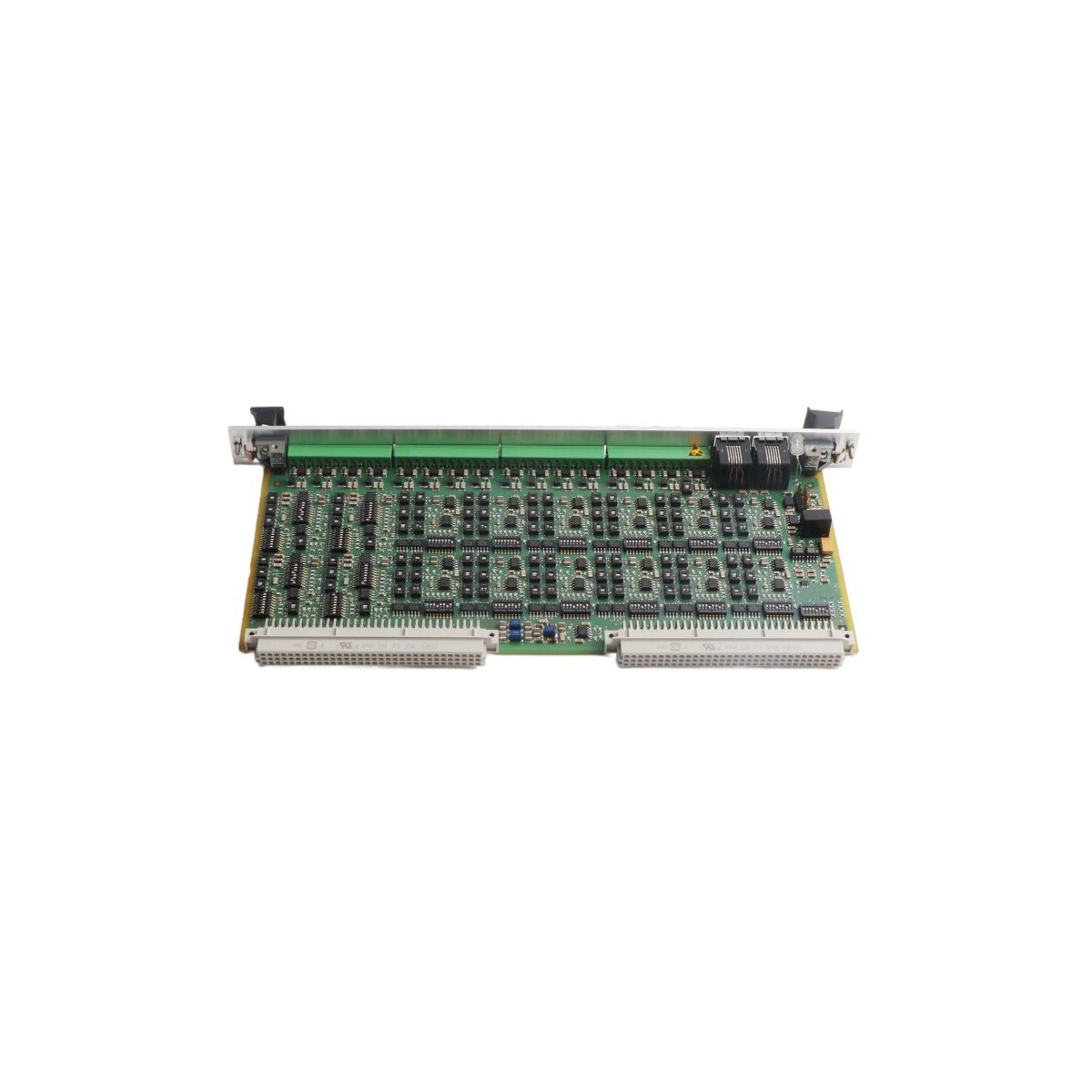

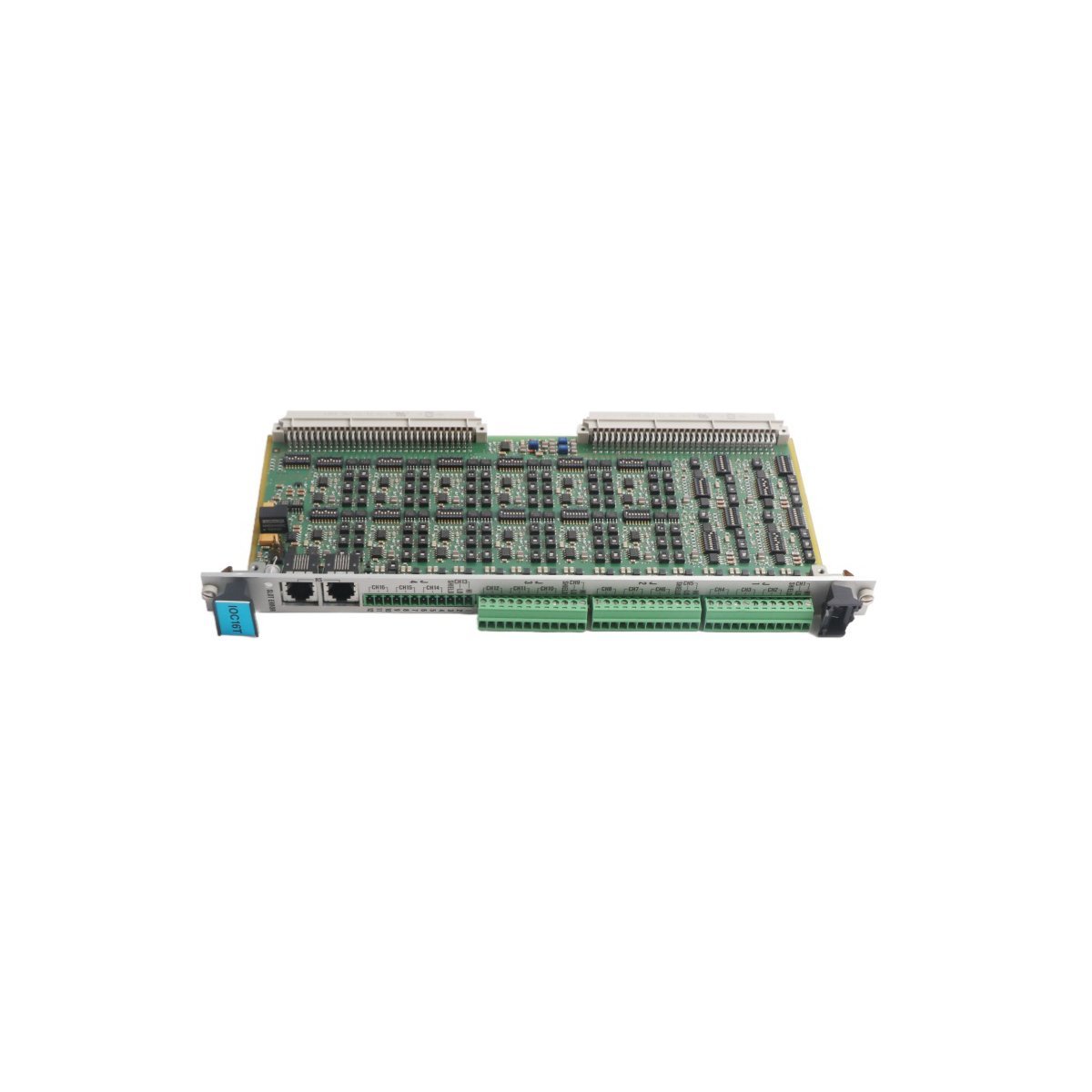

The Vibro-Meter VM600 IOC16T (200-565-000-013) is a specialized 16-channel input/output card that provides the physical interface for MPC4 machinery protection modules. It facilitates signal termination, digital-to-analog conversion, and alarm relay management for critical asset monitoring.

Seamless Signal Interfacing for MPC4 Modules

The Vibro-Meter VM600 IOC16T, part number 200-565-000-013, serves as the essential wiring and signal interface for the MPC4 machinery protection card. Typically installed in the rear of a VM600 rack, this module establishes a direct connection to the backplane, enabling high-speed data exchange via the Industry Pack (IP) protocol. Because the IOC16T operates in slave mode, it allows the MPC4 to manage raw dynamic data while the I/O card handles the physical termination of measurement chains. This architecture ensures that vibration and speed signals remain isolated and accurately routed for processing.

Versatile Analog and Digital Signal Management

The IOC16T module offers sophisticated signal conversion capabilities to bridge the gap between monitoring sensors and external control systems. Four onboard digital-to-analog converters (DACs) transform processed data into 0–10 V voltage outputs. Furthermore, the module features four voltage-to-current converters that support jumper-selectable 4–20 mA current loops. This flexibility allows plant operators to integrate the VM600 system with various DCS and PLC architectures. In addition to analog outputs, the card manages 32 digital alarm signals and includes four local relays for immediate hardware-based alarm triggering, ensuring comprehensive machine safety.

Industrial Reliability and EMC Compliance

Designed for demanding power generation and industrial environments, the 200-565-000-013 module prioritizes signal integrity. The front-facing screw-terminal connectors provide secure mechanical attachment for sensor wiring while maintaining a compact footprint. Meggitt engineers have implemented rigorous electromagnetic compatibility (EMC) shielding and RFI filtering to protect sensitive measurement data from industrial electrical noise. Consequently, the IOC16T delivers stable performance even in electrically congested cabinets. Its compatibility with optional RLC16 or IRC4 relay cards further extends the system’s ability to manage complex safety logic for critical rotating assets.

Key Technical Characteristics

• 16-Channel Connectivity: Provides ample termination points for diverse machinery monitoring sensors.
• MPC4 Integration: Acts as the dedicated rear-mounted I/O partner for MPC4 protection modules.
• Dual Analog Outputs: Supports both 0–10 V and 4–20 mA signals via onboard converters and jumpers.
• Integrated Alarm Relays: Features four local relays for software-controlled machinery protection logic.
• Robust Signal Shielding: Meets strict industrial EMC standards to minimize interference and data corruption.
• Direct Backplane Coupling: Utilizes P1 and P2 connectors for reliable, high-speed communication within the rack.
