Description

Brief Product Description

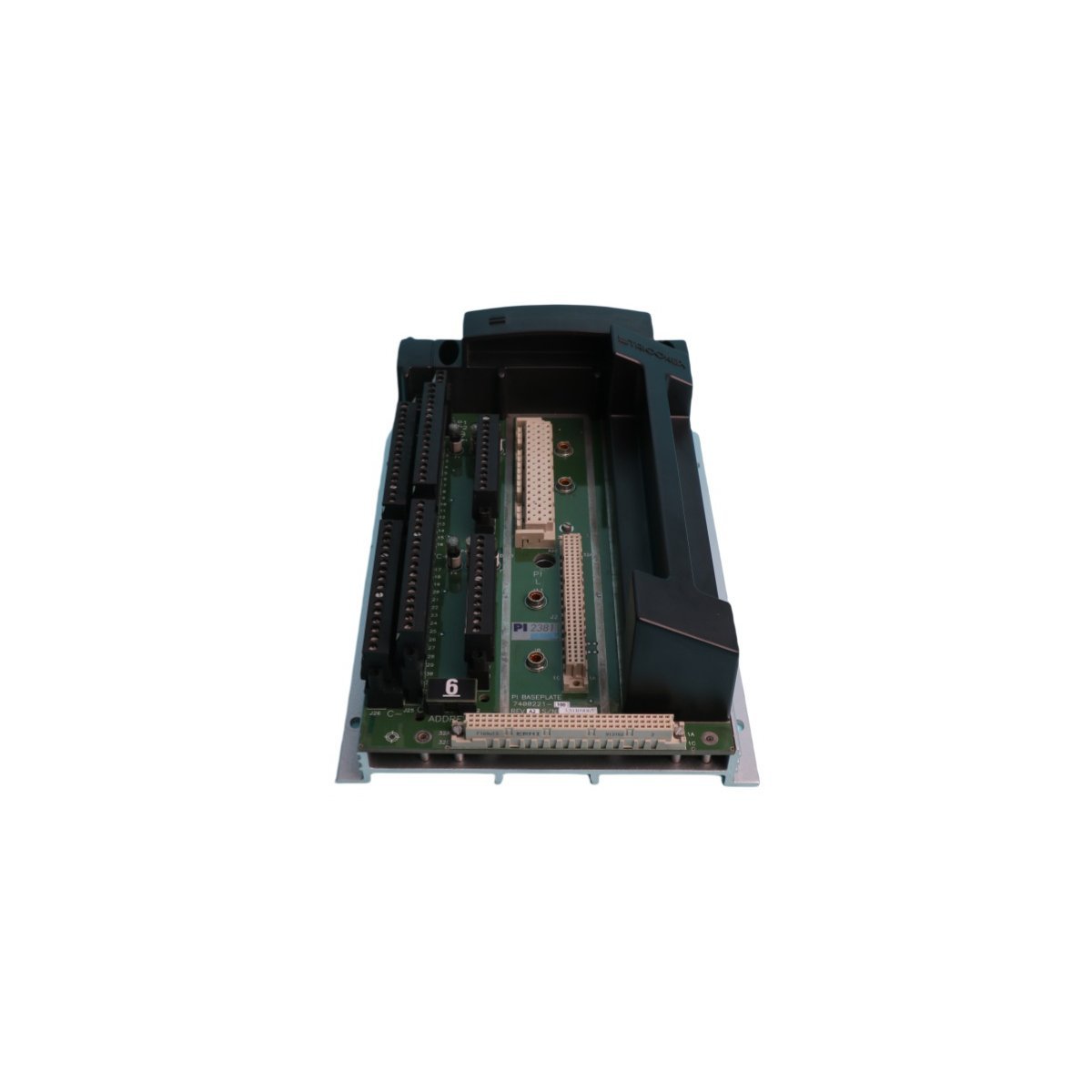

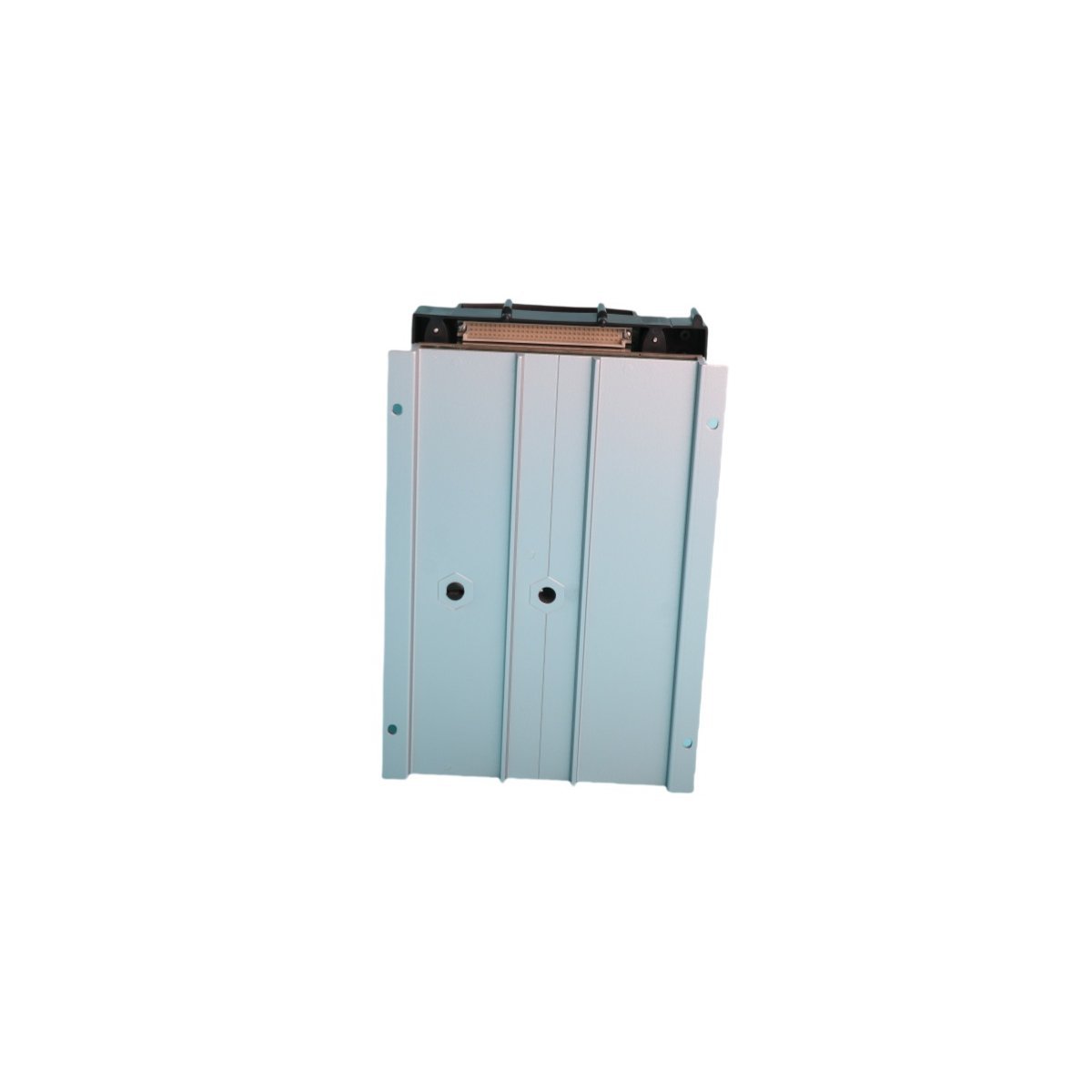

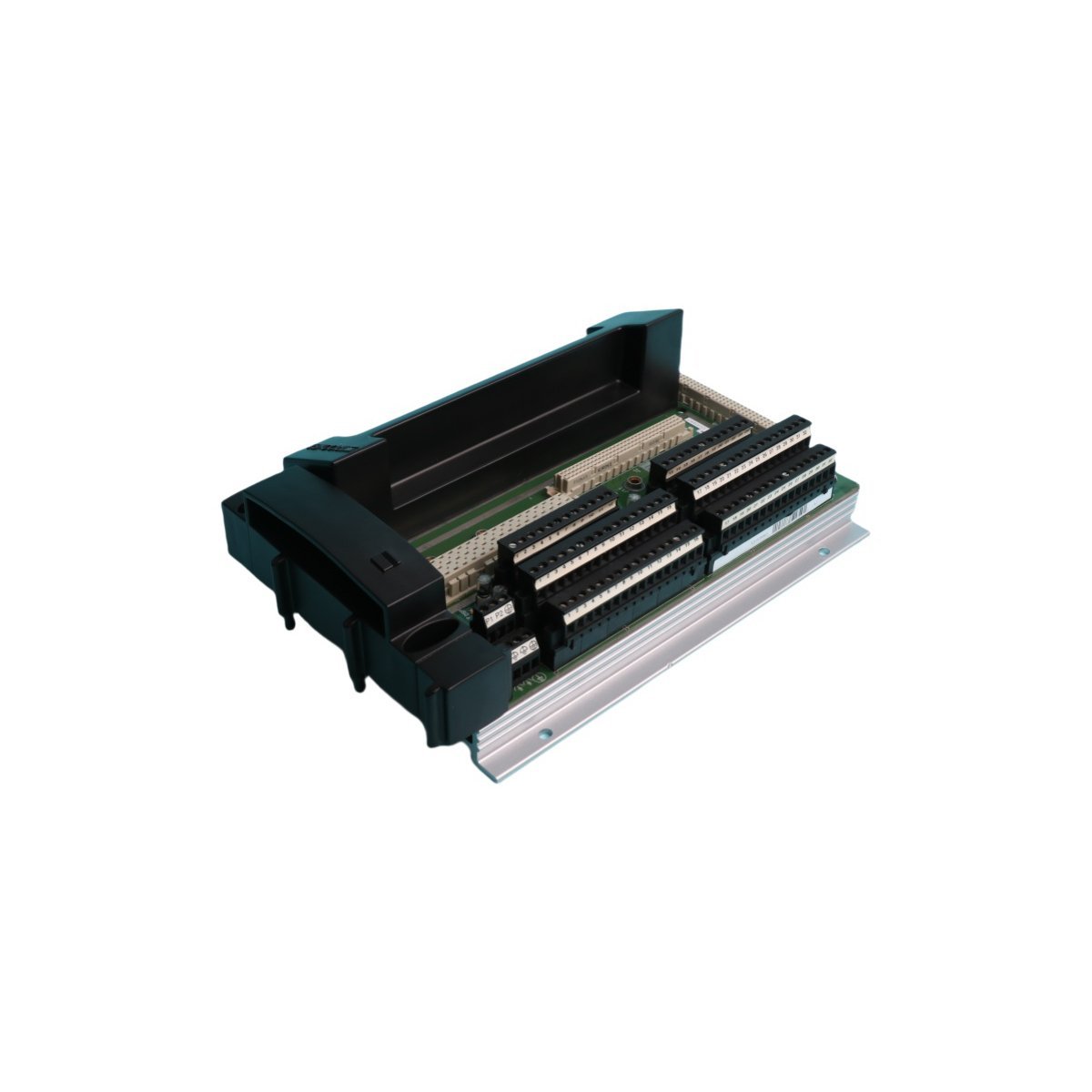

The Triconex 7400221-100 PI2381 is a high-precision 16-channel Pulse Input Baseplate engineered for Tricon v11 safety systems to provide accurate frequency measurement and RPM monitoring.¹ It features SIL 3 certification and 1500V isolation, ensuring maximum data integrity for critical turbine and compressor safety applications.

High-Integrity Frequency Monitoring and Signal Acquisition

The Triconex 7400221-100 PI2381 functions as a specialized interface for capturing high-speed discrete signals within the Tricon v11 Triple Modular Redundant (TMR) architecture. This Pulse Input Baseplate manages 16 independent channels, each capable of processing input rates up to 10kHz with a remarkable frequency accuracy of ±0.01%. Because it utilizes a 24-bit counting resolution, the module provides the granular data required for precise speed sensing and flow measurement.² Consequently, industrial operators rely on this hardware to monitor critical rotational equipment where even minor timing discrepancies could lead to catastrophic system failure.

Robust Engineering for Safety-Critical Environments

Reliability remains the cornerstone of the PI2381 design, as it must maintain operation within the rigorous conditions of offshore platforms and chemical processing plants. The baseplate incorporates 1500V AC/DC channel-to-channel isolation to shield the control logic from electromagnetic interference and ground loops. Furthermore, the unit supports a broad operational temperature range from -40°C to +70°C, ensuring consistent performance in extreme climates.³ By utilizing vibration-resistant construction and corrosion-protected circuitry, Triconex ensures that the 7400221-100 provides a long service life in safety instrumented systems (SIS).⁴

Seamless Integration and System Maintenance

The 7400221-100 PI2381 simplifies complex automation deployments through its streamlined connectivity and hot-swappable architecture. This design allows technicians to perform module replacements or maintenance without interrupting active processes, which is vital for maintaining plant uptime. Additionally, the baseplate integrates directly with TRISTATION 1131 engineering software, allowing for rapid configuration of signal conditioning and noise rejection parameters. Transitioning to this high-density baseplate empowers facility managers to consolidate their hardware footprint while enhancing the safety and precision of their turbine control and overspeed protection loops.

Key Technical Characteristics

• 16-Channel High-Density Interface: Accommodates multiple pulse inputs within a compact 24.7cm x 23cm footprint.
• SIL 3 Certified Performance: Meets the highest global standards for safety-critical process automation.
• Precision Signal Conditioning: Features advanced noise rejection to ensure reliable RPM measurement in high-interference areas.
• High Voltage Protection: Includes 1500V isolation to protect the system backplane from field-side transients.
• Broad Input Range: Supports field-side power from 5V to 30V DC to interface with a wide variety of industrial sensors.
• Industrial-Grade Durability: Engineered with specialized coatings to resist moisture and atmospheric corrosion.

Technical Specifications
