Description

Brief Product Description

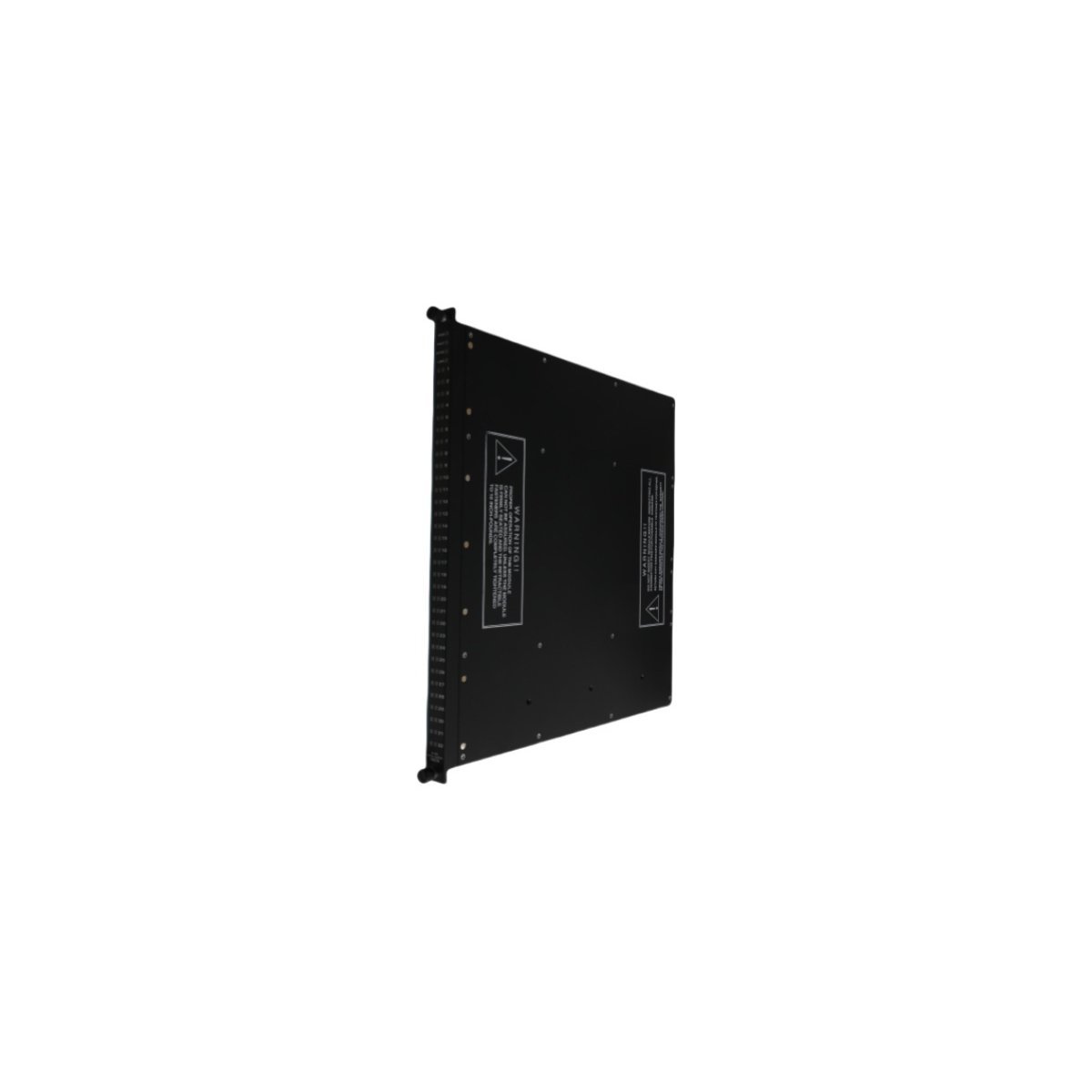

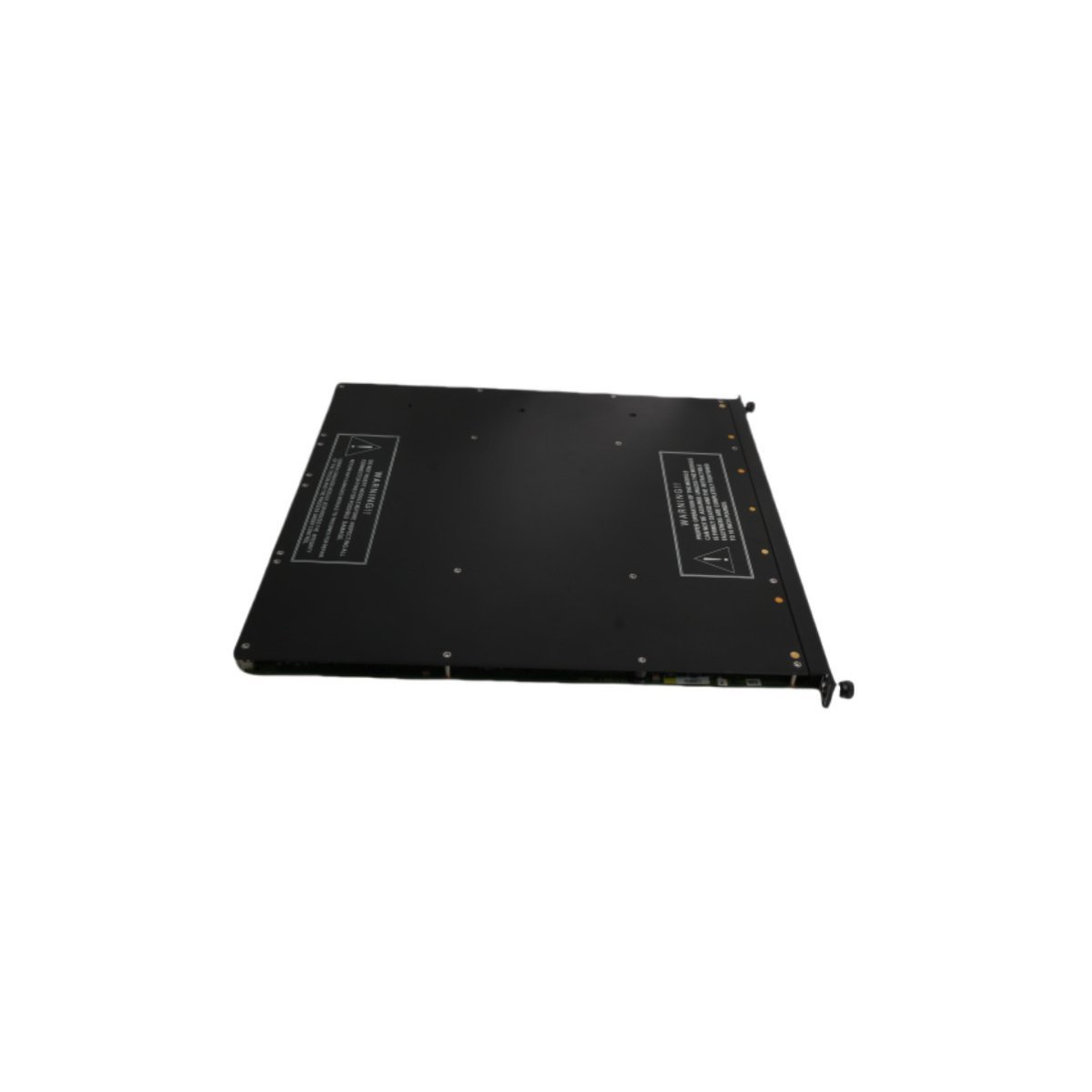

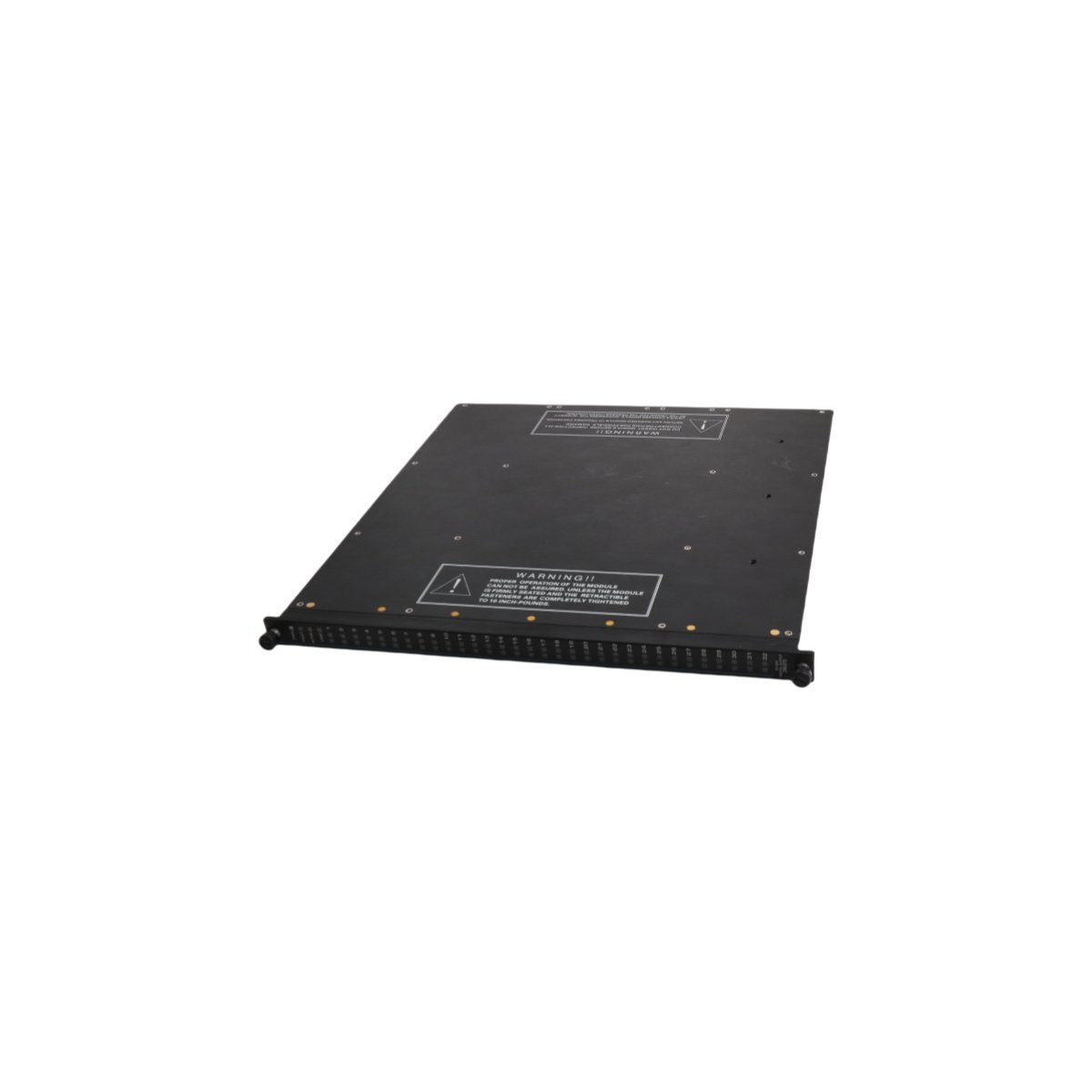

The Triconex 3625 is a 32-point TMR (Triple Modular Redundant) digital output module designed for high-availability 24V DC safety applications.² It provides supervised control of field actuators while maintaining strict Safety Integrity Level (SIL) compliance for critical infrastructure.

Triple Modular Redundant Safety Control

The Triconex 3625 operates as a fundamental safety component within the Tricon Triple Modular Redundancy (TMR) architecture.³ This module manages 32 isolated digital output points, ensuring that critical commands reach field devices without interruption. By utilizing a three-channel voting system, the hardware eliminates single points of failure, which significantly enhances the reliability of emergency shutdown (ESD) and fire and gas (F&G) systems. Each output circuit effectively controls 24V DC loads, providing the necessary drive for solenoids, relays, and other industrial actuators used in hazardous environments.

Advanced Diagnostics and Fault Tolerance

Operational integrity remains the priority for the Model 3625 module. It incorporates comprehensive “Hot-Replaceable” capabilities, allowing maintenance teams to swap modules without shutting down the process or compromising the safety loop. Internally, the module performs continuous self-tests to identify stuck-on or stuck-off conditions across its output switches. If the system detects a discrepancy, the TMR voting logic overrides the faulty channel to maintain the correct output state. Furthermore, the module includes integrated power-limiting and over-temperature protection, which safeguards the internal electronics from field-side wiring abnormalities and harsh thermal loads.

Application in Critical Infrastructure

Industrial facilities, such as oil refineries, chemical plants, and nuclear power stations, rely on the 3625 module for high-risk control tasks.⁴ Its robust mechanical construction allows the unit to perform consistently under significant vibration and extreme temperature fluctuations typical of heavy industrial zones.⁵ Because the module complies with international SIL 3 standards, it provides the verifiable safety performance required by global regulatory bodies.⁶ The compact vertical form factor optimizes chassis density, enabling engineers to scale safety systems efficiently while maintaining clear access for diagnostic monitoring and routine inspection.

Key Technical Characteristics

• Triple Modular Redundancy (TMR): Employs three independent channels with hardware voting for maximum fault tolerance.⁷
• 32-Point Output Density: Provides extensive control capacity for large-scale field actuator networks.
• Supervised Output Logic: Continually monitors the health of each output switch to prevent undetected failures.
• Hot-Swap Capability: Supports online module replacement to ensure uninterrupted process protection.⁸
• 24V DC Nominal Operation: Standardized for compatibility with a wide range of industrial solenoids and safety relays.
• SIL 3 Certified: Meets stringent safety integrity requirements for high-availability industrial applications.⁹
