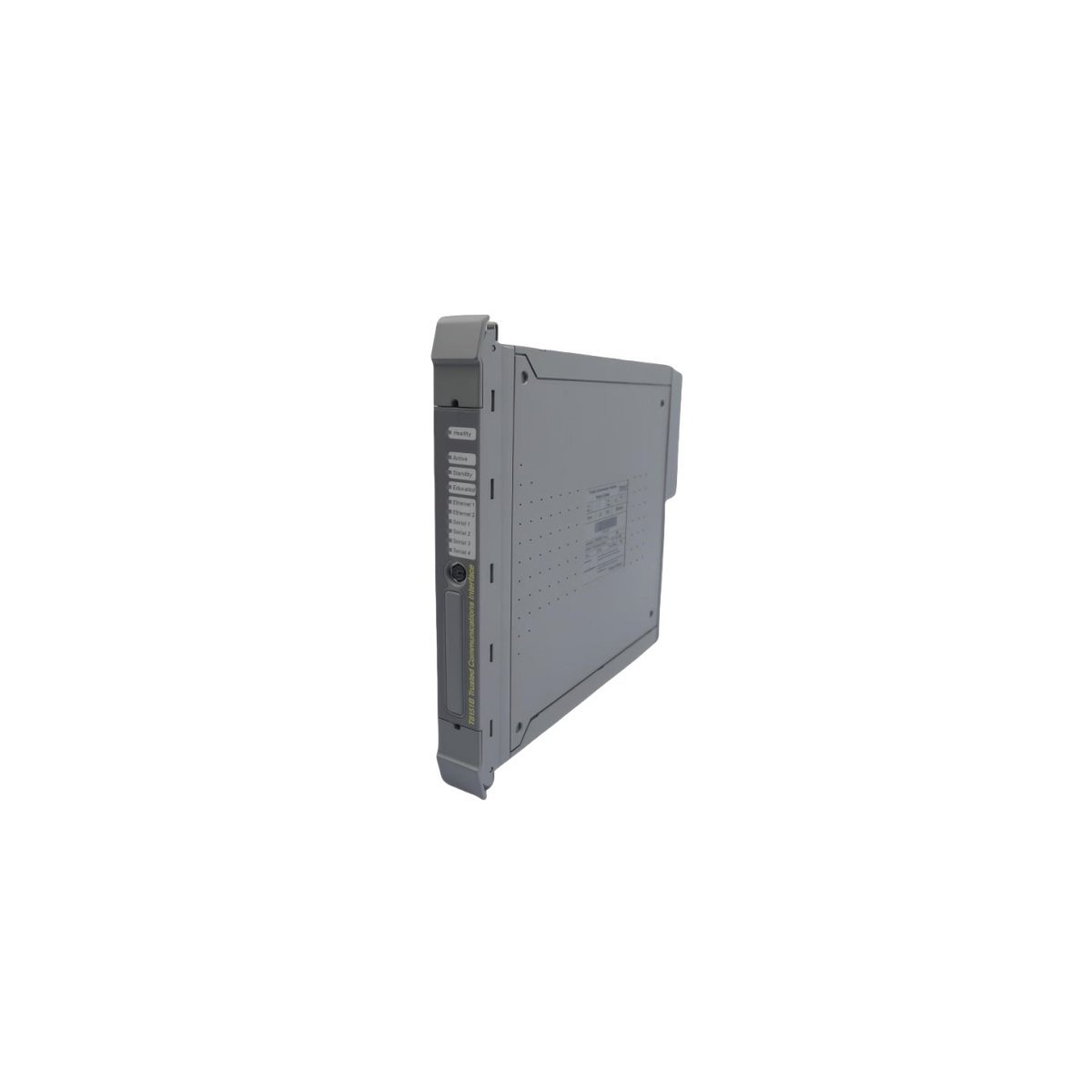

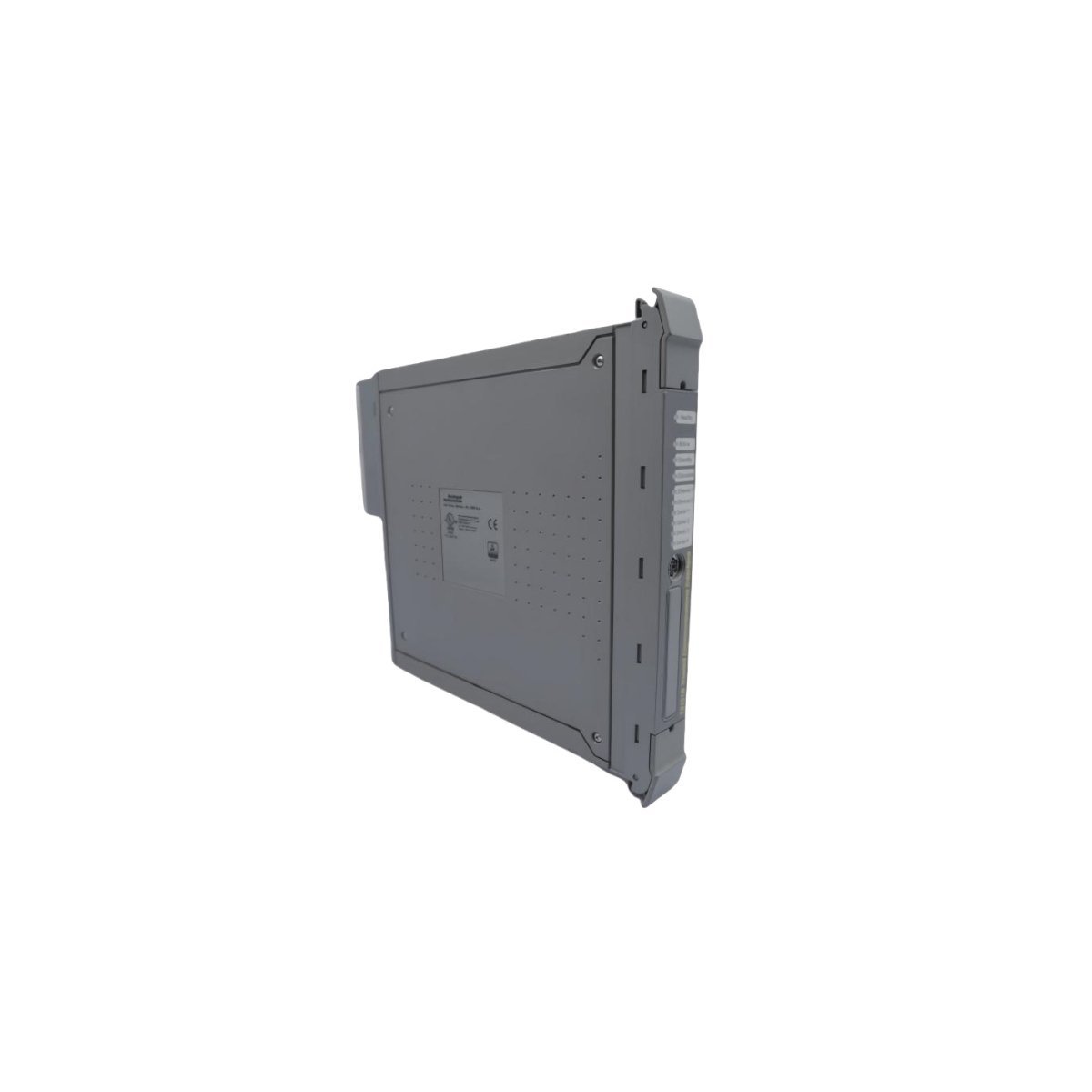

The ICS Triplex T8290C is a high-performance Output Power Distribution Unit (PDU) engineered to provide regulated electrical supply to field-side actuators and output modules. Operating within the Trusted and Regent platforms, it ensures consistent power delivery while offering advanced diagnostic monitoring to prevent system downtime.

High-Integrity Power Allocation for Output Circuits

The ICS Triplex T8290C serves as a critical power management interface within the Trusted control architecture. Specifically designed to drive field-side loads, this Output Power Distribution Unit regulates the electrical energy required for actuators, solenoids, and other control elements. Because output circuits are often susceptible to back-EMF and transient surges, the T8290C incorporates dedicated suppression circuitry to maintain signal purity. Consequently, the module prevents electrical disturbances from propagating back into the logic backplane, thereby safeguarding the Triple Modular Redundant (TMR) processor’s integrity.

Industrial Resilience and Environmental Protection

Reliability in harsh processing environments is a hallmark of the T8292C design. The unit features a ruggedized enclosure that resists moisture, airborne dust, and industrial contaminants common in oil, gas, and power generation facilities. Furthermore, the internal components are selected for their high thermal tolerance, allowing the module to operate effectively in non-conditioned control rooms. Transitioning to this specialized PDU provides engineers with a localized power solution that simplifies cabinet wiring while enhancing the overall robustness of the safety instrumented system (SIS).

Proactive Diagnostics and System Availability

The T8290C goes beyond simple power delivery by integrating sophisticated channel-level health monitoring. The module continuously scans for abnormal load conditions, such as short circuits or open lines, and transmits these status updates to the controller via the high-speed communications bus. This real-time feedback allows operators to identify and isolate power faults before they cause a full system trip. Additionally, the T8290C supports flexible configuration within the Regent control environment, enabling seamless integration into existing automation loops without necessitating complex software modifications.

Key Technical Characteristics

• Regulated Output Distribution: Delivers stable power to critical field devices and output interfaces.
• Integrated Fault Isolation: Prevents localized electrical faults from affecting the wider control system.
• High Thermal Efficiency: Engineered to maintain performance in temperatures reaching up to 70°C.
• Comprehensive Diagnostic Suite: Monitors output rail health and reports discrepancies in real time.
• Space-Saving Design: Packs high-capacity power distribution into a compact 14.5cm wide module.
• Industry Standard Compliance: Built to meet rigorous safety and reliability standards for PLC and DCS environments.
