Description

Brief Product Description

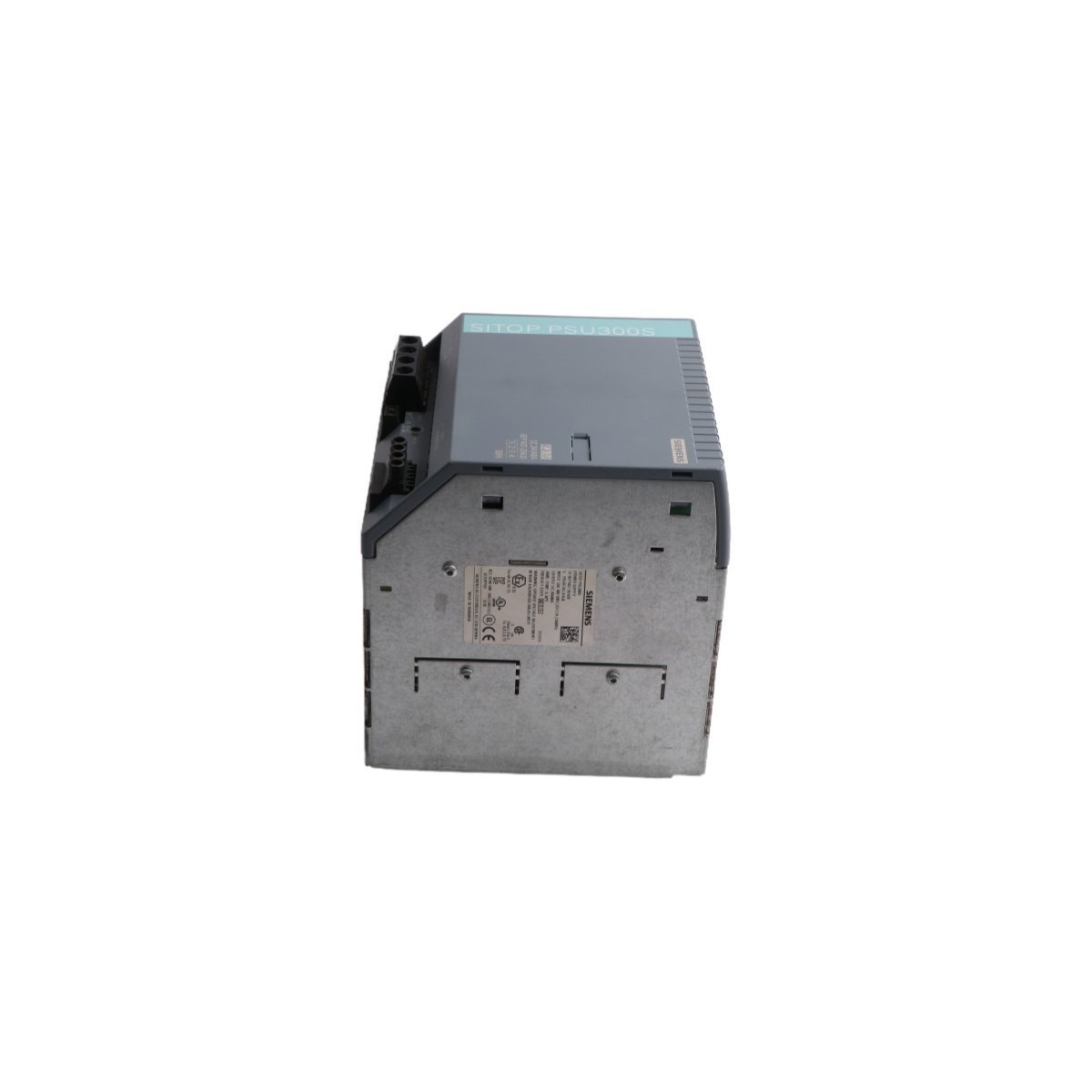

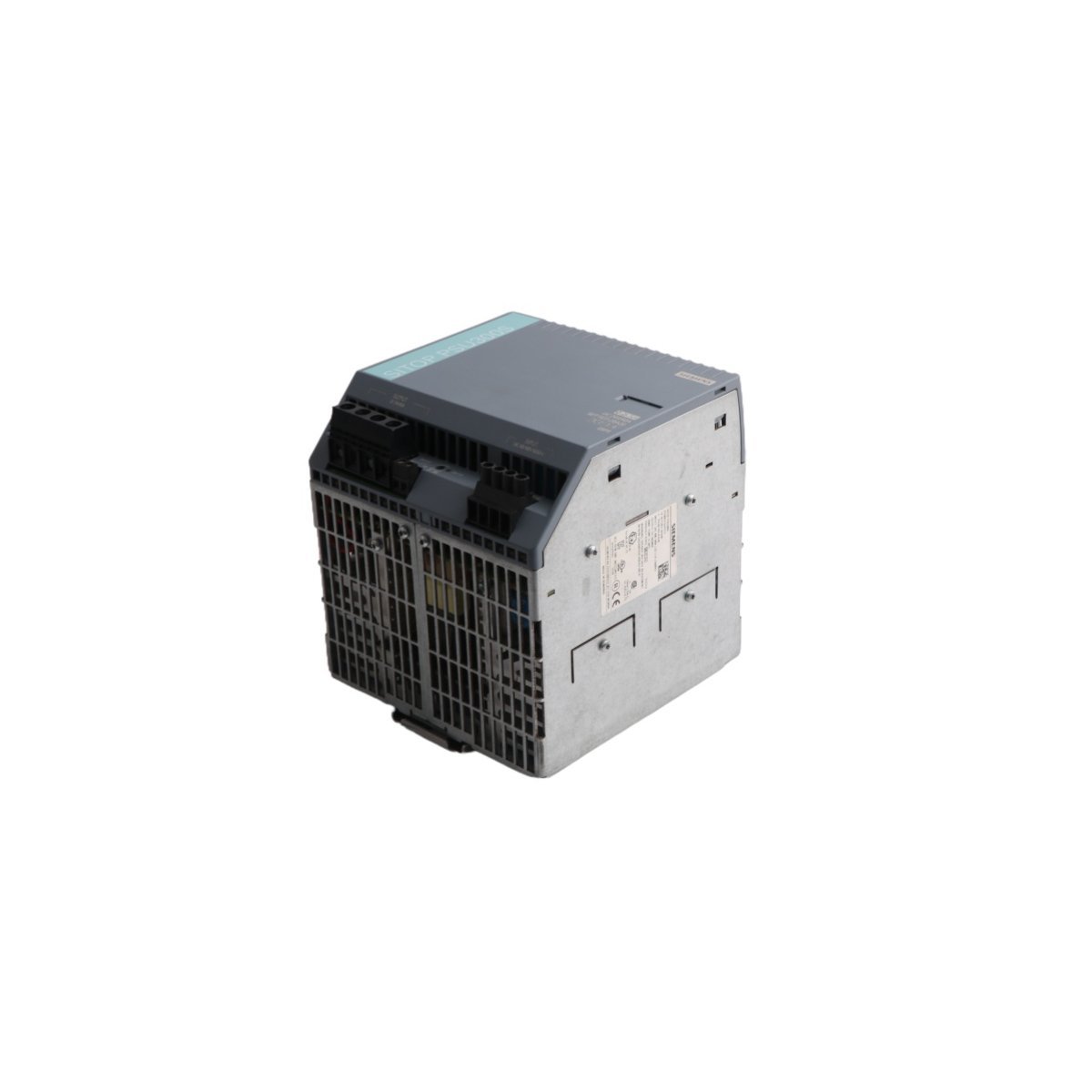

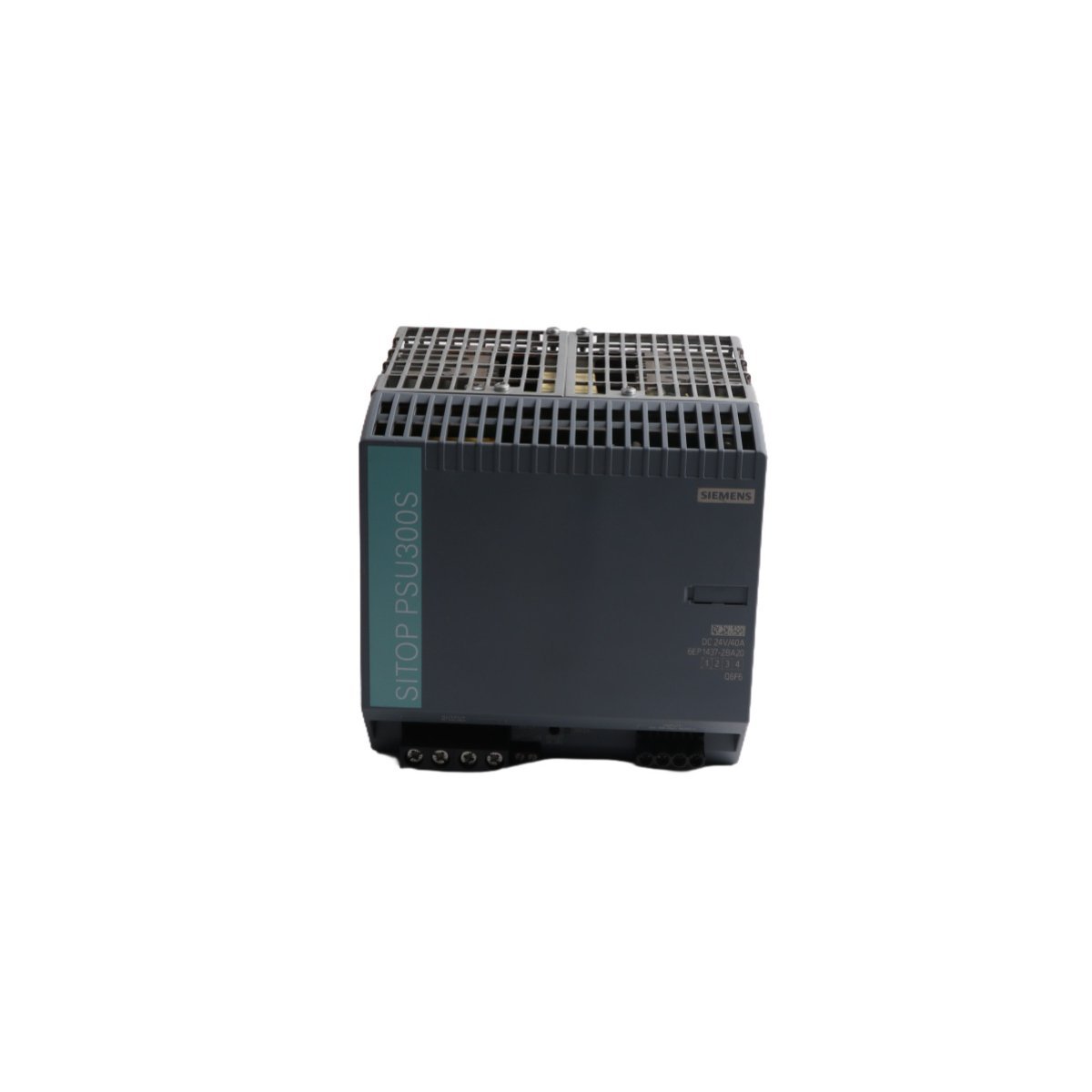

The Siemens 6EP1437-2BA20 is a high-performance, three-phase stabilized power supply from the SITOP PSU300S (Smart) series. It delivers a reliable 24V DC output at 40 Amps, specifically engineered to handle the rigorous energy demands of complex industrial automation and machinery.

Product Description

High-Capacity Industrial Energy Distribution

The Siemens 6EP1437-2BA20 functions as a central energy hub for heavy-duty automation environments. By converting a three-phase AC input into a stabilized 24V DC output, this unit supports large-scale PLC systems, sensors, and actuator networks. It provides a massive 40A current rating, which allows it to power multiple high-draw components simultaneously. Furthermore, the SITOP Smart technology enables the module to deliver 120% of the rated current for brief periods, ensuring that systems with high inrush currents start reliably without causing voltage drops.

Advanced Input Protection and Stability

Operating across a broad three-phase voltage range of 400V to 500V AC, the 6EP1437-2BA20 maintains exceptional stability even during significant line fluctuations. The module includes active power factor correction (PFC) to improve energy efficiency and reduce harmonic distortion within the control cabinet. To safeguard against power quality issues, the unit offers a buffering time of at least 6ms, which effectively bridges short-term mains interruptions. Integration remains straightforward, as the design accommodates standard DIN-rail mounting and requires only basic external circuit protection (10-16A C-type breakers).

Robust Construction for Demanding Environments

Siemens engineered the SITOP PSU300S 6EP1437-2BA20 to withstand the harsh conditions of manufacturing and process industries. The rugged metal housing dissipates heat efficiently, while the compact footprint optimizes space within dense electrical enclosures. Because the unit manages an input tolerance from 340V to 550V, it proves indispensable in global applications where grid stability may vary. This power supply exemplifies industrial-grade reliability, ensuring that downtime remains minimal by providing clean, constant DC power to critical control hardware.

Technical Specifications
