Product Overview

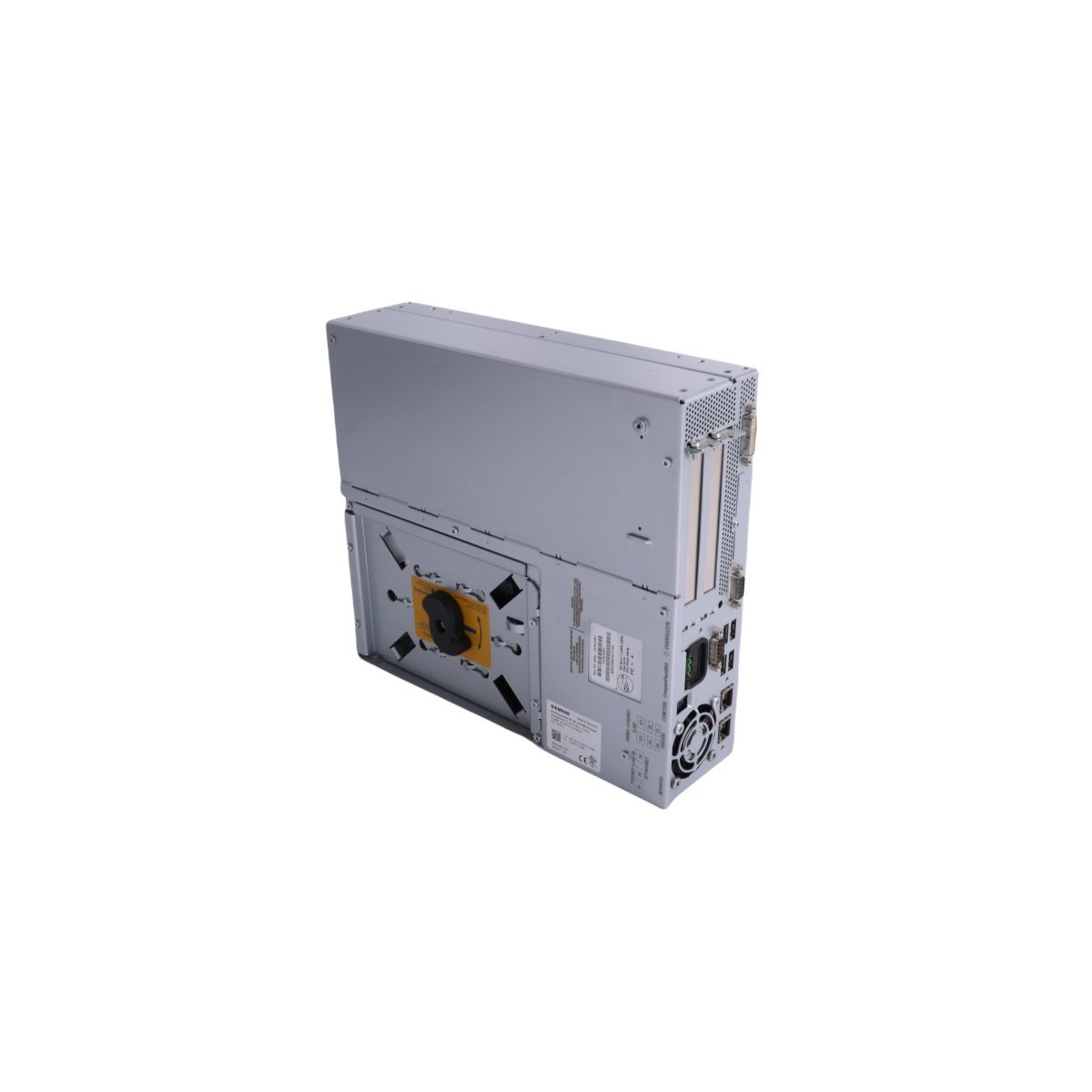

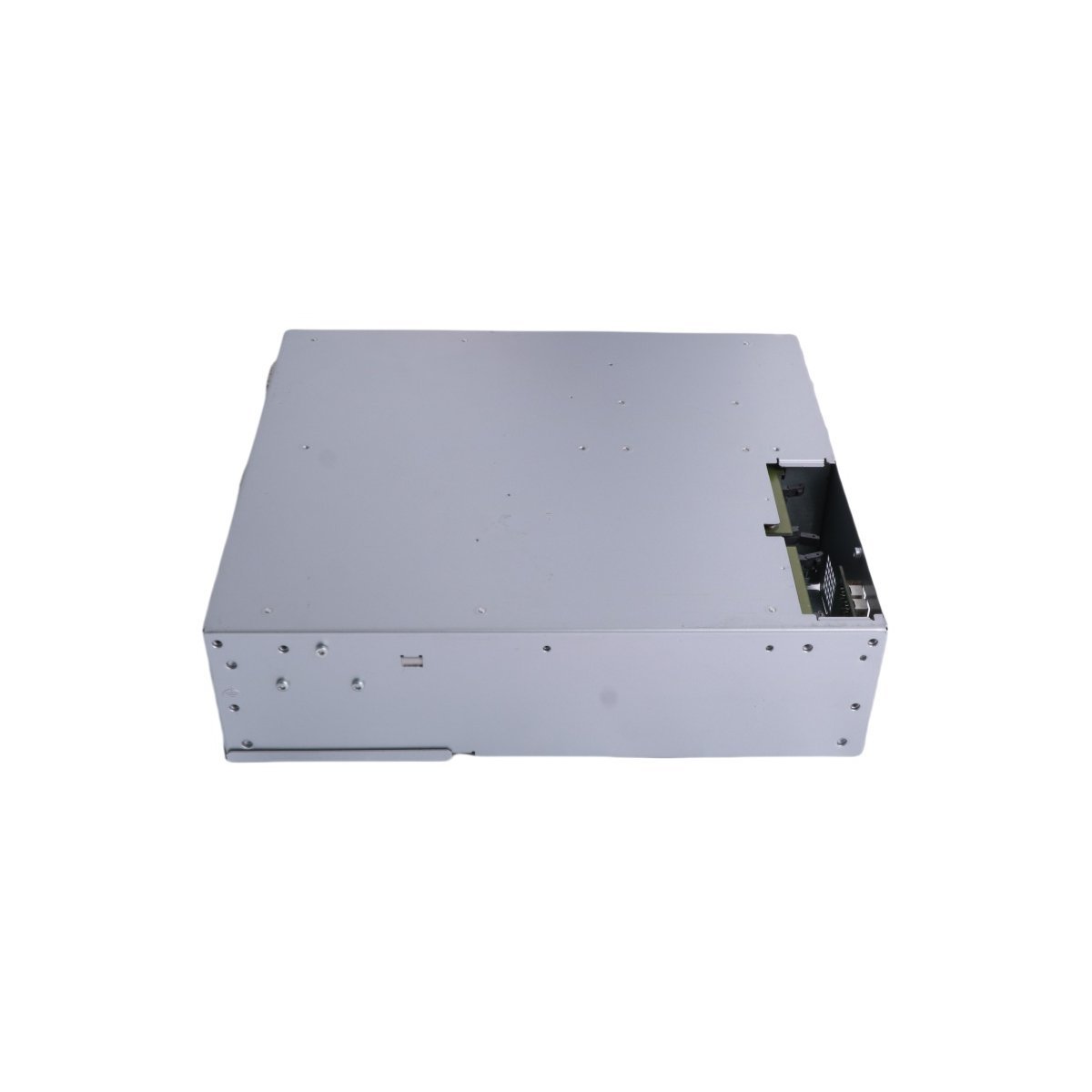

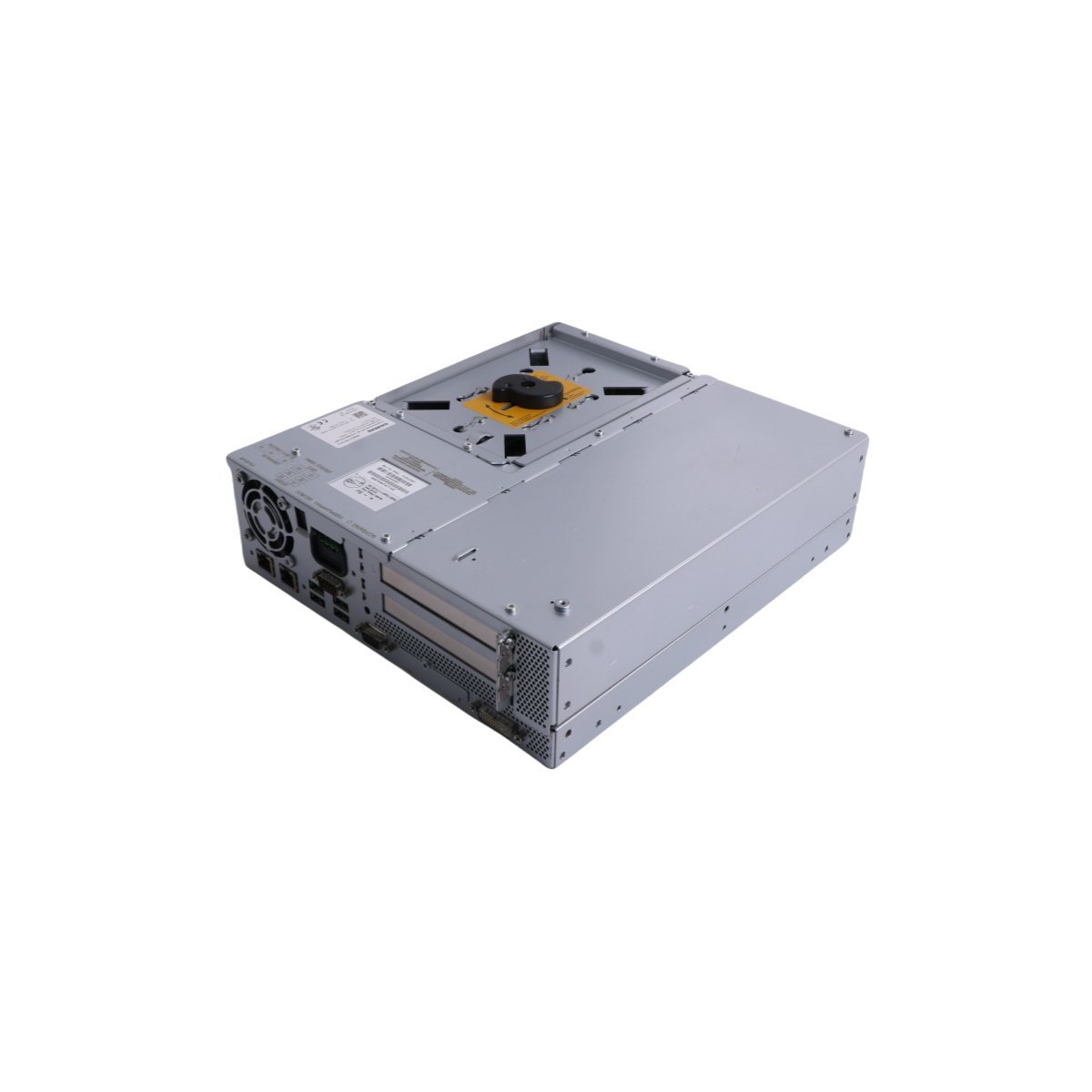

The Siemens 6FC5210-0DF31-2AB0 is a high-performance Program Control Unit (PCU) from the SINUMERIK 50.3B-C series, specifically engineered to manage the HMI and processing requirements of SINUMERIK 840D sl CNC systems. This industrial computing unit provides the essential computational power needed for advanced multi-axis machining and complex path calculations in modern manufacturing environments.

Advanced Computational Power for CNC

This electronic control unit utilizes a 1.5 GHz Intel Celeron processor and 512 MB of high-speed RAM to execute demanding real-time machining tasks. Because it serves as the primary interface for the SINUMERIK system, the 6FC5210-0DF31-2AB0 ensures smooth graphical rendering and rapid response times for ShopMill and ShopTurn programming. Furthermore, the 1.5 GB of internal user memory provides ample space for storing large NC programs and complex worktable data, effectively reducing the need for constant external data transfers.

Industrial Connectivity and System Reliability

Siemens optimized the 6FC5210-0DF31-2AB0 for high-availability production lines through its robust communication architecture. The module features integrated PROFIBUS interfaces, which allow for seamless synchronization with secondary PLC controllers and axis drives. While it operates on a Windows-based embedded platform, the hardware is ruggedized to withstand the electromagnetic interference and thermal fluctuations common in automotive and aerospace workshops. Additionally, the unit’s 24 VDC power requirement facilitates easy integration into standard industrial cabinets, ensuring consistent performance even during high-load 5-axis milling operations.

High-Precision Manufacturing Applications

The SINUMERIK PCU 50.3B-C excels in precision engineering sectors where downtime is not an option. Transitioning to this specialized control unit enables facilities to leverage advanced tool management and diagnostic features that extend machine tool life. Consequently, technicians can perform maintenance more efficiently thanks to the unit’s modular design and accessible port layout. Its reliable construction minimizes system crashes, ensuring that critical machining tolerances are maintained across long production cycles.

Technical Specifications
