Product Overview

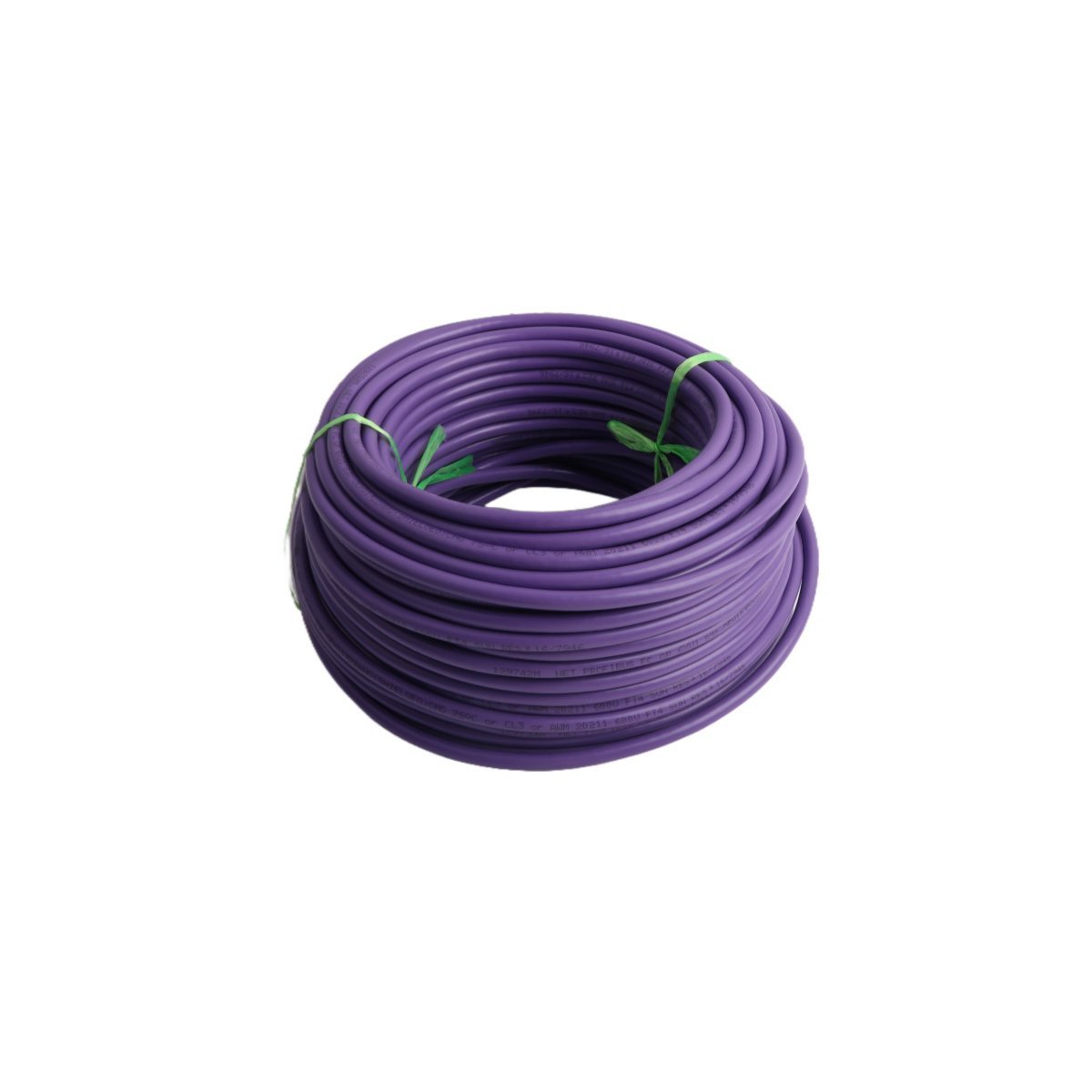

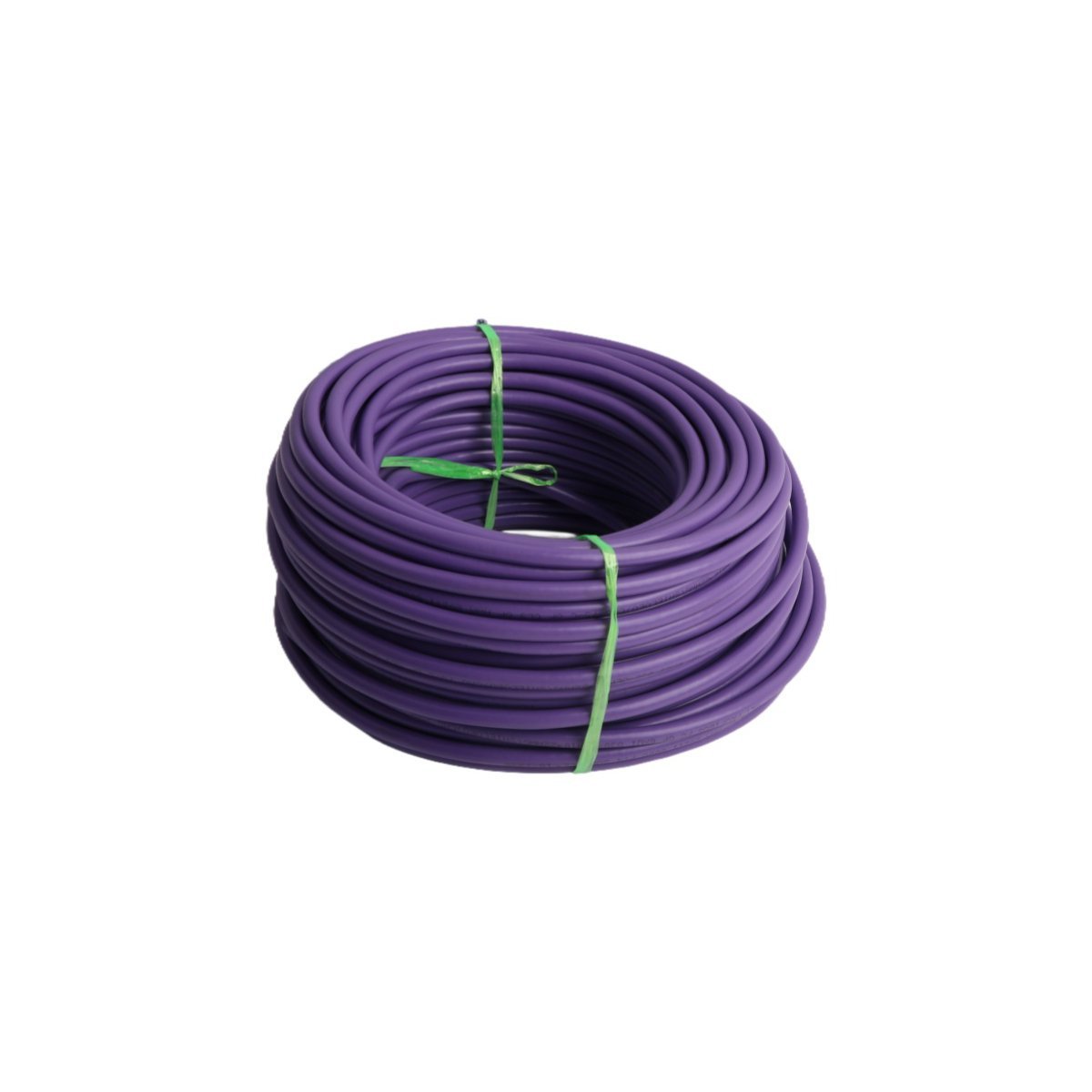

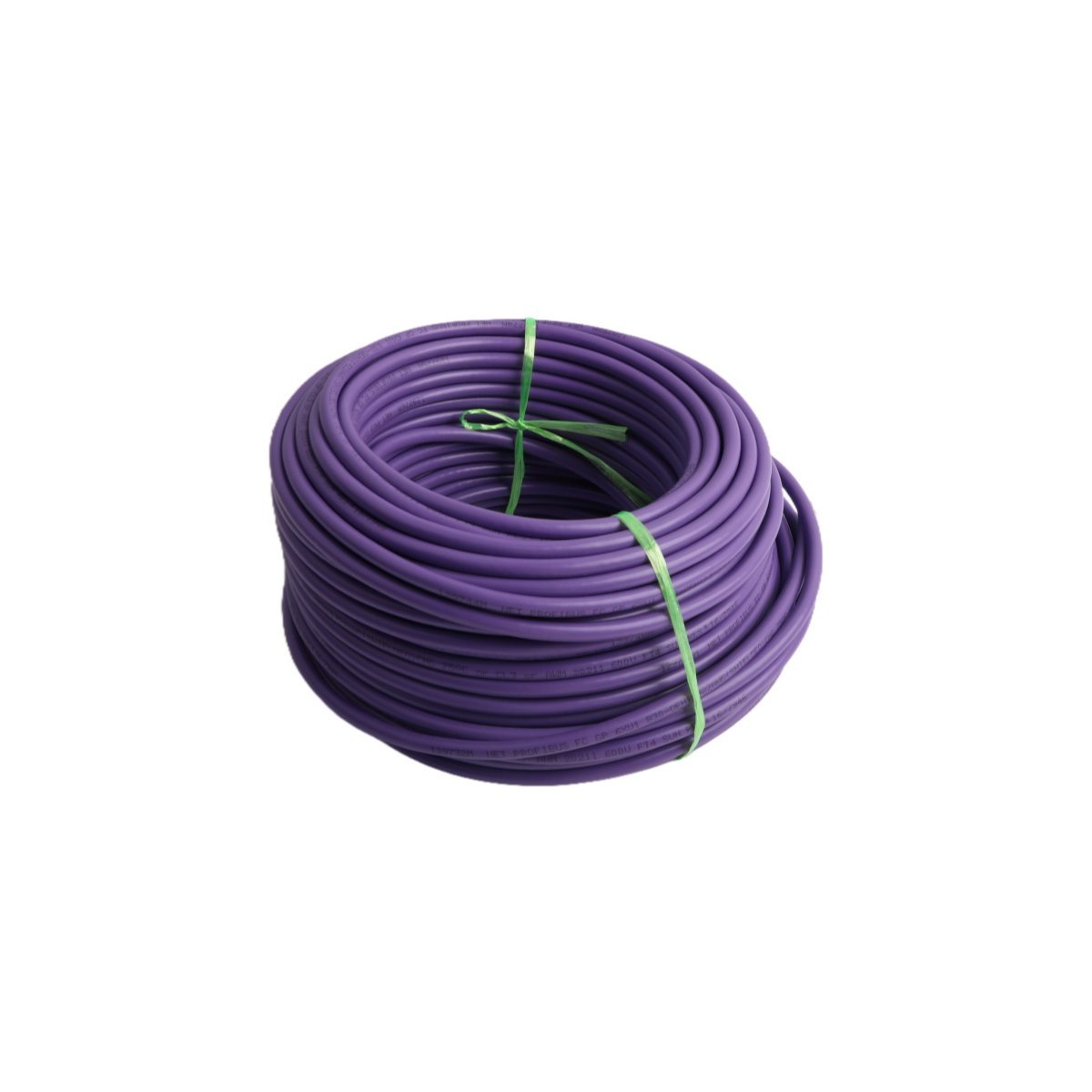

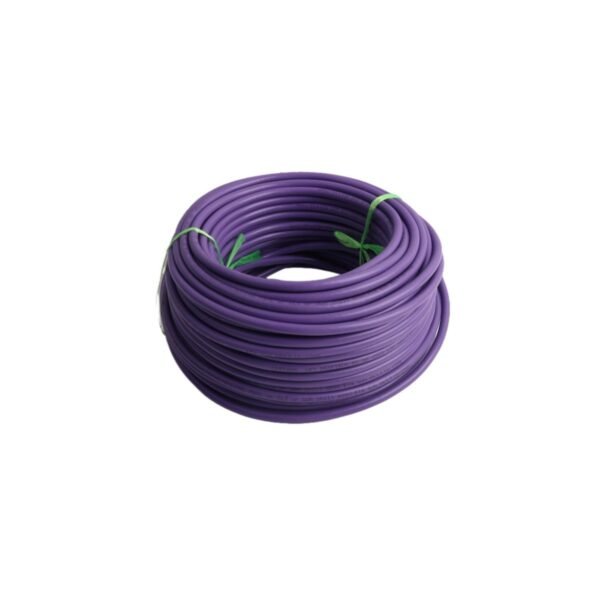

The Siemens 6XV1830-0EH10 serves as the primary physical media for PROFIBUS DP and FMS industrial networks. This FastConnect (FC) standard bus cable features a 2-wire, shielded design engineered for permanent installation in diverse automation environments. By utilizing a rigid solid copper conductor and a specialized radial construction, the cable facilitates high-speed data exchange between PLC systems and distributed I/O devices.

The outer sheath is composed of durable purple PVC, which provides resistance against common industrial stressors while maintaining flame-retardant properties. This cable is specifically optimized for use with Siemens FastConnect stripping tools and connectors, which significantly reduces the time required for field assembly and ensures a high-quality electrical connection.

Technical Specifications

• Manufacturer: Siemens
• Order Code: 6XV1830-0EH10
• Cable Category: PROFIBUS FastConnect (FC) Standard
• Wire Material: Bare solid copper
• Conductor Count: 2-wire (Red and Green cores)
• Shielding Type: Overlapping aluminum foil plus tinned copper wire braid
• Sheath Material: Polyvinyl chloride (PVC)
• External Diameter: 8.0 mm (± 0.4 mm)
• Weight per Meter:  76 kg/km (0.076 kg/m)
• Transmission Distance: Up to 1000m per segment (depends on baud rate)
• Data Rate Support: 9.6 Kbit/s to 12 Mbit/s
• Operating Temperature: -40°C to +75°C

Professional Application and Benefits

• Electromagnetic Compatibility: The dual-layer shielding system effectively mitigates external signal noise and interference, which maintains signal integrity across long distances.
• Field Assembly Efficiency: Because the cable utilizes the FastConnect system, technicians can strip the outer jacket and shield in a single operation, which prevents common wiring errors.
• Network Scalability: This standard cable supports complex bus topologies and allows for expansion through the integration of RS 485 repeaters or optical link modules.
• Regulatory Compliance: The insulation complies with UL/CSA standards and fulfills IEC 60332-1-2 flame resistance requirements for industrial safety.
