Product Overview

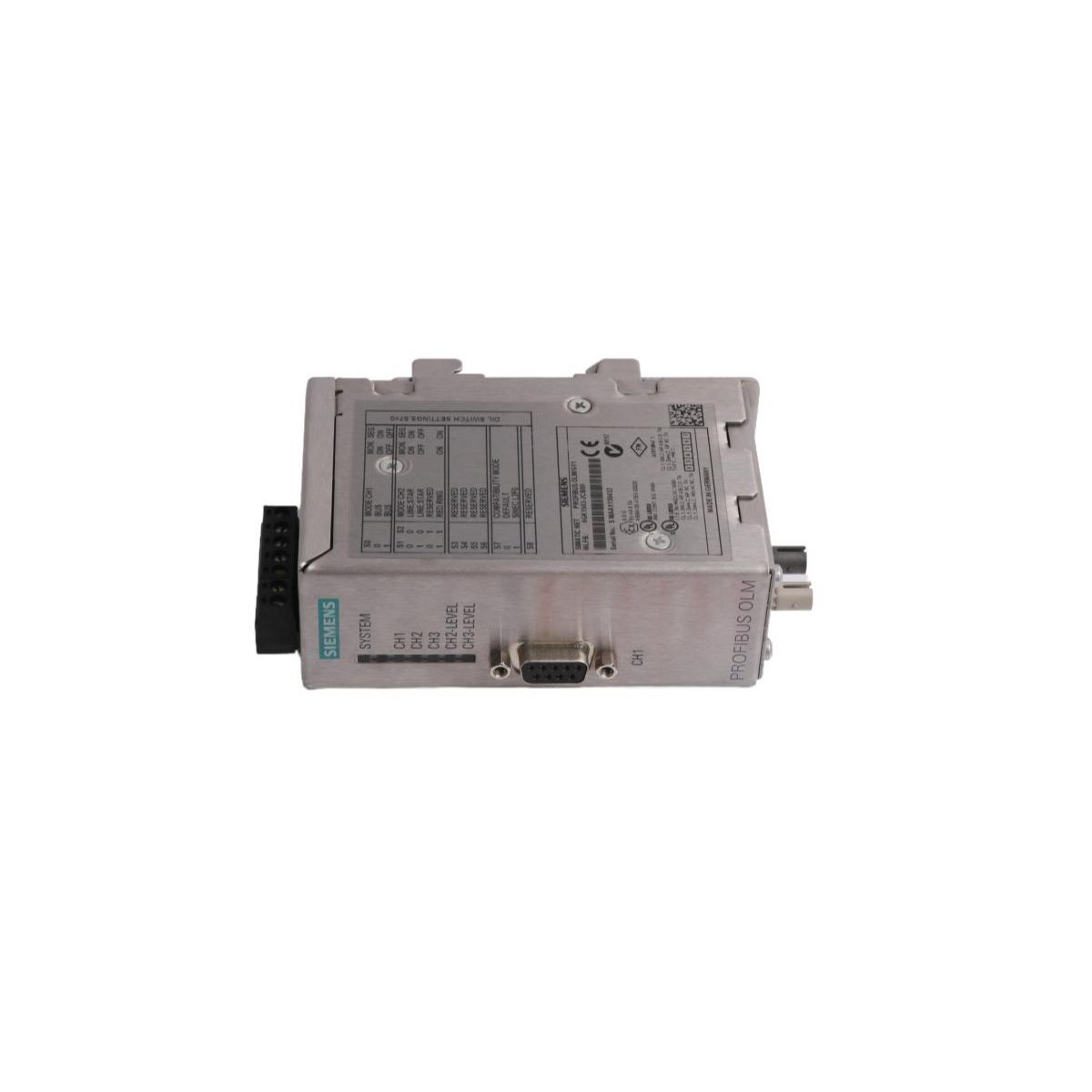

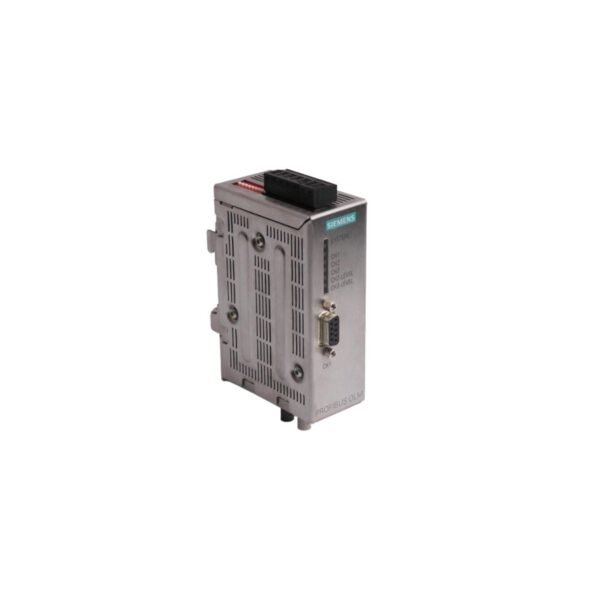

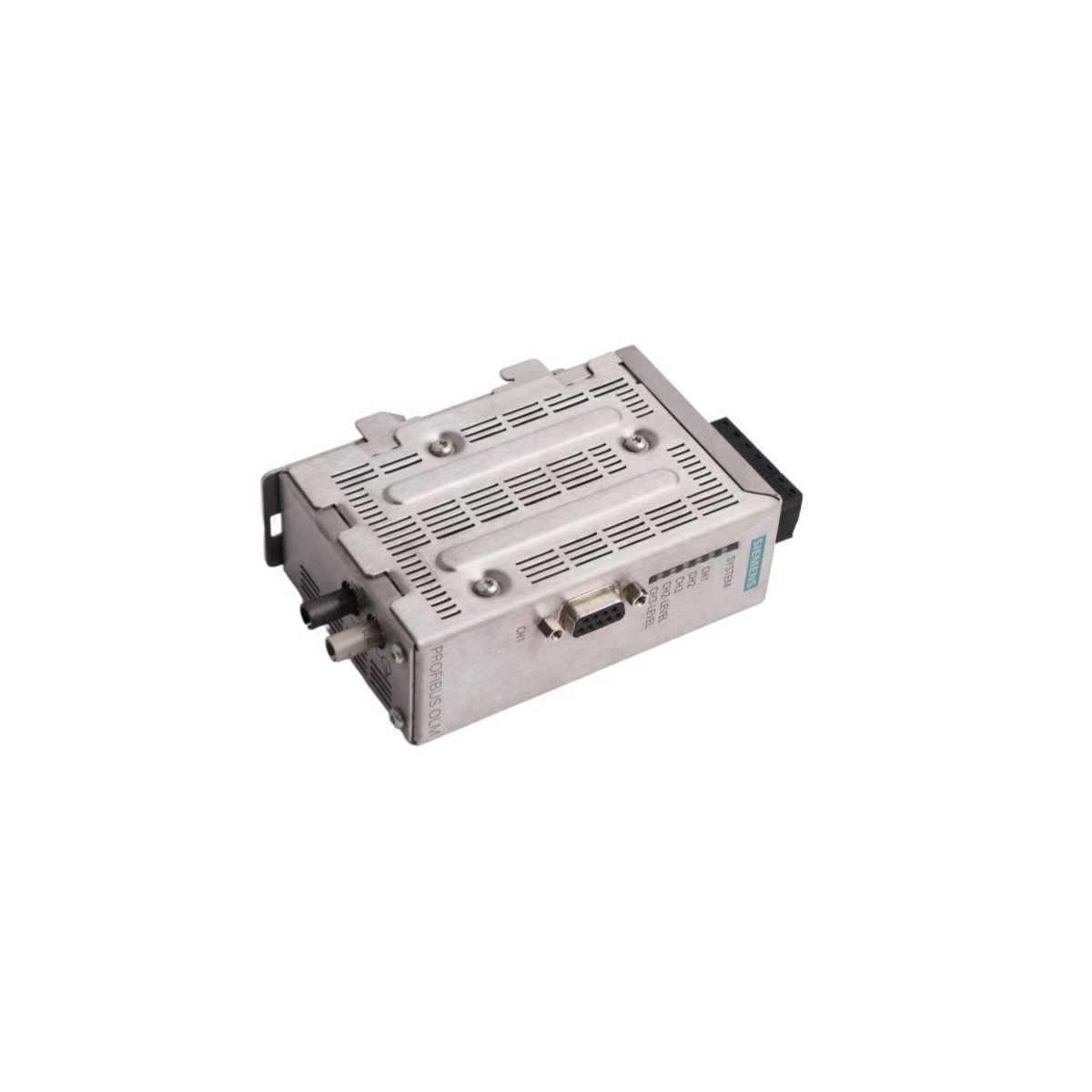

The Siemens 6GK1503-2CB00 is a professional-grade PROFIBUS OLM/G11 (Optical Link Module) designed to convert electrical RS485 signals into glass fiber optic signals.² This transition enables secure, high-speed data transmission over extended distances while providing total immunity to electromagnetic interference in industrial environments.

Advanced Fiber Optic Networking

This module serves as a critical bridge between copper and optical networking, featuring one RS485 electrical port and one optical port equipped with two BFOC sockets.³ By utilizing glass fiber technology, the 6GK1503-2CB00 allows for significantly longer bus segments than standard copper cabling. The unit supports the full spectrum of PROFIBUS transmission speeds, ranging from 9.6 kbit/s up to 12 Mbit/s, and includes specific compatibility for PROFIBUS PA at 45.45 kbit/s.⁴ Consequently, it ensures high-speed synchronization across complex distributed I/O architectures.

System Diagnostics and Reliability

Siemens integrated several maintenance-oriented features into the 6GK1503-2CB00 to minimize system downtime. An onboard signaling contact provides immediate notification of link failures or power loss, while a dedicated test port allows technicians to measure optical power levels without interrupting the bus.⁵ To ensure stable performance, the module accepts a wide 24 V DC input range (18.8 V to 28.8 V) and incorporates a non-replaceable fuse to protect internal electronics against power surges.⁶ These safeguards make the module a dependable choice for mission-critical automation infrastructure.

Industrial Design and Installation

The OLM/G11 V4.0 features a compact and rugged housing designed for standard DIN rail mounting, optimizing space within control cabinets.⁷ Its lightweight 0.34 kg construction belies a durable exterior capable of withstanding the vibrations and temperature fluctuations common in factory settings. Furthermore, the module’s “plug-and-play” capability for different PROFIBUS protocols simplifies the expansion of existing networks, allowing for easy integration into automotive, chemical, and energy production facilities.
