Description

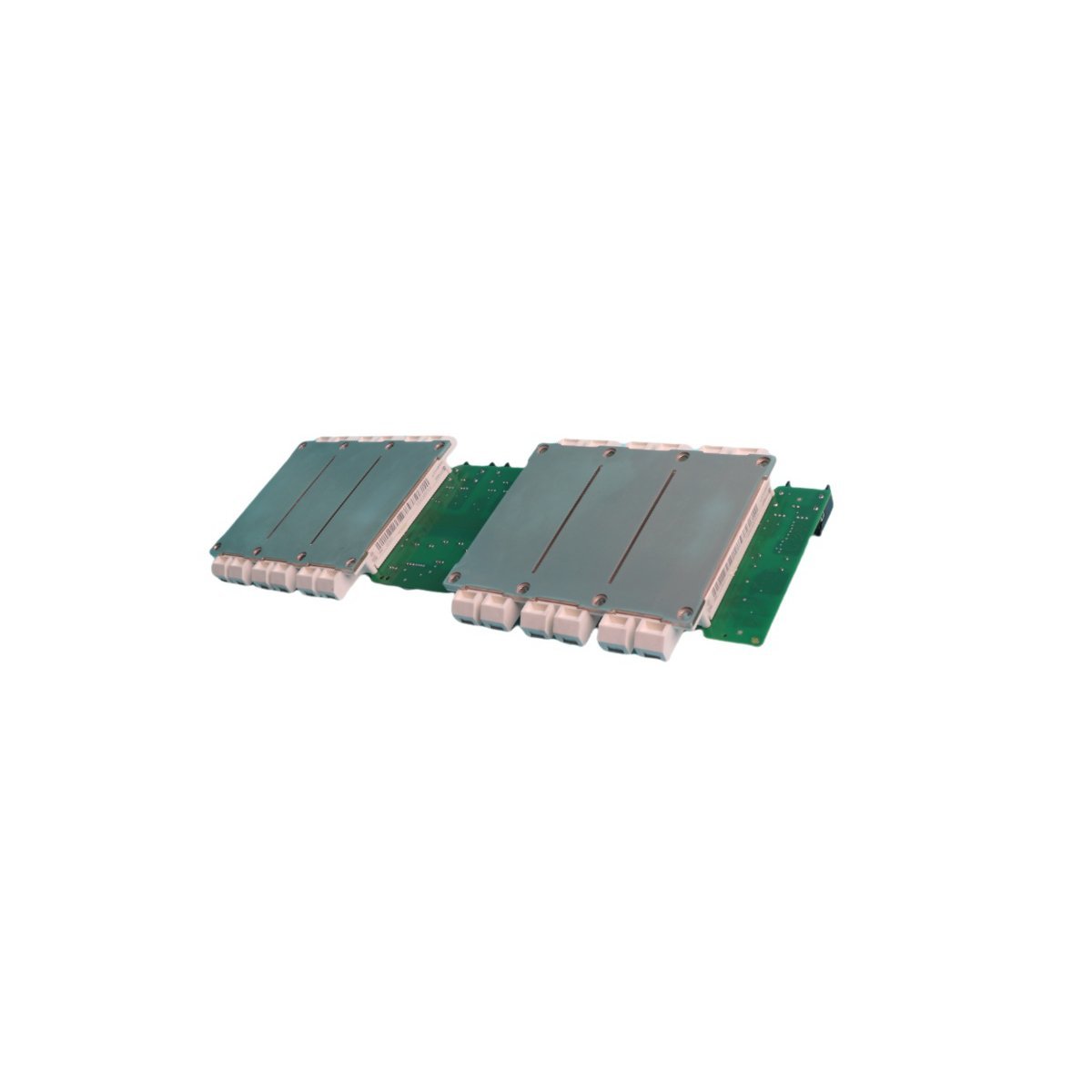

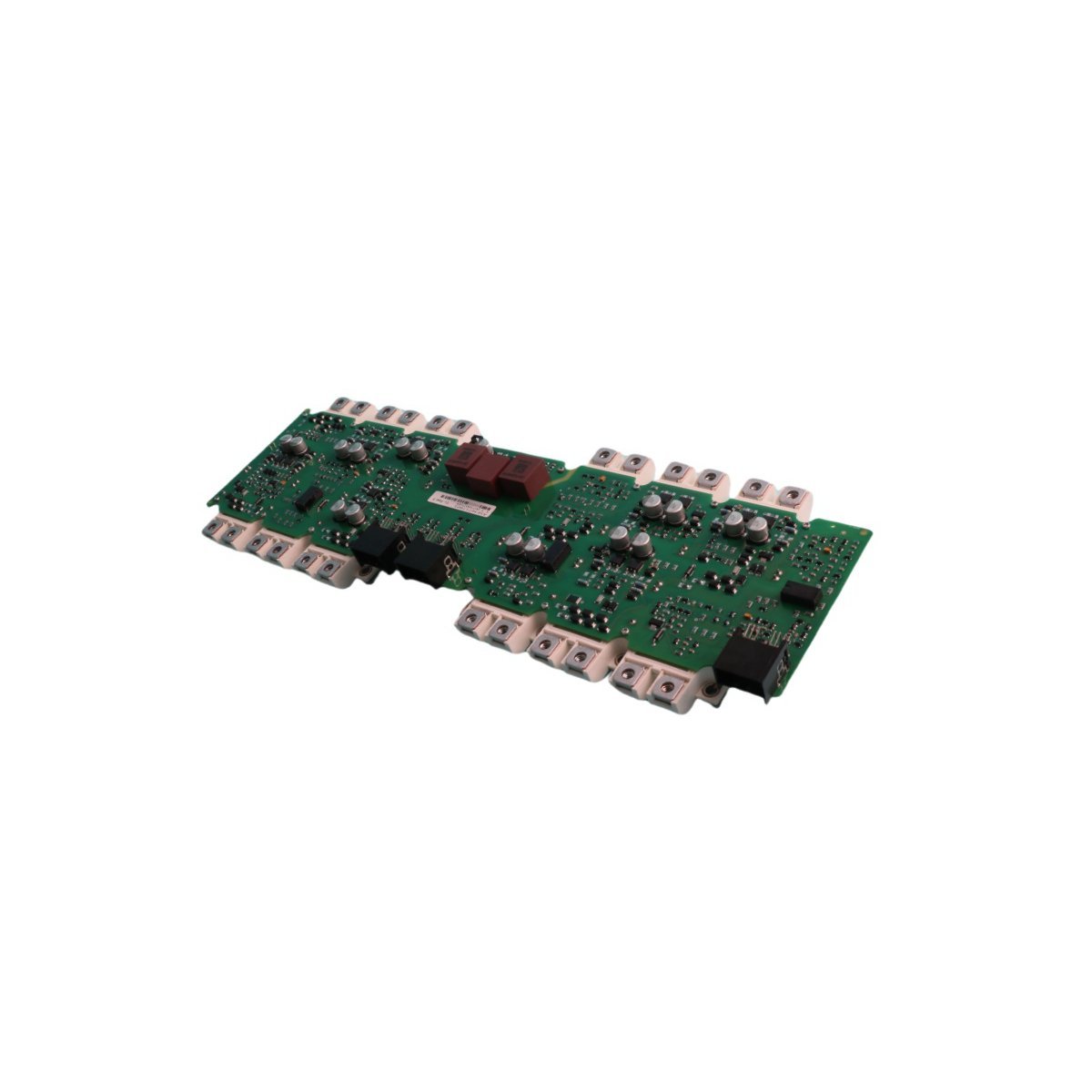

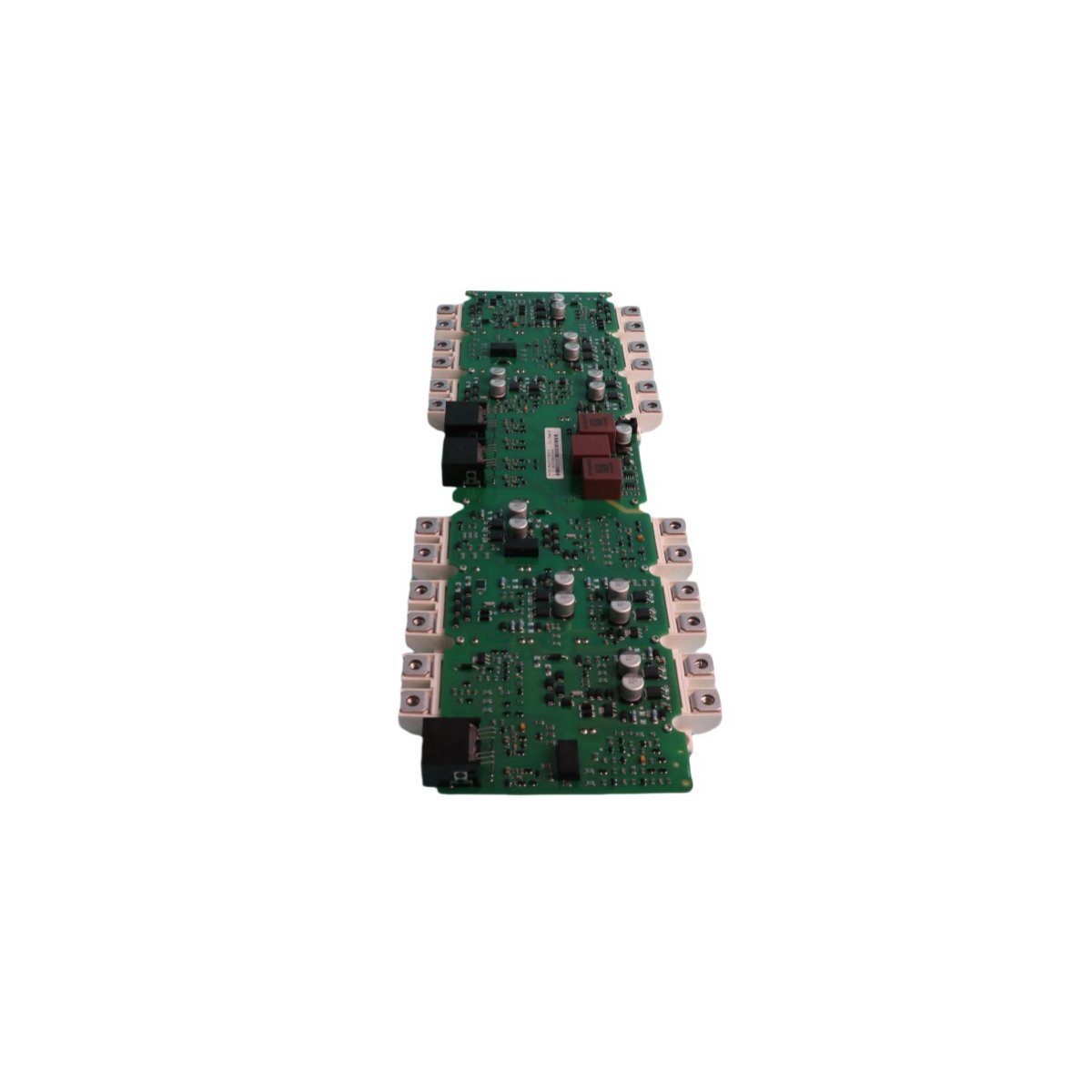

The Siemens A5E42881731 serves as a critical power cell within the Robicon Perfect Harmony GH180 drive systems. This unit manages complex energy conversion for medium voltage applications. It supports a nominal DC voltage range between 1,000V and 1,700V. Additionally, the hardware handles input currents from 50A up to 200A. Its design ensures stable output voltage reaching 1,140V AC. Consequently, this module provides the necessary electrical foundation for high-demand industrial motors.

Core Technical Specifications

• Brand: Siemens Robicon
• Article Number: A5E42881731
• Product Category: Power Cell / Power Unit
• Input Voltage: 1,000V – 1,700V DC
• Output Voltage: 690V – 1,140V AC
• Input Current: 50A – 200A
• Operating Frequency: 0 – 60 Hz
• Insulation Class: 5kV – 15kV rating
• Physical Weight: 0.38 kg
• Country of Origin: Germany

Industrial Reliability and Safety

Safety remains a primary focus for the A5E42881731 architecture. The unit features high-grade insulation rated up to 15kV. This specification protects sensitive control electronics from high-voltage surges. Furthermore, the compact 12.2 cm depth allows for efficient cabinet density. Built-in thermal management systems prevent overheating during continuous operation. Therefore, the unit maintains peak performance in mission-critical manufacturing environments.

System Compatibility and Integration

This power unit integrates seamlessly with Sinamics SL150 and legacy Robicon automation platforms. It functions as a modular component for easy maintenance. Technicians can perform quick retrofits or repairs due to its standardized form factor. Moreover, the unit facilitates precise switching frequencies up to 60Hz. This capability allows for smooth motor control across various torque requirements. Ultimately, the A5E42881731 ensures maximum uptime for large-scale power generation and robotic equipment.
